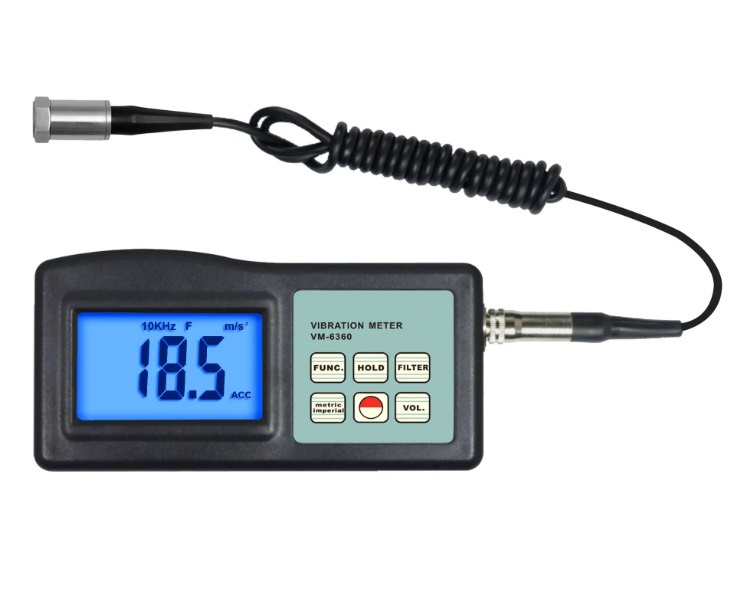

Vibration Meter
เครื่องวัดความสั่นสะเทือน VM6360

✅ ช่วงการวัด Acceleration (Peak) 0.1 ถึง 400 m/s²
✅ ช่วงการวัด Velocity (RMS) 0.01 ถึง 400.0 mm/s
✅ ช่วงการวัด Displacement (Peak – Peak) 0.001 ถึง 4.000 mm
✅ ช่วงความถี่ 10Hz ถึง 1KHz
✅ ความแม่นยำ ±5% +2 digits
✅ ฐานแม่เหล็กสำหรับเซ็นเซอร์และ Piezoelectric accelerometer

#VibrationMeter
#เครื่องวัดความสั่นสะเทือน

Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep.

* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “ BT ™ data output” choice.
Sensor   Piezoelectric Accelerometer
  Measuring Range
  Acceleration: 0.1~400 m/s²   0.3~1312 ft/s²   0.0~40 g   Equivalent Peak
  Velocity: 0.01~400 mm/s   0.004~16.0 inch/s   True RMS
  Displacement: 0.001~4.0 mm   0.04~160.0 mil   Equivalent Peak-peak
  Frequency Range   Acceleration: 10 Hz ~ 1k Hz   10 Hz ~ 10k Hz
  Velocity: 10 Hz ~ 1k Hz
  Displacement: 10 Hz ~ 1k Hz
  Accuracy   5 % of Reading + 2 digits
  Metric / Imperial Conversion
  Analogue Output   AC Output 0~2.0 V Peak Full Scale (Load Resistance: Above 10k)
  Max. Value Hold
  Power Off   Manual Power Off or Auto Power Off
  Battery Indicator   Low Battery Indicator
  Data Output   USB, RS-232, BT
  Operating Conditions   Temperature: 0~50 °C Humidity: <90 %RH
  Power Supply   4 x 1.5V AAA size (UM-4) Battery
  Dimensions   124 x 62x 30 mm
  Weight   120 g (Not Including Batteries)

Standard Accessories:

1. Main Unit

2. Magnetic Suction Seat

3. Piezoelectric Transducer

4. Probe (Cone)

5. Probe (Spherical)

6. Carrying Case

7. Manual Book

Optional Accessories:

1. Headset

2. USB, RS-232 data cable with software

3. BT data out put with software
