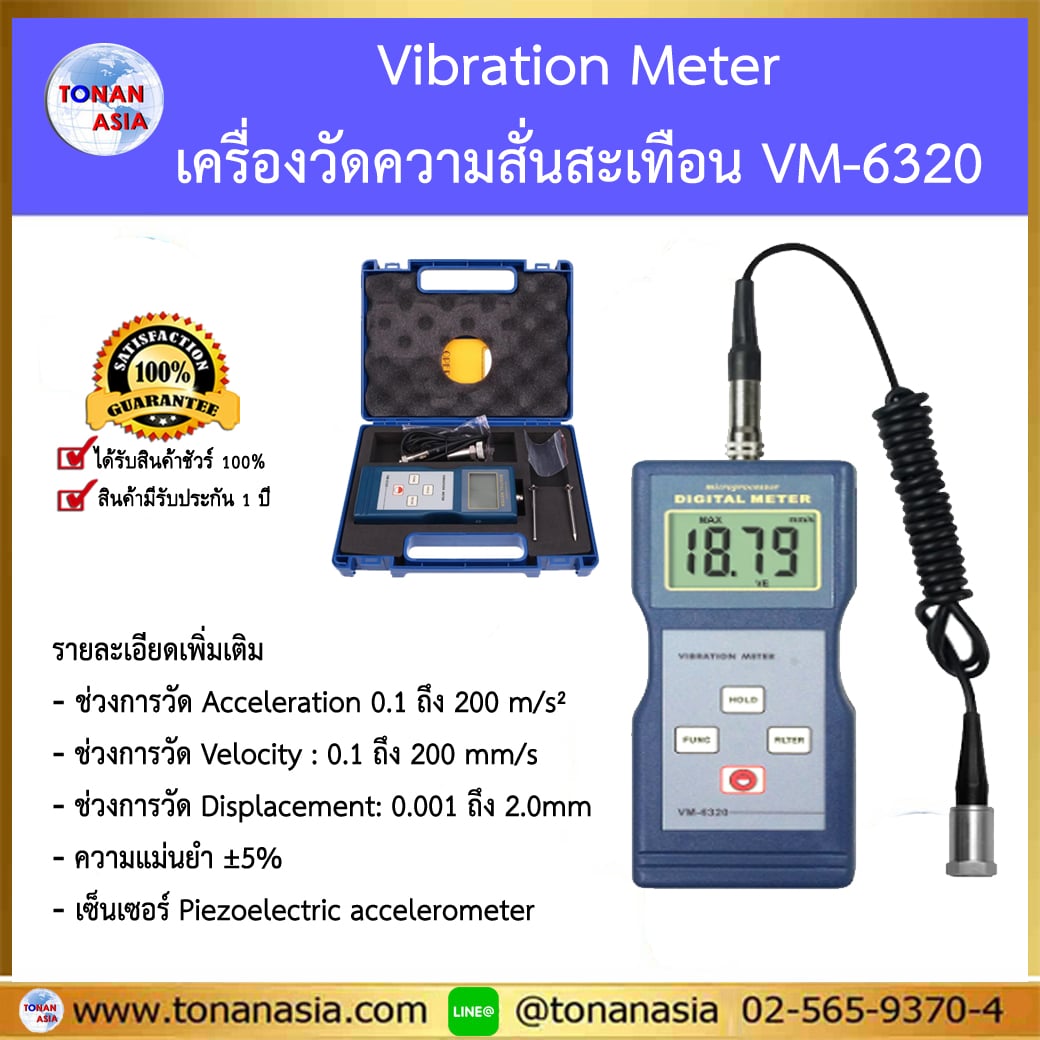

Vibration Meter
เครื่องวัดความสั่นสะเทือน VM-6320

✅ ช่วงการวัด Acceleration 0.1 ถึง 200 m/s² (10Hz ถึง 1KHz, 10Hz ถึง 10KHz )
✅ ช่วงการวัด Velocity : 0.1 ถึง 200 mm/s (10Hz ถึง 1KHz)
✅ ช่วงการวัด Displacement: 0.001 ถึง 2.0mm(10Hz ถึง 1KHz)
✅ ความแม่นยำ ±5%
✅ เซ็นเซอร์ Piezoelectric accelerometer
✅ คุณสมบัติตามมาตรฐาน ISO 2954

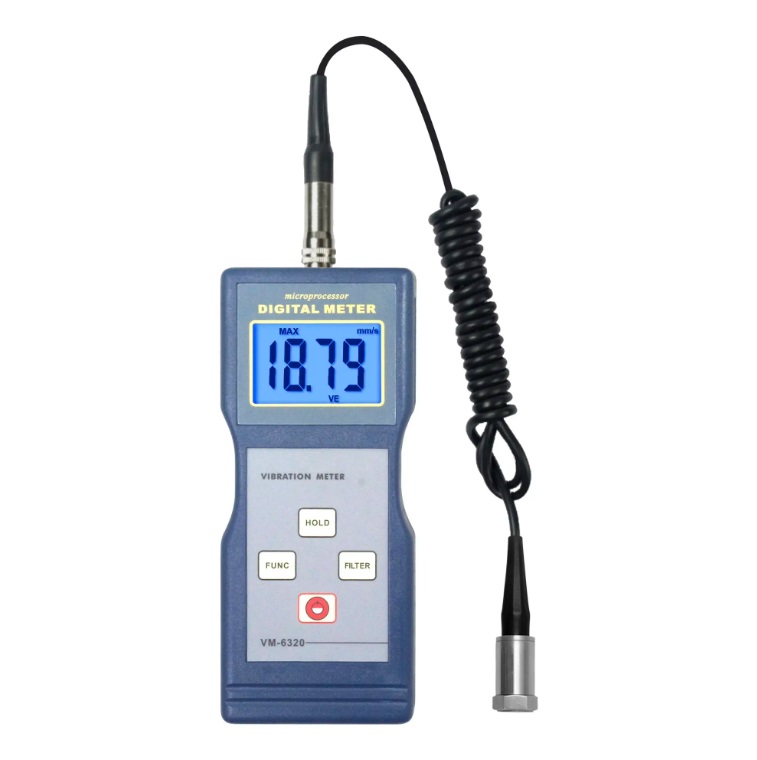

Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep.

* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.

* Individual high quality ccelerometer for accurate and repeatable measurements.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use “USB data output” and “RS-232 data output” to connect with PC.

* Provide “ BT ™ data output” choice.

Sensor	Piezoelectric Accelerometer
Measuring Range	Acceleration: 0.1~200 m/s² Equivalent Peak
	Velocity: 0.01~200 mm/s True RMS
	Displacement: 0.001~2.0 mm Equivalent Peak-peak
Frequency Range	Acceleration: 10 Hz ~ 1k Hz 10 Hz ~ 10k Hz
	Velocity: 10 Hz ~ 1k Hz
	Displacement: 10 Hz ~ 1k Hz
Accuracy	< 5 %
Analogue Output	AC Output 0~2.0 V Peak Full Scale (Load Resistance: Above 10k)
Max. Value Hold
Power Off	Manual Power Off or Auto Power Off
Battery Indicator	Low Battery Indicator
Data Output	USB, RS-232, BT
Operating Conditions	Temperature: 0~50 °C Humidity: <90 %RH
Power Supply	4 x 1.5V AA size (UM-3) Battery
Dimensions	160 x 68 x 32 mm
Weight	181 g (Not Including Batteries)
