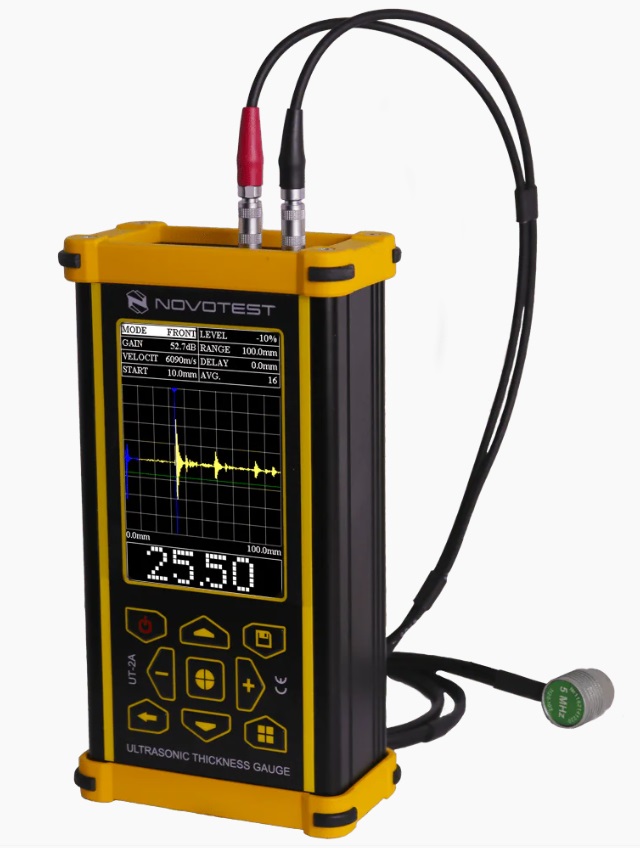

Ultrasonic Thickness Gauge NOVOTEST UT-2A (A-scan)

Ultrasonic thickness gauge with A-scan UT-2A is a powerful, lightweight and portable thickness gauge, made in an ergonomic shock-resistant case with rubber protectors – a modern industrial version of a general-purpose thickness gauge. It is an excellent choice for expert ultrasonic testing in the laboratory and the field conditions.

  • Wide range of measuring thicknesses
  • Function of thickness gauge and flaw detector
  • Convenience and ease in operation
  • B-scan mode, which allows user to get the product profile like a picture that is easy to read
  • Minimum number of controls
  • Select the type of probe from archive
  • Preset velocity of ultrasound
  • High brightness color display
  • Indicator the presence of acoustic contact
Probe type range for steel, mm:



  • Probe 10MHz – P112-10-2×3
  • Probe 10MHz – P112-10-6 / 2
  • Probe 5MHz – P112-5-10 / 2
  • Probe 2,5MHz – P112-2,5-12 / 2
  • Probe 2MHz – P112-2-20 / 2
  • Probe 1,25MHz – P112-1.25-20 / 2




  • 0.4-15
  • 0.45-300
  • 0.8-500
  • 2.5-1000
  • 3-1200
  • 4-1500
Probe dimensions, mm:



  • Probe 10MHz – P112-10-2×3
  • Probe 10MHz – P112-10-6 / 2
  • Probe 5MHz – P112-5-10 / 2
  • Probe 2,5MHz – P112-2,5-12 / 2
  • Probe 2MHz – P112-2-20 / 2
  • Probe 1,25MHz – P112-1.25-20 / 2




  • 4×9×60
  • D12×15
  • D17×20
  • D20×21
  • D30×28
  • D30×35
Dimensions of probe contact area/crystal, mm:



  • Probe 10MHz – P112-10-2×3
  • Probe 10MHz – P112-10-6 / 2
  • Probe 5MHz – P112-5-10 / 2
  • Probe 2,5MHz – P112-2,5-12 / 2
  • Probe 2MHz – P112-2-20 / 2
  • Probe 1,25MHz – P112-1.25-20 / 2




  • 2×7/2×3
  • D9/D6
  • D14/D10
  • D16/D12
  • D24/D20
  • D24/D20
Optional probes:



  • 5MHz high-temperature probe (echo) 10/2



  • 2,5MHz probe (echo-echo) 12/2 for through coating



  • 5MHz probe (echo-echo) 10/2 for through coating



  • 10MHz probe (echo-echo) 6/2 for through coating



  • 5MHz probe (echo-echo) 10/2 for through coating, underwater, 10 m cable



  • 5MHz probe (echo-echo) 10/2 for through coating, underwater, 20 m cable



  • 5MHz probe (echo-echo) 10/2 for through coating, underwater, 30 m cable




  • range 0,8 – 300 mm,
    surface temperature up to 250 °С/482 °F
  • range 6 – 30 mm,
    coating thickness range – up to 1 mm
  • range 3,5 – 26 mm,
    coating thickness range – up to 1 mm
  • range 2 – 12 mm,
    coating thickness range – up to 0,6 mm
  • range 3,5 – 26 mm,
    coating thickness range – up to 1 mm
  • range 3,5 – 26 mm,
    coating thickness range – up to 1 mm
  • range 3,5 – 26 mm,
    coating thickness range – up to 1 mm
Compatible probe types
  • Dual-element
  • Single-element

(including probes of other manufacturers)

  • EMAT
Measurement units
  • mm
  • inch
  • μs
Resolution, mm/inch 0,01/0,001
Ultrasound velocity adjustment range, m/s 700-17000
Ultrasound velocity in the standard device sample, m/s 6070 ± 70
Operating modes
  • A-scan
  • B-scan
  • Digital mode
  • Control mode
  • Manual
Measurement methods
  • Echo
  • Echo Echo (Dual Echo)
  • Peak-peak
PC cable connection
Wireless connection with Android gadgets via NOVOTEST Lab App No
Storage capacity of measurement results 7000 and more (Limited only by the memory card)
Menu Language
  • English
  • Russian

*additional languages available by request

Display Colour, 3,5 inch 480*320
Weight of the electronic unit, not more, kg 0,5
Dimensions (L x W x H) 165x90x50 mm
Power Supply Built-in Li-ion Battery
Time of continuous work, not less than, h 10 (up to 20 by special order)
Operating temperature range for the electronic unit, ° C -20 to +40
Air moisture, no more 98 %, at 35 °С



  • Electronic unit Ultrasonic Thickness Gauge UT-2A
  • Probe 1 pc
  • Cable for PC
  • Charger
  • Operating manual
  • Case
