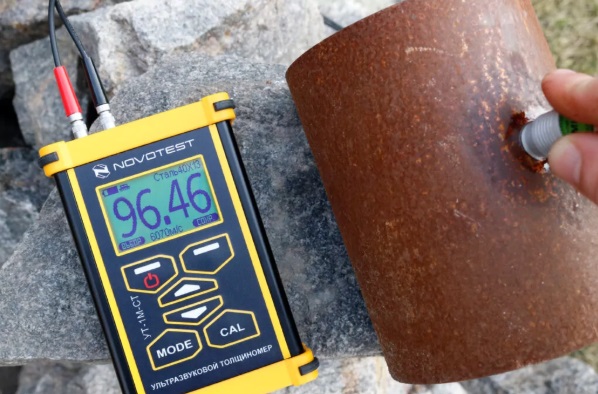

Ultrasonic Thickness Gauge NOVOTEST UT-1M-ST
This special version of the thickness gauge, housed in a durable aluminum enclosure, is designed for extreme conditions where the device might be dropped or damaged. Its robust profile withstands high static and dynamic compression, allowing for “careless” use.
Probe type range for steel, mm:
|
|
Probe dimensions, mm:
|
|
Dimensions of probe contact area/crystal, mm:
|
|
Optional probes:
|
range 0,8 – 300 mm,
|
Compatible probe types |
|
Compatibility with Active EMAT Transducer EMAT-A1 | No |
Probe calibrations (V-path, TVG, etc.) |
|
Probe cable connector type | 2 Lemo 00 |
Probe cable length, m | 1,2 |
Measurement scales |
|
Measurement resolution, mm/inch | 0.01/0.001 (0.01/0.0001 by request) |
Basic measurement accuracy, mm | ± (0,01 T+0.05) (*For range 0.8 – 300 mm) |
Gain range, dB | ± 20 |
Response time, with no more than, s | 1 |
Setting range of the ultrasonic velocity, m / s | 1000-17000 |
Preset velocities for materials | Steel (8 different grades), Aluminum, Iron, Cast Iron, Zinc, Chromium, Copper, Brass, Bronze, Silver, Gold, Nickel, Tungsten, Tin, Lead, Molybdenum, Manganese, Magnesium, Rubber, Polystyrene, Plexiglas, Capron, Caprolon, ED-5, Ebonite, Porcelain, Teflon, Textolite, Silicate Glass, Acrylic glass, User |
Operating modes |
|
Standards |
|
Body type / Dust and moisture protection level |
|
Calibration thickness block on the body | 6 mm (Steel/~6080 m/s) |
PC cable connection |
|
Wireless connection with Android gadgets via NOVOTEST Lab App | No |
Storage capacity of measurement results | 128 |
Measurement archives |
|
Menu languages | English, Spanish, Ukrainian, Russian (other languages optional) |
Operating environment |
|
Power supply | DC 3V (2 pcs standard batteries AA) |
Time of continuous work hours, not less, h | 25 |
Charging | External charger for 2pcs AA batteries |
Weight of electronic unit with batteries, no more, kg | 0.25 |
Overall dimensions, mm | 130x90x40 |
Package weight, kg | 1.5 |
Package dimensions, cm | 33*27*10 |
- Electronic unit Ultrasonic Thickness Gauge NOVOTEST UT-1M-ST
- Transducer (ECHO probe) – 1 pc for choice (2.5MHz, 5MHz or 10MHz)
- AA batteries – 2 pcs
- Charger
- Cable for PC
- Online PC software
- Operating manual
- Case
- Available probes 1.25-10 MHz:
– 1.25MHz probe (echo) 20/2 for substantial thicknesses or materials with exceptionally high signal attenuation
– 2.0MHz probe (echo) 20/2 for large thicknesses or materials with high signal attenuation
– 2.5MHz probe (echo) 12/2 for thick samples
– 5MHz probe (echo) 10/2 for a wide range of basic samples
– 10MHz probe (echo) 6/2 for thin samples
– 10MHz probe (echo) 2х3 for products of complex shapes, usually turbine blades
– 5MHz high-temperature probe (echo) 10/2 for heated samples up to 250 °С/482 °F
– 2.5MHz probe (echo-echo) 12/2 for through coating
– 5MHz probe (echo-echo) 10/2 for through coating
– 10MHz probe (echo-echo) 6/2 for through coating
– 5MHz probe (echo-echo) 10/2 for through coating, underwater, 10 m cable
– 5MHz probe (echo-echo) 10/2 for through coating, underwater, 20 m cable
– 5MHz probe (echo-echo) 10/2 for through coating, underwater, 30 m cable
