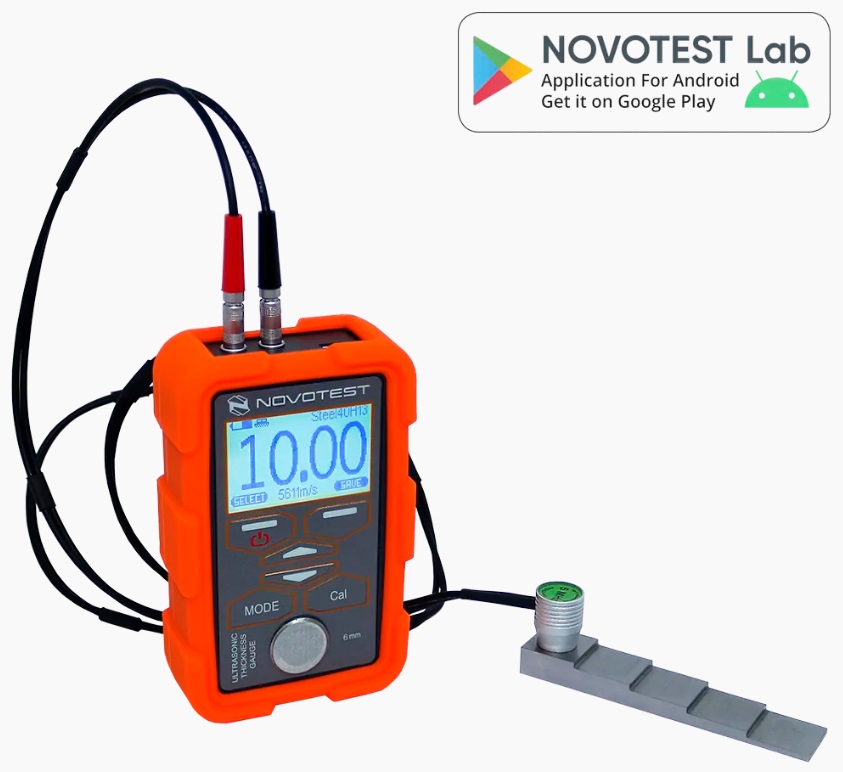

Ultrasonic Thickness Gauge NOVOTEST UT-1M

Ultrasonic Thickness Gauge NOVOTEST UT-1M is used for operational non-destructive testing of the thickness of products with one-way access, at the moment this method is the most common in the world for solving such tasks.

  • Wireless connection with Android gadgets via NOVOTEST Lab App (optionally with UT-1M (Lab) model only)
  • Wide measurement range (0.4 to 1500 mm and more, depending on material and surfaces)
  • Gain adjustment (±20 Db)
  • Preset velocities for many materials

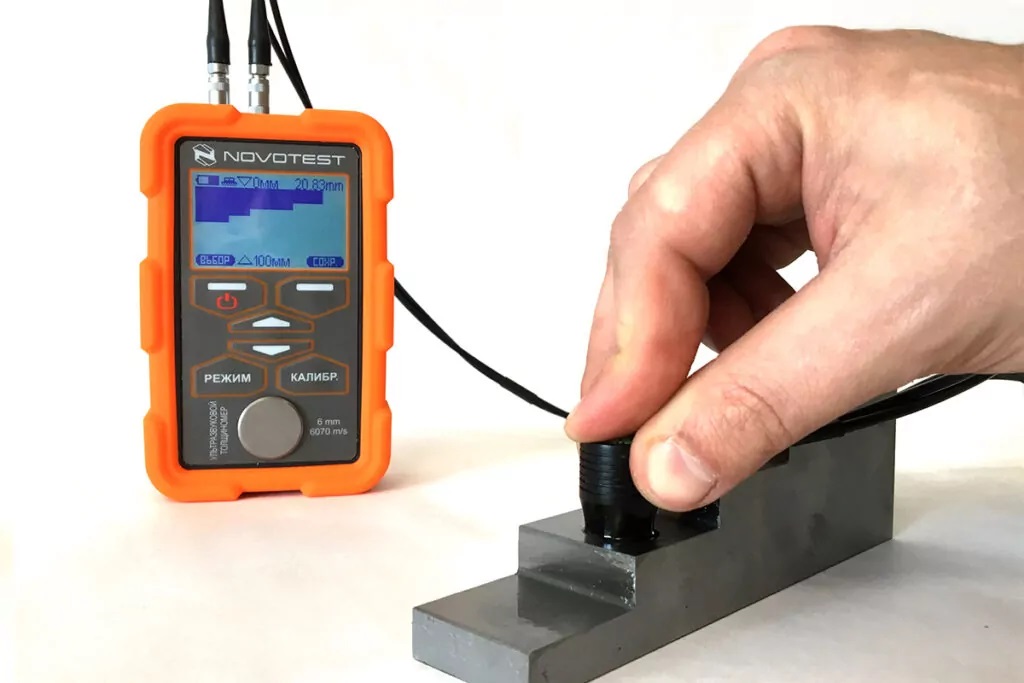

  • B-scan and control modes
  • Through-coating (echo-echo) mode
  • Threshold setting with automatic alarm
  • Saving the settings for different probes
  • Compatibility with probes of other manufacturers
  • V-path correction and TVG adjusting for the user’s probes
  • Measurement storage and PC software
  • Shockproof, ergonomic housing
  • Multi-language menu
  • Convenience and ease of operation
  • Minimum number of controls
  • Select the type of probe through single button
  • Graphical display with backlight
  • Compensation of probe delay
  • Control of the batteries
  • Mapping the presence of acoustic coupling on the graphic display
  • Fixation of the last measurement results in the removal of the transducer surface
  • Availability of a wide range of accessories
Probe type range for steel, mm:



  • Probe 10MHz – P112-10-2×3
  • Probe 10MHz – P112-10-6 / 2
  • Probe 5MHz – P112-5-10 / 2
  • Probe 2,5MHz – P112-2,5-12 / 2
  • Probe 2MHz – P112-2-20 / 2
  • Probe 1,25MHz – P112-1.25-20 / 2




  • 0.4-15
  • 0.45-300
  • 0.8-500
  • 2.5-1000
  • 3-1200
  • 4-1500
Probe dimensions, mm:



  • Probe 10MHz – P112-10-2×3
  • Probe 10MHz – P112-10-6 / 2
  • Probe 5MHz – P112-5-10 / 2
  • Probe 2,5MHz – P112-2,5-12 / 2
  • Probe 2MHz – P112-2-20 / 2
  • Probe 1,25MHz – P112-1.25-20 / 2




  • 4×9×60
  • D12×15
  • D17×20
  • D20×21
  • D30×28
  • D30×35
Dimensions of probe contact area/crystal, mm:



  • Probe 10MHz – P112-10-2×3
  • Probe 10MHz – P112-10-6 / 2
  • Probe 5MHz – P112-5-10 / 2
  • Probe 2,5MHz – P112-2,5-12 / 2
  • Probe 2MHz – P112-2-20 / 2
  • Probe 1,25MHz – P112-1.25-20 / 2




  • 2×7/2×3
  • D9/D6
  • D14/D10
  • D16/D12
  • D24/D20
  • D24/D20
Optional probes:



  • 5MHz high-temperature probe (echo) 10/2



  • 2,5MHz probe (echo-echo) 12/2 for through coating



  • 5MHz probe (echo-echo) 10/2 for through coating



  • 10MHz probe (echo-echo) 6/2 for through coating



  • 5MHz probe (echo-echo) 10/2 for through coating, underwater, 10 m cable



  • 5MHz probe (echo-echo) 10/2 for through coating, underwater, 20 m cable



  • 5MHz probe (echo-echo) 10/2 for through coating, underwater, 30 m cable




  • range 0,8 – 300 mm,
    surface temperature up to 250 °С/482 °F
  • range 6 – 30 mm,
    coating thickness range – up to 1 mm
  • range 3,5 – 26 mm,
    coating thickness range – up to 1 mm
  • range 2 – 12 mm,
    coating thickness range – up to 0,6 mm
  • range 3,5 – 26 mm,
    coating thickness range – up to 1 mm
  • range 3,5 – 26 mm,
    coating thickness range – up to 1 mm
  • range 3,5 – 26 mm,
    coating thickness range – up to 1 mm
Compatible probe types
  • Ultrasonic, dual-element, longitudinal waves (including probes of other manufacturers)
Compatibility with Active EMAT Transducer EMAT-A1 No
Probe calibrations (V-path, TVG, etc.)
  • factory for NOVOTEST probes
  • users for probes of other manufacturers
Probe cable connector type 2 Lemo 00
Probe cable length, m 1,2
Measurement scales
  • mm (m/s)
  • inch (inch/μs)
Measurement resolution, mm/inch 0.01/0.001
(0.01/0.0001 by request)
Basic measurement accuracy, mm ± (0,01 T+0.05)
(*For range 0.8 – 300 mm)
Gain range, dB ± 20
Response time, with no more than, s 1
Setting range of the ultrasonic velocity, m / s 1000-17000
Preset velocities for materials Steel (8 different grades), Aluminum, Iron, Cast Iron, Zinc, Chromium, Copper, Brass, Bronze, Silver, Gold, Nickel, Tungsten, Tin, Lead, Molybdenum, Manganese, Magnesium, Rubber, Polystyrene, Plexiglas, Capron, Caprolon,  ED-5, Ebonite, Porcelain, Teflon, Textolite, Silicate Glass, Acrylic glass, User
Device menu modes
  • Measurement
  • Calibration
  • Archive
  • Memory card
  • Information
Operating modes
  • Normal
  • B-scan
  • Control mode
Standards
  • ASTM E797
  • EN 14127
  • EN15317
Body type /
Dust and moisture protection level
  • Plastic, with shockproof silicone case
  • Standard for shop and field operation
  • IP54
Calibration thickness block on the body 6 mm (Steel/~6080 m/s)
PC cable connection
Wireless connection with Android gadgets via NOVOTEST Lab App
  • UT-1M – No
  • UT-1M (Lab) – Yes
Storage capacity of measurement results
  • UT-1M – 128
  • UT-1M (Lab) – 128 in the device + in NOVOTEST Lab App limited only by the memory of the Android gadgets
Measurement archives
Menu languages English, Spanish, Ukrainian, Russian (other languages optional)
Operating environment
  • Temperature:-20°C~40°C
  • Humidity: 30%~80%R.H.
Power supply DC 3V (2 pcs standard batteries AA)
Time of continuous work hours, not less, h 25
Charging External charger for 2pcs AA batteries
Weight of electronic unit with batteries, no more, kg 0.25
Overall dimensions, mm 120x60x25
Package weight, kg 1.5
Package dimensions, cm 33*27*10



“Basic” kit:

  • Electronic unit Ultrasonic Thickness Gauge UT-1M/UT-1M (Lab)
  • Probe/transducer (echo) – 1 pc for choice
    (2.5MHz, 5MHz or 10MHz)
  • Accessory package:
    – AA batteries – 2 pcs
    – Charger
    – USB cable for PC
    – PC software:
    — Online – NOVOTEST.INFO/USB-connect
    — Offline – NOVOTEST USB-Connect
    – NOVOTEST LAB App for Android gadgets
    (for UT-1M (Lab) only)
    – Operating manual/Quick guide
    – Transportation plastic case

“Advanced” kit:

  • Electronic unit Ultrasonic Thickness Gauge UT-1M/UT-1M (Lab)
  • 5MHz (echo) probe 10/2
  • 5MHz (echo-echo) probe 10/2 or 5MHz high-temperature (echo) probe 10/2
  • Step Wedge Thickness Calibration Block 10-20-30-40-50 mm (or another)
  • Accessory package



“Expert” kit:

    • Electronic unit Ultrasonic Thickness Gauge UT-1M/UT-1M (Lab)
    • 1.25MHz (echo) probe 20/2 or 2MHz (echo) probe 20/2
    • 5MHz (echo) probe 10/2 or 10MHz (echo) probe 6/2
    • 5MHz (echo-echo) probe 10/2
    • 5MHz high-temperature probe 10/2
    • Step Wedge Thickness Calibration Block 10-20-30-40-50 mm (or another)
    • Ultrasonic couplant gel (optionally)
    • Accessory package

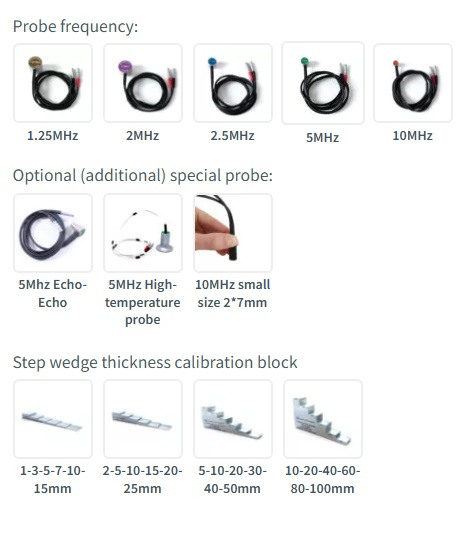

  • Available probes 1.25-10 MHz:
    – 1.25MHz probe (echo) 20/2 for substantial thicknesses or materials with exceptionally high signal attenuation
    – 2.0MHz probe (echo) 20/2 for large thicknesses or materials with high signal attenuation
    – 2.5MHz probe (echo) 12/2 for thick samples
    – 5MHz probe (echo) 10/2 for a wide range of basic samples
    – 10MHz probe (echo) 6/2 for thin samples
    – 10MHz probe (echo) 2х3 for products of complex shapes, usually turbine blades
    – 5MHz high-temperature probe (echo) 10/2 for heated samples up to 250 °С/482 °F
    – 2.5MHz probe (echo-echo) 12/2 for through coating
    – 5MHz probe (echo-echo) 10/2 for through coating
    – 10MHz probe (echo-echo) 6/2 for through coating
    – 5MHz probe (echo-echo) 10/2 for through coating, underwater, 10 m cable
    – 5MHz probe (echo-echo) 10/2 for through coating, underwater, 20 m cable
    – 5MHz probe (echo-echo) 10/2 for through coating, underwater, 30 m cable
