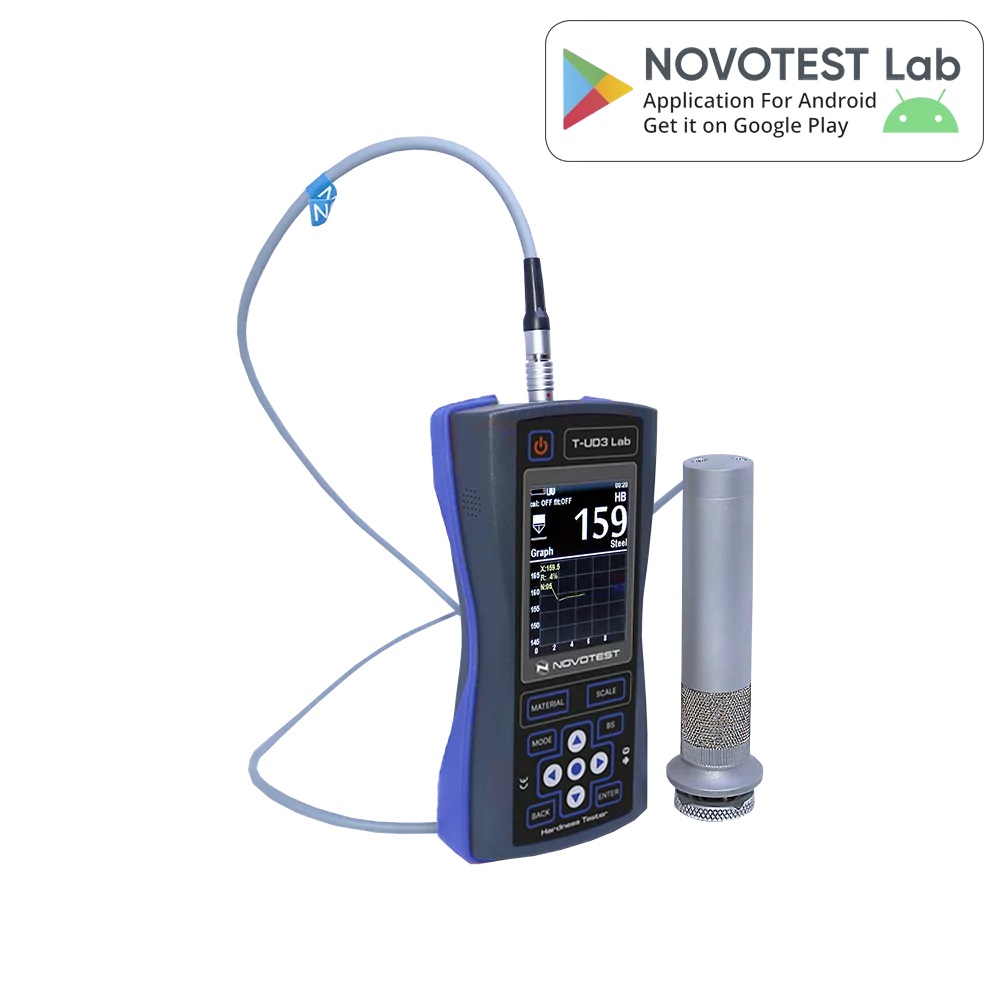

UCI Hardness Tester NOVOTEST T-U3

Ultrasonic contact impedance (UCI) hardness testers, offered by our company, use a vibrating rod with a diamond tip to measure metal hardness and are designed to handle tasks that cannot solve with the Leeb method.

Hardness measurement of any mass products with a thickness more than 1 mm – inaccessible to the dynamic (Leeb) hardness testers (small parts, thin-walled structures, pipes, tanks, steel sheets, articles of complex shape, hardness control of metal coatings, etc.)
Measuring the hardness of the surface hardened layer
Small imprint after measuring (mirror surfaces of shafts necks, blades, gear teeth, etc.)
Wide range of hardness testing
Various measurement modes
Calibration of any scale in any range
Convenience and ease for measurement
Optimized number of buttons
Large full color graphic display with bright back-lighting
Calibrations stored in memory of probe
Extended temperature range (frost, down to – 40°C)
Internal memory and communication with PC
New, intuitive menu with tips on the buttons
Optional wireless mini printer
Water resistant case
Rubber protected bumper
Has different operating modes:

Graph – the mode of building of graph

Histogram – the mode of building of histogram

Statistics – the mode of statistic

Smart – the mode of filtering of incorrect measurements

UCI probe types	10N/1kgf/2.2 lbf/HV1 50N/5kgf/11lbf/HV5 98N/10kgf/22lbf/HV10
Measuring range	Factory calibrations: – HRC: 20~70 – HB: 90~650 – HV: 100~750 – Tensile strength MPa: 370~1740 User calibrations for any scale and range (for example: 1-3000HV)
Measuring accuracy	HRC: 2HRC HB: 10HB HV: 15HV
Standard	ASTM A1038
Indenter	Diamond indenter (UCI)
Measuring direction	Any direction 360°
Data storage	Limited only by the memory card
Hardness scale	HRC, HB, HV, MPa Additional custom scales for calibration
Materials	Pre-calibrated for steel Additional custom materials for calibration
Data display	Load applied/contact (UCI) Single test result Max, Min, Average of tests Number of tests Deviation Var. coeff. Histogram Signal and Smart Mode (Filter of incorrect measurements)
PC cable connection (USB MINI B (to device) – USB A (to PC))	Online – NOVOTEST.INFO/USB-connect Offline – NOVOTEST USB-Connect
Wireless connection with Android gadgets via NOVOTEST Lab App	T-U3 – No T-U3 (Lab) – Yes
Language	English German French Polish Portuguese Ukrainian Russian *additional languages available by request
Indication	Color LCD display (320×240)
Operating environment	Temperature:-20°C~40°C; Humidity: 30%~80%R.H.
Power supply	DC 4,5V (3 pcs batteries AA)
Batteries life	Approx. 10 hours
Instrument dimensions	160x75x30mm
Net weight	Approx. 0.3kg (without probe)
Gross weight (package)	1.7kg
Package dimensions	332710cm

“Basic” kit:

Electronic unit UCI Hardness Tester NOVOTEST T-U3 (Lab)
UCI probe – 1pc (10N, 50N or 98N for choice)
Special nozzle
Accessory package:
– AA batteries – 3 pcs
– USB charger
– USB cable for PC
– PC software:
— Online – INFO/USB-connect
— Offline – NOVOTEST USB-Connect
– NOVOTEST LAB App for Android gadgets
– Operating manual/Quick guide
– Test certificate
– Transportation plastic case

“Advanced 1” kit:

Electronic unit UCI Hardness Tester NOVOTEST T-U3 (Lab)
UCI probe – 1pc (10N, 50N or 98N for choice)
Protective Pouch with Straps for T-U3
Hardness Test Block HRC, HB, HV (for UCI probe) – 1pc
Accessory package

“Advanced 2” kit:

Electronic unit UCI Hardness Tester NOVOTEST T-U3 (Lab)
UCI probe – 2pcs (50N + 10N or 98N)
Protective Pouch with Straps for T-U3
Hardness Test Block HRC, HB, HV (for UCI probe) – 1pc
Accessory package

“Advanced 3” kit:

Electronic unit UCI Hardness Tester NOVOTEST T-U3 (Lab)
UCI probe – 1pc (10N, 50N or 98N for choice)
Protective Pouch with Straps for hardness tester T-U3
Hardness Test Block HRC or HB or HV (for UCI probe) – 3pcs
Device for measuring the hardness of thin sheets NOVOTEST U1-TL
Accessory package

“Professional” kit:

Electronic unit UCI Hardness Tester NOVOTEST T-U3 (Lab)
UCI probe – 3pcs (10N, 50N, 98N)
Protective Pouch with Straps for T-U3
Hardness Test Block HRC or HB or HV (for UCI probe) – 3pcs
Device for measuring the hardness of thin sheets NOVOTEST U1-TL
Accessory package

“Expert” kit:

Electronic unit UCI Hardness Tester NOVOTEST T-U3 (Lab)
UCI probe – 2pc (50N + 10N or 98N)
Protective Pouch with Straps for T-U3
Rockwell Hardness Test Block 25HRC, 45 HRC, 65HRC – 3pcs
Brinell Hardness Test Block 100HB, 200HB, 400HB or other nominals – 3pcs
Vickers Hardness Test Block 200HV, 450HV, 800HV or other nominals – 3pcs
Device for measuring the hardness of thin sheets NOVOTEST U1-TL
Accessory package

Protective Pouch with Straps for T-UD3
Android smartphone or tablet (optionally with IP65) for NOVOTEST Lab App
Additional UCI probes:
– UCI Probe U1 L3 (10N/HV1)
– UCI Probe U1 L3 (50N/HV5)
– UCI Probe U1 L3 (98N/HV10)

Device for measuring the hardness of thin sheets NOVOTEST U1-TL
After the purchase if needed, can be ordered dynamic Leeb probe with activation code to convert to Combined hardness tester with two types of probes (UCI+Leeb).
Additional Leeb probes:
– Dynamic probe Type DC-R
– Dynamic probe Type DC-R-mini
– Leeb probe Тype D
– Leeb probe Type DL
– Leeb probe Type G
– Leeb probe Type D+15
– Leeb probe Тype C
– Leeb probe Type E
As well as accessories for Leeb probes:
– Set of support rings for Leeb probe
– Cable for Leeb probe
– Impact bodies for Leeb probes
