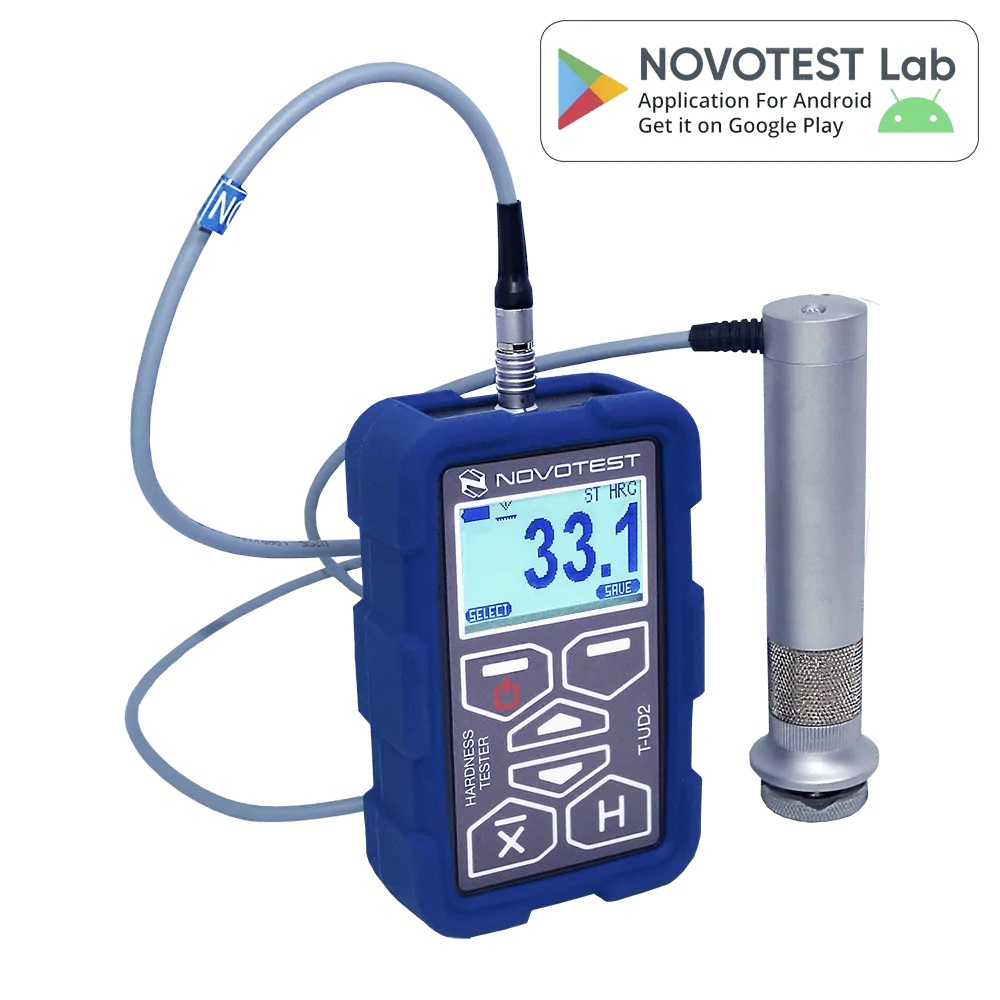

UCI Hardness Tester NOVOTEST T-U2

This is the most affordable UCI hardness tester, ideal for small, thin-walled, or complex-shaped products, unlike Leeb method models. With over 10 years of proven reliability, it offers the best price-quality ratio in the global market.

Possibility of measuring the hardness value of products with any weights and thickness from 1 mm (small items, thin-walled structures, pipes, tanks, steel sheets, the products of complex shape, hardness control of metal coatings, etc.) and from 100g.
Small imprint on the surface of the tested product (user can test mirror surfaces, necks shafts, knives, gear teeth, etc.)
Hardness testing the hardening layer of the surface
Wide range of hardness measuring
Usability of measuring
Minimum number of controls
Extended temperature range (frost protected, operating temperature up to -20 °C)
Device has internal memory and allows user to connect with PC
Intuitive menu

UCI probe types	1kgf (10N) 2.2 lbf 5kgf (50N) 11lbf 10kgf (98N) 22lbf
Indenter	Diamond indenter (UCI)
Measurement hardness range: Rockwell, HRC Brinell, HB Vickers, HV Tensile strength, MPa User calibrations	Factory calibrations: – HRC: 20~70 – HB: 90~650 – HV: 100~750 – Tensile strength MPa: 370~1740 User calibrations for any scale and range (for example: 1-3000HV)
Hardness scale	UCI probe: HRC, HB, HV, MPa
Measurement accuracy	HRC: 2HRC HB: 10HB HV: 15HV
Materials	UCI probe – pre-calibrated for steel. Additional custom scales and materials for calibration.
Measuring direction	Any direction 360°
Standard	ASTM A1038
PC cable connection	Online – novotest.info Offline – NOVOTEST AWP
Wireless connection with Android gadgets via NOVOTEST Lab App	T-U2 – No T-U2 (Lab) – Yes
Storage capacity of measurement results	T-U2 – 256 T-U2 (Lab) – 256 in the device + in NOVOTEST Lab App limited only by the memory of the Android gadgets
Language	English Spanish Portuguese French Russian *additional languages available by request
Dimensions, mm	1226523
Operating temperature range, ° C	-20 to +40
Power	2pcs AA batteries
Bateries life, hours, not less	20
Weight of electronic unit with batteries, no more, kg	0.2
Package gross weight, kg	2

Electronic unit UCI Hardness Tester NOVOTEST T-U2 (Lab)
UCI probe – 1pc (10N, 50N or 98N for choice)
Accessory package:
– AA batteries – 2 pcs
– Battery charger
– USB cable for PC
– PC software:
— Online – INFO/USB-connect
— Offline – NOVOTEST USB-Connect
– NOVOTEST LAB App for Android gadgets
– Operating manual/Quick guide
– Test certificate
– Transportation plastic case

“Advanced 1” kit:

Electronic unit UCI Hardness Tester NOVOTEST T-U2 (Lab)
UCI probe – 1pc (10N, 50N or 98N for choice)
Hardness Test Block HRC, HB, HV (for UCI probe) – 1pc
Accessory package

“Advanced 2” kit:

Electronic unit UCI Hardness Tester NOVOTEST T-U2 (Lab)
UCI probe – 2pc (50N + 10N or 98N)
Hardness Test Block HRC, HB, HV (for UCI probe) – 1pc
Accessory package

“Advanced 3” kit:

Electronic unit UCI Hardness Tester NOVOTEST T-U2 (Lab)
UCI probe – 1pc (10N, 50N or 98N for choice)
Hardness Test Block HRC or HB or HV (for UCI probe) – 3pcs
Device for measuring the hardness of thin sheets NOVOTEST U1-TL
Accessory package

“Professional” kit:

Electronic unit UCI Hardness Tester NOVOTEST T-U2 (Lab)
UCI probe – 3pcs (10N, 50N, 98N)
Hardness Test Block HRC or HB or HV (for UCI probe) – 3pcs
Device for measuring the hardness of thin sheets NOVOTEST U1-TL
Accessory package

“Expert” kit:

Electronic unit UCI Hardness Tester NOVOTEST T-U2 (Lab)
UCI probe – 2pc (50N + 10N or 98N)
Rockwell Hardness Test Block 25HRC, 45 HRC, 65HRC – 3pcs
Brinell Hardness Test Block 100HB, 200HB, 400HB or other nominals – 3pcs
Vickers Hardness Test Block 200HV, 450HV, 800HV or other nominals – 3pcs
Device for measuring the hardness of thin sheets NOVOTEST U1-TL
Accessory package

Android smartphone or tablet (optionally with IP65) for NOVOTEST Lab App
Additional UCI probes:
– UCI Probe U1 L3 (10N/HV1)
– UCI Probe U1 L3 (50N/HV5)
– UCI Probe U1 L3 (98N/HV10)
Portable grinding machine
