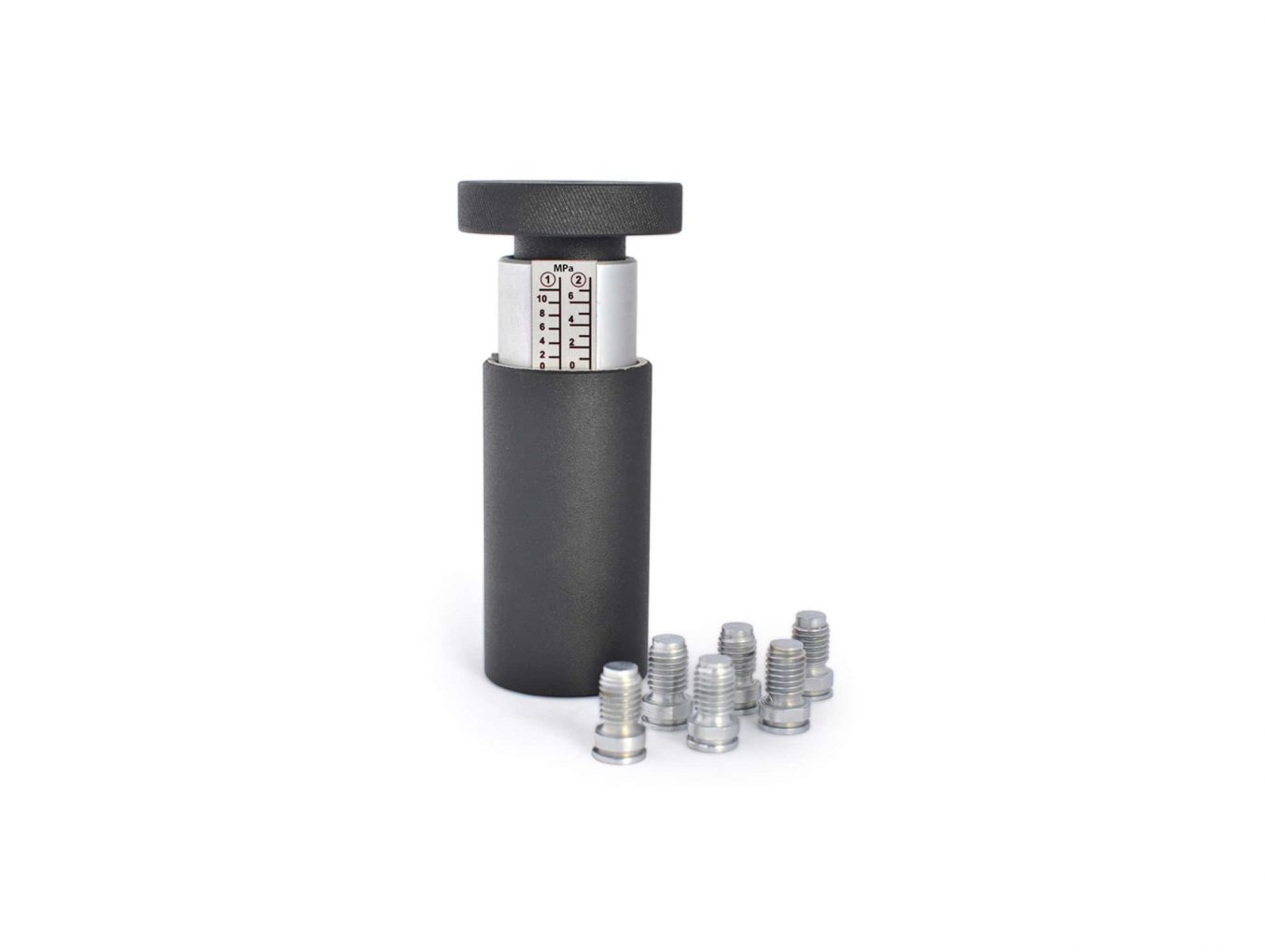

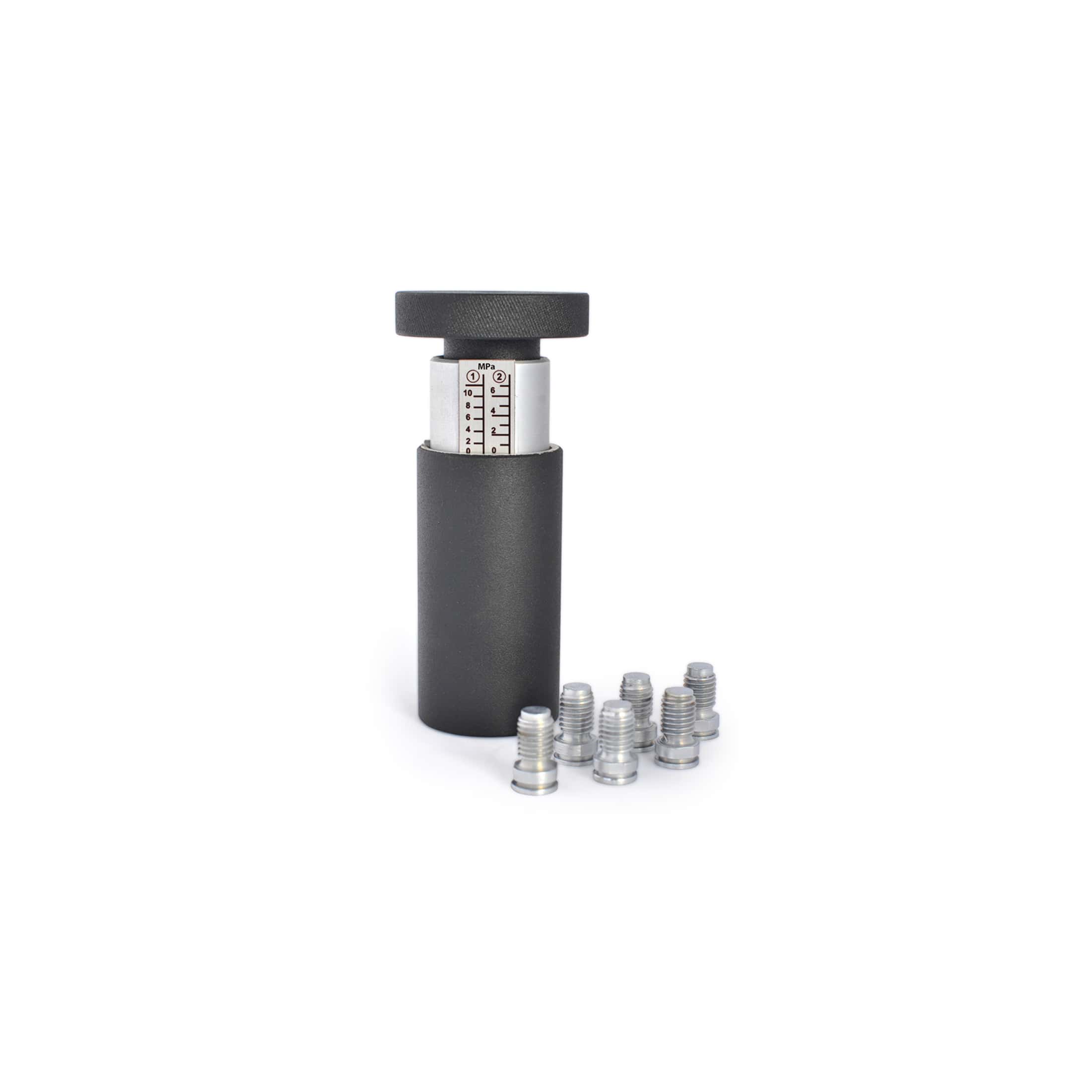

Tensile Adhesion Tester NOVOTEST AC-1

Tensile Adhesion Tester NOVOTEST AC-1

Tensile Adhesion Tester NOVOTEST AC-1

Device for measuring adhesion by the pull-off method. In the field of quality testing, adhesion of coatings to the base material, such as: paints, plastic, epoxy mixtures, sprayed metal, laminate to wood and other metal and polymer coatings, is most often measured.

  • Simple design and easy to operate
  • Result in mPa values
  • Universal in use
Force range, kgf 0-200
Diameters of dollies, mm 15,1 (№ 1) and 19,5 (№ 2)
Scales range, MPa
  • Dolly №1 up to 10 MPa (100)
  • Dolly №2 up to 6 MPa (60)
Scale, MPa 1 (№ 1) and 2 (№ 2)
Standards
  • ASTM D4541
  • EN13144
  • ISO4624
  • ISO16276-1
Weight of adhesion tester, kg, not more  1
Dimensions of adhesion tester, mm 150×70
Dimensions of package, mm L180*W150*H100
  • Adhesion tester
  • Dollies: № 1 – 3 pcs., № 2 – 3 pcs.
  • Holesaw (cutter) for cutting area of testing
  • Wrench
  • Operating manual
  • Case
