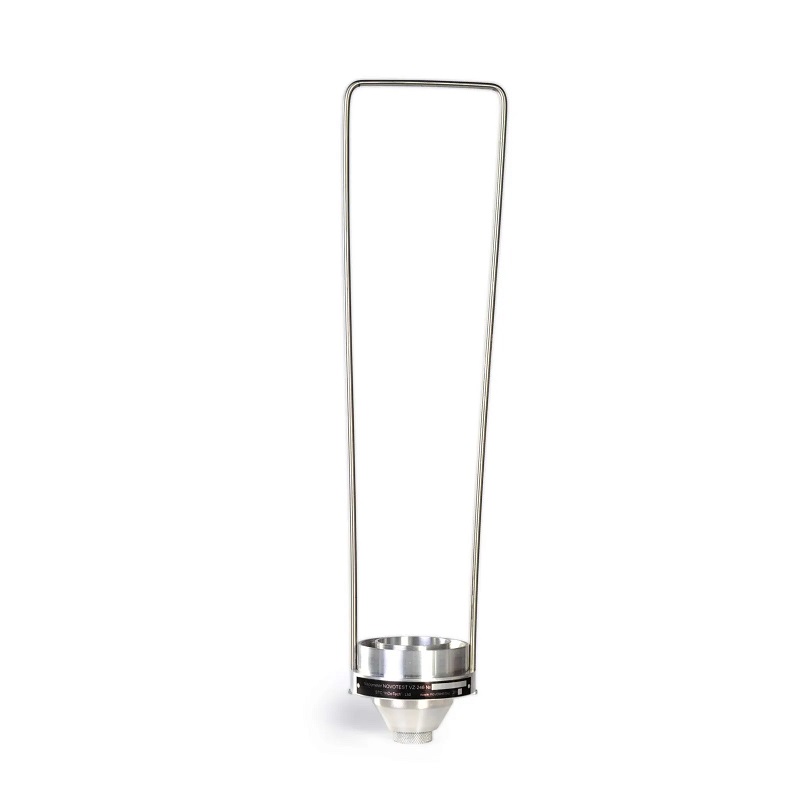

Submersible Viscosity Flow Cup NOVOTEST VZ-246P

The submersible viscosity dip cup is used for rapid testing of the conditional viscosity of large batches, particularly for hot liquids or fluids in use (such as oil baths), where standard viscosity cups may be impractical.

The method for determining the conditional viscosity using a viscosity cup is to measure the time the paint (or other liquid) expands through the nozzle of the tank.

The measurement is carried out by immersing the device into the material, and measuring the time of expiration of the material through a specific nozzle. With this method, the measurement accuracy is degraded, in comparison with the standard type of device, but the speed of testing is significantly increased.

Simplicity of design
Rapid testing
Production under customer requirements

Overall dimensions (without legs), mm	Ø78х70
Mass of the device, not more, kg	0,2
Cup capacity, cm³	100 ±1
Expiration time range, s	12 – 300
Nozzle diameter, mm	2,000 ±0,012	4,000 ±0,015	6,000 ±0,015
The range of time of fluid flow, s	70 – 300	12 – 200	20 – 200
Nozzle height, mm	4,000 ±0,015	4,000 ±0,015	4,000 ±0,015
Viscosity Flow Cup Operating Conditions
Air temperature, ° С	from +10 to +35
Relative humidity, %	to 80 at 25 °С

Viscosity flow cup
Nozzles: 2 mm, 4 mm, 6 mm
Handle
Operating manual

Viscosity cup is available in two models: on a tripod (Viscosity Flow Cup NOVOTEST VZ) and a submersible type (Viscosity Dip Cup NOVOTEST VZ-P)
Viscosity Dip Cup NOVOTEST VZ-P is also available to order in aluminum version
