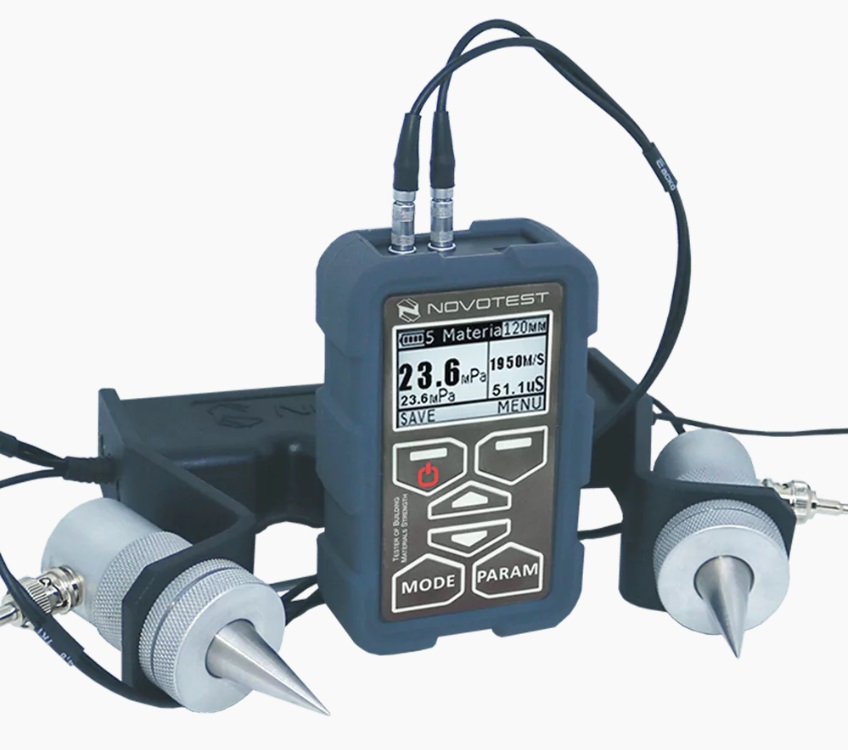

Strength Meter NOVOTEST IPSM (NEW GENERATION 2020)

The strength meter is an Ultrasonic Pulse Velocity (UPV) tester that detects defects in concrete and solid materials by analyzing the propagation of ultrasonic waves. It measures parameters such as strength, density, elastic modulus, and sound index.


  • Measurement of the strength and density of concrete, bricks and silicate stones, other solid building and composite materials.
  • Assessment of the bearing capacity of reinforced concrete structures, porosity and the presence of rock cracks, texture of composite materials and the degree of anisotropy.
  • Assessment of the degree of maturity of concrete in the process of monolithic concreting.
  • Seraching for spaces, cracks and other internal defects arising during the manufacturing and operation.
  • Testing of material uniformity.
  • Measurement depth of surface cracks.
  • Determination of the sound index of ceramics and abrasives.
  • Determination of the density and elastic modulus of fiberglass and carbon graphites.

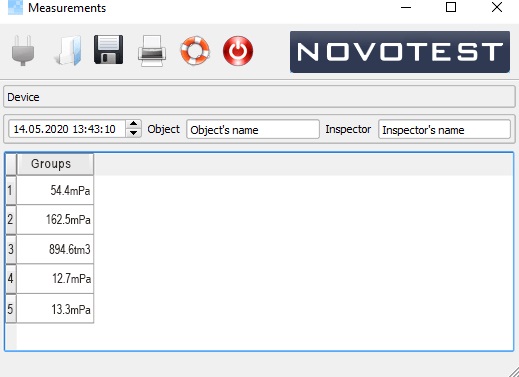

  • MEMORY AND SOFTWARE

    The device has the function of saving the measurement results to the archive, that can be transferred to the PC using special software, for subsequent data processing.

The range of measurements of the propagation of ultrasonic vibrations, µs 10 … 9999
The measurement resolution of the propagation time of ultrasonic vibration, µs 0.1
The operating frequency of the ultrasonic oscillations, kHz 50-100
The base surface sounding measurements in mm 120
The output voltage, V up to 600
Storage of measurement results 128 (1000 cells)
Overall dimensions of el. unit, mm 122x76x37
Operating temperature, ° C -20…+40 C°
Power 2 pcs AA batteries
Time of continuous operation, h, not less 10
Standard ASTM C597-16

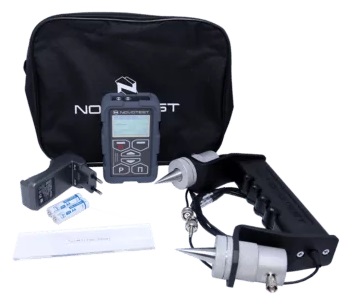

  • Electronic unit
  • Probe(s)
  • Calibration sample
  • AA batteries – 2 pcs
  • Charger
  • Operating manual
  • Bag

Optional

  • Silicon cover for case
  • Ultrasonic transducers for through-sounding testing
  • Ultrasonic probe for surface-sounding testing
  • Calibration sample
