Ultrasonic Flaw Detector NOVOTEST UD2301 Mini
เครื่องตรวจเช็ครอยแตกร้าวภายในชิ้นงาน

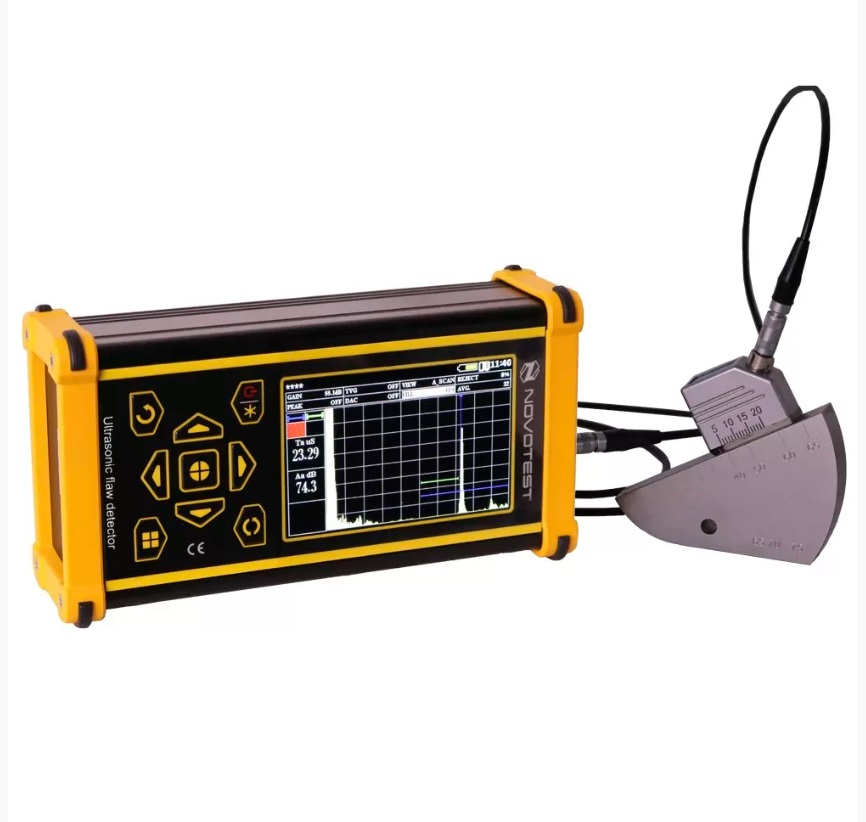

Compact flaw detector offers essential functions for simplifying product quality control, housed in a shock-resistant aluminum alloy case with a long-lasting battery for durability in tough conditions.
- ยี่ห้อ NOVOTEST
- Detection of signal positive half-wave, radio mode
- Operating Frequency Range 1 to 10 MHz
- Dimension 80*162*38mm

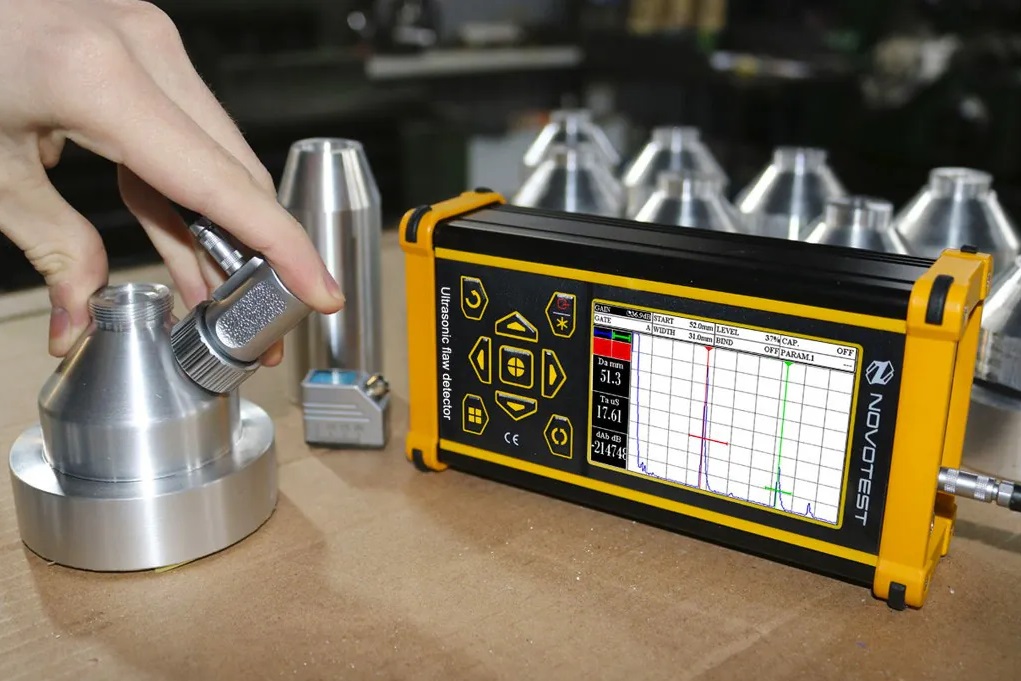

- to test the quality of welds and base metal of products;
- to detect corrosion, cracks, delaminations and other internal defects;
- to determine coordinates and parameter estimation of defects such as discontinuity, cracks and uniformity of material in products from metal, plastic, composites and other materials;
- to measure the thickness of products.
- Automatic calibration
- Intuitive device menu
- Adjustable excitation pulse generator
- Saving measurement results and ability to viewing
- Transfer of archived records to PC
Operating frequency range | from 1 to 10,0 MHz |
Range of measured time intervals (duration of scanning) | from 6 to 1000 µs |
Velocity range | 1000 – 9999 m / s |
Error of measurement of time intervals | not exceed ± 0,025 µs |
Maximum permissible error of measurement of the amplitudes of the signals at the receiver input in the range from 0 to 110 dB | not exceed ± 0,5 dB |
Testing gain range | 126 dB |
Averaging over the quantity of starts | from 1 to 128 |
Range of variation of temporal sensitivity adjustment (TVG) | 1-40 dB |
Number of control points TVG | 16 |
Duration of the excitation pulse to the load | from 12.5 to 0,5 µs |
Scan range | from 8 up to 250 μs (500 and more by special order) or from 0,48mm up to 1500mm (in Steel V=6000m/s) (3000m and more by special order) |
Sweep delay range | from 0 up to 1000 μs |
Measurement range of time intervals | from 8 up to 250 μs (500 and more by special order) |
Setting the delay in the prism of the transducer | from 0 up to 15 μs |
Deviation of the amplitudes of input signals in the range from 10 to 100% of the screen height not more than | 1 dB |
Setting a delay in the prism of the probe | from 0 to 15 µs |
Automatic signaling of defects (ASD) | Two-zone |
Detection of signals | positive half-wave, radio mode |
Operating modes | DAC, TVG, DGS, AWS, AFS, ASD |
Menu language | English, Russian |
Dimensions (W*H*L) | 165x90x50 mm |
Power Supply | Built-in Li-ion Battery |
Time of continuous work, not less than, h | 8 |
Operating temperature range for the electronic unit, ° C | -20 to +40 |
Air moisture, no more | 98 %, at 35 °С |
Weight, not more | 500 g |

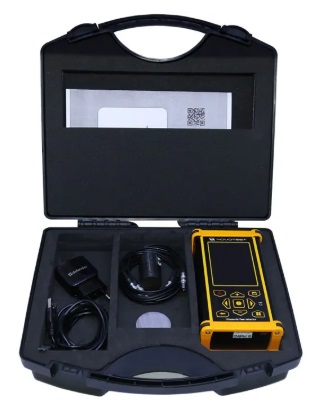

- Ultrasonic flaw detector UD2303
- UT-probes – 2 pcs
- Cable Lemo-Lemo – 1 pc
- Charger
- USB cable for PC connection
- PC program ( available from site download )
- Operating manual
- Case
Optional
- additional probes (UT) and cables
- standard calibration blocks
- custom calibration blocks
- couplant (gel)
