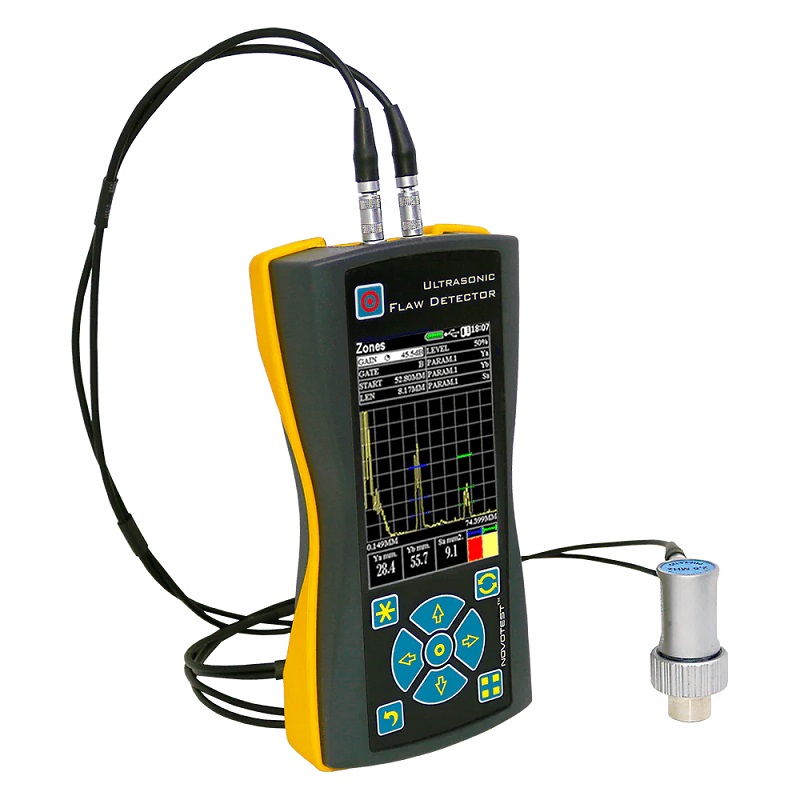

Ultrasonic Flaw Detector NOVOTEST UD2301 Mini

เครื่องตรวจเช็ครอยแตกร้าวภายในชิ้นงาน



  • ยี่ห้อ NOVOTEST
  • Detection of signal positive half-wave, radio mode
  • Operating Frequency Range 1 to 10 MHz
  • Dimension 80*162*38mm

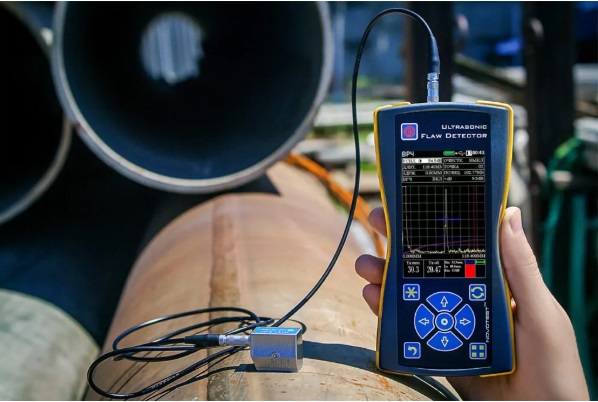

  • to test the quality of welds and base metal of products;
  • to detect corrosion, cracks, delaminations and other internal defects;
  • to determine coordinates and parameter estimation of defects such as discontinuity, cracks and uniformity of material in products from metal, plastic, composites and other materials;
  • to measure the thickness of products.
  • Superbright display with which it is comfortable to work outdoors on a sunny day;
  • Frequency range from 0 to 10 MHz, with smooth adjustment;
  • Display of a scale of scanning in microseconds and millimeters;
  • Construction and processing A-scan and B-scan;
  • The presence in the device of the operating mode of the DAC curves (construction of 16 points);
  • Existence in the device of TVG mode (construction of 16 points);
  • DGS function, with automatic calculation of the equivalent reflector size;

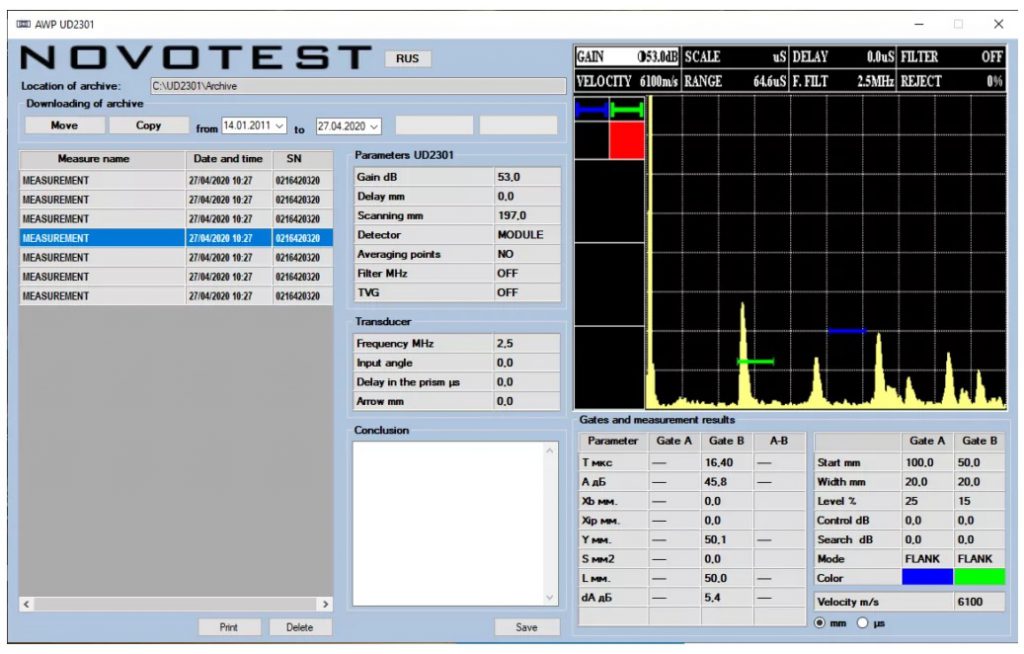

  • Archive of measurements, settings, transducers with the ability to transfer data to a PC;
  • Any side display orientation options that allow user to work in any position of the device;
  • The device operates on standard AA batteries, as well as on conventional batteries, which makes them easy to replace;
  • The NOVOTEST UD2301 flaw detector can be powered by a universal mobile battery (power bank) via a mini USB connector;
  • Ergonomic shockproof case with protective rubber protectors;
  • Light weight and compact size.
Operating frequency range from 1 to 10,0 MHz
Range of measured time intervals (duration of scanning) from 6 to 1000 µs
Velocity range 1000 – 9999 m / s
Error of measurement of time intervals not exceed ± 0,025 µs
Maximum permissible error of measurement of the amplitudes of the signals at the receiver input in the range from 0 to 110 dB not exceed ± 0,5 dB
Testing gain range 125 dB
Averaging over the quantity of starts from 1 to 16
Range of variation of temporal sensitivity adjustment (TVG) 40 dB
Number of control points TVG 16
Duration of the excitation pulse to the load from 0,0 to 0,5 µs
Deviation of the amplitudes of input signals in the range from 10 to 100% of the screen height not more than 1 dB
Setting a delay in the prism of the probe from 0 to 15 µs
Detection of signals positive half-wave, radio mode
Standards
  • EN 12668
  • ASTM E1324
  • EN 55011
  • EN61000-6-2:2001
  • EN 61010-1:2014 (EN 61010-1:2010)
  • EN 60529:2014
  • EN ISO 16810:2016
  • SOU NNEC 027:2014
  • SOU NNEC 032:2014
  • SOU NNEC 038:2017
Dimensions (W*H*L) 80*162*38 mm
Weight, not more 250 g (without batteries)

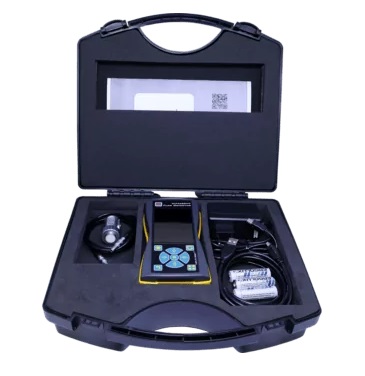

  • Ultrasonic flaw detector
  • UT-probes – 2 pcs
  • Cable Lemo-Lemo – 1 pc
  • AA batteries – 3 pcs
  • Charger
  • USB cable for PC connection
  • Operating manual
  • Case

Optional

  • Couplant
  • UT-probes
  • Calibration blocks
