ROECKLE Analog and digital precision spirit levels
ระดับน้ำ

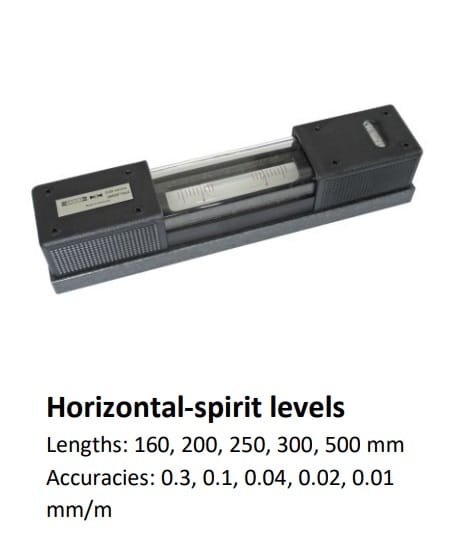

Horizontal-spirit levels
Precision spirit level according to DIN 877. Sturdy design made of high-quality special cast iron, textured finish. With flat and prismatic measuring surface (150°), for aligning horizontal surfaces and shafts. With housing recesses for lateral insight. The measuring surfaces are finely ground. The device is equipped with a ground longitudinal level made of glass, a transverse level and full heat protection. The scale value of the longitudinal spirit level is given on the type plate. Magnet version and special versions available on request.

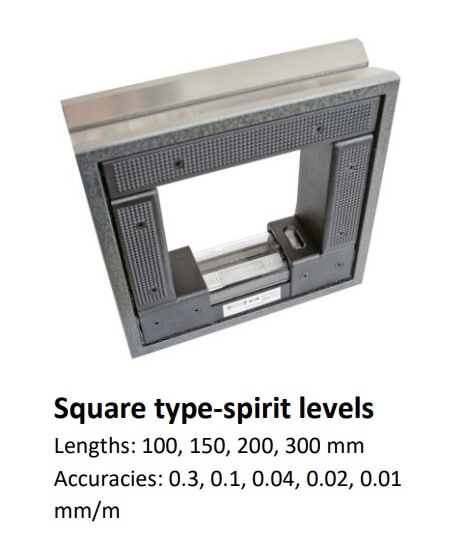

Square type Spirit Level
Precision frame spirit level according to DIN 877. Sturdy design made of high-quality special cast iron, textured finish. With 3 flat and prismatic (150°) sides and 1 flat, vertical side, for aligning horizontal and vertical surfaces and shafts. With housing recesses for lateral insight. The measuring surfaces are finely ground. The device is equipped with a ground longitudinal level made of glass, a transverse level and full heat protection. Magnet version and special versions available on request. The scale value of the longitudinal spirit level is given on the type plate.

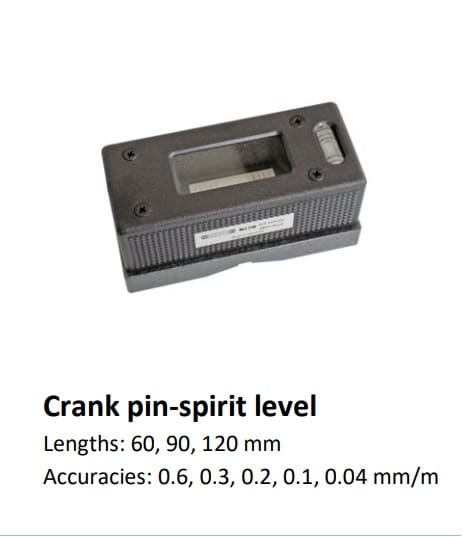

Crank pin Spirit Level
Precision crankpin spirit level according to DIN 877. Sturdy design made of high-quality special cast iron, textured finish. With flat measuring surface and prismatic longitudinal and transverse prism (150°), for aligning very short, horizontal surfaces and crankshafts and journals on engines or machines. The measuring surfaces are finely ground. The device is equipped with a ground longitudinal level made of glass, a transverse level and full heat protection. The scale value of the longitudinal spirit level is given on the type plate. Magnet version and special versions available on request.

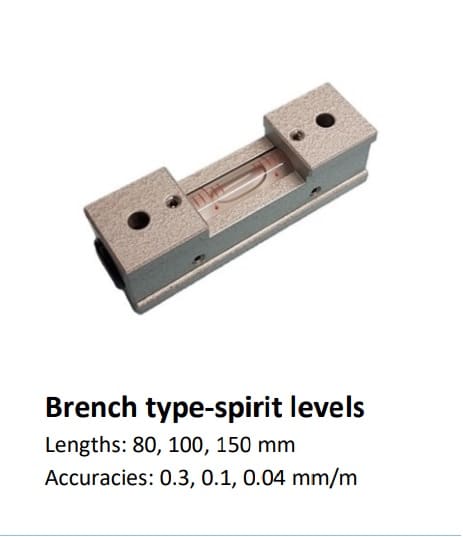

Brench type Spirit Level
Sturdy design made of high-quality steel, textured finish. With a flat sole, for easy adjustments of horizontal surfaces. With housing recesses for lateral insight. The measuring surface is finely ground. The device is equipped with a ground longitudinal glass bubble. This spirit level comes with 2 screw holes for M5 screws. The scale value of the longitudinal spirit level is given on the type plate. Magnet version and special versions available on request.

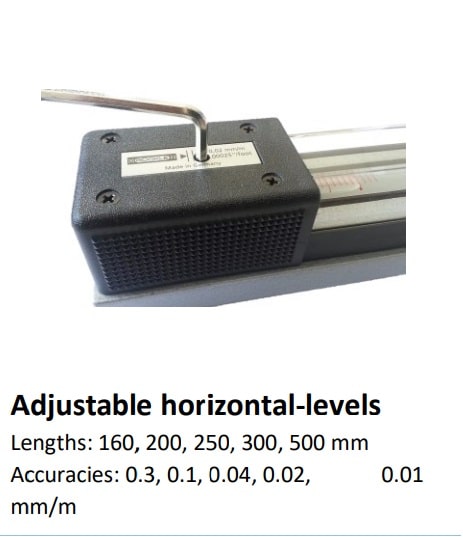

Adjustable Horizontal Spirit Level
Adjustable precision spirit level according to DIN 877 with particularly ergonomically shaped and rubberized handles. Sturdy design made of high-quality special cast iron, textured finish. With flat and prismatic measuring surface (150°), for aligning horizontal surfaces and shafts. With housing recesses for lateral insight. The measuring surfaces are finely ground. The device is equipped with a ground, externally adjustable longitudinal level made of glass, a transverse level and full heat protection. The scale value of the longitudinal spirit level is given on the type plate. Magnet version and special versions available on request. The adjustable range is +/- 4.0 mm/m.

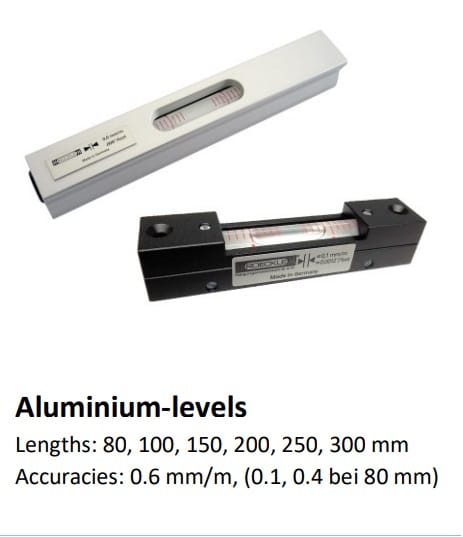

Aluminium Level
Lightweight aluminum design with flat and prismatic measuring surface (120°), for easy adjustment of horizontal surfaces and shafts. Maximum shaft diameter: 40 mm, minimum shaft diameter: 6 mm. The surface is silver anodized. The device is equipped with a ground longitudinal glass bubble. The scale value of the longitudinal spirit level is given on the type plate. Magnet version and special versions available on request.

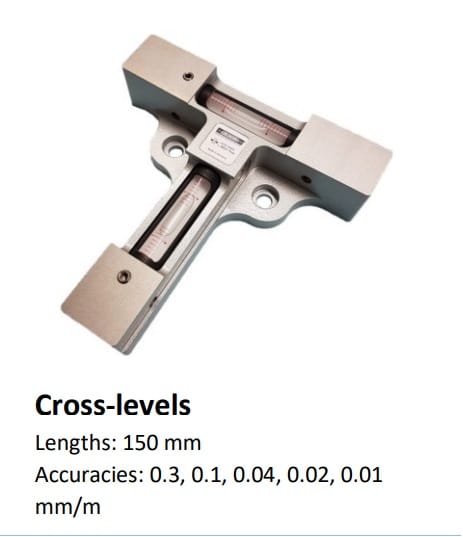

Cross Levels
Stable, screw-on cross spirit level according to DIN 877, made of special cast iron with 2 high-quality, ground glass spirit levels arranged at an angle of 90°. Suitable for simultaneously aligning a surface in the X and Y directions. With housing recesses for lateral insight. The measuring base is finely ground. Attachment for 2 M8 hexagon socket screws, hole spacing = 60 mm. The scale value of the longitudinal vials is given on the type plate. Magnet version and special versions available on request.

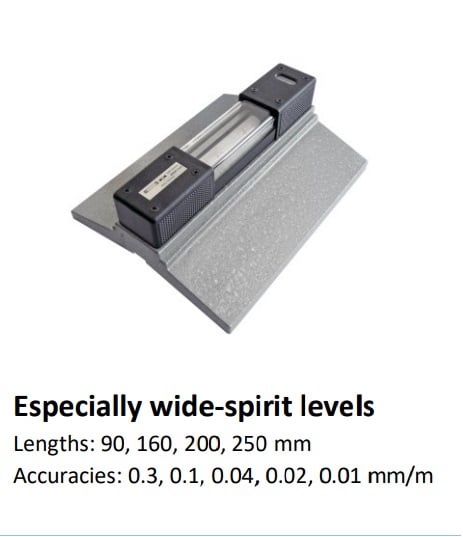

Especially Wide Spirit Levels
The prismatic measuring base with an angle of 154° (respectively 156° / length 250 mm) is used for arbors with diameter up to 950 mm. The measuring surfaces are finish ground. With one graduated and ground longitudinal vial and with transversal vial.

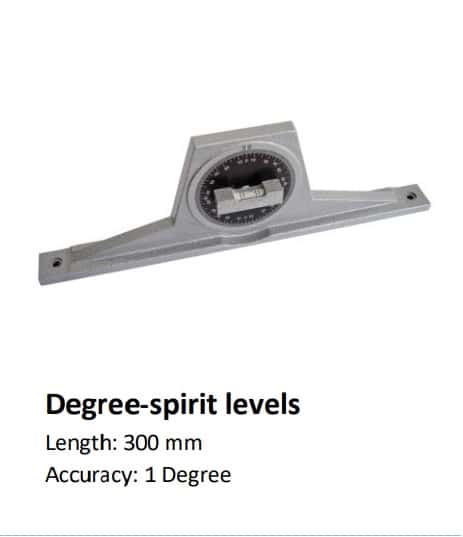

Degree Spirit Levels
Spirit Level for checking any inclination
Sturdy design made from high-quality special cast iron, textured finish, with a flat sole. The device is equipped with a 360° dial and allows easy measurements of any inclined surface (also overhead). The contact surface is finely ground. The device is equipped with a simple bubble level. This spirit level is supplied with 2 holes spaced 275 mm apart with a countersink for M5 screws. Magnet version and special versions available on request.

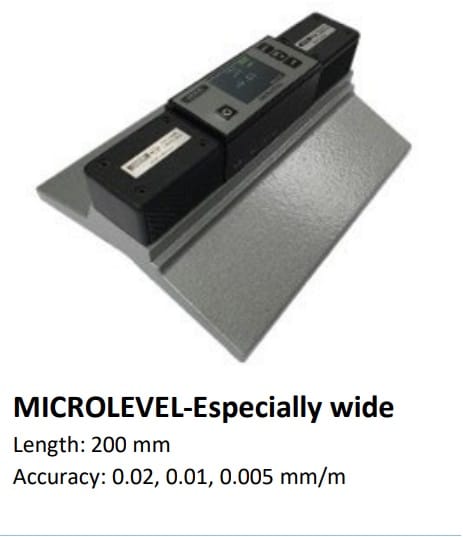

MICROLEVEL Especially Wide
MICROLEVEL opt. remote control via app
Electronic precision spirit level (horizontal) with a particularly wide prismatic measuring surface for aligning horizontal shafts with large diameters (e.g. for printing machines) according to DIN 877. Stable design made of high-quality special casting, textured lacquer. The prismatic measuring surface with an angle of 154° covers horizontal waves up to a diameter of 600 mm. The measuring surfaces are finely ground.

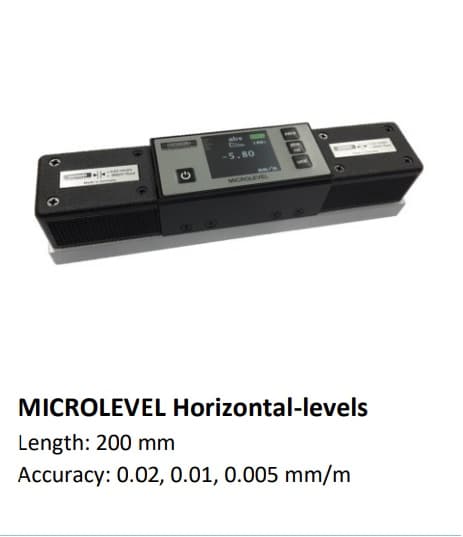

MICROLEVEL Horizontal Levels
MICROLEVEL opt. remote control via app
Electronic precision water level (horizontal), ideally suited e.g. for mechanical engineering in the manufacture, installation and monitoring of machines of all kinds.
State-of-the-art electronics and sensors of the latest generation, built in high-quality and proven cast housing, bring the battery-powered device to the latest state of the art. Its simple and logical handling makes training unnecessary

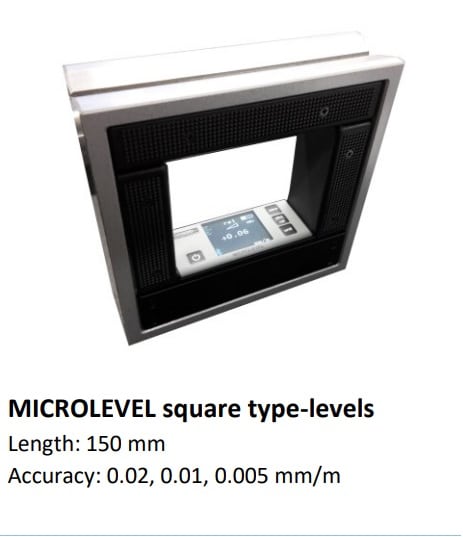

MICROLEVEL Square type Levels
MICROLEVEL opt. remote control via app
Electronic precision water level (horizontal and vertical), ideally suited e.g. for mechanical engineering in the manufacture, installation and monitoring of machines of all kinds.
State-of-the-art electronics and sensors of the latest generation, built in high-quality and proven cast housing, bring the battery-powered device to the latest state of the art. Its simple and logical handling makes training unnecessary

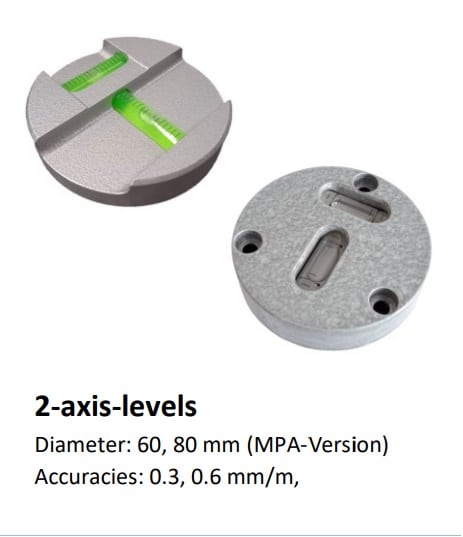

2-Axis Levels
2-axis spirit level (Disc spirit level, based on DIN 877)
Round 2-axis spirit level, based on DIN 877 (2nd line on the outside is missing for reasons of space), made of VA 1.4305 with a flat, finely ground contact surface, especially for the simultaneous alignment of horizontal surfaces in both horizontal axes. The device is equipped with 2 identical, ground and divided longitudinal glass bubbles. This spirit level comes with 3 holes and countersinks to screw on for M4 screws. Magnet version and special versions available on request.
2-axis spirit level MPA model DIN 877 (disc spirit level)
Round 2-axis spirit level made of rustproof VA 1.4305 with a flat, finely ground contact surface, especially for the simultaneous alignment of supports in both horizontal axes. The device is equipped with 2 identical, ground and divided longitudinal glass bubbles. Appropriate housing recesses allow the spirit level to be read from the side, which is an advantage for higher measuring points. This spirit level was specially developed for bridge construction. Magnet version and special versions available on request.

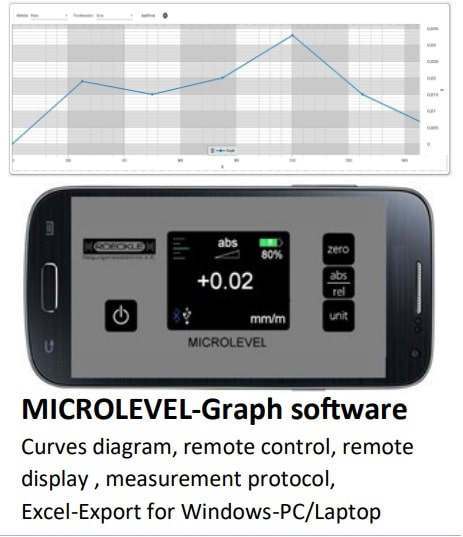

MICROLEVEL Graph Software
Software for curve diagram, remote control, remote display, measurement protocol, Excel export for Windows PC / Laptop
Measurement software MICROLEVEL-GRAPH:
WINDOWS PC software in communication with the precision spirit level MICROLEVEL:
• Permanent live graphic display
• Recording the measured values
• Evaluation of the measurement results according to ISO1101, the endpoint method or by means of linear regression (regression line)
• Long-term measurements
• Absolute and relative measurements
• Remote display MICROLEVEL
• Remote control MICROLEVEL
• Storage and archiving of the measurement results
• Reproduction of the archived data
• Data export to MS-Excel
• Output of a measurement log to printer
• Send the measurement report by email
from Germany
