Measuring Instruments
Depth Gauge เกจวัดความลึก
Indicator Depth Gauge

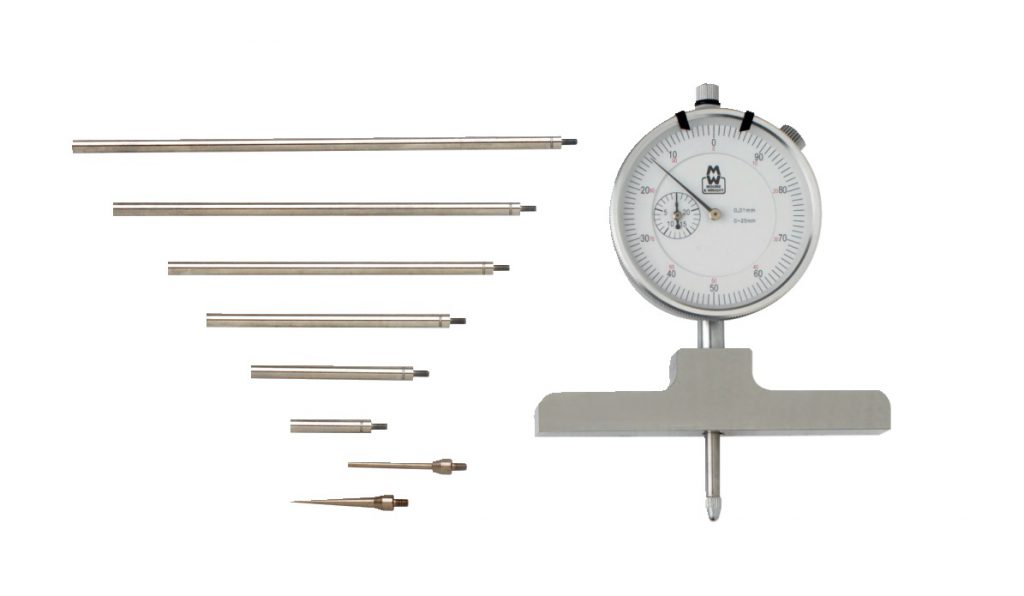

Mechanical Depth Gauge MW172
Model
| Code No | Range (MM) | Resolution (MM) |
| MW172-01 | 0-550 | 0.01 |
Features
- 0-25 mm travel mechanical indicator
- Satin chrome finish
- Rods connect together for full 550 mm capacity
- Base size 100 mm
- Includes 2 extra points for small hole application
Download Specification

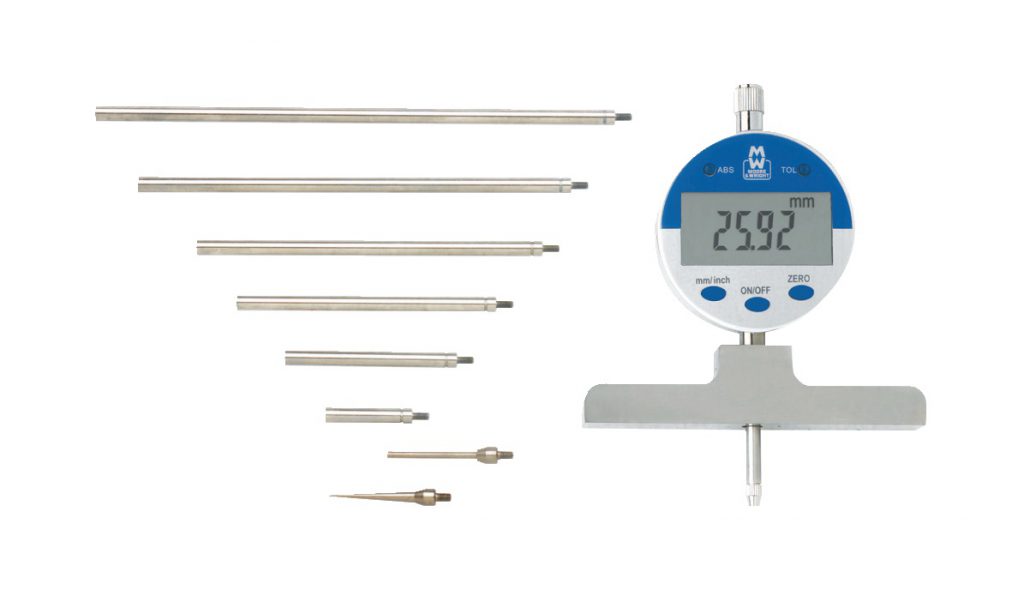

Digital Depth Gauge MW172-01D
Model
| Code No | Range (MM) | Resolution (MM) | Range(Inch) | Resolution (Inch) |
| MW172-01D | 0-550 | 0.01 | 0-22 | 0.0005 |
Features
- 0-25 mm/ 0-1″ travel digital indicator
- Inch/mm conversion
- Zero setting at any position
- Rods connect together for full 550 mm capacity
- Base size 100 mm
- Includes 2 extra points for small hole application
Download Specification
Vernier Depth Gauge

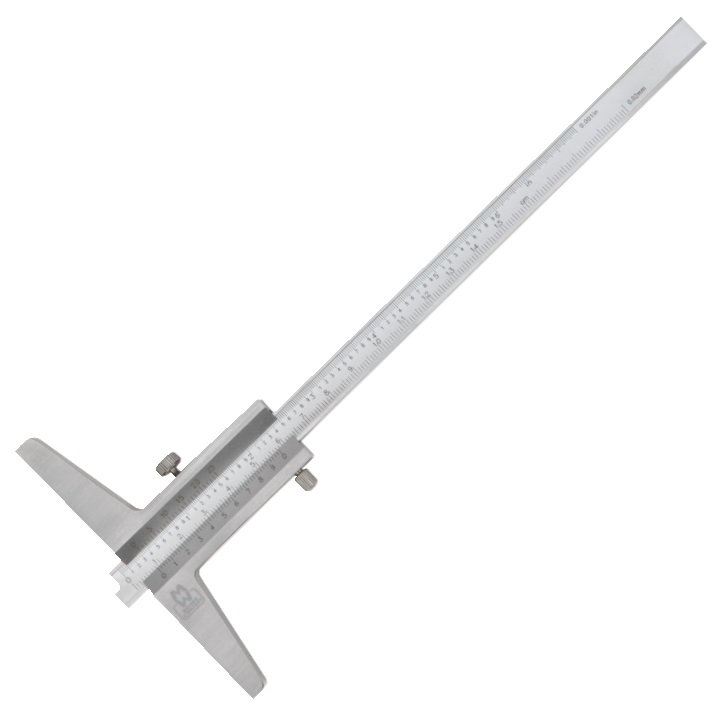

Vernier Depth Gauge MW170
Model
| Code No. | Range | Resolution | Length of Base |
| MW170-15 | 0-150mm | 0.02mm/0.001″ | 100mm |
| MW170-15B | 0-150mm | 0.05mm/ 1/128″ | 100mm |
| MW170-20 | 0-200mm | 0.02mm/0.001″ | 100mm |
| MW170-20B | 0-200mm | 0.05mm/ 1/128″ | 100mm |
| MW170-30 | 0-300mm | 0.02mm/0.001″ | 100mm |
| MW170-30B | 0-300mm | 0.05mm/ 1/128″ | 100mm |
| MW170-50B | 0-500mm | 0.05mm/ 1/128″ | 150mm |
| MW170-50BI | 0-500mm | 0.02mm/0.001″ | 150mm |
Features
Standard: Factory Standard
- Standard Workshop model made of alloyed stainless steel
- Screw stop solid slider model
- With laser engraved graduations
- The scale shows mm value
- Measuring surface is micro-lapped
Download Specification

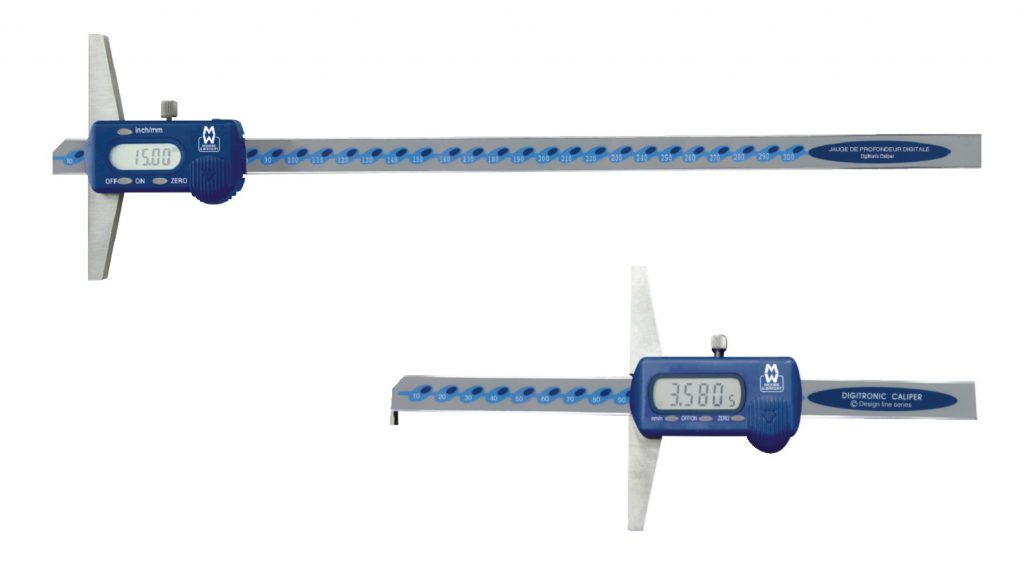

Digital Depth Caliper MW170-DB, MW170-DH
Model
DB without Hook
| Code No. | Range (mm) | Range (inch) | Resolution (mm) | Resolution (inch) | Size of Base |
|---|---|---|---|---|---|
| MW170-15DB | 0-150 | 0-6 | 0.01 | 0.0005 | 100mm |
| MW170-20DB | 0-200 | 0-8 | 0.01 | 0.0005 | 100mm |
| MW170-30DB
MW170-30DB/100 |
0-300
0-300 |
0-12
0-12 |
0.01
0.01 |
0.0005
0.005 |
150mm
100mm |
DH with Hook
| Code No. | Range (mm) | Range (inch) | Resolution (mm) | Resolution (inch) | Size of Base |
|---|---|---|---|---|---|
| MW170-15DH | 0-150 | 0-6 | 0.01 | 0.0005 | 100mm |
| MW170-20DH | 0-200 | 0-8 | 0.01 | 0.0005 | 100mm |
| MW170-30DH | 0-300 | 0-12 | 0.01 | 0.0005 | 100mm |
Features
• Ground micro-lapped measuring surfaces
• Functions : mm / inch conversion, on / off, zero-setting, battery low indication
• Available with hook (H) or without hook (B)
Download Specification
Digital Tyre Profile Gauge/ Mini Depth Gauge

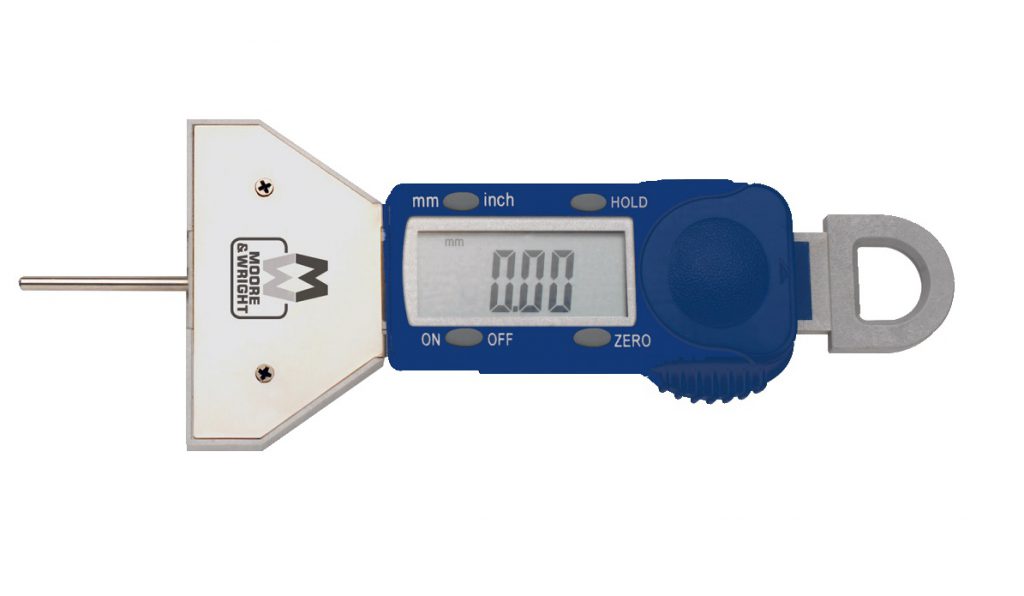

Digital Tyre Profile Gauge MW176-01DTG
Model
| Code No. | Range | Resolution |
| MW176-01DTG | 0-25mm/ 0-1″ | 0.01mm/ 0.0005″ |
Features
- Spring loaded with a hold measurement button for ease of use
- Spindle diameter 2.5mm
- Supplied on retail packaging
- Vinyl holder supplied as standard
Download Specification

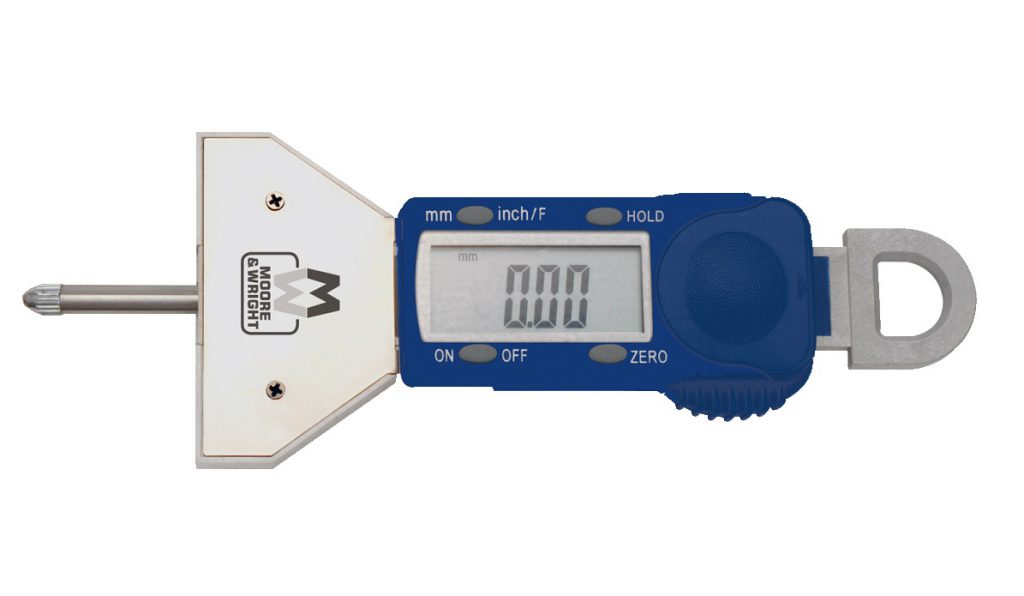

Digital Mini Depth Gauge MW177-01D
Model
| Code No. | Range | Resolution |
| MW177-01D | 0-100mm/ 0-4″ | 0.01mm/ 0.0005″/ 1/128″ |
Features
- Spring loaded with a hold measurement button for ease of use
- Large LCD display
- Supplied on retail packaging
- Plastic 50mm base
- M2.5 threaded measuring rod
- 25mm/ 1″ measuring stroke
- Includes 25mm and 50mm extension bars
- battery CR2032
- Metric/ Inch/ Fraction reading
Download Specification
Internal/ External Digital Caliper

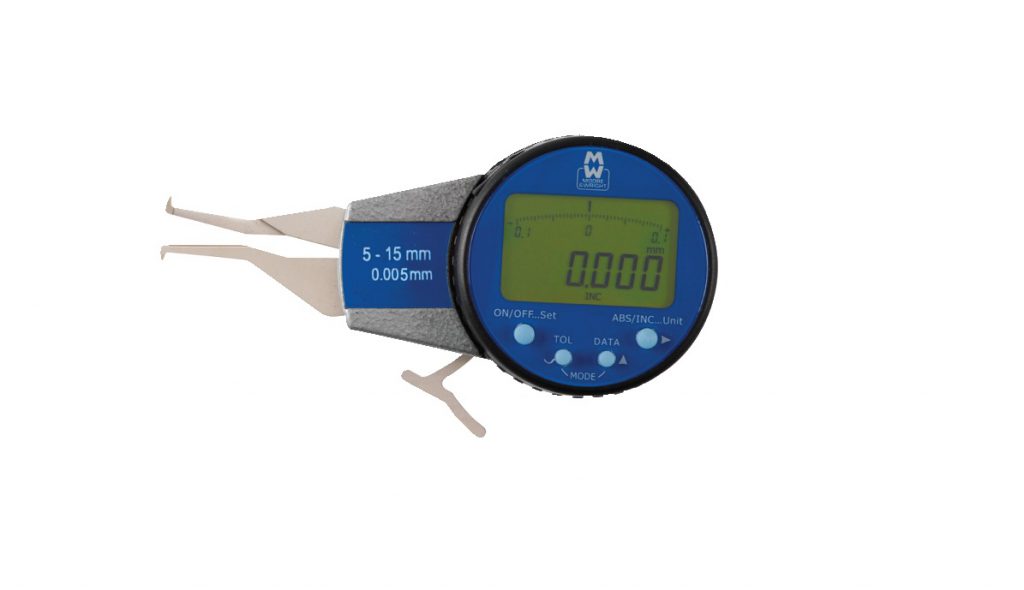

Internal Digital Caliper MW432-DC
Model
| Code No. | Range (mm) | Range (inch) | Dimn – A | Dimn – B | Dimn – C | Contact Radius |
|---|---|---|---|---|---|---|
| MW432-01DC | 5-15 | 0.2-0.6 | 20.0 | 1.0 | 1.5 | 0.3mm |
| MW432-02DC | 10-20 | 0.4-0.8 | 25.0 | 1.5 | 3.0 | 0.3mm |
| MW432-03DC | 20-30 | 0.8-1.2 | 30.0 | 2.0 | 6.5 | 0.5mm |
| MW432-04DC | 30-40 | 1.2-1.6 | 30.0 | 2.5 | 9.0 | 0.5mm |
| MW432-05DC | 40-50 | 1.6-2.0 | 30.0 | 2.5 | 9.0 | 0.5mm |
Features
• Large LCD display
• 0.005mm or 0.0002″ resolution
• Preset capability
• Direct Inch/Metric conversion
• Absolute/Incremental measurements
Download Specification

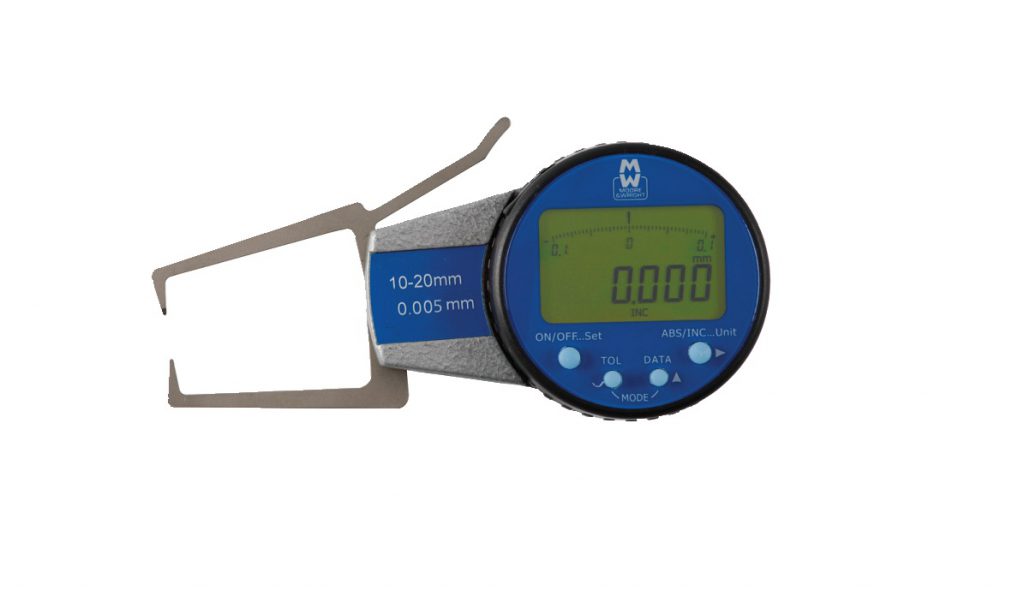

External Digital Caliper MW442-DC
Model
| Code No. | Range (mm) | Range (inch) | Dimn – A | Dimn – B | Dimn – C | Contact Radius |
|---|---|---|---|---|---|---|
| MW442-01DC | 0-10 | 0.2-0.4 | 40.0 | 3.0 | 8.0 | 0.3mm |
| MW442-02DC | 10-20 | 0.4-0.8 | 40.0 | 3.0 | 8.0 | 0.3mm |
| MW442-03DC | 20-30 | 0.8-1.2 | 40.0 | 3.0 | 8.0 | 0.5mm |
| MW442-04DC | 30-40 | 1.2-1.6 | 40.0 | 3.0 | 8.0 | 0.5mm |
| MW442-05DC | 40-50 | 1.6-2.0 | 40.0 | 3.0 | 8.0 | 0.5mm |
Features
• Large LCD display
• 0.005mm or 0.0002″ resolution
• Preset capability
• Direct Inch/Metric conversion
• Absolute/Incremental measurements
Download Specification
