MW Bore Gauging บอร์เกจจิ้ง

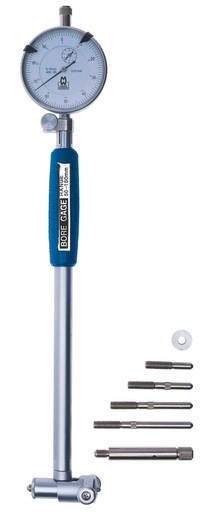

Cylinder Bore Gauge
Cylinder Bore Gauge
Model
| Code No. | Range (mm) | Resolution (mm) |
| MW316-01 | 6-10 | 0.01 |
| MW316-02 | 10-18 | 0.01 |
| MW316-03 | 18-35 | 0.01 |
| MW316-04 | 35-50 | 0.01 |
| MW316-05 | 50-160 | 0.01 |
| MW316-06 | 160-250 | 0.01 |
Features
• With interchangeable contact points
• Set of carbide tipped contact points included
• Unique self centring device
• Supplied with dial indicator, resolution 0.01mm
• Packed as set with all necessary accessories to measure the complete range
Download Specification

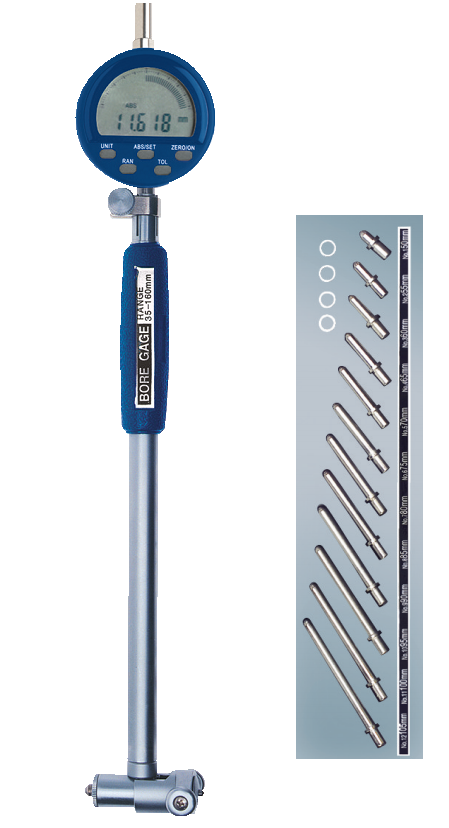

Digital Cylinder Bore Gauge
Model
| Code No. | Range (mm) | Resolution (mm) | Resolution (inch) | Measuring Depth (mm) | Measuring Depth (inch) |
|---|---|---|---|---|---|
| MW316-12D | 35-160 | 0.001 | 0.0005 | 200 | 8 |
Features
• With interchangeable contact points
• Set of carbide tipped contact points included
• Unique self centring device
• Supplied with digital indicator with bar graph and numerical display
• Packed as set with all necessary accessories to measure the complete range
Download Specification

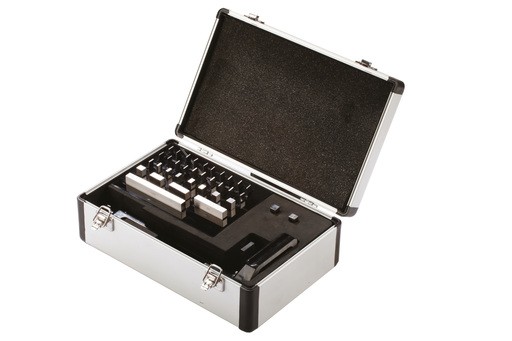

Cylinder Bore Gauge Setting Master Kit MW720-01
Model
| Code No. | Description |
|---|---|
| MW720-01 | Bore Gauge Setting Master Kit |
Features
Features
• Bore Gauge Setting Master Kit for accurately setting any 2 point bore gauge up to 160mm in diameter to an accuracy of 0.01mm
• Setting master and 33 piece metric gauge block set supplied in plastic case

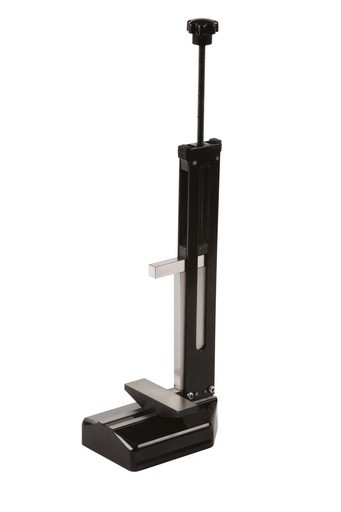

Setting Device
• Internal range 160mm
• Depth range 25mm
• Centraliser width 70mm
• Quick-release holder for fast adjustment
Gauge Block Set
• Accuracy to DIN 861, Grade2
• 33 piece metric steel set
• Supplied in a fitted case with MOORE & WRIGHT certificate
Download Specification
Bore Gauging

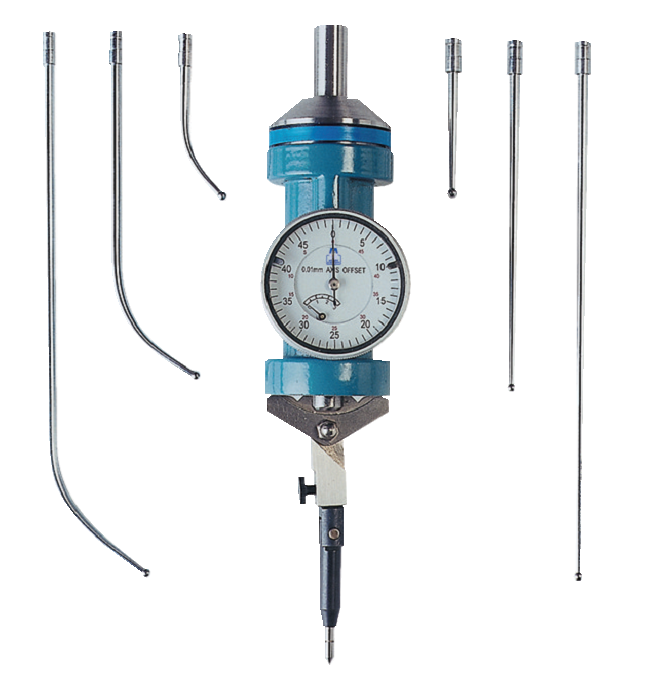

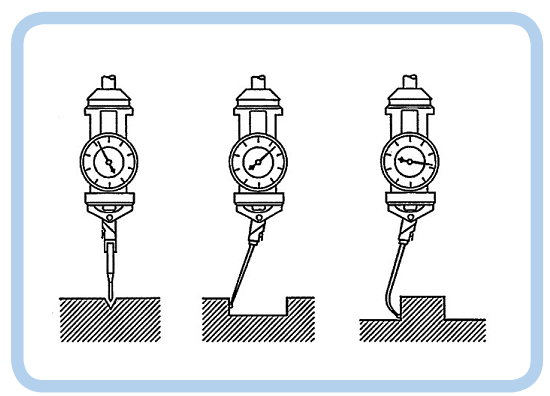

Universal Center Finder with Indicator
Model
| Code No | Int.range | Ext.range | Concentricity | Accuracy | Indicator range |
| MW612-01 | 3.5-300mm | 0-300mm | 0.005mm | 0.01mm | 0-3mm |
Features
Standard: Factory Standard
- Universal equipment for finding the centre of a bore or to measure the concentricity of work pieces
- Indicator always faces operator, also when spindle runs
- With double indicator for maximum accuracy
- For vertical and horizontal use
- Includes 6 touch points for internal and external measurement
Download Specification

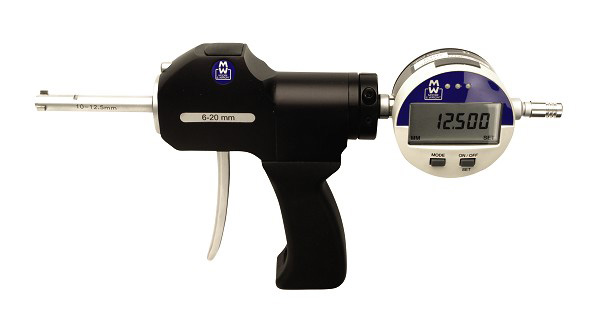

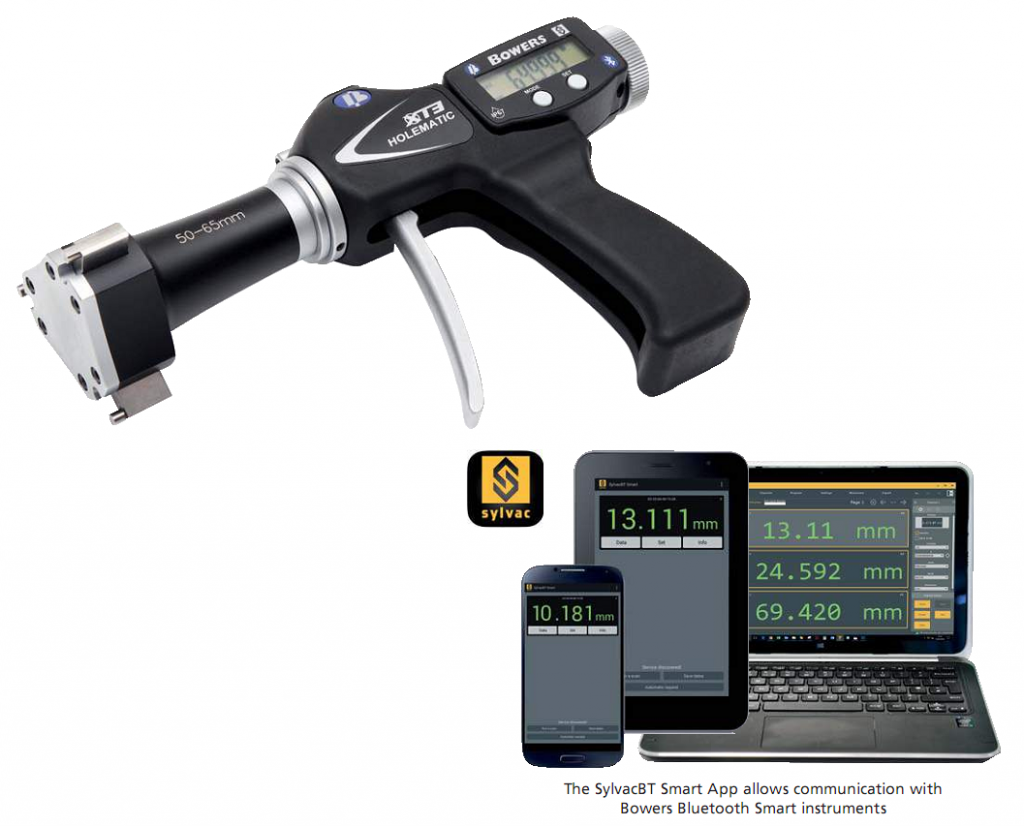

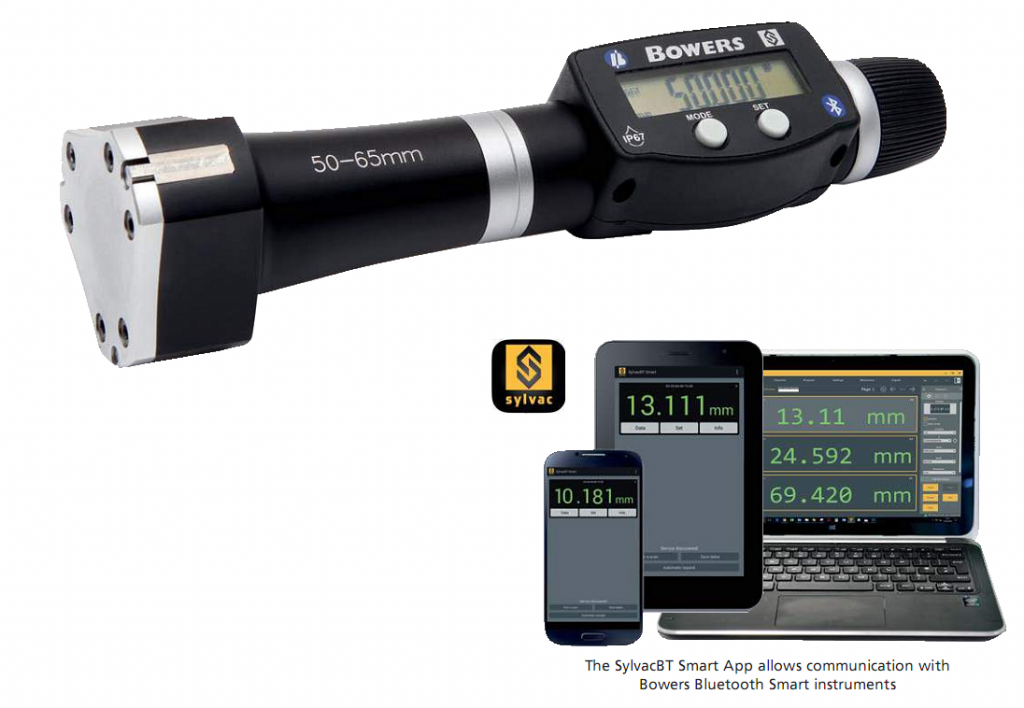

Digital Bore Gauging
Model
| Code No. | Range (mm) | Accuracy (mm) | Depth (mm) |
|---|---|---|---|
| SXTHSY3M | 6-10 | 0.004 | 58 |
| SXTHSY4M | 10-20 | 0.004 | 62 |
| SXTHSY5M | 20-50 | 0.004 | 66 |
| SXTHSY6M | 50-100 | 0.005 | 82 |
| SXTHSY10M | 6-20 | 0.004 | 58-62 |
| SXTHSY11M | 20-100 | 0.005 | 66-82 |
Features
Standard: DIN 863 – Part 4
• Measurement range from 6-100mm
• Ergonomically designed pistol grip body
• Functions include 2 pre-set memories, tolerance indicator lights and mm/inch conversion
• RS-232 data output facility
• Self centring measuring heads with tungsten carbide contact points
• Setting rings provided with each instrument complete with traceable certification
• Blind bore measurement on all instruments above 12.5mm
Download Specification
