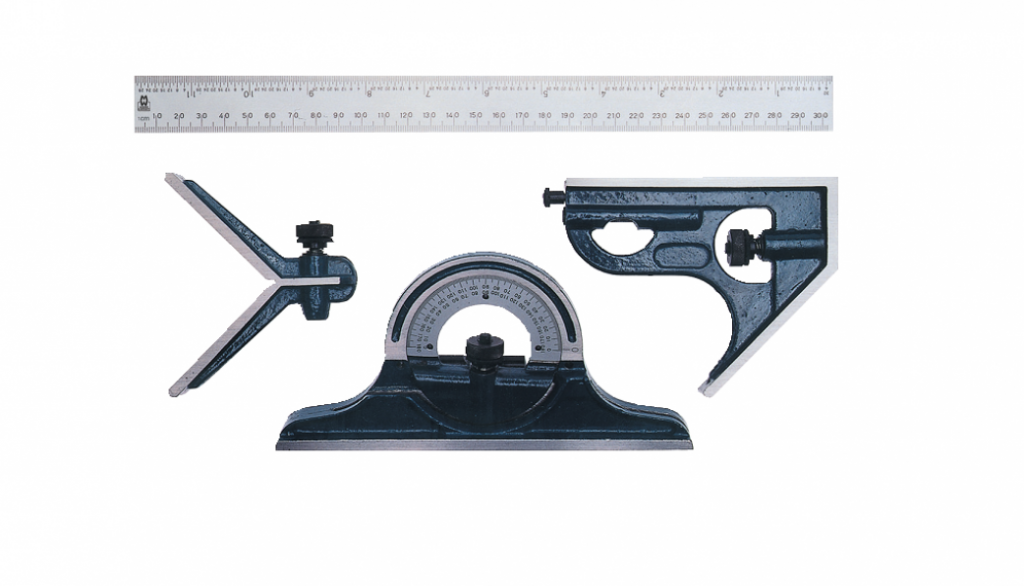

Basic Combination Set MW520-01
Model
| Code No | Range | Note |
| MW520-01 | 180′ | ltems in set-4 |
Features
- Three measuring heads are attached to the stainless steel ruler, allowing versatile measurements on various types of work pieces
- Square head, protractor head and centrehead
- For various measuring and making applications
- Hardened and ground slide ways
- Stainless steel rule with engraved graduations
Download Specification

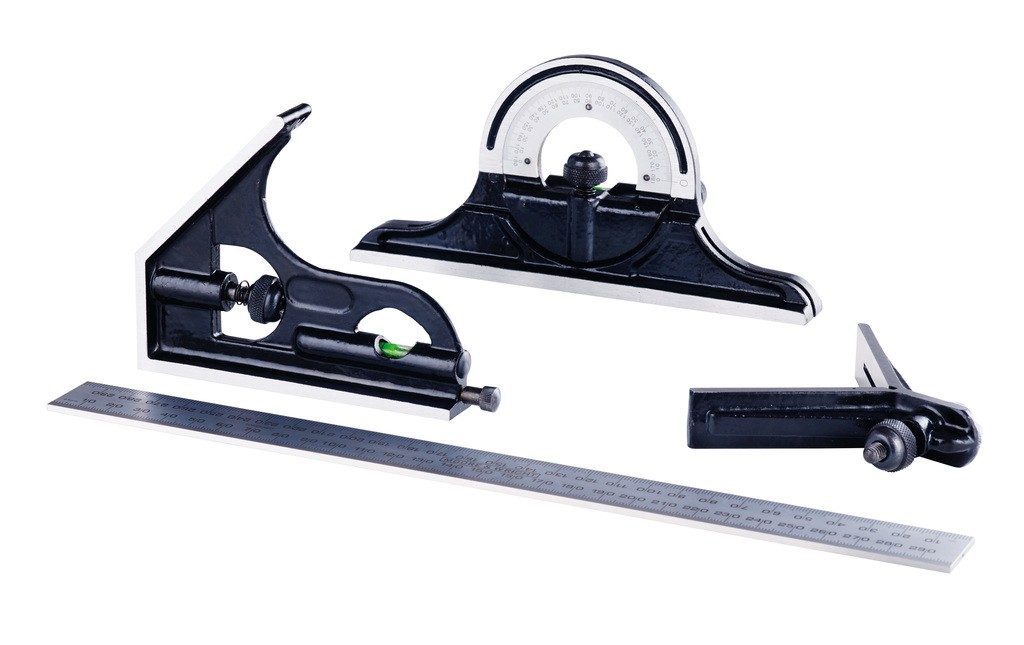

Workshop Combination Set MW521-01
Model
| Code No | Range | Description |
| MW521-01 | 180′ | 4 ltems in set |
Features
- Three measuring heads are attached to the stainless steel ruler, allowing versatile measurements on various types of work pieces
- Square head, protractor head and centre head
- For various measuring and making applications
- Hardened and ground slide ways
- Stainless steel rule with engraved graduations one side metric, one side imperial
Download Specification
Carpenters’ Square MW525-01
Model
| Code No. | Length (inch) | Length (inch) | Graduations (mm) | Graduations (inch) |
|---|---|---|---|---|
| MW525-01 | 300 | 12 | 1.0 | 1/32 |
Features
- Aluminium base and ergonomic design for ease of use
- Allows positive location and clamping
- Offers fixed angles 45′, 90′
- With mini carbide scriber and level vial
- Squareness within 0.2mm/300mm
- in/mm ruler
Download Specification
Traditional Precision Combination Set CSM300
Model
| Code No. | Description | Application Range |
|---|---|---|
| CSM300 | Full set including 300mm rule (graduated both sides), Protractor head, Square head and Centre head | Precision Combination Set |
| CSRM300 | mm and 0.5mm on both sides; numbered every 10mm | Rule, 300mm |
| CSRM600 | mm and 0.5mm on both sides; numbered every 10mm | Rule, 600mm |
| Code No. | Description | Application Range |
|---|---|---|
| CSME12 | Full set inc. 300mm/12″ rule, Protractor head, Square head & Centre head | Precision Combination Set |
| CSRME12 | Metric graduations: in 0.5mm, numbered every 10mm. Imperial graduations: 32nds and 64ths numbered every 1/8″ | Rule, 300mm / 12″ |
| CSRME24 | Metric graduations: in 0.5mm, numbered every 10mm. Imperial graduations: 32nds and 64ths numbered every 1/8″ | Rule, 600mm / 24″ |
| Code No. | Application Range | Description |
| CSPRO | Protractor head | Supplied as standard with CSM300 & CSME12 precision combination sets |
| CSSH | Square head | Supplied as standard with CSM300 & CSME12 precision combination sets |
| CSCH | Centre head | Supplied as standard with CSM300 & CSME12 precision combination sets |
| RPCSCS | Replacement rule clamp screw | Supplied as standard with CSPRO, CSSH and CSCH |
Features
• Fully hardened and tempered precision rules with deeply etched graduations on both sides for ease of reading and long life
• Fully hardened and ground datum faces to resist wear
• Centrally mounted protractor vial allows unrestricted viewing
• Protractor has full 360º scale plate, graduated 0 – 180º – 0
• Satin chrome scale plate on protractor
• Unique rule clamp allows positive location and clamping
• Square head offers the following fixed angles: 15º, 30º, 45º, 60º, 75º & 90º
• Centre head offers a fixed 90º angle, for finding the centre of round bar stock up to 120mm diameter
• Clipped corner on rule to maximise capability
Download Specification

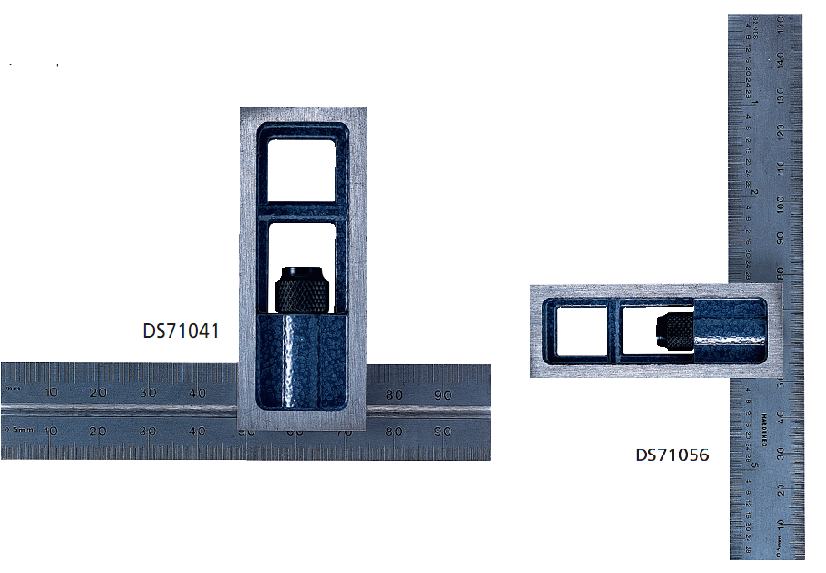

Sliding ‘T’ Squares
Model
METRIC SLIDING T SQUARES
| Code No. | Length (mm) | Stock Length (mm) | Graduation |
|---|---|---|---|
| DS71041 | 100 | 62 | 1mm, 0.5m |
| DS71051 | 150 | 62 | 1mm, 0.5m |
METRIC / IMPERIAL SLIDING T SQUARES
| Code No. | Length (mm) | Stock Length (mm) | Graduation |
|---|---|---|---|
| DS71044 | 100 | 62 | 0.5mm, 1mm |
| DS71056 | 150 | 62 | 0.5mm, 1mm |
Features
Practical time saving tool for many marking-out applications. Suitable for use as a parallel or as a double square.
Features
• Working surfaces of the stock are ground
• The blade is hardened, tempered and has a satin chrome finish
Download Specification
