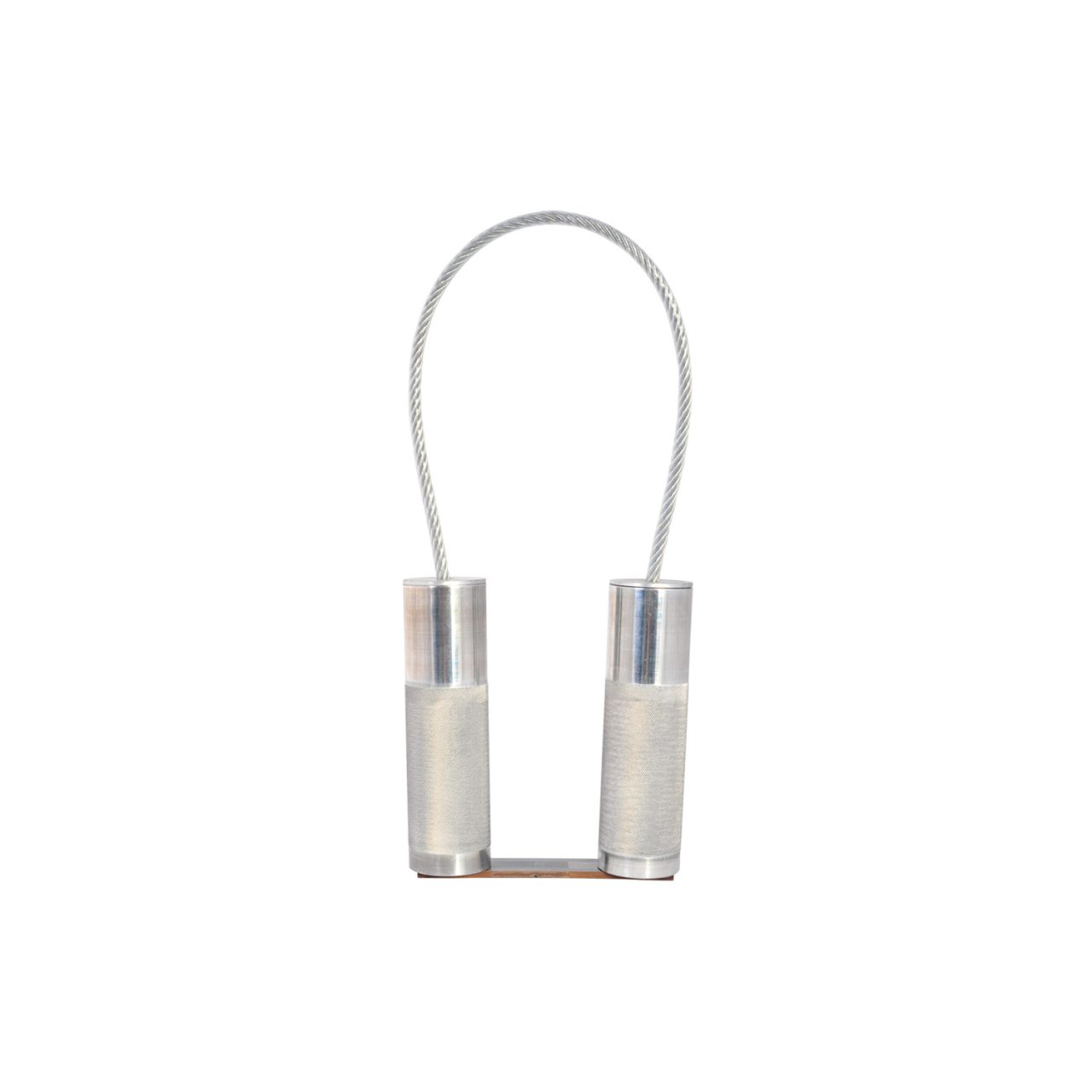

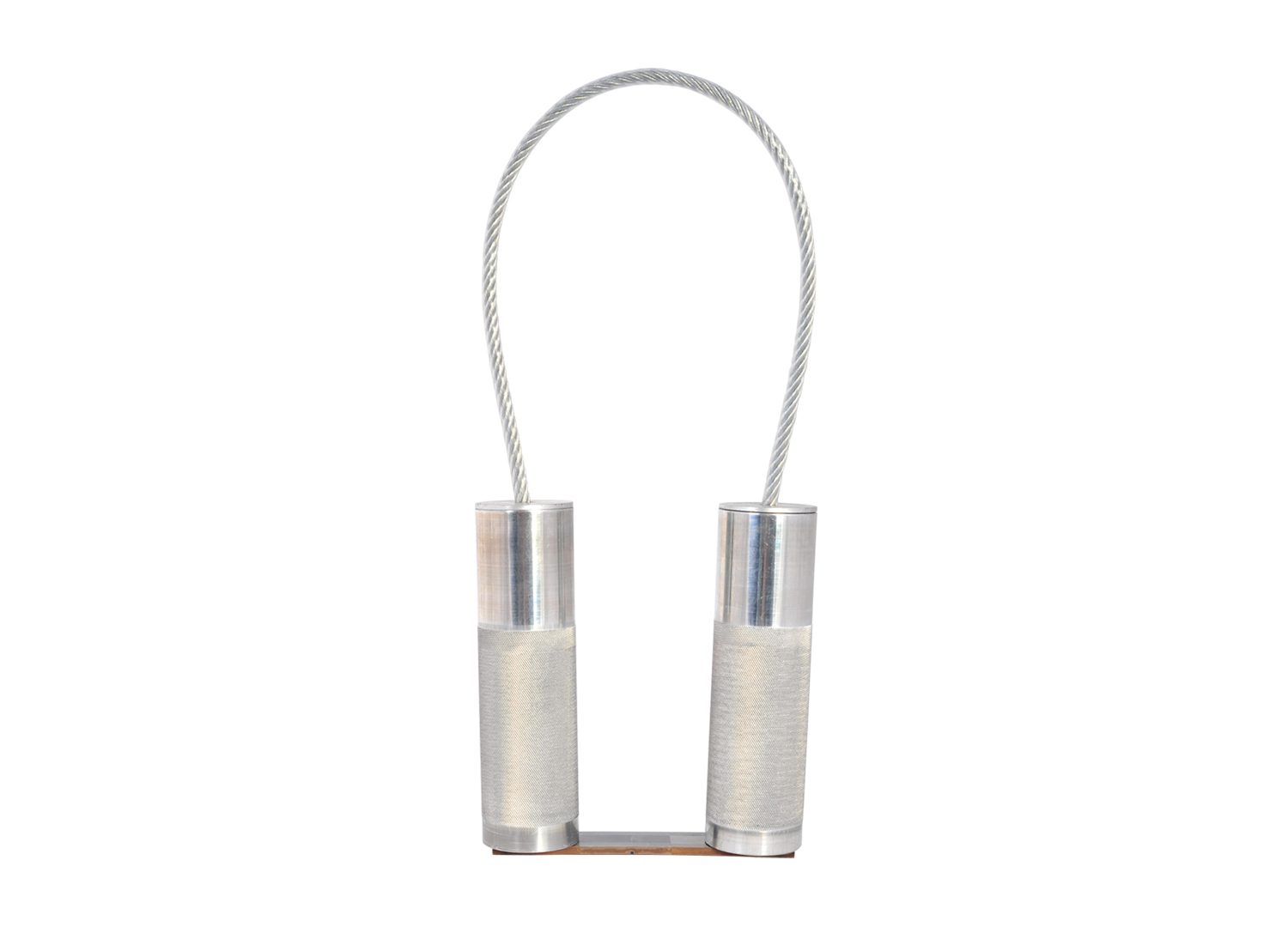

Magnetic Flaw Detector (Magnetic Yoke) NOVOTEST MPD-DC

The magnetic yoke is highly effective for detecting surface and subsurface cracks, including flakes, lack of fusion in welded joints, tears, and other imperfections in ferromagnetic materials.

  • Versatile application in challenging conditions. The NOVOTEST MPD-DC Magnetic Flaw Detector is the ideal solution when the use of electromagnets is not possible, such as in environments where power supply is difficult or restricted due to safety regulations, for example, when it is prohibited to use Magnetic Particle Flaw Detector NOVOTEST MPD-17P. It excels in situations like working at heights, in field conditions, or inspecting the internal surfaces of tanks and boilers.
  • Designed for extreme environments, the NOVOTEST MPD-DC operates reliably at temperatures ranging from -30°C to +50°C and can handle relative humidity up to 95% at 35°C.
  • Simple design
  • Easy to use
  • High quality materials
  • Reliable
  • Durable
Magnetizing field DC
Magnetic field strength at the center of the air gap between the poles 200 kA / m
Magnetic field strength in the air in the middle region between the working ends of the magnet, not less 65 kA / m
Lift force, not less 22 kg (50 pounds)
Interpolar distance 350 mm
Dimensions and weight 40x120x360 mm / 0.6 kg
  • Magnetic Flaw Detector
  • Operating manual
  • Test certificate
  • Transportation bag

Optional

  • Calibration certificate issued by the third-party metrology laboratory (ILAC)
  • Certificate of origin issued by the Chamber of Commerce and Industry
  • Individual modification to customer requirements
