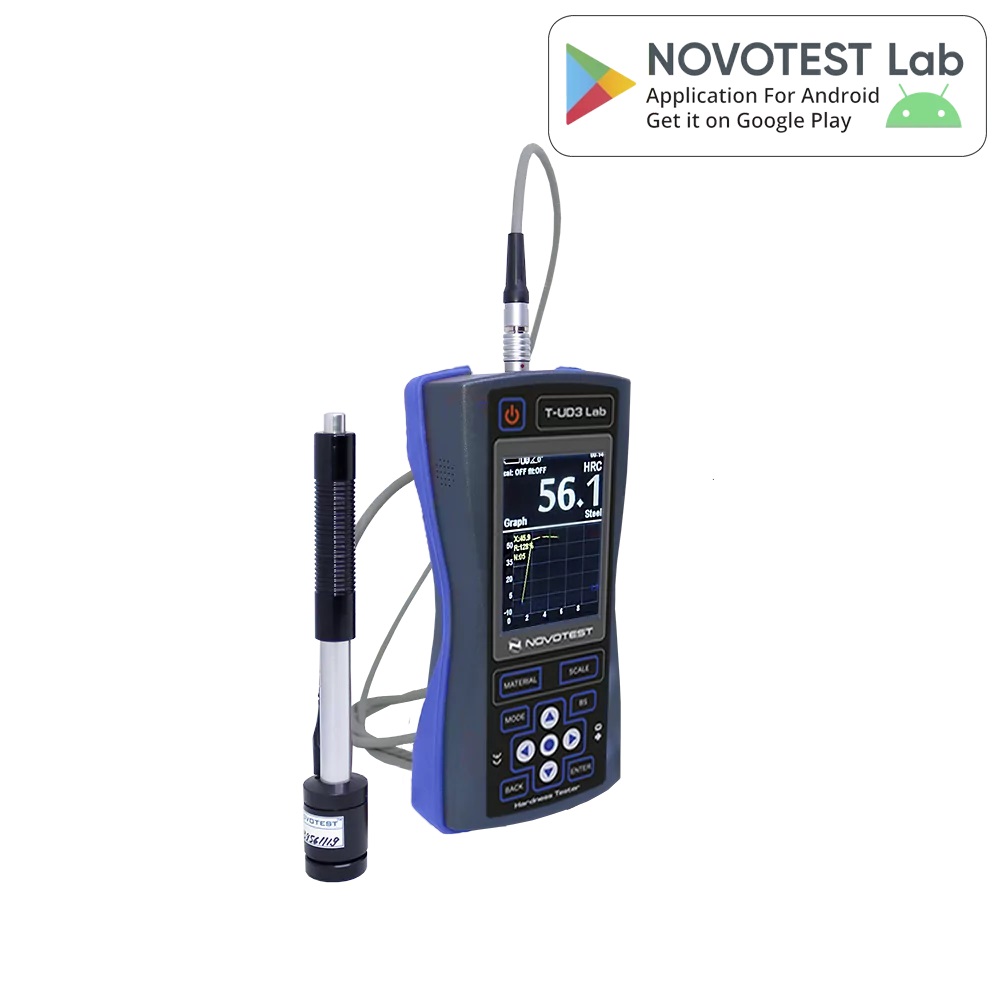

Leeb Hardness Tester NOVOTEST T-D3

The Leeb method (ASTM A956) is the most popular for portable metal hardness testing due to its simplicity, requiring no special skills; it is ideal for large products over 5 kg and 10 mm thick, but can also measure smaller parts with proper fixing.

Large full color graphic display with bright backlighting
Various measurement modes: statistic, graph, histogram, smart, signal
Calibration of any scale in any range
Convenience and ease of measurement
Optimized number of buttons
88 combinations of materials and hardness scales (calibrations)
Photofixation of tested objects
Extended temperature range (frost, down to – 40°C)
Internal memory and communication with PC
New, intuitive menu with tips on the buttons
Optional wireless mini printer
Water resistant case
Rubber protected bumper

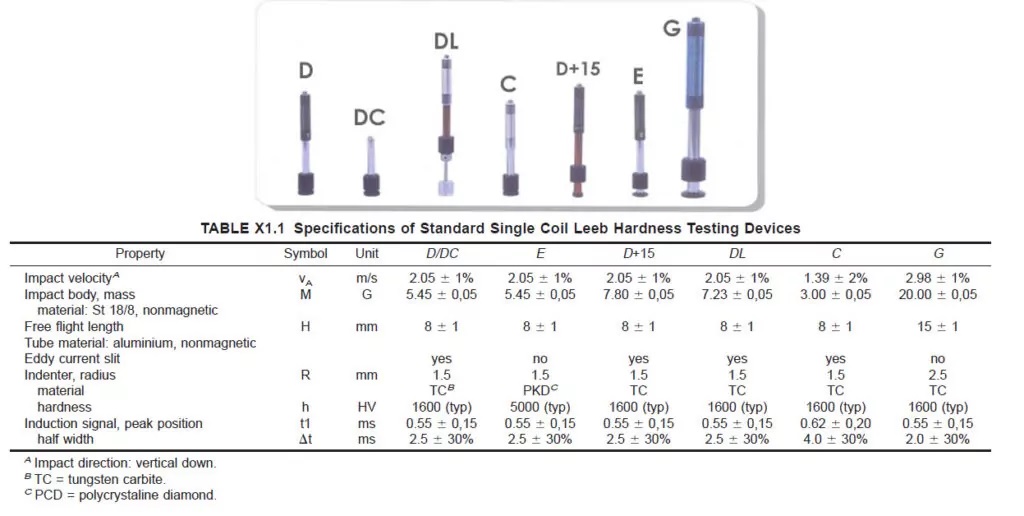

Leeb probe types	D DC DL C D+15 E G
Measuring range for steel	HRC:20~70 HB:90~650 HV:230~940 Tensile strength, MPa: 370~1740 User calibrations for any range (for example: HV100-3000)
Measuring accuracy	HRC: 2HRC HB: 10HB HV: 15HV
Standards	ASTM A 956 ASTM E 140 ASTM A 370 ISO 16859 DIN 50156 GB/T 17394 JB/T 9378 ISO 18265
Indenter	Hardened ball (Leeb)
Measuring direction	Any direction 360°
Data storage	Limited only by the memory card up to 32Gb
Communication	Upload data to PC and export as a spreadsheet (USB cable and software included )
Hardness scale	Leeb probe – HRC, HRB, HB, HV, HL, MPa Additional custom scales for calibration
Materials	Dynamic (Leeb) pre-calibrated for steel, alloy steel, cast iron, stainless steel, aluminum, bronze, brass, copper Additional custom materials for calibration
Data display	Angle (Leeb) Single test result Max, Min, Average of tests Number of tests Deviation Var. coeff. Histogram Signal and Smart Mode (Filter of incorrect measurements)
Language	English German French Polish Russian *additional languages available by request
Indication	Color LCD display (320×240)
Operating environment	Temperature:-20°C~40°C Humidity: 30%~80%R.H.
Power supply	DC 4,5V (3 pcs batteries AA)
Instrument dimensions	160x75x30mm
Net weight	Approx. 0.3kg (Without probe)
Battery life	Approx. 10 hours.

“Basic” kit:

Electronic unit Leeb Hardness Tester NOVOTEST T-D3 (Lab)
Leeb D type probe – 1pc (other types by request)
Accessory package:
– AA batteries – 3 pcs
– USB charger
– USB cable for PC
– PC software:
— Online – INFO/USB-connect
— Offline – NOVOTEST USB-Connect
– NOVOTEST LAB App for Android gadgets
– Operating manual/Quick guide
– Test certificate
– Transportation plastic case

“Advanced 1” kit:

Electronic unit Leeb Hardness Tester NOVOTEST T-D3 (Lab)
Leeb D type probe – 1pc (other types by request)
Protective Pouch with Straps for T-UD3
Hardness Test Block HLD or HLG (for Leeb probe) – 1pc
Accessory package

“Advanced 2” kit:

Electronic unit Leeb Hardness Tester NOVOTEST T-D3 (Lab)
Leeb D type probe – 1pc
Protective Pouch with Straps for T-UD3
Leeb probe Type DL or DC-R or DC-R mini or G
Hardness Test Block HLD or HLG (for Leeb probe) – 1pc
Accessory package

“Advanced 3” kit:

Electronic unit Leeb Hardness Tester NOVOTEST T-D3 (Lab)
Leeb D type probe – 1pc (other types by request)
Protective Pouch with Straps for hardness tester T-UD3
Leeb Hardness Test Block HLD or HLG (for Leeb probe) – 1pc
Set of support rings for Leeb probe
Accessory package

“Professional” kit:

Electronic unit Leeb Hardness Tester NOVOTEST T-D3 (Lab)
Leeb D type probe – 1pc
Protective Pouch with Straps for T-UD3
Leeb probe Type DL or DC-R or DC-R mini or G
Hardness Test Block HLD or HLG (for Leeb probe) – 1pc
Set of support rings for Leeb probe
Accessory package

“Expert” kit:

Electronic unit Leeb Hardness Tester NOVOTEST T-D3 (Lab)
Leeb D type probe – 1pc
Protective Pouch with Straps for T-UD3
Leeb probe Type DL or DC-R or DC-R mini or G
Hardness Test Block HLD or HLG (for Leeb probe) – 1pc
Set of support rings for Leeb probe
Accessory package

Protective Pouch with Straps for T-UD3
Android smartphone or tablet (optionally with IP65) for NOVOTEST Lab App
Additional Leeb probes:
– Dynamic probe Type DC-R
– Dynamic probe Type DC-R-mini
– Leeb probe Тype D
– Leeb probe Type DL
– Leeb probe Type G
– Leeb probe Type D+15
– Leeb probe Тype C
– Leeb probe Type E

Set of support rings for Leeb probe
Cable for Leeb probe
Impact bodies for Leeb probes

After the purchase if needed, can be ordered dynamic Leeb probe with activation code to convert to Combined hardness tester T-UD3 (Lab) with two types of probes (UCI+Leeb).
Additional UCI probes:
– UCI Probe U1 L3 (10N/HV1)
– UCI Probe U1 L3 (50N/HV5)
– UCI Probe U1 L3 (98N/HV10)
