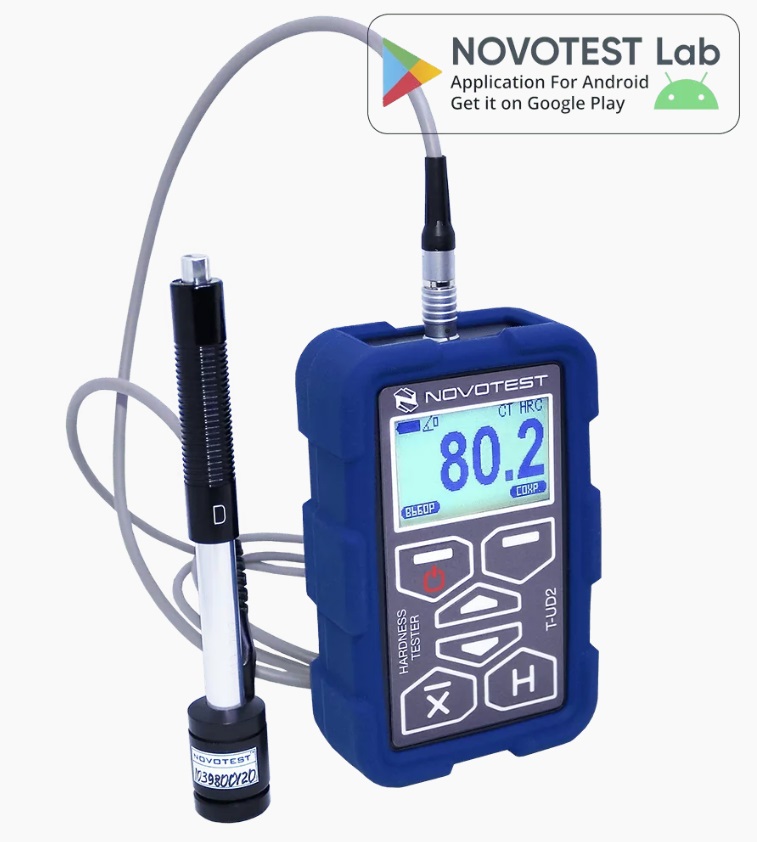

Leeb Hardness Tester NOVOTEST T-D2

The Leeb hardness tester compliant with ASTM A956, is the world’s most popular metal hardness testing method due to its simplicity and ease of use, requiring no special skills. It works well with low alloy steels, stainless steels, and non-ferrous metals, and is ideal for bulk products without extensive surface preparation.

  • Wide range of hardness measurement
  • Allows to test the products with coarse, non-uniform structure (castings, forgings)
  • Very ease and simplicity in setup and operation
  • Reasonable price (lower in comparison with the ultrasonic hardness tester)

User can save the results of hardness measurements into the internal memory of the device and after that, transfer them to the PC. Device allows user to operate in a wide range of the temperature. Hardness tester T-D2 has a brightness high contrast display. Device also has calibration modes for hardness testing of wide range of metals and alloys.

Measurement hardness range:



  • Rockwell, HRC
  • Brinell, HB
  • Vickers, HV
  • Tensile strength, MPa
  • User calibrations
  • Factory calibrations:
    – HRC: 20~70
    – HB: 90~650
    – HV: 100~750
    – Tensile strength MPa: 370~1740
    – HL: 300~800
  • User calibrations for any scale and range (for example: 1-3000HV)
Measurement accuracy
  • HRC: 2HRC
  • HB: 10HB
  • HV: 15HV
  • HLD: 4HLD
Hardness scale
  • Leeb probe – HRC, HB, HV, HL, MPa
  • Additional custom scales for calibration.
Materials
  • Leeb probe – pre-calibrated for steel, alloy steel, stainless steel, aluminum, cast iron.
  • Additional custom scales and materials for calibration.
Standards
  • ASTM A 956
  • ASTM E 140
  • ASTM A 370
  • ISO 16859
  • DIN 50156
  • GB/T 17394
  • JB/T 9378
  • ISO 18265
PC cable connection
Wireless connection with Android gadgets via NOVOTEST Lab App
  • T-D2 – No
  • T-D2 (Lab) – Yes
Storage capacity of measurement results
  • T-D2 – 256
  • T-D2 (Lab) – 256 in the device + in NOVOTEST Lab App limited only by the memory of the Android gadgets
Language
  • English
  • Spanish
  • Portuguese
  • French
  • Russian

*additional languages available by request

Dimensions, mm 122*65*23
Operating temperature range, ° C -20 to +40
Power supply 2pcs AA batteries
Batteries life, not less, h 20
Weight of electronic unit with batteries, no more, kg 0.2

“Basic” kit:

  • Electronic unit Leeb Hardness Tester NOVOTEST T-D2 (Lab)
  • Leeb D type probe – 1pc (other types by request)
  • Accessory package:
    – AA batteries – 2 pcs
    – Battery charger
    – USB cable for PC
    – PC software:
    — Online – INFO/USB-connect
    — Offline – NOVOTEST USB-Connect
    – NOVOTEST LAB App for Android gadgets
    – Operating manual/Quick guide
    – Test certificate
    – Transportation plastic case

“Advanced 1” kit:

  • Electronic unit Leeb Hardness Tester NOVOTEST T-D2 (Lab)
  • Leeb D type probe – 1pc (other types by request)
  • Hardness Test Block HLD or HLG (for Leeb probe) – 1pc
  • Accessory package

 “Advanced 2” kit:

  • Electronic unit Leeb Hardness Tester NOVOTEST T-D2 (Lab)
  • Leeb D type probe – 1pc
  • Leeb probe Type DL or DC-R or DC-R mini or G
  • Hardness Test Block HLD or HLG (for Leeb probe) – 1pc
  • Accessory package


“Advanced 3” kit:

  • Electronic unit Leeb Hardness Tester NOVOTEST T-D2 (Lab)
  • Leeb D type probe – 1pc (other types by request)
  • Leeb Hardness Test Block HLD or HLG (for Leeb probe) – 1pc
  • Set of support rings for Leeb probe
  • Accessory package

“Professional” kit:

  • Electronic unit Leeb Hardness Tester NOVOTEST T-D2 (Lab)
  • Leeb D type probe – 1pc
  • Leeb probe Type DL or DC-R or DC-R mini or G
  • Hardness Test Block HLD or HLG (for Leeb probe) – 1pc
  • Set of support rings for Leeb probe
  • Accessory package

“Expert” kit:

  • Electronic unit Leeb Hardness Tester NOVOTEST T-D2 (Lab)
  • Leeb D type probe – 1pc
  • Leeb probe Type DL or DC-R or DC-R mini or G
  • Hardness Test Block HLD or HLG (for Leeb probe) – 1pc
  • Set of support rings for Leeb probe
  • Accessory package
  • Android smartphone or tablet (optionally with IP65) for NOVOTEST Lab App
  • Additional Leeb probes:
    – Dynamic probe Type DC-R
    – Dynamic probe Type DC-R-mini
    – Leeb probe Тype D
    – Leeb probe Type DL
    – Leeb probe Type G
    – Leeb probe Type D+15
    – Leeb probe Тype C
    – Leeb probe Type E
  • Set of support rings for Leeb probe
  • Cable for Leeb probe
  • Impact bodies for Leeb probes
  • After the purchase if needed, can be ordered dynamic Leeb probe with activation code to convert to Combined hardness tester T-UD2 (Lab) with two types of probes (UCI+Leeb).
    Additional UCI probes:
    – UCI Probe U1 L3 (10N/HV1)
    – UCI Probe U1 L3 (50N/HV5)
    – UCI Probe U1 L3 (98N/HV10)
