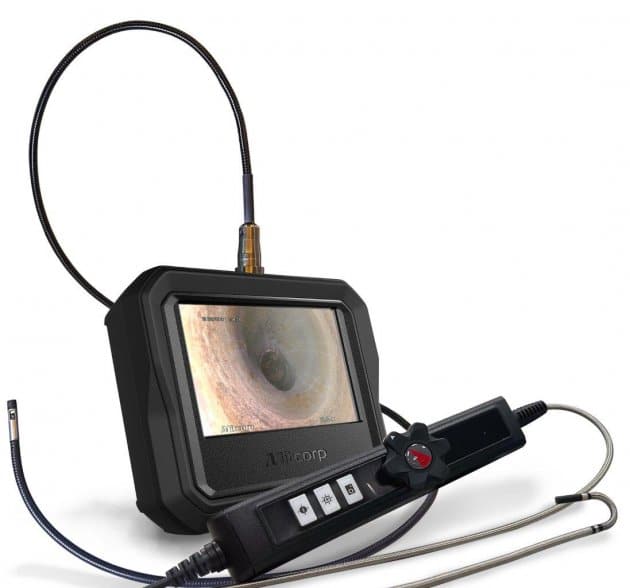

JX Series 5″ Professional Video Borescope Camera

กล้องวีดิโอบอร์สโคป หน้าจอขนาด5นิ้ว

หน้าจอทัชสกรีน ขนาด5นิ้ว / 5-inch TFT LCD Touchscreen
ภาพคมชัดระดับ HD/ Produces sharp, clear, and bright HD images
ชาร์ตไฟและส่งข้อมูลด้วยสาย USB-C/ Equipped with USB-C charging and data sharing capabilities
รองรับการต่อ HDMI/ Supports HDMI output
มีฟังก์ชั่นเปรียบเทียบภาพ/ Features an image comparison function
กลับภาพ หมุนภาพ ทำภาพเนกาทีฟได้ / Allows for mirror/rotate/negative image adjustments
ใส่โน้ต ลายน้ำได้/ Includes a photo annotation/watermark function
ออกแบบพิเศษทนการตกระยะ 1เมตร /Designed to withstand drops of up to 1 meter
กันนำ้และฝุ่นระดับ IP54/ Provides IP54 protection for the display
รองรับการเชื่อมต่อคอมพิวเตอร์ผ่าน USB/ Supports USB-to-computer operation
Made in Taiwan. High Durability

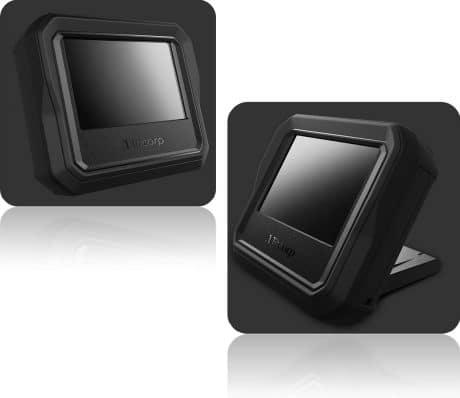

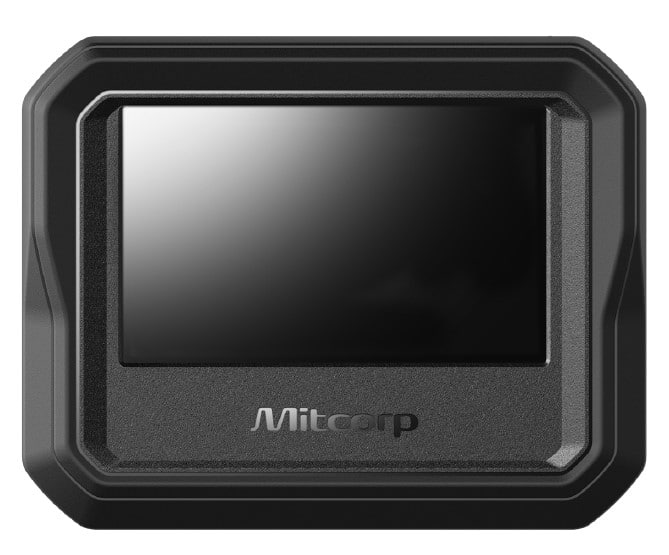

5” Touchscreen 800×480 pixels

Embedded with 5 inch touchscreen provides superior Image quality for inspector to see.

Light & Handy

The JX5 is especially useful in automotive inspections or processing plants where many devices work at different production stages. It is modularly designed and can adjust to your specific inspection needs.

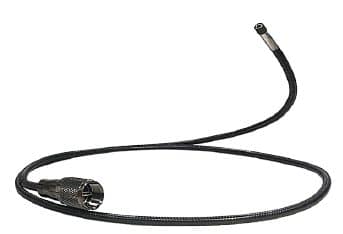

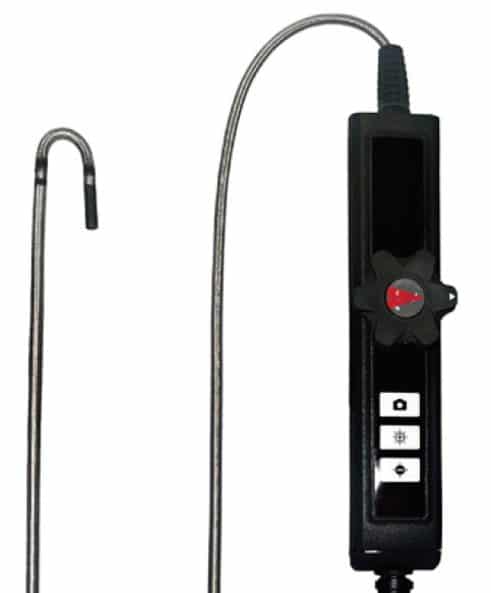

Equipped with 3.9mm 2way detection tube

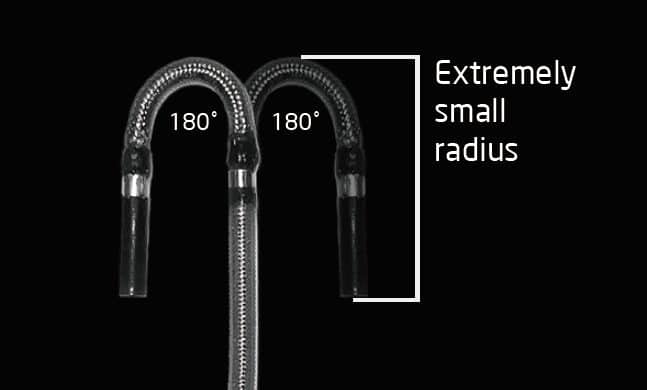

Extremely small radius

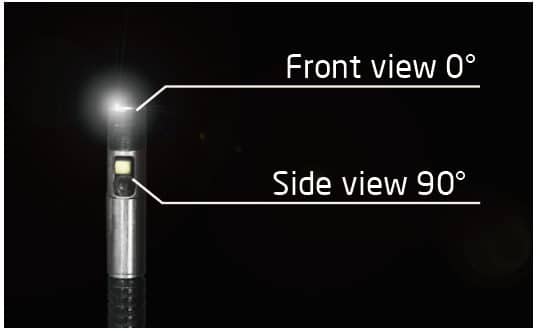

4.9 mm dual-camera probe

Front view 0º & Side view 90º

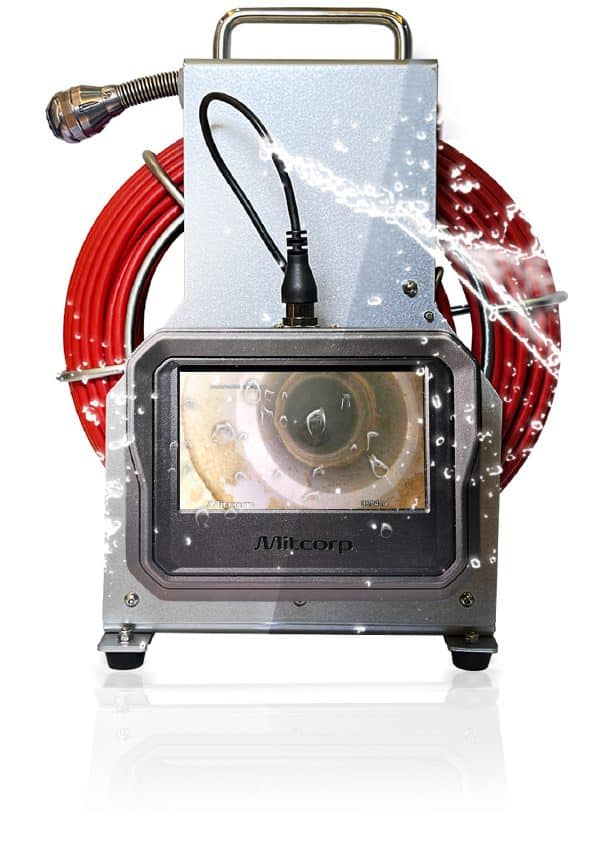

for pipe inspection application field

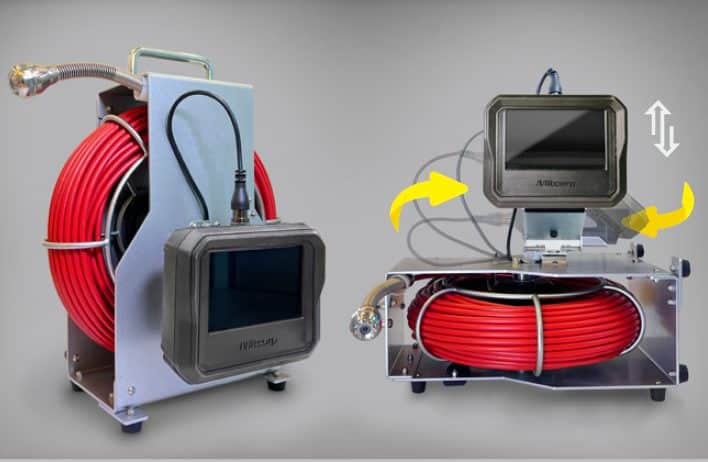

Convenient design for work and portability

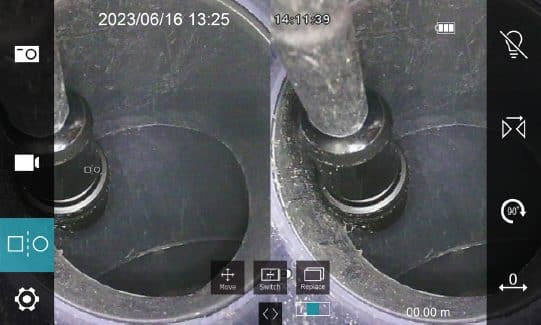

Compare function

To compare a stored image (target flaw or golden sample) with the live view on a split screen.

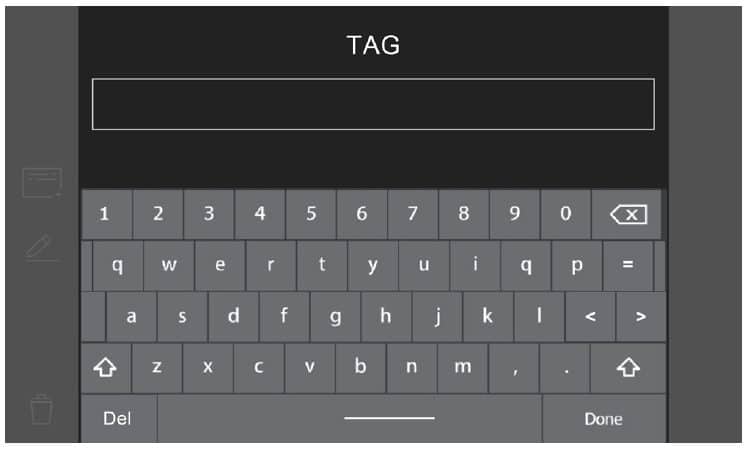

TAG

provides custom build photo/video storage folder under TAG.

Model

Model	Tip Dia.	Length	Resolution	Material of Tube	Feature
JX5-39012	Ø3.9mm	1M	1920X1080	Braided Stainless Steel	2Way Articulation
JX5-4901D	Ø4.9mm	1M	1920X1080	Semi-rigid steel	Dual-cameras
JX5-2830M	Ø28mm	30M	1920X1080	Fiber-reinforced plastic	Pipe lnspection

Specification

Series	JX5-39	JX5-49	JX5-28
Probe Diameter	3.9mm	4.9mm	28mm
Viewing Direction	0° Front View	0° Front View & 90° Side View	0° Front View
Camera Pixels	1920 x 1080
D.O.F.	10mm ~ 100mm		10 mm ~ ∞
F.O.V.	90°		150°
Image Resolution	1920 x 1080
Video Resolution	1920 x 1080
Articulation	2-WAY Articulation	Non	Non
Light Source	Front View: Front LED	Dual View: Front LED + Side LED	Front View: Front LED
Illuminance	adjustable light
Probe Material	Semi-rigid steel	Stainless steel braided	Fiber-reinforced plastic
Probe Length	1m	1m	30m
Bending Angle	180°	Non
Waterproof	Probe IP67
Display	5” Touchscreen
Display Resolution	800×480
Zoom In	Pinch-To-Zoom
Language	Support 28 languages
Software Function	snapshot, recording, album, setting, brightness, LED direction, mirror image, rotate image, negative, full screen, zoom in/out, power button, LED indicator
Image / Video Format	JPEG / MP4
Storage	Micro SD up to 64GB
Data Port	USB-C
Storage Temperature	0℃~40℃
Working Temperature	0℃~50℃
Working Time	≥4h
DC Power adapter	DC5V, 3A
Videoscope Weight & Size	705g, Size: 161.93 x 127.93 x 46 mm
Compatibility	Interchangeable monitor and tube with different diameters
Portable Case	Aluminium carry case(with EVA foam inner)
Standard Accessory	DC Adaptor, USB cable, HDMI cable, Micro SD card
Software	JX5 UsbVideoScope
