Industrial Zoom 180X Video Microscope Camera Work System

Zoom Video Microscope with Stand

กล้องซูมวีดิโอไมโครสโคปพร้อมฐานวางชิ้นงาน

Model: Camera with HDMI USB2.0 two output
Image sensor: 48 megapixel Panasonic sensor
Frame rate: 60F/S @ HDMI output
Movie size:4K(30fps) 2K(30fps) 1080P(60fps) 720P(60fps)（Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.）
Housing: All metal
Support:C-Mount lens
Digital magnification: 5 times digital zoom
White balance: Auto/manual
Cross cursor: Support multi-color, size adjustable
TF card interface: Max 32G
video format:MOV
HDMI interface: HDMI/UDB output
Image : 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456
Language：Chinese/English
Mirroring: Support
Frequency:50Hz/60Hz
Monitor:16:9/16:10/4:3
Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size
Power supply:5-12V 1A

180X C-MOUNT Lens
Zoom c-mount Lens
0.5X C-mount adapter
Zoom ratios: 6.5:1
Objective Magnification Power by 0.7 – 4.5X(about 10 – 180X on the display)
Size: 180mm(L) * 50mm(DIA)
Working distance:14.5-10cm

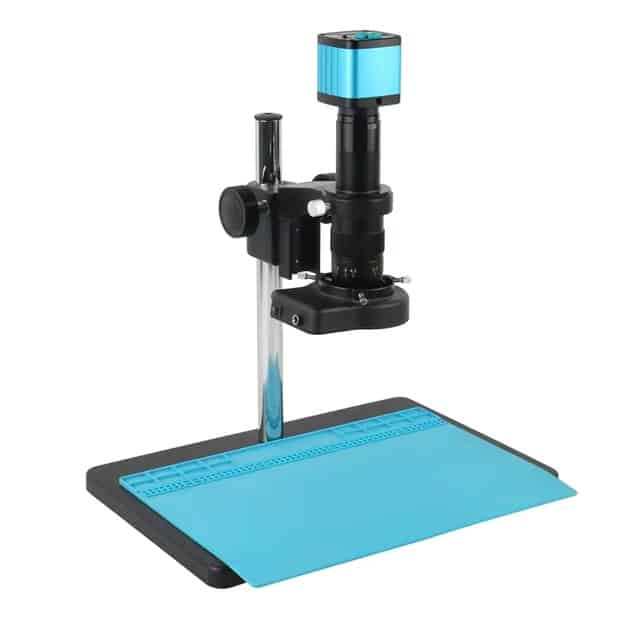

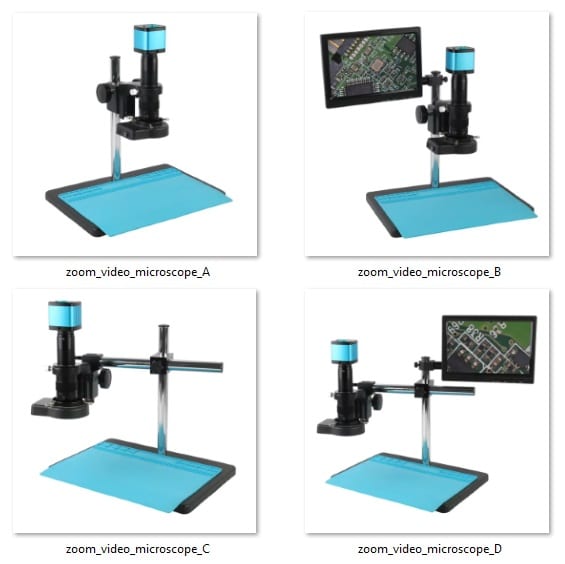

A Packing including:
1 x Video Microscope Camera
1 x Power supply Adapter (EU/AU)
1 x HDMI line
1 x Camera Big Stand
1 x 144 LED Ring Light
1 x 180X Zoom C-mount Lens
1 x High temperature resistant working pad

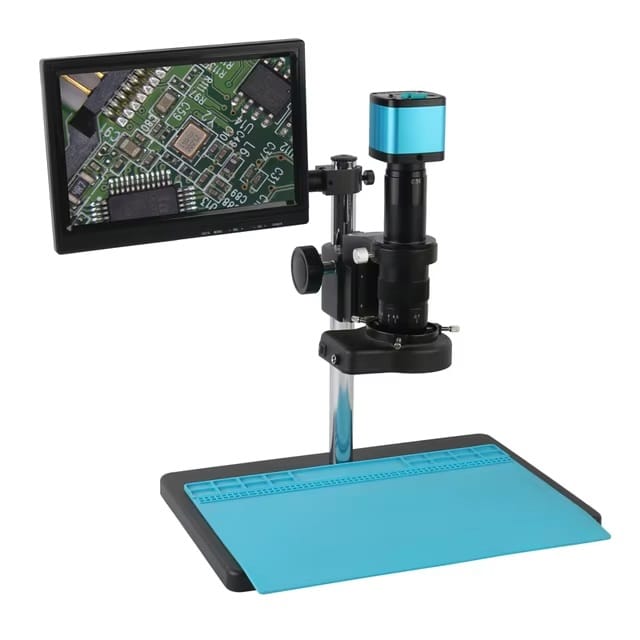

B Packing including:
1 x Video Microscope Camera
1 x Power supply Adapter (EU/AU)
1 x HDMI line
1 x Camera Big Stand
1 x 144 LED Ring Light
1 x 180X Zoom C-mount Lens
1 x 10.1″ LCD Monitor
1 x High temperature resistant working pad

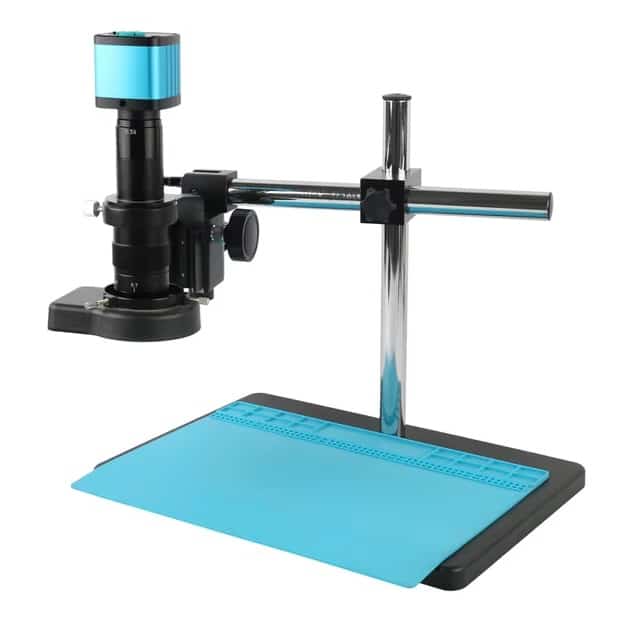

C Packing including:
1 x Video Microscope Camera
1 x Power supply Adapter (EU/AU)
1 x HDMI line
1 x Camera Big Stand
1 x 144 LED Ring Light
1 x 180X C-mount Lens
1 x Boom Stand
1 x High temperature resistant working pad

D Packing including:
1 x Video Microscope Camera
1 x Power supply Adapter (EU/AU)
1 x HDMI line
1 x Camera Big Stand
1 x 144 LED Ring Light
1 x 180X C-mount Lens
1 x Boom Stand
1 x 10.1″ LCD Monitor
1 x High temperature resistant working pad
