Hawkeye® Pro SuperSlim™ (2.40mm – 2.80mm)

กล้องบอร์สโคป แบบท่อตรง ขนาดเส้นผ่านศูนย์กลาง 2.40-2.80มม.

Hawkeye® Pro SuperSlim™ (2.40mm – 2.80mm)

At .098 inches in diameter, or .109 inches with a mirror tube, the Hawkeye® Pro SuperSlim Borescopes give sharp, clear views of the microscopic holes in spray tips and nozzles. Use them to inspect small bores for burrs, surface finish irregularities, and more. The 10″ and 14″ lengths increase in diameter.

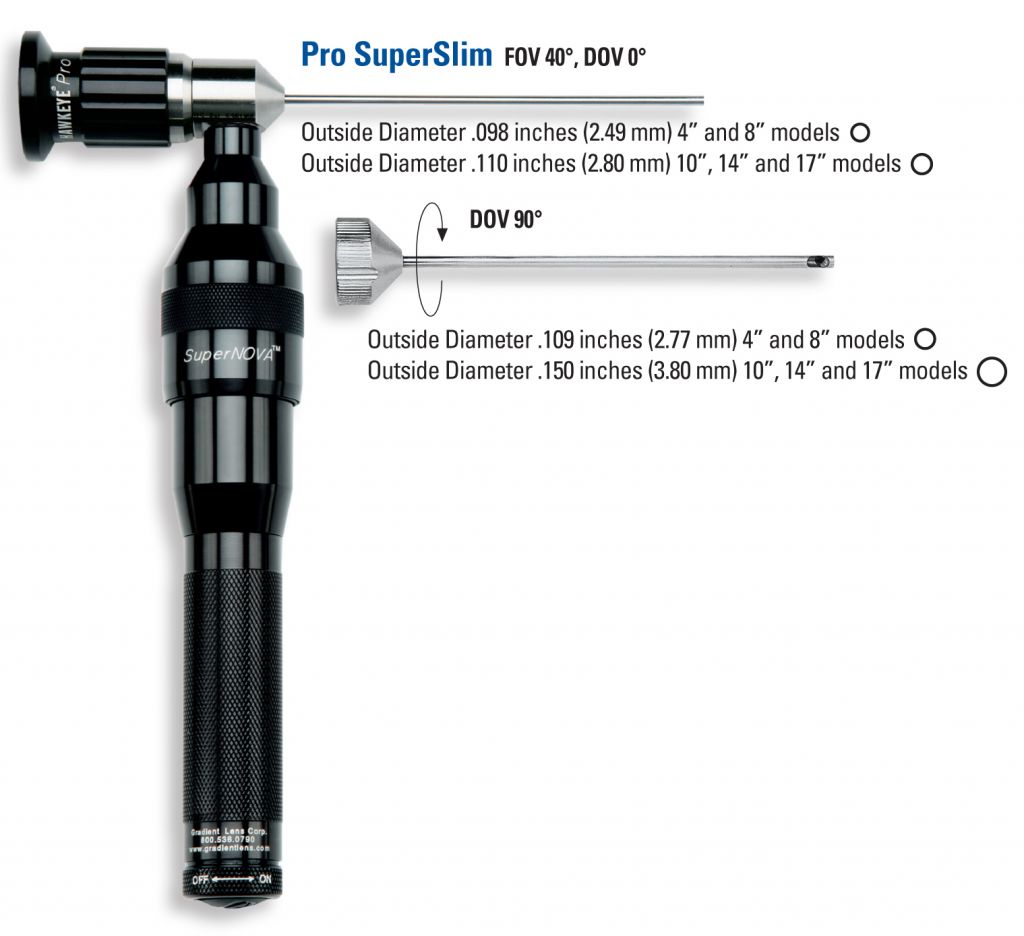

ขนาดเส้นผ่านศูนย์กลางกล้องเพียง 2.49มม. เมื่อสวมเลนส์กระจกเพื่อทิศทางการมองด้านข้าง90องศา จะมีขนาดเส้นผ่านศูนย์กลางเพียง 2.77มม. เท่านั้น

Pro SuperSlim™ (2.40mm – 2.80mm)*

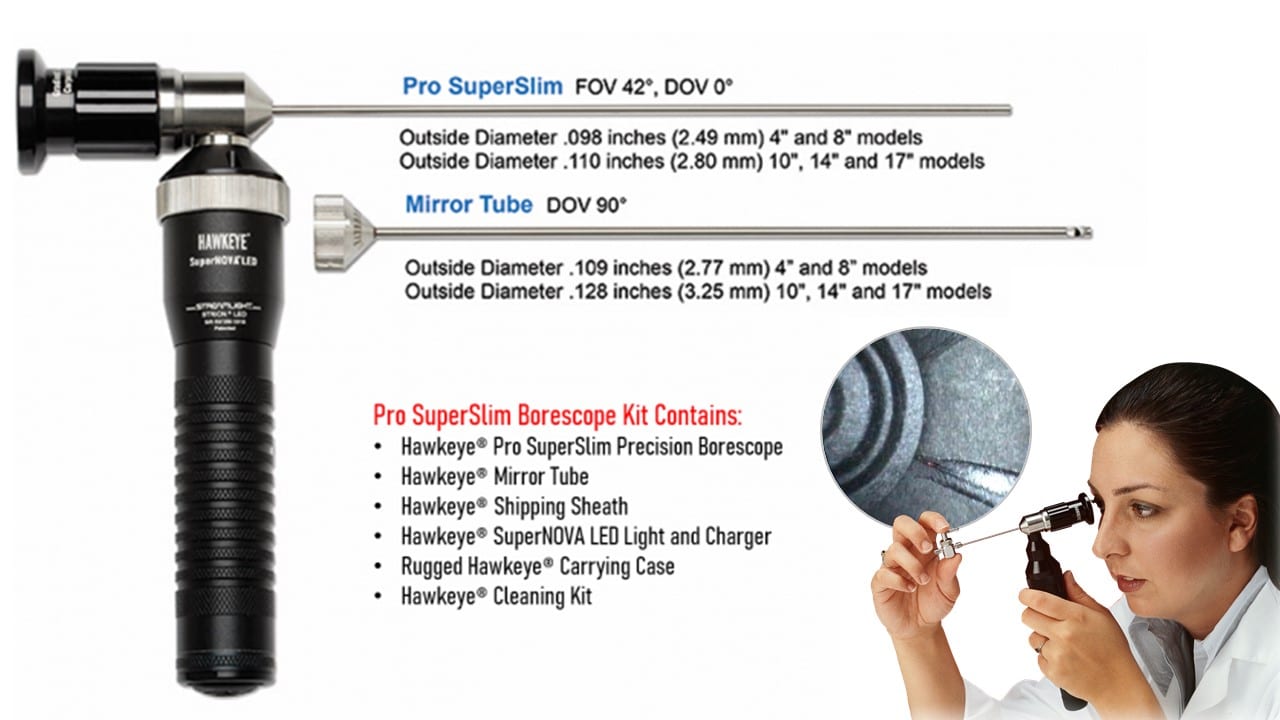

At .098 inches in diameter, or .109 inches with a mirror tube, the Hawkeye® Pro SuperSlim Borescopes give sharp, clear views of the microscopic holes in spray tips and nozzles.

Use a Hawkeye Pro SuperSlim to inspect small bores for burrs, surface finish irregularities, and more.

* The 10, 14, and 17 inch models are .128” (3.25 mm) in diameter.

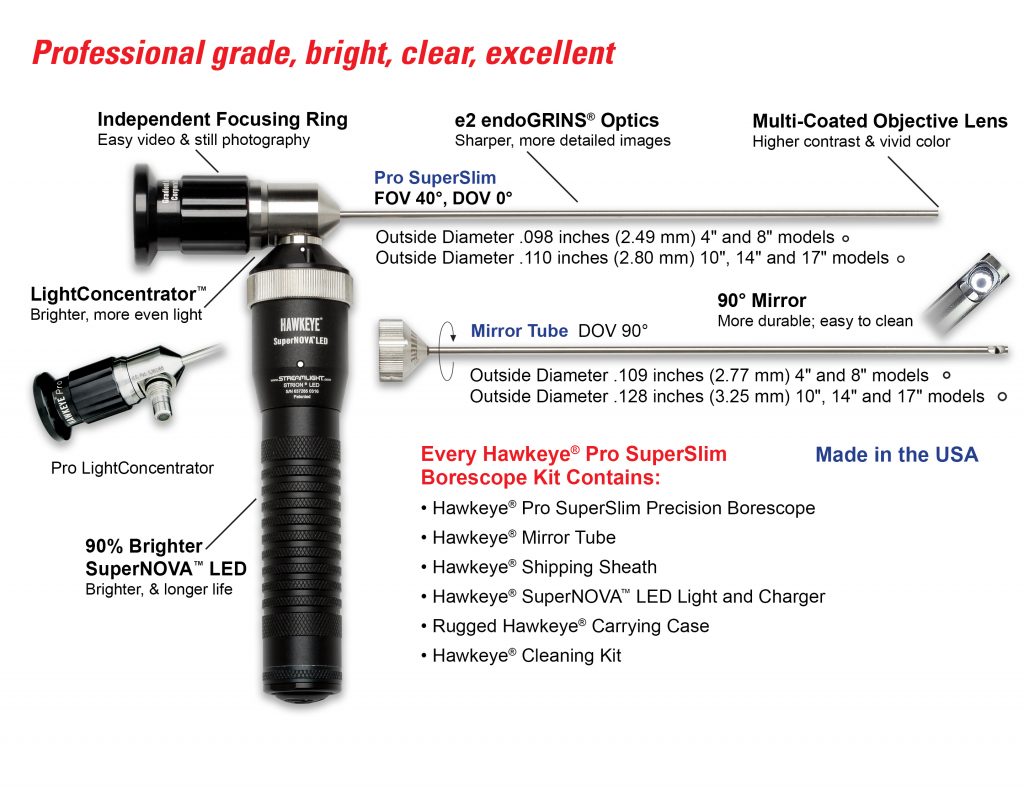

Hawkeye Pro Rigid Borescopes contain:

Our latest endoGRINs® image relay lenses
Multicoated objective lens
LightConcentrator™ light post
Independent focusing ring for convenient video and still photography

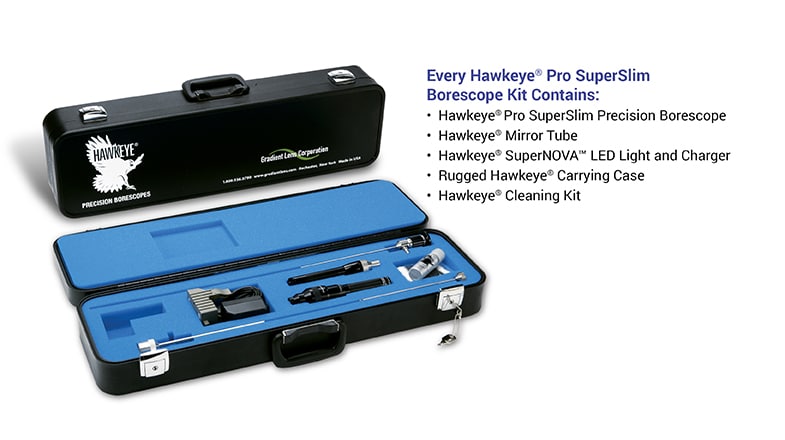

A Super bright, portable SuperNOVA™ Light, with rechargeable SuperNOVA Lithium-Ion batteries, and a rugged Hawkeye Carrying Case are included with Kit purchases.

Product	Tube Length	Model#
Borescope Kits
4″ Pro SuperSlim Kit	4″ (102mm)	PSS04-NVK
8″ Pro SuperSlim Kit	7.3″ (185mm)	PSS08-NVK
10″ Pro SuperSlim Kit	10.5″ (265mm)	PSS10-NVK
14″ Pro SuperSlim Kit	13.9″ (350mm)	PSS14-NVK
17″ Pro SuperSlim Kit	17.2″ (435mm)	PSS17-NVK
Borescope Only
4″ Pro SuperSlim Borescope	4″ (102mm)	PSS04
8″ Pro SuperSlim Borescope	7.3″ (185mm)	PSS08
10″ Pro SuperSlim Borescope	10.5″ (265mm)	PSS10
14″ Pro SuperSlim Borescope	13.9″ (350mm)	PSS14
17″ Pro SuperSlim Borescope	17.2″ (435mm)	PSS17
Mirror Tubes
4″ Mirror Tube	4″ (102mm)	MTSS04
8″ Mirror Tube	7.3″ (185mm)	MTSS08
10″ Mirror Tube	10.5″ (265mm)	MTSS10
14″ Mirror Tube	13.9″ (350mm)	MTSS14
17″ Mirror Tube	17.2″ (435mm)	MTSS17

Optics
Field-of-View	42°
Direction-of-View	0°
Relay Optics	e2 endoGRINs® Glass Relay Lenses
Magnification	Borescopes are not fixed magnification like microscopes. See chart .
Mechanical / Construction
Length	4″, 8″, 10″, 14″, 17″
Diameter	4″ and 8 ” Scopes: .098″ (2.4 mm), 10″, 14″ and 17″ Scopes: .110″ (2.8 mm). 4″ and 8″ Scopes w/ Mirror Tube: .109” (2.8 mm), 10″, 14″ and 17″ Scopes w/ Mirror Tube: .128” (3.3 mm)
Lightpost	LightConcentrator™ ACMI configuration, Diameter 0.300″
Eyecup	Standard DIN, 32 mm diameter, with independent focusing ring
Materials
Tube	304 Stainless Steel
All Machined Stainless Steel	303 Stainless Steel
Eyecup and Focusing Ring	Aluminum, black anodized
Front Window	AR coated optical Glass
Illumination Fiber	Optical Glass
Relay Optics	e2 endoGRINs® gradient index glass lenses
Environmental
Temperature Range	Official – 20° to 120° C.
Note 1	Hawkeye Pro Rigid Borescopes can be made to operate up to 300 deg. C on a custom Basis. Contact your sales representative for details.
Note 2	These scope were not designed to operate below 0°. However, several of our customers have successfully used the scopes in liquid Nitrogen at 77 deg. K.
Pressure	All Hawkeye borescopes we designed only for use at ambient pressure, however, we have several customers who have successfully used Hawkeye Borescopes at pressures up to 500 PSI and down to 10-6 Torr. As the scopes were not specifically designed for this, the operator does so at his own risk.
Chemical Resistance	All Hawkeye Pro Rigid borescopes (tube only, not the eyepiece end) are water tight and are resistant to most hydrocarbons; oils, gasoline, hydraulic fluid, jet fuel, etc. Exposure to Acids and strong Alkali should be avoided as it will attack the optical window.
