Hawkeye® Pro Slim Prism Rigid Borescope 4.2mm

Hawkeye® Pro Slim Prism Rigid Borescope

กล้องบอร์สโคป แบบทิศทางการมอง 30 หรือ 70องศา

Pro Slim Prism Rigid Borescope

Hawkeye® Pro Slim Prism Borescopes have a dedicated prism for a fixed direction of view of either 30 or 70 degrees. The Slim Prism Borescopes are ideal for industrial environments such as foundries and machine shops; as the dedicated prism repels dirt and debris, providing the user with an unobstructed view.

Available in 30° and 70° Prism DOV (90° available by special order, call for details), the clarity and contrast of Hawkeye® Pro Slim Prism Borescopes provide spectacular image quality at a fraction of the cost of German made prism scopes. With a diameter of just 4.2mm (.165”) Hawkeye Pro Slim Prism Borescopes can accommodate most machine metal parts with ease.

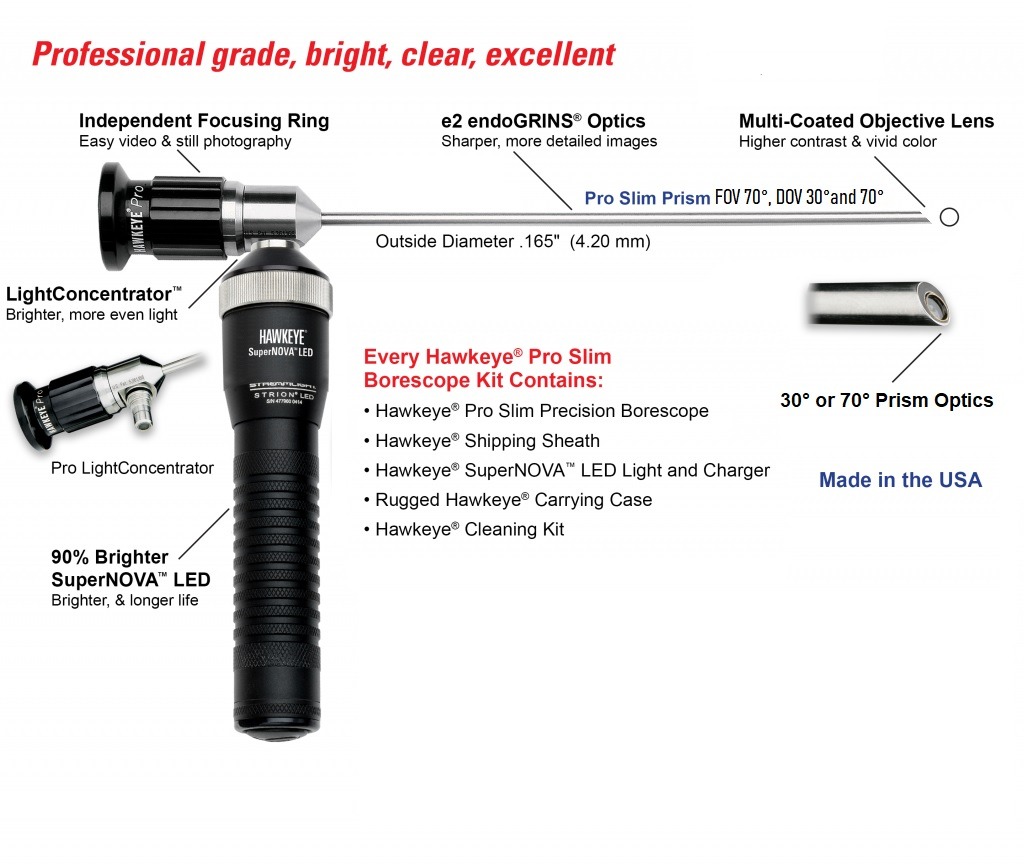

Hawkeye Pro Rigid Prism Borescopes contain:

Our latest endoGRINs® image relay lenses
Multicoated objective lens
LightConcentrator™ light post
Independent focusing ring for convenient video and still photography

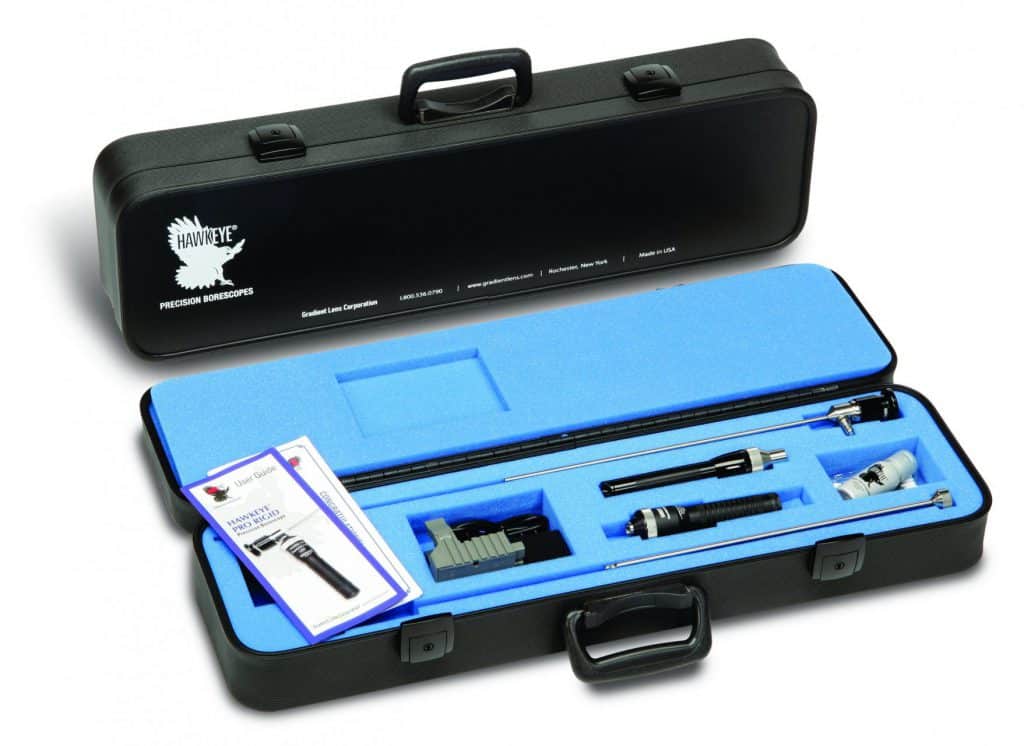

A Super bright, portable SuperNOVA™ Light, with rechargeable SuperNOVA Lithium-Ion batteries, and a rugged Hawkeye Carrying Case are included with Kit purchases

Product	Tube Length	Model#
Prism Borescope Kits
7″ Pro Slim 30° Prism Kit	7″ (180mm)	PS07-30-NVK
12″ Pro Slim 30° Prism Kit	12″ (305mm)	PS12-30-NVK
17″ Pro Slim 30° Prism Kit	17″ (435mm)	PS17-30-NVK
7″ Pro Slim 70° Prism Kit	7″ (180mm)	PS07-70-NVK
12″ Pro Slim 70° Prism Kit	12″ (305mm)	PS12-70-NVK
17″ Pro Slim 70° Prism Kit	17″ (435mm)	PS17-70-NVK

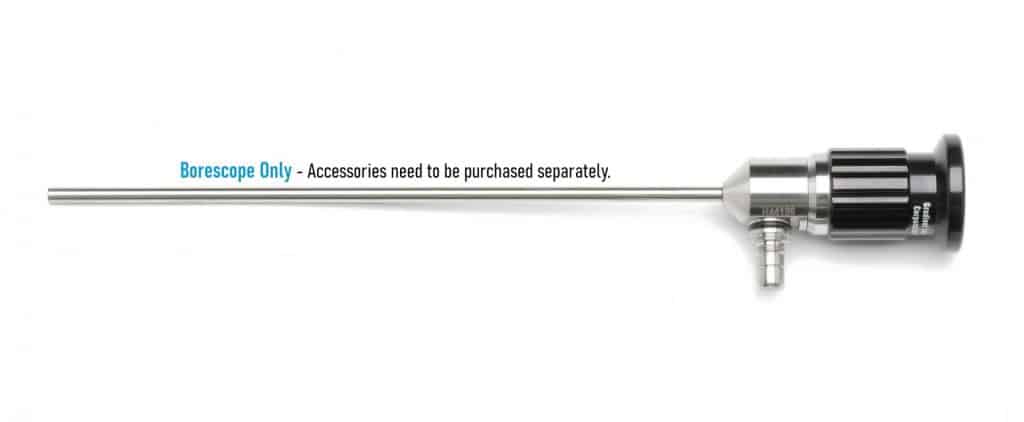

Prism Borescope Only
7″ Pro Slim 30° Prism	7″ (180mm)	PS07-30
12″ Pro Slim 30° Prism	12″ (305mm)	PS12-30
17″ Pro Slim 30° Prism	17″ (435mm)	PS17-30
7″ Pro Slim 70° Prism	7″ (180mm)	PS07-70
12″ Pro Slim 70° Prism	12″ (305mm)	PS12-70
17″ Pro Slim 70° Prism	17″ (435mm)	PS17-70

Optics
Field-of-View	70°
Direction-of-View	30° and 70° Prism
Relay Optics	e2 endoGRINs® Glass Relay Lenses
Magnification	Borescopes are not fixed magnification like microscopes. See chart.
Mechanical / Construction
Length	7”, 12”, 17”
Diameter	Scope: .165″ (4.20 mm)
Lightpost	LightConcentrator™ ACMI configuration, Diameter 0.300″
Eyecup	Standard DIN, 32 mm diameter, with independent focusing ring
Materials
Tube	304 Stainless Steel
All Machined Stainless Steel	303 Stainless Steel
Eyecup and Focusing Ring	Aluminum, black anodized
Front Window	AR coated optical Glass
Illumination Fiber	Optical Glass
Relay Optics	e2 endoGRINs® gradient index glass lenses
Environmental
Temperature Range	Official – 20° to 120° C.
Note 1	Hawkeye Pro Rigid Borescopes can be made to operate up to 300 deg. C on a custom Basis. Contact your sales representative for details.
Note 2	These scope were not designed to operate below 0°. However, several of our customers have successfully used the scopes in liquid Nitrogen at 77 deg. K.
Pressure	All Hawkeye borescopes we designed only for use at ambient pressure, however, we have several customers who have successfully used Hawkeye Borescopes at pressures up to 500 PSI and down to 10-6 Torr. As the scopes were not specifically designed for this, the operator does so at his own risk.
Chemical Resistance	All Hawkeye Pro Rigid borescopes (tube only, not the eyepiece end) are water tight and are resistant to most hydrocarbons; oils, gasoline, hydraulic fluid, jet fuel, etc. Exposure to Acids and strong Alkali should be avoided as it will attack the optical window.
