Hawkeye® Pro Slim™ .165″ (4.20 mm)

กล้องบอร์สโคป แบบท่อตรง ขนาดเส้นผ่านศูนย์กลาง 4.20 มม.

Hawkeye® Pro Slim™ (4.20mm)

The clarity and brightness of Hawkeye® Pro Slim Borescopes bring out all the details in your subject. The Pro Slim offers the best combination of small diameter, length, and bright illumination. Most machined metal parts afford ample access for the Hawkeye Pro Slim Borescope and mirror tube.

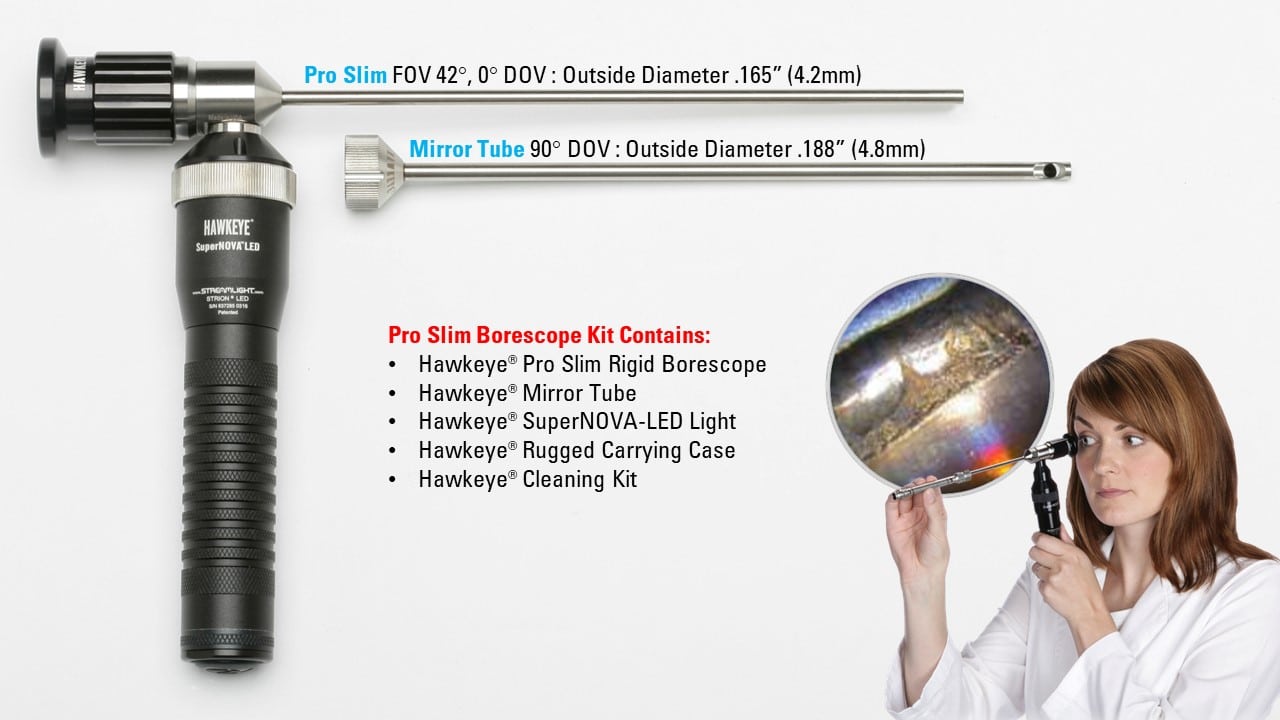

Pro Slim™ Rigid Borescope

The clarity and brightness of Hawkeye® Pro Slim Borescopes bring out all the details in your subject. The Pro Slim offers the best combination of small diameter, length, and bright illumination.

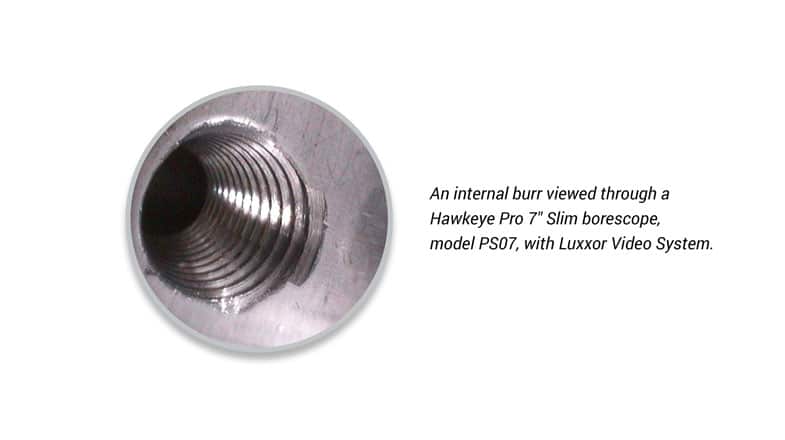

Most machined metal parts afford ample access for the Hawkeye Pro Slim Borescope and 90º DOV mirror tube. You will clearly see burrs and surface finish in bores and cross-holes.

Hawkeye Pro Rigid Borescopes contain:

Our latest endoGRINs® image relay lenses
Multicoated objective lens
LightConcentrator™ light post
Independent focusing ring for convenient video and still photography

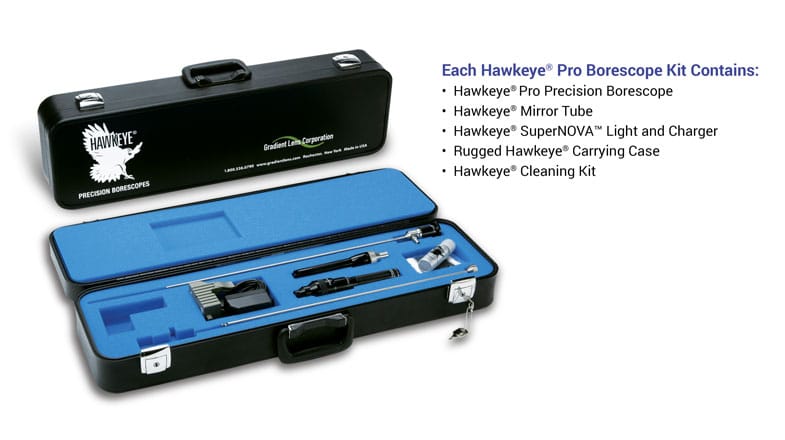

A Super bright, portable SuperNOVA™ Light, with rechargeable SuperNOVA Lithium-Ion batteries, and a rugged Hawkeye Carrying Case are included with Kit purchases.

Product	Tube Length	Model#
Borescope Kits
2″ Pro Slim Kit	2″ (50mm)	PS02-NVK
7″ Pro Slim Kit	7″ (180mm)	PS07-NVK
12″ Pro Slim Kit	12″ (305mm)	PS12-NVK
17″ Pro Slim Kit	17″ (435mm)	PS17-NVK
22″ Pro Slim Kit	22″ (560mm)	PS22-NVK
Borescope Only
2″ Pro Slim Borescope	2″ (50mm)	PS02
7″ Pro Slim Borescope	7″ (180mm)	PS07
12″ Pro Slim Borescope	12″ (305mm)	PS12
17″ Pro Slim Borescope	17″ (435mm)	PS17
22″ Pro Slim Borescope	22″ (560mm)	PS22
Mirror Tubes
2″ Pro Slim Mirror Tube	2″ (50mm)	PS-MT02
7″ Pro Slim Mirror Tube	7″ (180mm)	PS-MT07
12″ Pro Slim Mirror Tube	12″ (305mm)	PS-MT12
17″ Pro Slim Mirror Tube	17″ (435mm)	PS-MT17
22″ Pro Slim Mirror Tube	22″ (560mm)	PS-MT22

Hawkeye® Pro Slim Specifications

Optics
Field-of-View	42°
Direction-of-View	Direction of View: 0°, 90° (with Mirror Tube adaptor)
Relay Optics	e2 endoGRINs® Glass Relay Lenses
Magnification	Borescopes are not fixed magnification like microscopes. See chart .
Mechanical / Construction
Length	7″, 12″, 17″, 22″
Diameter	Scope: .165″ (4.20 mm), w/ Mirror Tube: .188 (4.80 mm)
Lightpost	LightConcentrator™ ACMI configuration, Diameter 0.300″
Eyecup	Standard DIN, 32 mm diameter, with independent focusing ring
Materials
Tube	304 Stainless Steel
All Machined Stainless Steel	303 Stainless Steel
Eyecup and Focusing Ring	Aluminum, black anodized
Front Window	AR coated optical Glass
Illumination Fiber	Optical Glass
Relay Optics	e2 endoGRINs® gradient index glass lenses
Environmental
Temperature Range	Official – 20° to 120° C.
Note 1	Hawkeye Pro Rigid Borescopes can be made to operate up to 300 deg. C on a custom Basis. Contact your sales representative for details.
Note 2	These scope were not designed to operate below 0°. However, several of our customers have successfully used the scopes in liquid Nitrogen at 77 deg. K.
Pressure	All Hawkeye borescopes we designed only for use at ambient pressure, however, we have several customers who have successfully used Hawkeye Borescopes at pressures up to 500 PSI and down to 10-6 Torr. As the scopes were not specifically designed for this, the operator does so at his own risk.
Chemical Resistance	All Hawkeye Pro Rigid borescopes (tube only, not the eyepiece end) are water tight and are resistant to most hydrocarbons; oils, gasoline, hydraulic fluid, jet fuel, etc. Exposure to Acids and strong Alkali should be avoided as it will attack the optical window.
