Hawkeye® Pro Hardy™ .250″ (6.35 mm)

กล้องบอร์สโคป แบบท่อตรง ขนาดเส้นผ่านศูนย์กลาง 6.35 มม.

Hawkeye® Pro Hardy™ .250″ (6.35 mm)

Hawkeye® Pro Hardy Borescopes are rugged and bright. The quarter inch diameter Pro Hardy gives 3x the illumination of the Pro Slim. The Hawkeye Pro Hardy Borescope excels at looking into the larger, dark spaces of diesel and aircraft cylinders, tanks, pressure vessels, pipes, and even wall cavities.

Hawkeye^® Pro Hardy and Pro Super Hardy
Borescopes are rugged and bright. The quarter inch diameter Pro Hardy gives 3x the illumination of the Pro Slim. The Super Hardy is slightly wider at .283 inches, and is available in lenghts of 28 and 37 inches.

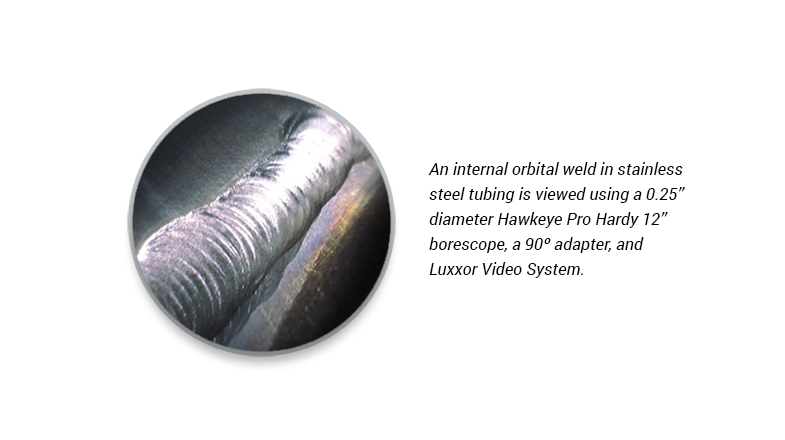

The Hawkeye Pro Hardy Borescope excels at looking into the larger, dark spaces of diesel and aircraft cylinders, tanks, pressure vessels, pipes, and even wall cavities.

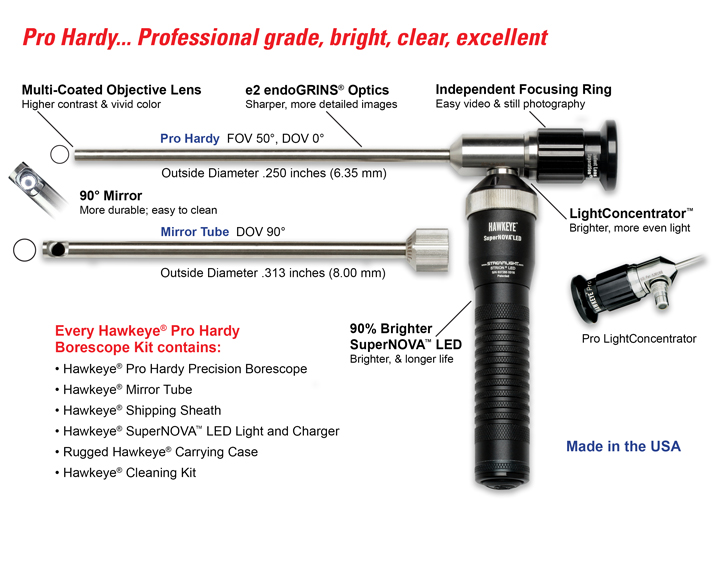

Hawkeye Pro Rigid Borescopes contain:

• Our latest endoGRINs^® image relay lenses

• Multicoated objective lens

•LightConcentrator™ light post

• Independent focusing ring for convenient video and still photography

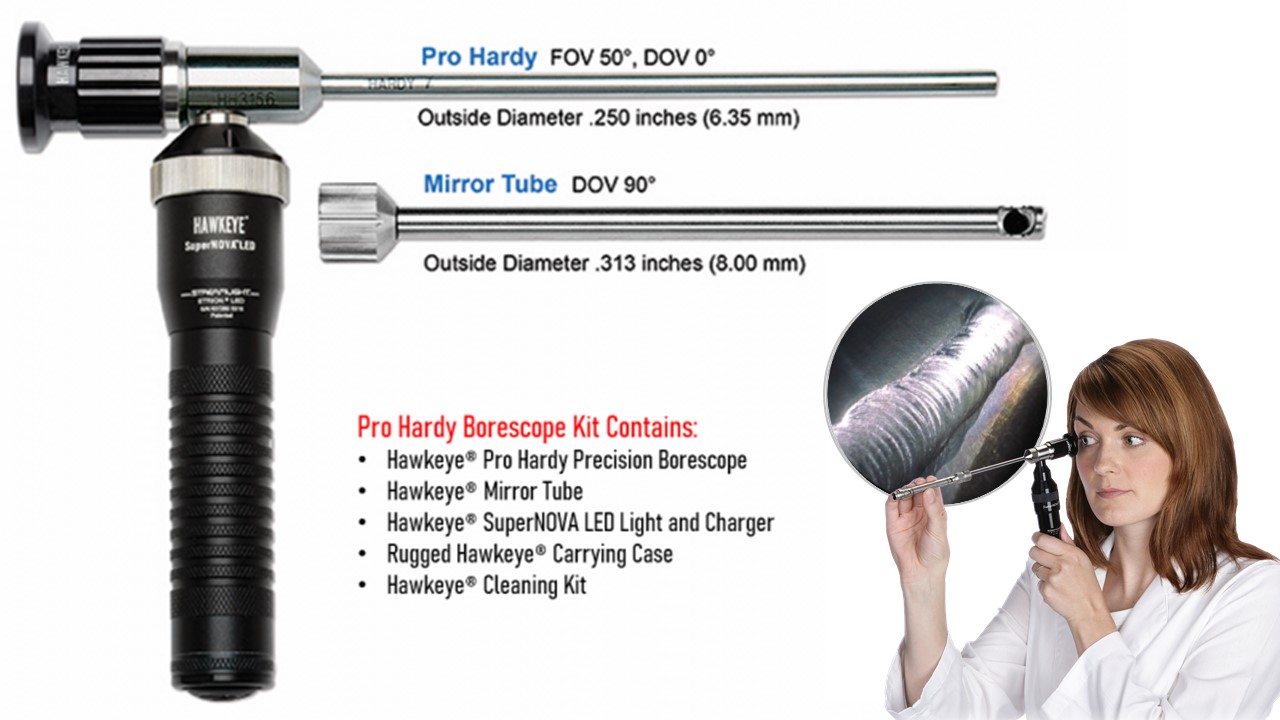

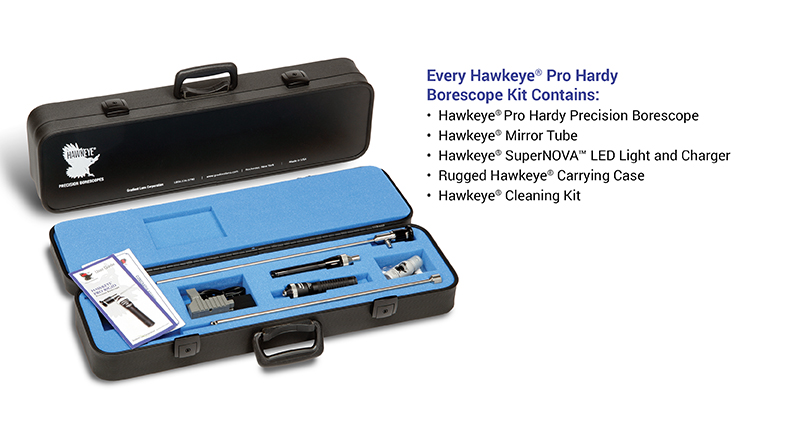

A Super bright, portable SuperNOVA™ Light, with rechargeable SuperNOVA Lithium-Ion batteries, and a rugged Hawkeye Carrying Case are included with Kit purchases.

Product	Tube Length	Model#
Borescope Kits
7″ Pro Hardy Kit	7″ (180 mm)	PH07-NVK
12″ Pro Hardy Kit	12″ (305 mm)	PH12-NVK
17″ Pro Hardy Kit	17″ (435 mm)	PH17-NVK
22″ Pro Hardy Kit	22″ (559 mm)	PH22-NVK
Borescope Only
7″ Pro Hardy Borescope	7″ (180 mm)	PH07
12″ Pro Hardy Borescope	12″ (305 mm)	PH12
17″ Pro Hardy Borescope	17″ (435 mm)	PH17
22″ Pro Hardy Borescope	22″ (559 mm)	PH22
Mirror Tubes
7″ Pro Hardy Mirror Tube	7″ (180 mm)	MTH07
12″ Pro Hardy Mirror Tube	12″ (305 mm)	MTH12
17″ Pro Hardy Mirror Tube	17″ (435 mm)	MTH17
22″ Pro Hardy Mirror Tube	22″ (559 mm)	MTH22

Hawkeye® Pro Hardy Specifications

Optics
Field-of-View	50°
Direction-of-View	0°
Relay Optics	e2 endoGRINs® Glass Relay Lenses
Magnification	Borescopes are not fixed magnification like microscopes. See chart .
Mechanical / Construction
Length	7″, 12″, 17″, 22″

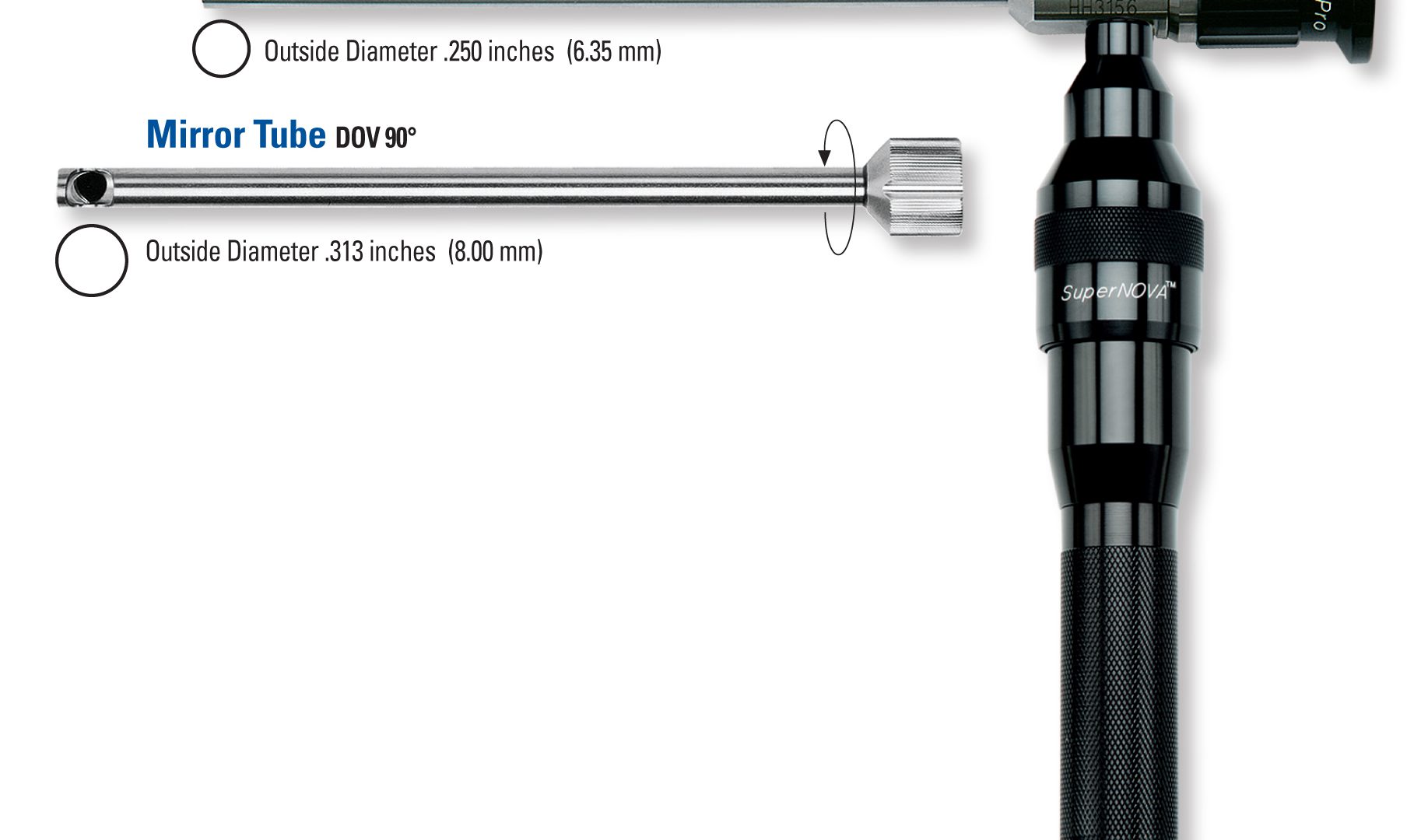

Diameter	Scope: .250″ (6.35 mm), w/ Mirror Tube: .313 (8.00 mm)
Lightpost	LightConcentrator™ ACMI configuration, Diameter 0.300″
Eyecup	Standard DIN, 32 mm diameter, with independent focusing ring
Materials
Tube	304 Stainless Steel
All Machined Stainless Steel	303 Stainless Steel
Eyecup and Focusing Ring	Aluminum, black anodized
Front Window	AR coated optical Glass
Illumination Fiber	Optical Glass
Relay Optics	e2 endoGRINs® gradient index glass lenses
Environmental
Temperature Range	Official – 20° to 120° C.
Note 1	Hawkeye Pro Rigid Borescopes can be made to operate up to 300 deg. C on a custom Basis. Contact your sales representative for details.
Note 2	These scopes were not designed to operate below 0°. However, several of our customers have successfully used the scopes in liquid Nitrogen at 77 deg. K.
Pressure	All Hawkeye borescopes we designed only for use at ambient pressure, however, we have several customers who have successfully used Hawkeye Borescopes at pressures up to 500 PSI and down to 10-6 Torr. As the scopes were not specifically designed for this, the operator does so at his own risk.
Chemical Resistance	All Hawkeye Pro Rigid borescopes (tube only, not the eyepiece end) are water tight and are resistant to most hydrocarbons; oils, gasoline, hydraulic fluid, jet fuel, etc. Exposure to Acids and strong Alkali should be avoided as it will attack the optical window.
