Hawkeye® MicroFlex Flexible Borescopes 0.5mm 0.9mm 1.5mm

Hawkeye® MicroFlex Flexible Borescopes (0.5, 0.9 and 1.5mm)

กล้องเฟล็กซิเบิ้ลบอร์สโคป ขนาดเส้นผ่านศูนย์กลางต่ำกว่า 0.5มม 0.9มม 1.5มม

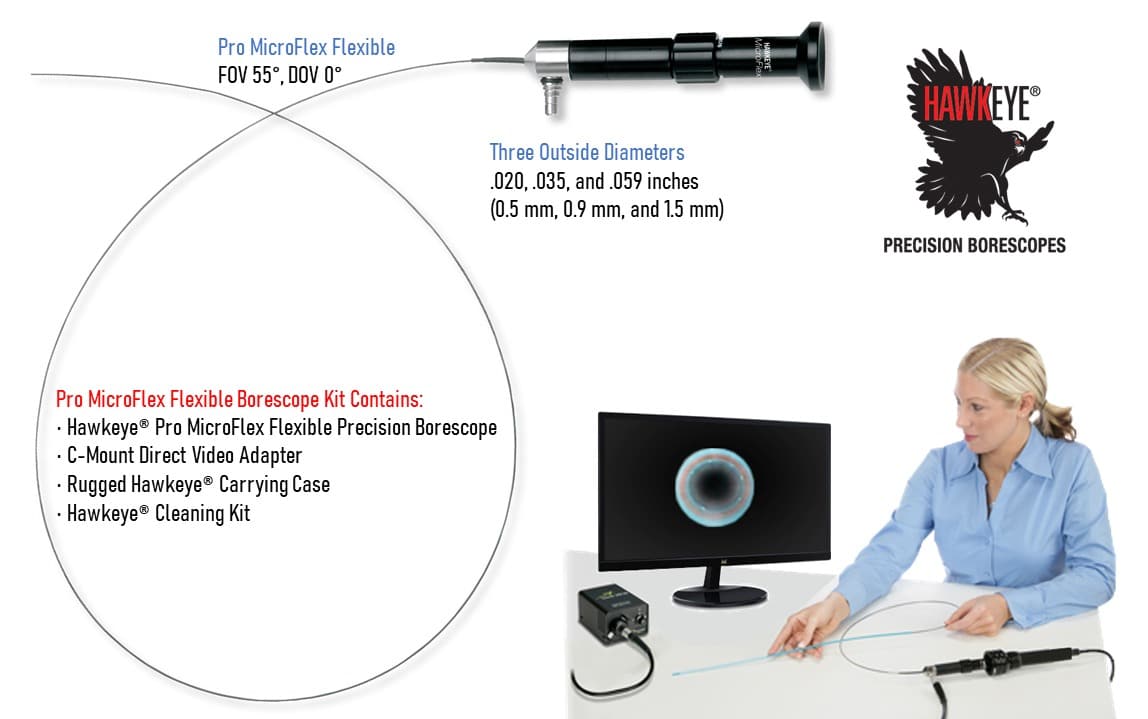

Hawkeye® Pro MicroFlex Flexible Borescope

ขนาดเส้นผ่านศูนย์กลางต่ำกว่า 1มม.
ความยาวกล้องสูงสุดถึง 1เมตร
โค้งงอได้ มีความยืดหยุ่นสูง
สามารถเชื่อมต่อกับกล้องเพื่อแสดงผลบนจอมอนิเตอร์

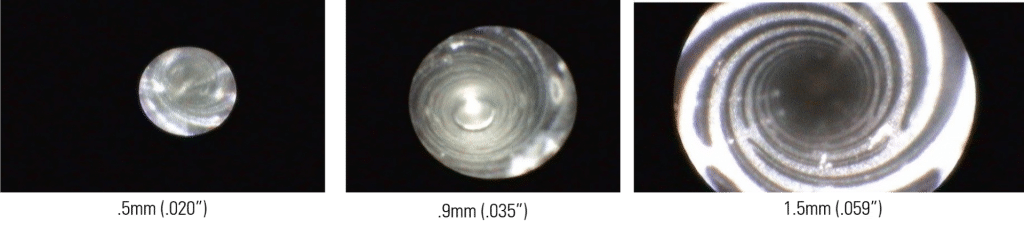

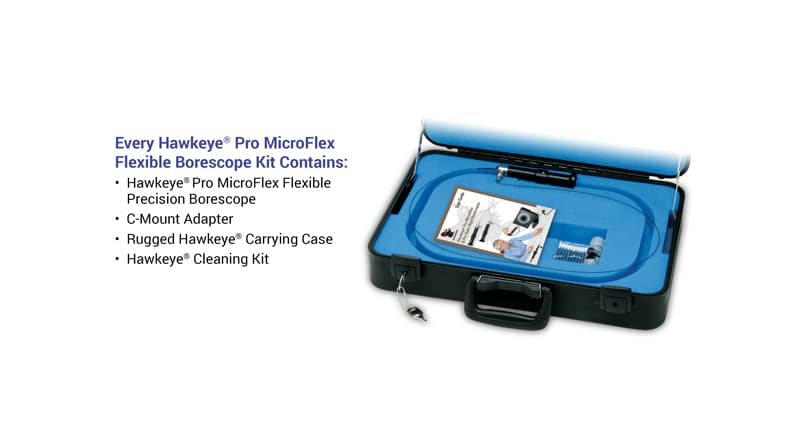

The excellent image quality Hawkeye® MicroFlex Flexible Borescopes deliver, in these very small micro diameters, is nothing short of amazing! You can access even the smallest opening, and utilize a 9-inch bend radius when the entry path is not straight. The polyamide-sheathed 0.5 model has a 3,000 pixel fiber imaging bundle, and the 0.9 mm model has a 10,000 pixel fiber imaging bundle. The plastic-sheathed 1.5 mm has a 30,000 fiber bundle. The eyepiece is easily replaced with a video adapter to use a C-Mount camera. Quickly and easily inspect cooling holes inside turbine blades, cannulas, catheters, needles, trocars, valves in medical devices, and many other micro manufactured parts.

Diameter	Length	DOV	FOV	Pixels	Sheath	Model#
0.020″ (0.5 mm)	23.5″ (600 mm)	0°	55°	3,000	Plastic	HSF 005 0600 55
0.035″ (0.9 mm)	39.4″ (1000 mm)	0°	55°	10,000	Plastic	HSF 009 1000 55
0.059″ (1.5 mm)	31.5″ (800 mm)	0°	70°	30,000	Plastic	HSF 015 0800 70

Optics
Direction-of-View	0º for all models
Pixels	0.5mm: 3,000 pixels
	0.9mm: 10,000 pixels
	1.5mm: 30,000 pixels
Field-of-View	0.5mm scope: 55 FOV
	0.9mm scope: 55 FOV
	1.5mm scope: 70 FOV
Depth-of-Field	0.5mm scope: 1-3 mm
	0.9 mm scope: 2 –5 mm , 1mm for the 90 deg. scope
	1.5 mm scope: 3 – 10 mm
Distal Focus	Fixed focus lens set
Mechanical
Tube Diameter	0.5mm, 0.9mm, 1.5mm
Working Length	0.5mm scope: 600 mm
	0.9mm scope: 1000 mm
	1.5mm scope: 800 mm
Insertion Tube Bend Radius	0.5mm scope: 1.5”
	0.9mm scope: 2.5”
	1.5mm scope: 3.5”
Articulation	None
Tube Construction	Black Polymide
Environmental
Operating Temperature	0º to 170º F (-18º to 77º C)
Watertight Insertion Tube	Up to 1 atm/1 bar (14.7psig); approx. 30ft water depth
Note 1	The handpiece is splash proof only.
