CV-600D Digital Rockwell Hardness Tester เครื่องวัดความแข็งแบบตั้งโต๊ะ สเกลร็อกเวลล์

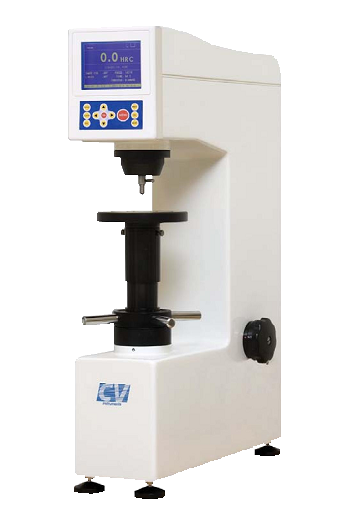

Rockwell Hardness Tester CV-600D

เครื่องวัดความแข็งตั้งโต๊ะ สเกลร็อกเวลล์ แบบดิจิตอล

เครื่องวัดความแข็งสเกลร็อกเวลล์แบบดิจิตอล
Menu-operated Rockwell hardness tester with LCD screen featuring GO/ NO GO judgement, conversion, load cycle indicator, date, time.
สเกล A, B, C, D, E, F, G, H, K, L, M, P, R, S, V
Display conversion to HV, HB, HR scales.
Built-in printer and RS-232C

Digital LCD reading of 15 regular Rockwell scales
Conversion to all other hardness scales such as Vickers and Brinell
Menu operated LCD screen with many functions such as Go/No Go judgement, conversions, load cycle indication, date, time
Integrated printer for test result and statistics
RS-232 data output to Microsoft Hyperterminal, ‘Win Wedge’ etc
Accuracy, reliability and durability at an extremely affordable price
Rugged construction, will stand up to the harshest environments
Accuracy conforms to EN-ISO 6508 and ASTM E-18
Easy load force selection by robust dial knob
Large working space accommodates larger specimens
Standard delivery including accessories ready for testing
Electronic software calibration mode

Rockwell scales Standard	A,B,C,D,E,F,G,K,L,M,P,R,S,V
Display conversion to	HV, HB, HR scales
Hardness resolution	1 of a Rockwell unit
Test loads	60, 100, 150kgf (10kgf preload)
LCD Display	Hardness value, Rockwell scale, test force indicator, dwell time, limits with tolerance check Go/No Go, number of tests, X-bar average, standard deviation, range R
Data entry	Membrane keypad
Test force application	Automatic main load application
Dwell time	2-99 sec
Data output	Built-in printer and RS-232C
Accuracy	Conforms to EN-ISO 6508 and ASTM E-18
Specimen accommodation	Vertical space 170mm (6.7″) Horizontal space (from center-line) 165mm (6.5″)
Specimen access	External surfaces Cylindrical surfaces down to 3mm diameter
Power supply	220/240V 50Hz
Machine dimensions	227mm x 516mm x 715mm (WxDxH)
Machine weight	Approx. 85kg
