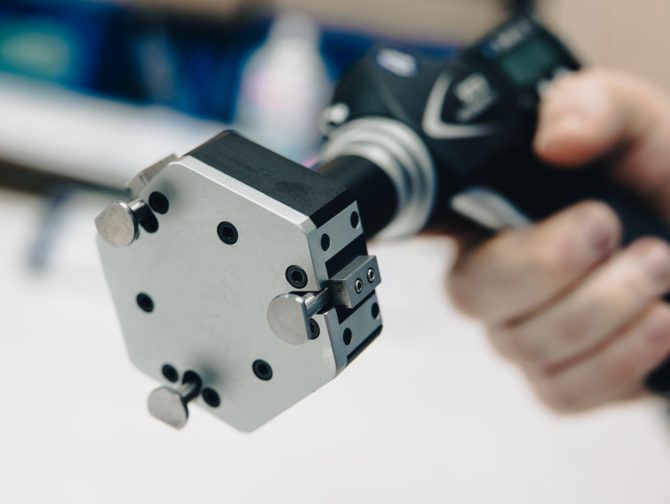

Custom Gauging

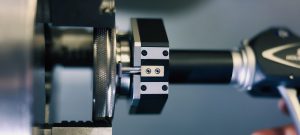

Slot Width

• Small slot widths from 2-6mm
• Large Slot width from 6-100mm

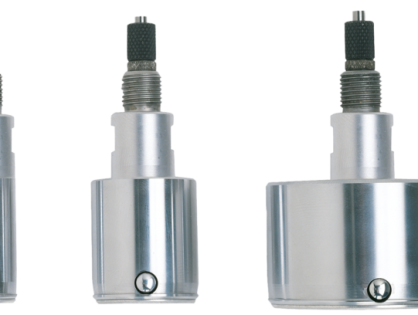

Blind Bores

• Standard between 2-6mm and 12.5-300mm. Between 6-12.5mm on request.

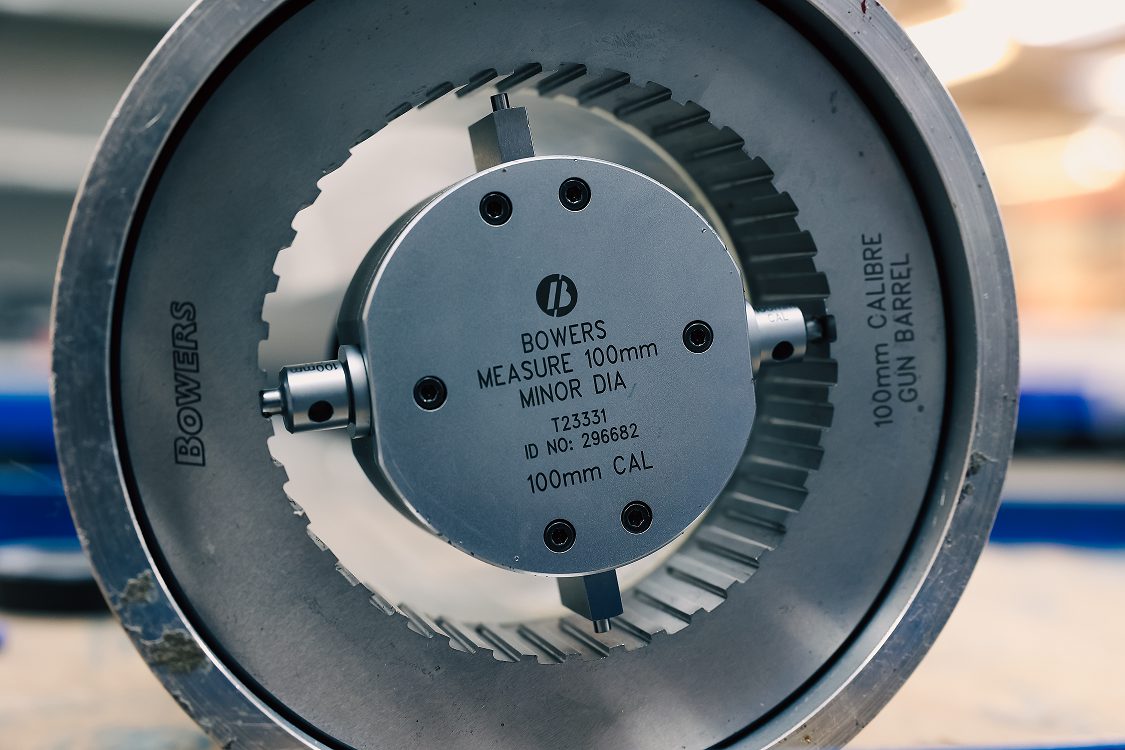

Gun Barrel Head

• For the measurement of smooth bore and rifled bore gun barrels. Major and minor diameters measured deep into bores.

Seat Pockets

• Internal measurement of surface/subsea valve cavity-seat pockets for the oil and gas industry

• A one-piece right-angle adaptor to allow entry down a perpendicular bore, allowing measurement to take place at 90 degrees to entry of the bore.

• Optimised anvil form and guide pieces aid entry and position the measuring head correctly for higher accuracy measurements and ease of use for operator.

Dovetail Slots & Turbine Blade Grooves

• 2 Point head solution based on the popular Bowers XT system.
• The system incorporates custom contacts for high accuracy.
• The Bowers XT digital readout offers the capability to send data for SPC and part traceability.

Soft Drink Can

• Internal measurement of a soft drink can

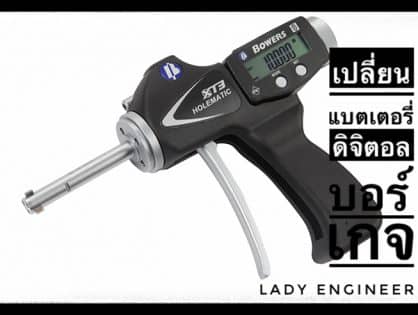

• 3 Point XT Anvil head based on 35-50mm body size, used with XT Holematic Xtreme pistol grip. High accuracy measurement of groove that’s inaccessible to a typical caliper
• 3 Point XT Anvil head used with XT Holematic Xtreme pistol grip. Measurement of internal diameter with 360 degree wrap-around anvils prevents/limits distortion of the thin walled can

Right Angled Adaptor

• Right angled adaptor for hard-to-reach bores

Irregular Spacing

• Available between 16-300mm diameter to measure between odd spaced lobes.

Ball Screws

• Internal measurement of ball-screws for the defence, aerospace, automotive and machine tool industry.
• Optimised anvil form featuring customised contacts for high accuracy.
• 3 Point head solution based on the popular Bowers XT system.
• Automated systems possible
