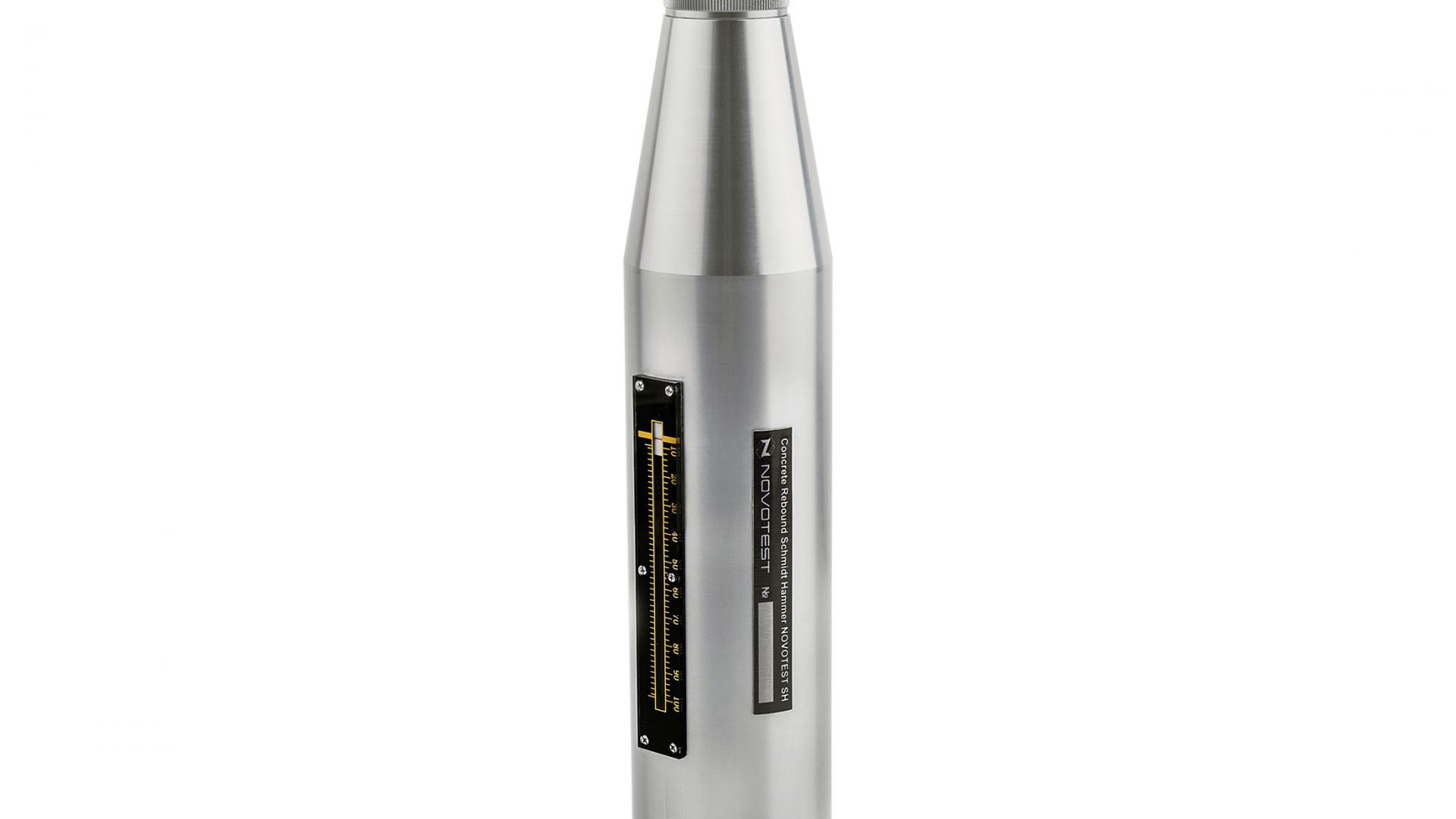

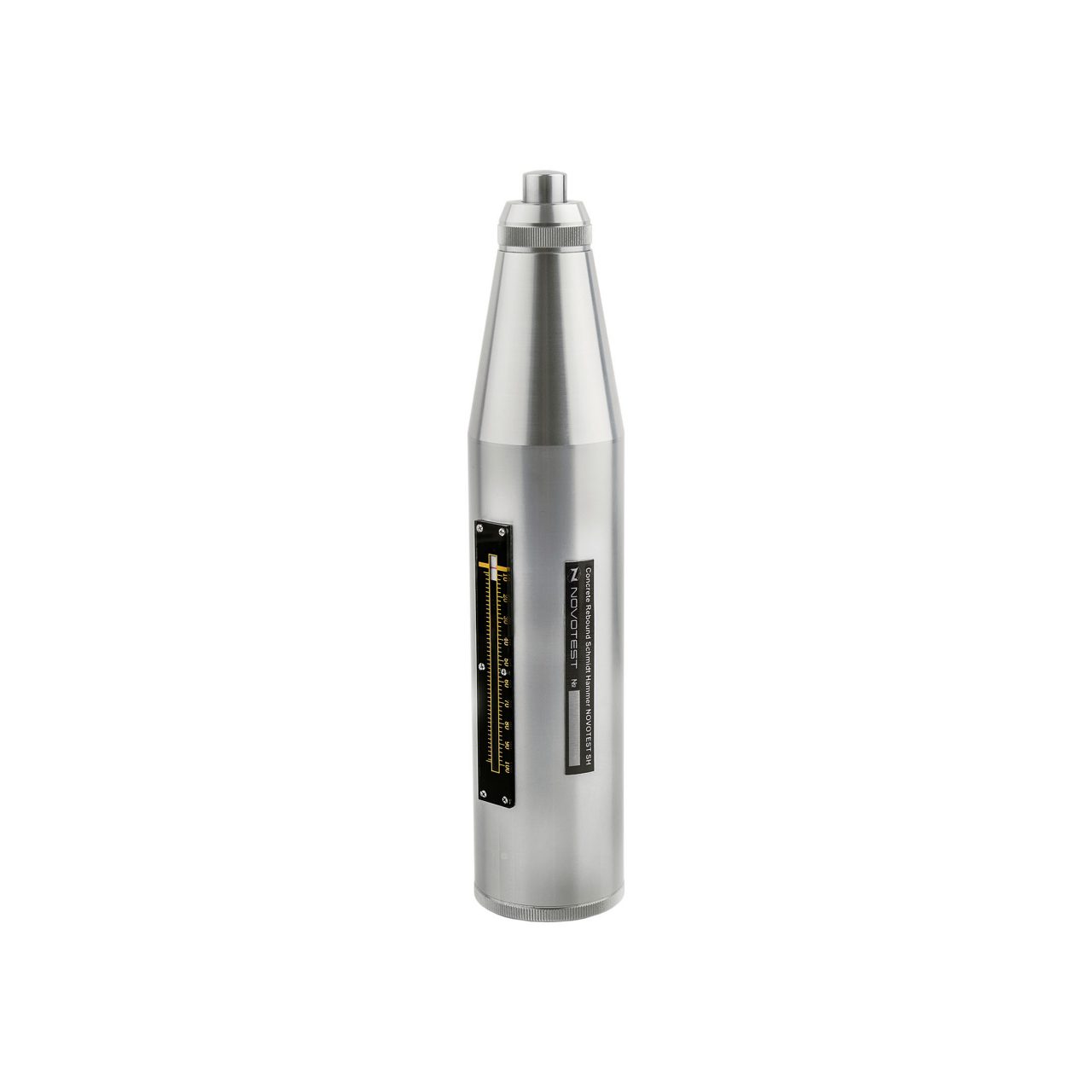

Concrete Rebound Hammer (Sclerometer) NOVOTEST MSh

The concrete rebound hammer (sclerometer) tests the strength of concrete and other building materials by impacting a plunger on the surface and measuring the height of the rebound, which is proportional to the material’s strength and can be interpreted using supplied calibration charts.

Concrete Rebound Hammer NOVOTEST MSh has 3 modifications with different impacting energy, so that user can test all kinds of concrete and other building materials.

Names / model	Rebound Hammer NOVOTEST SH-225	Rebound Hammer NOVOTEST SH-75	Rebound Hammer NOVOTEST SH-20
Measurement range of strength, MPa	10 – 60	10 – 60	1 – 25
Impact energy, J	2207	735	196
Minimum thickness of testing object, mm	70 and more	50 – 100	30 and more
Measurement accuracy, %	10
Hardness value of impact plunger working surface, HRC, no less	60
Surface roughness of testing object, Ra um, no worse	40
Radius of impact plunger, mm	25
Operating temperature range, ° C	-20 … +50
Weight of the device, kg, no more	1
Gross weight of package, kg	1.9
Dimensions of the package, cm	203410

Rebound hammer (impacting energy as required)
Grinder for surface preparation
Operating manual
Case

Optional

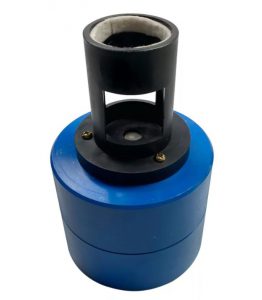

Special calibrated anvil for verifying the accuracy of the device.
There are several modifications of the measuring methods, which are different in impacting energy:

– Concrete Rebound Hammer NOVOTEST SH-225

– Concrete Rebound Hammer NOVOTEST SH-75

– Concrete Rebound Hammer NOVOTEST SH-20

Application:

Purpose: Designed to control and verify the accuracy of Rebound hammer readings, ensuring they meet the specified standards.
Test procedure: To determine the accuracy of the readings, conduct 5 to 10 measurements, calculate the average, and compare it with the reference value provided in the anvil’s manual, considering the acceptable margin of error.

Material	Stainless Steel
Material of test plate	Hardened tool steel
Hardness of test plate	60±2 HRC
Rebound hammer reading values	· 80±2 (for model MSh-225) · 74±2 (for model MSh-75)
Gross weight	16 or 19 kg
Package dimensions	230 mm x 230 mm x 350 mm
Storage conditions	Store in a dry, dust-protected environment, and ensure the test plate is protected from corrosion.
