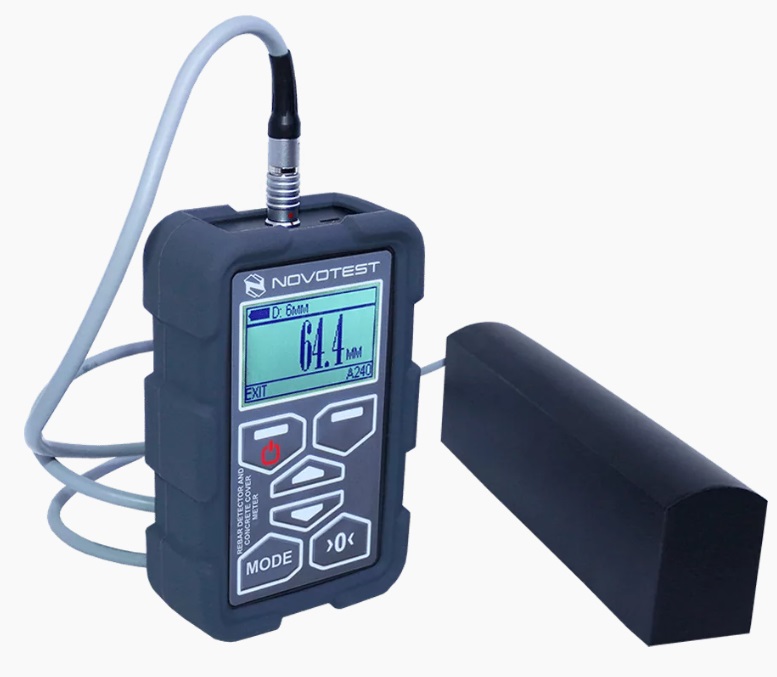

Concrete Cover Meter NOVOTEST Rebar Detector (NEW GENERATION 2020)
The concrete cover meter rebar detector measures concrete cover thickness, locates rebar, and estimates rebar diameter in reinforced concrete structures at construction sites and during inspections.
As a result of the modernization, the Concrete Cover Meter NOVOTEST Rebar Detector, in comparison with the previous generation, got:
- dust, moisture and shockproof housing for industrial use in harsh environments
- large contrast display
- the ability to adjust the brightness and contrast of the display, the choice of language, the choice of units of measurement (mm or inches)
- universal probe with built-in memory and stored calibration tables
- possibility of saving a backup copy of calibrations in the device
- increased accuracy and stable measurements
The cost of the device remained unchanged. Thus, you get a device with extended functional and operational characteristics at no additional cost.
Range of measuring the thickness of the protective layer, mm | 5 … 170 |
Controlled diameters, mm | 6-50 |
Thickness measurement accuracy of the protective layer, mm | (0,03 h + 0.5) |
Measurement accuracy of the rebar diameter, mm | Not regulated, depends on the testing object |
Measurement scales |
|
Standards |
|
Wireless connection with Android gadgets via NOVOTEST Lab App | No |
Languages |
|
Overall dimensions, mm: – electronic unit – probe |
– 122х76х36,5 – 200x50x35 |
Operating temperature, ° C | -20 … +40 ° C |
Power supply | 2pcs AA batteries |
Time of continuous work hours, not less | 8 |
Weight of electronic unit with batteries, no more, kg | 0.2 |
Package dimensions, cm | 33*27*10 |
Package weight, kg | 1.7 |

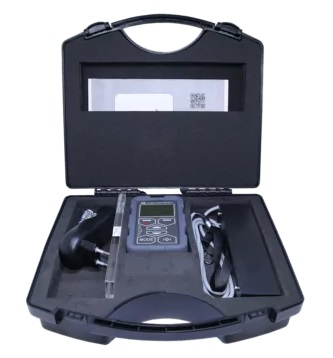

- Electronic unit
- Probe
- Plate
- 2 AA batteries
- Charger
- Operating manual
- Case
Optional
- Silicon Cover
- Probe
- Batteries
- Charger
