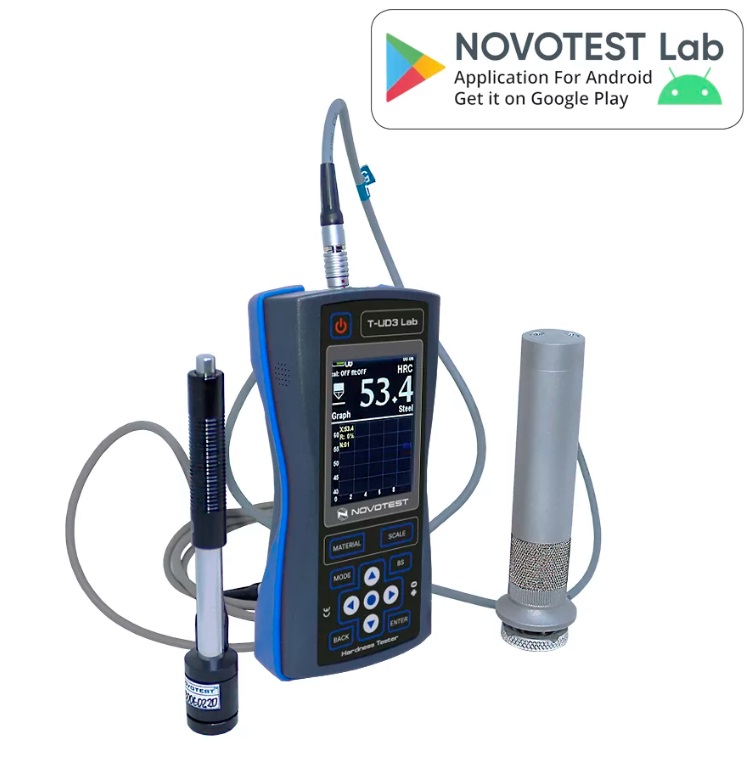

Combined Hardness Tester NOVOTEST T-UD3

Combined hardness tester combines two methods of measuring hardness: Ultrasonic Contact Impedance (ASTM A1038) and Leeb (ASTM A956). This makes the device the most versatile portable device as it can be.

  • Small indenter imprint (suits for mirror surfaces of shafts necks, blades, gear teeth, etc.)
  • Measuring surface hardened layers hardness
  • Wide range of hardness testing
  • Various measurement modes
  • 88 combinations of materials and hardness scales (calibrations)
  • Calibration of any scale in any range
  • Convenience and ease of measurement
  • Optimized number of buttons
  • Large full-color graphic display with bright backlight
  • Built-in photo camera for thorough reports
  • Automatic probe types recognition
  • Connected probe types indication
  • The calibrations are stored in UCI probe memory
  • Extended operating temperature range (frost, down to – 40°C)
  • Internal memory and communication with a PC
  • New intuitive menu with tips on the buttons
  • Optional wireless mini printer
  • Waterproofed housing
  • Rubber bumper protected housing
  • Internal clock
  • Hardness value measuring for any mass products with more than 1 mm  thickness (small parts, thin-walled structures, pipes, tanks, steel sheets, articles of complex shape, hardness testing of metal coatings, etc.)
  • Different operating modes:
    • Graph – the graph building mode
    • Histogram – the histogram building mode
    • Statistics – provides statistics for the current set of measurements
    • Smart – filters the incorrect measurements
    • Signal – displays the probe signal (only for the Leeb probe)

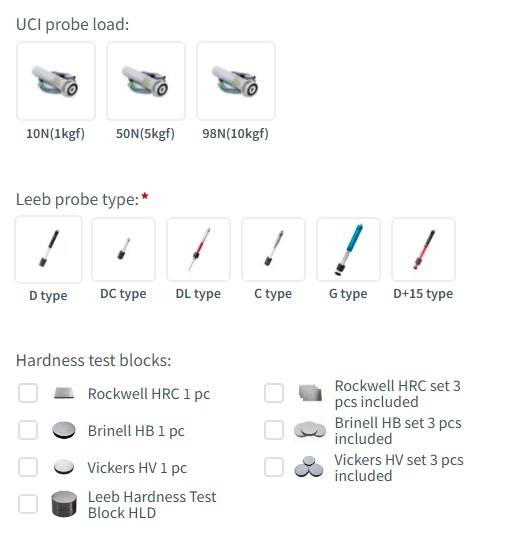

UCI probe types
  • 1kgf (10N) 2.2 lbf
  • 5kgf (50N) 11lbf
  • 10kgf (98N) 22lbf
Leeb probe types
  • D
  • DC
  • DL
  • C
  • D+15
  • E
  • G
Measuring range
  • HRC:20~70
  • HB:90~650
  • HV:230~940
  • Tensile strength, MPa: 370~1740
  • User calibrations for any range (for example: HV100-3000)
Measuring accuracy
  • HRC: 2HRC
  • HB: 10HB
  • HV: 15HV
Standards
  • ASTM A1038
  • ASTM A956
Indenter UCI probe – Diamond indenter Leeb probe – Hardened ball
Measuring direction Any direction 360°
Data storage Limited only by the memory card up to 32Gb
Communication Upload data to PC and export as a spreadsheet (USB cable and software included )
Hardness scales
  • UCI probe – HRC, HB, HV, MPa
  • Leeb probe – HRC, HRB, HB, HV, HL, MPa
  • Additional custom scales for calibration
Materials
  • Ultrasonic (UCI) probe – pre-calibrated for steel
  • Dynamic (Leeb) pre-calibrated for steel, alloy steel, cast iron, stainless steel, aluminum, bronze, brass, copper
  • Additional custom materials for calibration
Data display
  • Load applied/contact (UCI)
  • Angle (Leeb)
  • Single test result
  • Max, Min, Average of tests
  • Number of tests,
  • Deviation
  • Var. coeff.
  • Histogram, Signal and Smart Modes (Filter of incorrect measurements).
Language
  • English
  • German
  • French
  • Polish
  • Russian *additional languages available by request
Indication Color LCD display (320×240)
Operating environment
  • Temperature:-20°C~40°C
  • Humidity: 30%~80%R.H.
Power supply DC 4,5V (3 pcs batteries AA)
Instrument dimensions 160x75x30mm
Net weight Approx. 0.3kg (without probe)
Gross weight (package) 2kg
Package dimensions, cm 33*27*10
Battery life Approx. 10 hours.
Package gross weight, kg 1.8-2kg

“Basic” kit:

  • Electronic unit Combined Hardness Tester NOVOTEST T-UD3 (Lab)
  • UCI probe – 1pc (10N, 50N or 98N for choice)
  • Leeb D type probe – 1pc (other types by request)
  • Accessory package: – AA batteries – 3 pcs – USB charger – USB cable for PC – PC software: — Online – INFO/USB-connect — Offline – NOVOTEST USB-Connect – NOVOTEST LAB App for Android gadgets – Operating manual/Quick guide – Test certificate – Transportation plastic case
“Advanced 1” kit:
  • Electronic unit Combined Hardness Tester NOVOTEST T-UD3 (Lab)
  • UCI probe – 1pc (10N, 50N or 98N for choice)
  • Leeb D type probe – 1pc (other types by request)
  • Protective Pouch with Straps for T-UD3
  • Hardness Test Block HRC, HB, HV (for UCI probe) – 1pc
  • Hardness Test Block HLD or HLG (for Leeb probe) – 1pc
  • Accessory package

“Advanced 2” kit:

  • Electronic unit Combined Hardness Tester NOVOTEST T-UD3 (Lab)
  • UCI probe – 2pc (50N+10N or 98N)
  • Leeb D type probe – 1pc
  • Protective Pouch with Straps for T-UD3
  • Leeb probe Type DL or DC-R or DC-R mini or G
  • Hardness Test Block HRC, HB, HV (for UCI probe) – 1pc
  • Hardness Test Block HLD or HLG (for Leeb probe) – 1pc
  • Accessory package

“Advanced 3” kit:

  • Electronic unit Combined Hardness Tester NOVOTEST T-UD3 (Lab)
  • UCI probe – 1pc (10N, 50N or 98N for choice)
  • Leeb D type probe – 1pc (other types by request)
  • Protective Pouch with Straps for hardness tester T-UD3
  • Hardness Test Block HRC or HB or HV (for UCI probe) – 3pcs
  • Leeb Hardness Test Block HLD or HLG (for Leeb probe) – 1pc
  • Device for measuring the hardness of thin sheets NOVOTEST U1-TL
  • Set of support rings for Leeb probe
  • Accessory package

“Professional” kit:

  • Electronic unit Combined Hardness Tester NOVOTEST T-UD3 (Lab)
  • UCI probe – 1pc (10N, 50N, 98N)
  • Leeb D type probe – 1pc
  • Protective Pouch with Straps for T-UD3
  • Leeb probe Type DL or DC-R or DC-R mini or G
  • Hardness Test Block HRC or HB or HV (for UCI probe) – 3pcs
  • Hardness Test Block HLD or HLG (for Leeb probe) – 1pc
  • Device for measuring the hardness of thin sheets NOVOTEST U1-TL
  • Set of support rings for Leeb probe
  • Accessory package

“Expert” kit:

    • Electronic unit Combined Hardness Tester NOVOTEST T-UD3 (Lab)
    • UCI probe – 2pc (50N+10N or 98N)
    • Leeb D type probe – 1pc
    • Protective Pouch with Straps for T-UD3
    • Leeb probe Type DL or DC-R or DC-R mini or G
    • Rockwell Hardness Test Block 25HRC, 45 HRC, 65HRC (for UCI probe) – 3pcs
    • Brinell Hardness Test Block 100HB, 200HB, 400HB or other nominals (for UCI probe) – 3pcs
    • Vickers Hardness Test Block 200HV, 450HV, 800HV or other nominals (for UCI probe) – 3pcs
    • Hardness Test Block HLD or HLG (for Leeb probe) – 1pc
    • Device for measuring the hardness of thin sheets NOVOTEST U1-TL
    • Set of support rings for Leeb probe
    • Accessory package
