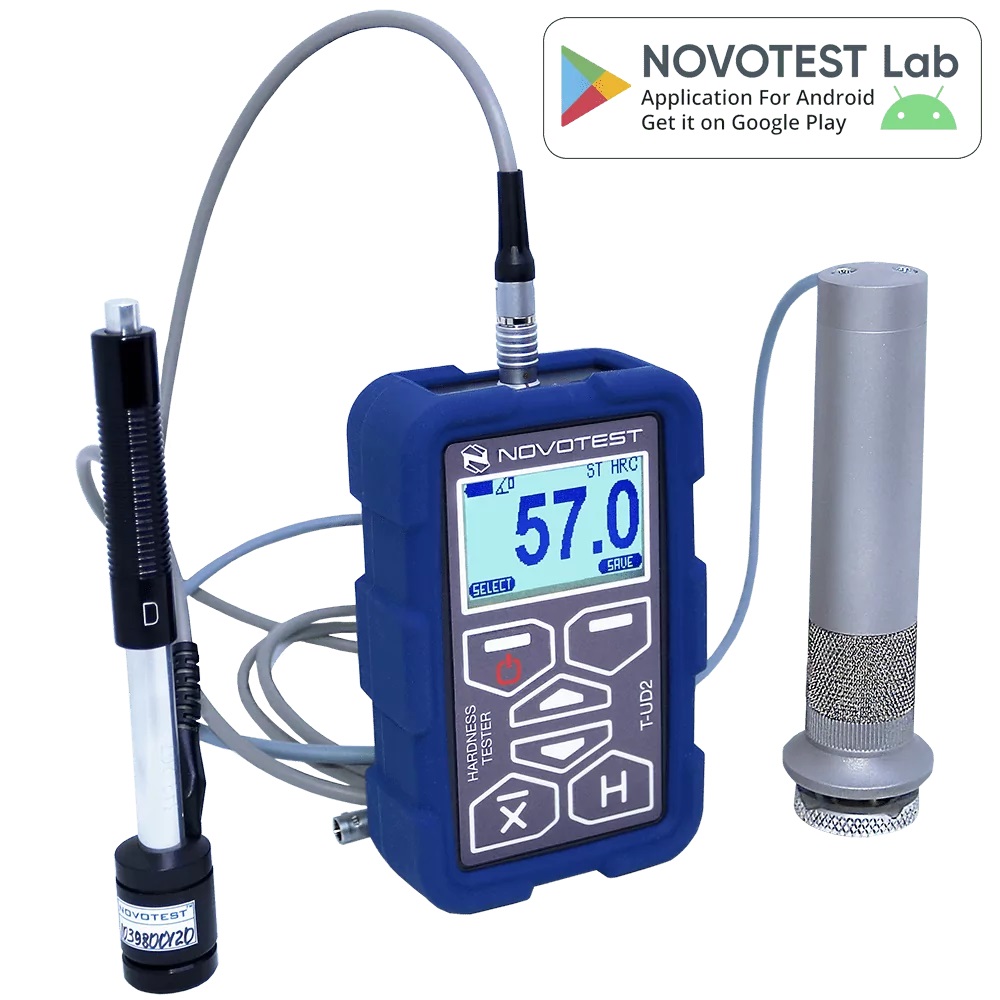

Combined Hardness Tester NOVOTEST T-UD2

The combined hardness tester integrates the advantages of UCI and Leeb methods, enabling users to test both large rough-surfaced products and small, complex-shaped samples, making it ideal for non-destructive metal hardness testing across various materials and scales.

2 removable probes: ultrasonic contact impedance (UCI) and dynamic, rebound (Leeb)
There are almost no restrictions for hardness testing (by weight, configuration, structure, degree of mechanical and thermal treatment, etc.)
To evaluate changes in the hardness of the hardened layer depth articles and the effect of surface stress
Wide range of hardness value
Convenience and ease in operation
Graphical contrast display with backlight
Automatic recognition of probe
Extended temperature range (cold-resistant, down to -20 °C)
Device has internal memory and allows user to transmit data to PC

UCI probe types	1kgf (10N) 2.2 lbf 5kgf (50N) 11lbf 10kgf (98N) 22lbf
Leeb probe types	D DC DL C D+15 E G
Indenter	Diamond indenter (UCI) Hardened ball (Leeb)
Hardness scale	UCI probe: HRC, HB, HV, MPa Leeb probe: HRC, HB, HV, HLD, MPa
Measurement hardness range: Rockwell, HRC Brinell, HB Vickers, HV	20 – 70 90 – 650 230 – 940
Measuring accuracy	HRC: 2HRC HB: 10HB HV: 15HV
Standards	ASTM A1038 ASTM A956
Measuring direction	Any direction 360°
Materials	UCI probe – pre-calibrated for steel. Leeb probe – pre-calibrated for steel, alloy steel, stainless steel, cast iron. Additional custom scales and materials for calibration.
Storage of measurement results	256
Language	English Spanish Portuguese French Russian *additional languages available by request
Operating temperature range, ° C	-20 … +40
Power supply	2pcs AA batteries
Dimensions, mm	122x76x37
Weight of electronic unit with battery, no more, kg	0.25
Batteries life, not less, h	20
Package gross weight, kg	2

“Basic” kit:

- Electronic unit Combined Hardness Tester NOVOTEST T-UD2 (Lab)
- UCI probe – 1pc (10N, 50N or 98N for choice)
- Leeb D type probe – 1pc (other types by request)
- Accessory package:
  – AA batteries – 2 pcs
  – Battery charger
  – USB cable for PC
  – PC software:
  — Online – INFO/USB-connect
  — Offline – NOVOTEST USB-Connect
  – NOVOTEST LAB App for Android gadgets
  – Operating manual/Quick guide
  – Test certificate
  – Transportation plastic case

“Advanced 1” kit:

Electronic unit Combined Hardness Tester NOVOTEST T-UD2 (Lab)
UCI probe – 1pc (10N, 50N or 98N for choice)
Leeb D type probe – 1pc (other types by request)
Protective Pouch with Straps for T-UD3
Hardness Test Block HRC, HB, HV (for UCI probe) – 1pc
Hardness Test Block HLD or HLG (for Leeb probe) – 1pc
Accessory package

“Advanced 2” kit:

Electronic unit Combined Hardness Tester NOVOTEST T-UD2 (Lab)
UCI probe – 1pc (50N)
Leeb D type probe – 1pc
Protective Pouch with Straps for T-UD3
UCI probe 10N or 98N
Leeb probe Type DL or DC-R or DC-R mini or G
Hardness Test Block HRC, HB, HV (for UCI probe) – 1pc
Hardness Test Block HLD or HLG (for Leeb probe) – 1pc
Accessory package

“Advanced 3” kit:

Electronic unit Combined Hardness Tester NOVOTEST T-UD2 (Lab)
UCI probe – 1pc (10N, 50N or 98N for choice)
Leeb D type probe – 1pc (other types by request)
Protective Pouch with Straps for hardness tester T-UD3
Hardness Test Block HRC or HB or HV (for UCI probe) – 3pcs
Leeb Hardness Test Block HLD or HLG (for Leeb probe) – 1pc
Device for measuring the hardness of thin sheets NOVOTEST U1-TL
Set of support rings for Leeb probe
Accessory package

“Professional” kit:

Electronic unit Combined Hardness Tester NOVOTEST T-UD2 (Lab)
UCI probe – 1pc (50N)
Leeb D type probe – 1pc
Protective Pouch with Straps for T-UD3
UCI probe 10N
UCI probe 98N
Leeb probe Type DL or DC-R or DC-R mini or G
Hardness Test Block HRC or HB or HV (for UCI probe) – 3pcs
Hardness Test Block HLD or HLG (for Leeb probe) – 1pc
Device for measuring the hardness of thin sheets NOVOTEST U1-TL
Set of support rings for Leeb probe
Accessory package

“Expert” kit:

Electronic unit Combined Hardness Tester NOVOTEST T-UD3 (Lab)
UCI probe – 1pc (50N)
Leeb D type probe – 1pc
Protective Pouch with Straps for T-UD3
UCI probe 10N or 98N
Leeb probe Type DL or DC-R or DC-R mini or G
Rockwell Hardness Test Block 25HRC, 45 HRC, 65HRC (for UCI probe) – 3pcs
Brinell Hardness Test Block 100HB, 200HB, 400HB or other nominals (for UCI probe) – 3pcs
Vickers Hardness Test Block 200HV, 450HV, 800HV or other nominals (for UCI probe) – 3pcs
Hardness Test Block HLD or HLG (for Leeb probe) – 1pc
Device for measuring the hardness of thin sheets NOVOTEST U1-TL
Set of support rings for Leeb probe
Accessory package

Additional UCI and Leeb probes any type
Batteries
Charger
Hardness test blocks
Portable grinding machine
Case for hardness tester
Set of support rings for D, DC type Leeb probes
Impact bodies for Leeb probes

Device for measuring the hardness of thin sheets NOVOTEST U1-TL
Additional Leeb probes:
– Dynamic probe Type DC-R
– Dynamic probe Type DC-R-mini
– Leeb probe Тype D
– Leeb probe Type DL
– Leeb probe Type G
– Leeb probe Type D+15
– Leeb probe Тype C
– Leeb probe Type E
Set of support rings for Leeb probe
Cable for Leeb probe
Impact bodies for Leeb probes
