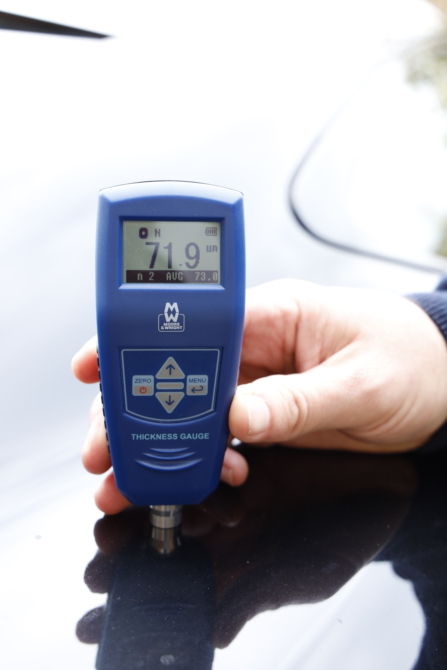

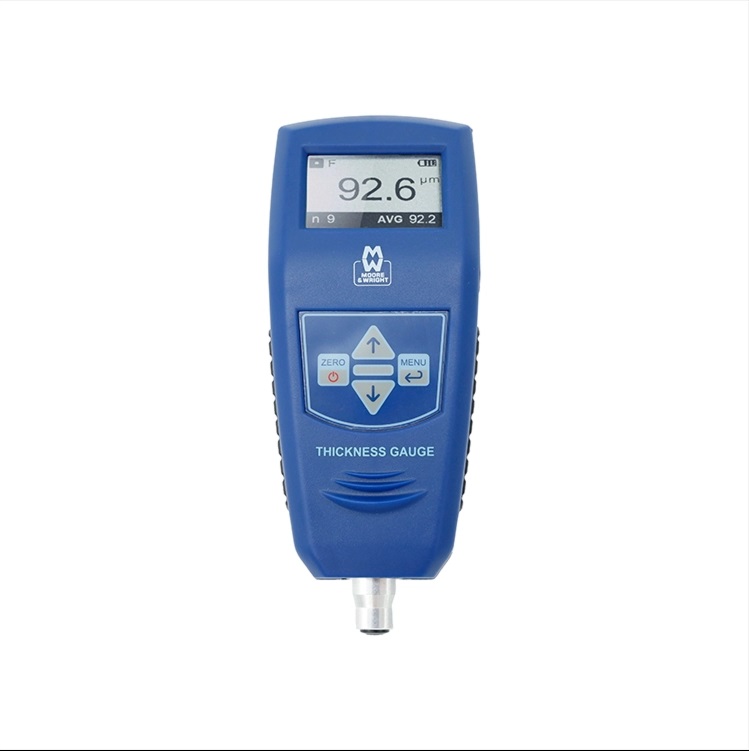

Coating Thickness Gauge Non-Ferrous MWT-2105
เครื่องวัดความหนาของสารเคลือบ
The Moore and Wright Coating Thickness Gauge is an easy-to-use electronic gauge ideal for taking accurate measurements of non magnetic coatings on non ferrous materials.
Durable, easy to use, and easily portable.
เครื่องวัดความหนาวัสดุสำหรับเคลือบวัสดุที่เป็นโลหะไม่ใช่เหล็ก
คุณสมบัติ
– การวัดความหนาของวัสดุเคลือบแบบไม่ทำลายพื้นผิว
– เหมาะสำหรับอุตสาหกรรมการตกแต่งที่ใช้สี เคลือบเงา การชุบด้วยไฟฟ้า และอื่นๆ
– ใช้หลักการกระแสวนตามมาตรฐาน ISO 2360, ASTM B244, GB/T 4957, JB/T 8393
– โหมดการวัดแบบเดี่ยวและต่อเนื่อง
– จอ LCD พร้อมไฟแบ็คไลท์แสดงค่าที่อ่านได้และพารามิเตอร์การวัดที่เลือก
– ช่วงการวัดสูงสุด 1,250 ไมโครเมตร
– หน่วยความจำจัดเก็บค่าอ่านได้สูงสุด 500 ค่า
– ปิดเครื่องอัตโนมัติ
– มีแผ่นทดสอบและสอบเทียบมาให้
- Graphic LCD with backlight
- Compact size with integrated probe
- Eddy current method (ISO 2360, ASTM D7091, ASTM B244) enables measurement of non-conductive coating on non-magnetic metal collectives
- Data memory up to 500 readings
- Ready to measure immediately without calibration
- Easy to perform zero-point correction
- The one-point calibration function allows for an adaption in cases of severe changes in shape or substrate material
- Statistic function allows for the evaluation of a measurement series and display of the most significant characteristic statistical values
- Operating temperature = 0-50°C
- Dimensions (mm) = 128 x 51 x 30 (digital gauge)
- Weight (g) = 110 (digital gauge)
- Accessories = Thickness gauge, substrate, certification foils set and manufacturer certificate
Product Code | Range | Resolution | Accuracy (µm) | Power |
MWT-2105 | 0-1250µm (0-50 mil) | 0-999µm: 0.1 | 0-100: +-2.0 | 3 x 1.5V AAA batteries |
>1000µm: 1 | 101 – 1250µm: <2.5% |
