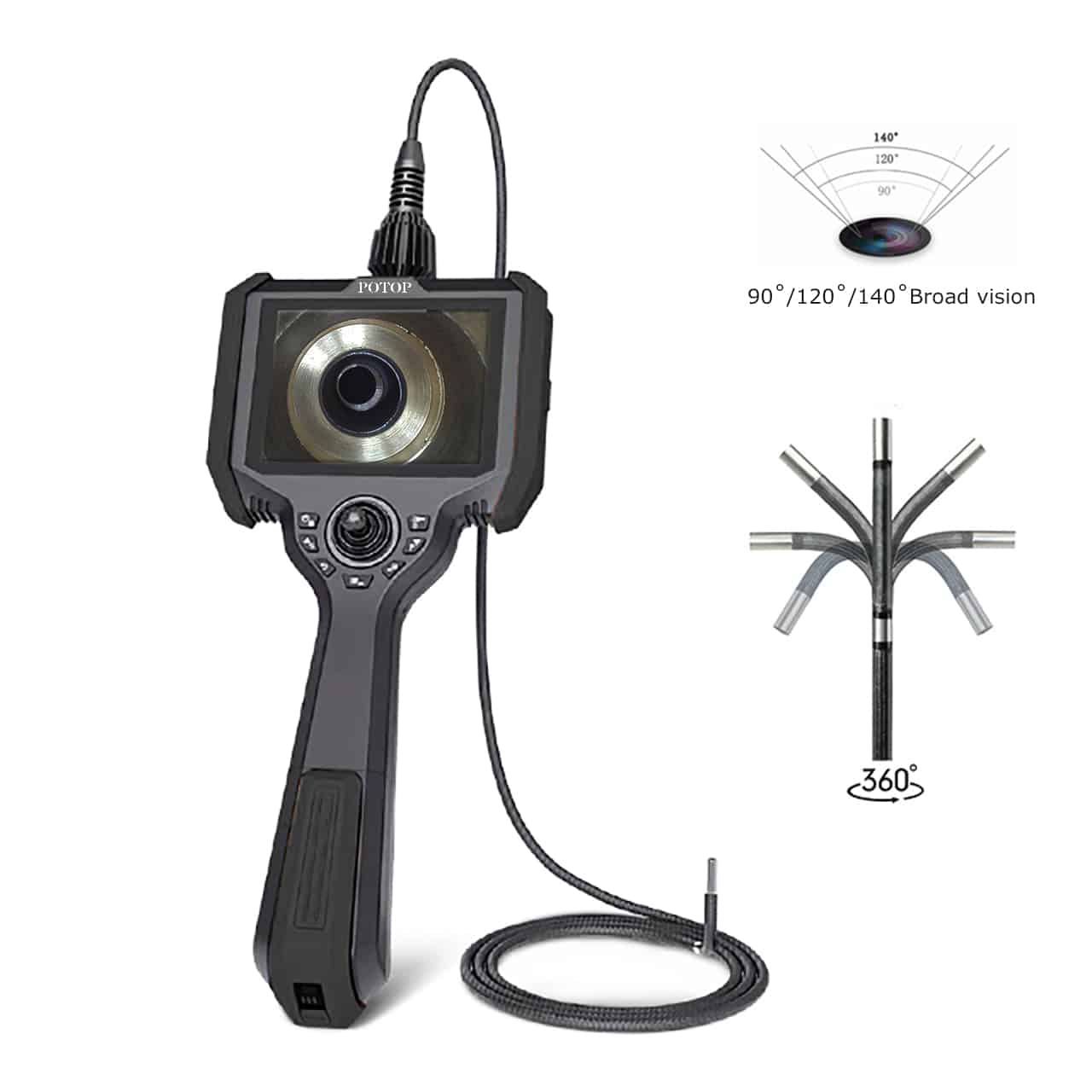

CK5 Series 5″ HD Video Borescope Tungsten Probe 360°

กล้องวีดิโอบอร์สโคป หน้าจอขนาด5นิ้ว สายทังสเตน

– High-End Borescope Competitive with GE & Olympus
– High C/P Value. Excellent value for money.
– 5″ HD IPS LCD Monitor
– Wear-resistant Tungsten Braided Probe
– 360° full swing articulation probe. Max 180° on each side.

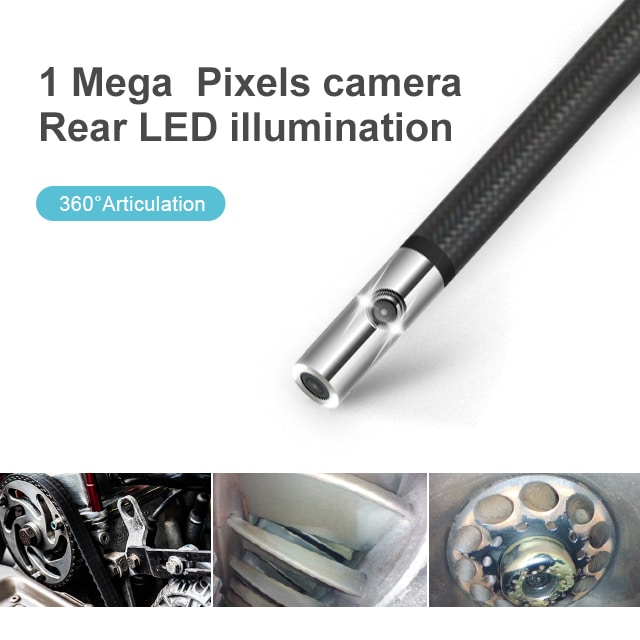

– Camera Pixels 1,000,000
– Snapshot & Video Recording
– Super Bright 50000 Lux LED brightness adjustment
– Detachable Probe & Display – Wifi to android phone (for option)

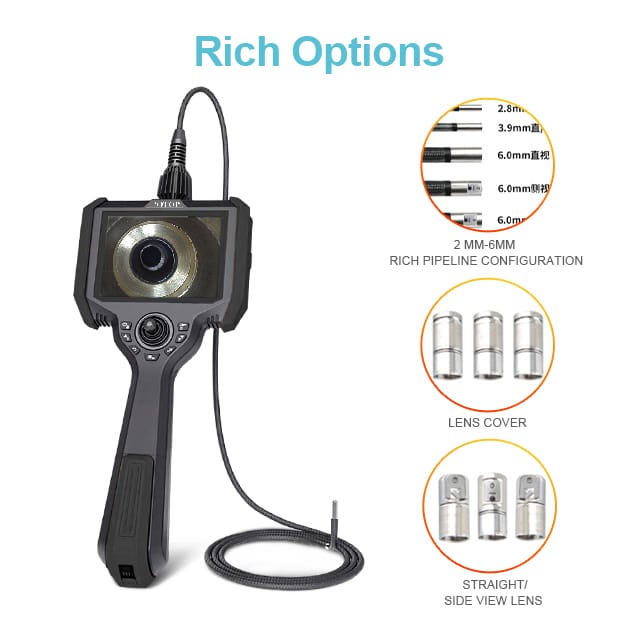

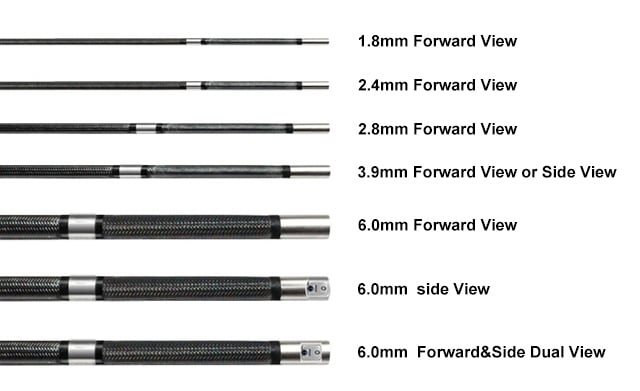

Different Diameter of Probe for option

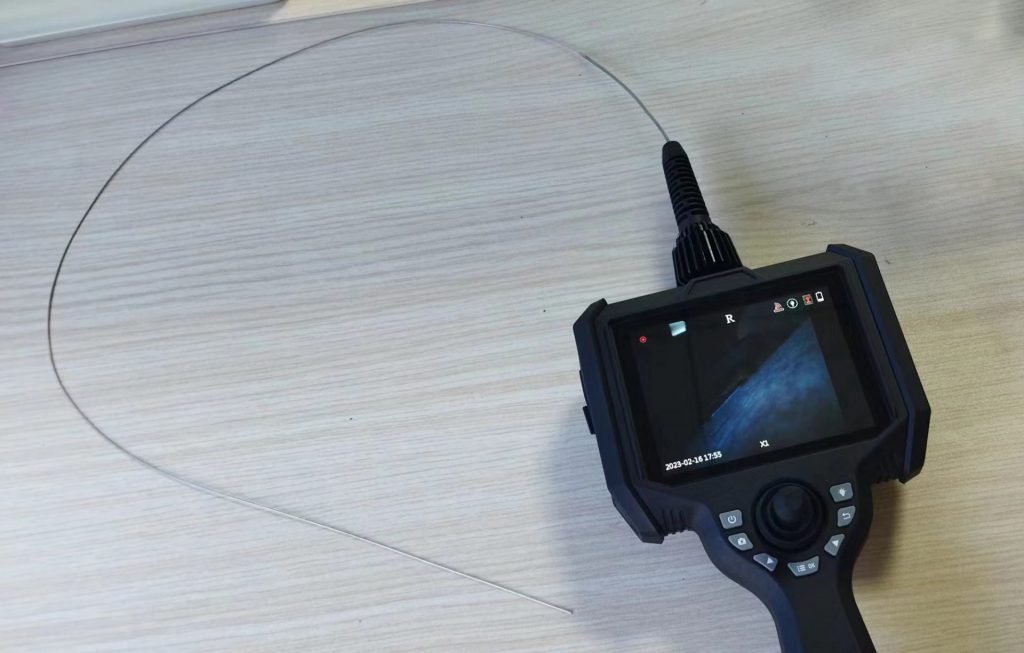

Super Thin Probe Φ0.95mm is Now Available

Model	Display	Tip Dia.	Length	Articulation	Camera Res.	Bend Angle	LED
CK5-1000	5″	Ø0.95mm	0.5M	–	160000 Pixels	–	3000Lx
CK5-1001	5″	Ø0.95mm	1M	–	160000 Pixels	–	3000Lx
CK5-1200	5″	Ø1.2mm	0.5M	–	160000 Pixels	–	3000Lx
CK5-1201	5″	Ø1.2mm	1M	–	160000 Pixels	–	3000Lx
CK5-15002	5″	Ø1.5mm	0.5M	2Way	160000 Pixels	130°	3000Lx
CK5-15012	5″	Ø1.5mm	1M	2Way	160000 Pixels	100°	3000Lx
CK5-15022	5″	Ø1.5mm	1.5M	2Way	160000 Pixels	70°	3000Lx
CK5-18012	5″	Ø1.8mm	1M	2Way	160000 Pixels	170°	3000Lx
CK5-18022	5″	Ø1.8mm	2M	2Way	160000 Pixels	140°	3000Lx
CK5-18032	5″	Ø1.8mm	3M	2Way	160000 Pixels	110°	3000Lx
CK5-20014	5″	Ø2.0mm	1M	360˚(4Way)	160000 Pixels	170°	5000Lx
CK5-20024	5″	Ø2.0mm	2M	360˚(4Way)	160000 Pixels	140°	5000Lx
CK5-20034	5″	Ø2.0mm	3M	360˚(4Way)	160000 Pixels	110°	5000Lx
CK5-24014	5″	Ø2.4mm	1M	360˚(4Way)	160000 Pixels	130°	5000Lx
CK5-24024	5″	Ø2.4mm	2M	360˚(4Way)	160000 Pixels	100°	5000Lx
CK5-24034	5″	Ø2.4mm	3M	360˚(4Way)	160000 Pixels	70°	5000Lx
CK5-28014	5″	Ø2.8mm	1M	360˚(4Way)	160000 Pixels	170°	5000Lx
CK5-28024	5″	Ø2.8mm	2M	360˚(4Way)	160000 Pixels	140°	5000Lx
CK5-28034	5″	Ø2.8mm	3M	360˚(4Way)	160000 Pixels	110°	5000Lx
CK5-39014	5″	Ø3.9mm	1M	360˚(4Way)	1MP	170°	8000Lx
CK5-39024	5″	Ø3.9mm	2M	360˚(4Way)	1MP	150°	8000Lx
CK5-39034	5″	Ø3.9mm	3M	360˚(4Way)	1MP	130°	8000Lx
CK5-39044	5″	Ø3.9mm	4M	360˚(4Way)	1MP	110°	8000Lx
CK5-39054	5″	Ø3.9mm	5M	360˚(4Way)	1MP	90°	8000Lx
CK5-39064	5″	Ø3.9mm	6M	360˚(4Way)	1MP	80°	8000Lx
CK5-60014	5″	Ø6.0mm	1M	360˚(4Way)	1MP	170°	14000Lx
CK5-60024	5″	Ø6.0mm	2M	360˚(4Way)	1MP	170°	14000Lx
CK5-60034	5″	Ø6.0mm	3M	360˚(4Way)	1MP	160°	14000Lx
CK5-60044	5″	Ø6.0mm	4M	360˚(4Way)	1MP	150°	14000Lx
CK5-60054	5″	Ø6.0mm	5M	360˚(4Way)	1MP	130°	14000Lx
CK5-60064	5″	Ø6.0mm	6M	360˚(4Way)	1MP	120°	14000Lx
CK5-60074	5″	Ø6.0mm	7M	360˚(4Way)	1MP	110°	14000Lx
CK5-60084	5″	Ø6.0mm	8M	360˚(4Way)	1MP	100°	14000Lx
CK5-60104	5″	Ø6.0mm	10M	360˚(4Way)	1MP	80°	14000Lx
CK5-60154	5″	Ø6.0mm	15M	360˚(4Way)	1MP	80°	14000Lx
CK5-60204	5″	Ø6.0mm	20M	360˚(4Way)	1MP	80°	14000Lx

Series	CK5-10	CK5-12	CK5-15	CK5-18	CK5-20	CK5-24	CK5-28	CK5-39	CK5-60
Probe Diameter	0.95mm	1.2mm	1.5mm	1.8mm	2.0mm	2.4mm	2.8mm	3.9mm	6.0mm
Viewing Direction	0° Front View
Camera Pixels	160,000							1,000,000
D.O.F.	3-70mm							5-100mm	12-200mm
								(Long Focus :50mm-infinity for option)
								(Short focus 3-30mm for option)
F.O.V.	120°
Image Resolution	640480 / 960720 / 1280*720
Video Resolution	640480 / 960720 / 1280*720
Articulation	Non		2-WAY Articulation		360° Joystick-control Articulation
Light Source	Rear-mounted LED + Optic fiber							Front Camera / Side Cameera : Front LED	Front LED
								Dual View: Rear-mounted LED + Optic fiber
				Front LED
Illuminance	3000 Lx					5000 Lx		8000 Lx	14000 Lx
	1~8 levels adjustable light
Probe Material	Stainless steel		5 Layers of Tungsten-braided insert probe. Extreme resistance to impact and wearing.
Probe Length	0.5m / 1m	0.5m / 1m	0.5m / 1m / 1.5m	1m / 2m / 3m				1m/2m/3m	1m ~ 20m
								4m/5m/6m
Bending Angle	Non		130° / 100°/ 70°	150° / 120°/ 100°	130° / 100°/ 70°	160° / 130°/ 100°	170° / 130°/ 110°	170°~80°	170° ~80°
Waterproof	Non		Probe / Camera: IP67
Display	5″ color IPS display. All sight viewing angle
Display Resolution	1280*720
Zoom In	Digital zoom 5X
Language	Chinese (simplified), French, English, German, Spanish, Italian, Japanese
Software Function	Freezing, zooming, photographing, flipping, video playback and analog ruler functions
White Balance	Auto white balance/manual
Structure	Handheld, integrated design
Image / Video Format	JPG / MP4
Data Port	HDMI video output
Storage Temperature	-20℃~60℃
Working Temperature	-10℃~80℃, low temperature without preheating
Working Time	≥4h for Option
Battery Capacity	5V, 3400mAh
Power Charge	DC5V, 1A
Videoscope Weight & Size	1Kg, Size: 37517578mm
Compatibility	Interchangeable monitor and tube with different diameters
Portable Case	ABS airtight shock-proof portable case, size: 464019cm
Carton Size	Export outer carton size: 494120cm, GW : 5Kgs (Standard Series < 8m)
	Export outer carton size: 58×37×27cm, GW : 6Kgs (10m)
	Export outer carton size: 68×35×51cm, GW : 12Kgs (15m/20m)
Standard Accessory	tripod,Rugged tool box,USB Cable,Charger,TF card(32G),Card reader,Battery(for optional)
Side View Camera	Non							focus 7-150mm	Available for option
									(Light: Rear-mounted
									LED+Optic fiber )
Dual-view Camera	Non							focus 7-150mm	Available for option
								(focus 3-30mm for option)	(Light: Rear-mounted LED+Optic fiber)
Option	IR 940nm Light / IR 940nm & White LED dual-light.
	WIFI To Smartphone (for Android)
	Stretchable Roller Skid 34mm~135mm for 8mm & 6mm probe
	Non articulation probes are available
	High Temperature Alarm
	Probe Frontend Voice Recording
