Coating Thickness Gauge C5000 series

เครื่องวัดความหนา

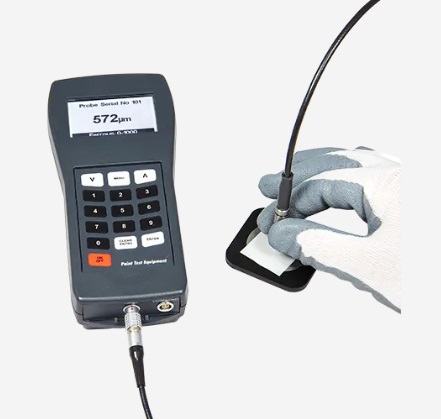

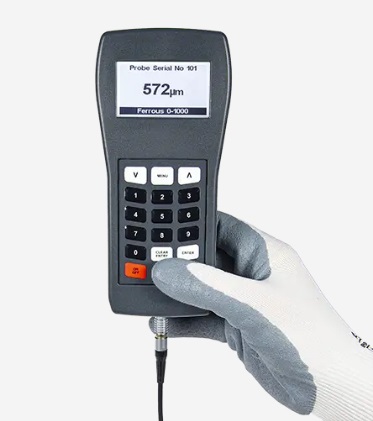

The Coating Thickness Meter will measure all coatings on metallic substrates using the magnetic induction or eddy-current principles, ensuring the correct coating thickness has been applied.

The Ferrous Probes will measure all non-ferromagnetic coatings on steel and iron.  The Non-Ferrous Probes will measure all non-conductive, non-ferromagnetic coatings on conductive non-ferrous substrates.

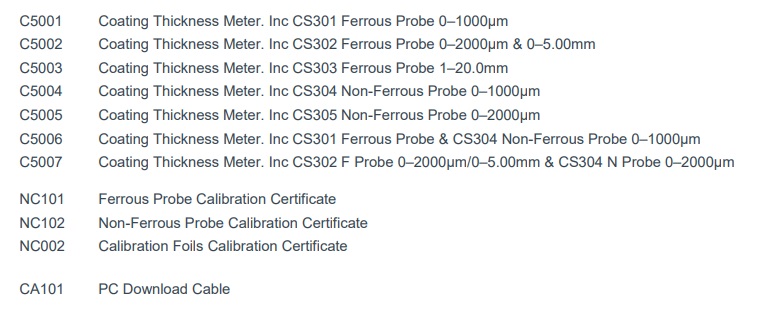

Available in the following Coating Thickness Meter models:  C5001 Ferrous 0–1000μm, C5002 Ferrous 0–2000μm/0–5.00mm, C5003 Ferrous 1–20.0mm, C5004 Non-Ferrous 0–1000μm, C5005 Non-Ferrous 0–2000μm, C5006 Ferrous & Non-Ferrous 0–1000μm and C5007 Ferrous & Non-Ferrous F 0–2000μm/0–5.00mm N 0–2000μm.

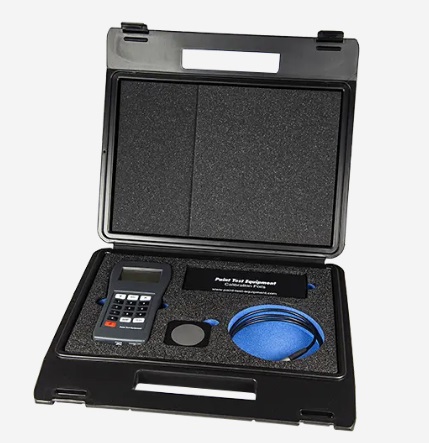

Supplied in an industrial Carrying Case with Flexible lead Measuring Probes set of 8 Calibration Foils and Zero Disks.  Calibration Certificates with traceability to UKAS are an optional extra.

Compliant to ISO 2808ISO 19840ISO 2360ISO 1461ISO 2063ASTM D7091ASTM E376 and ASTM G12.

CALIBRATION.  Calibrate to different and curved substrates.

CALIBRATION MEMORIES.  Calibration settings can be stored and recalled when required.

STATISTICS.  Shows the Mean, Number of Readings, Max/Min, Coefficient of Variation and Standard Deviation.

LIMITS.  Pass and fail with audible and visual alarm.

METRIC / IMPERIAL.  Select the measurement units that you require.

BATCHING.  Store measurements into batches with batch number, job number and Date / Time.

DOWNLOAD.  Download measurements into Microsoft Word or Excel.

Measurement accuracy ±1 to 3%.
