Bowers XT3 Digital Bore Gauge with Bluetooth – Metric

ดิจิตอลบอร์เกจวัดขนาดรูใน แบบมือหมุน

บอร์เกจวัดรูในแบบดิจิตอล แบบมือหมุน บอร์เกจมีให้เลือกตามขนาดชิ้นงานที่ต้องการวัด มีอุปกรณ์แบบครบชุด ตัวอ่านค่า หัววัด เซ็ตติ้งริง และใบรับรอง UKAS จากประเทศอังกฤษ

หัววัดมีแบบมาตรฐาน แบบวัดเกลียว แบบวัดร่อง หรือออกแบบหัววัดตามชิ้นงานจริง โดยผู้เชี่ยวชาญ

The extended mechanical travel of the XT range means that special heads can also be manufactured to accommodate users most awkward measuring problems. Measuring heads for threads, splines, slots, grooves, deep-holes and many more applications are available on request.

The Bowers XT3-BT range can be supplied as individual instruments or in complete sets, with UKAS certification of both measuring head and setting ring as standard.

Ergonomic design with larger and clearer LCD display
IP67 Electronics
Simple 2-button operation
4 preset memories

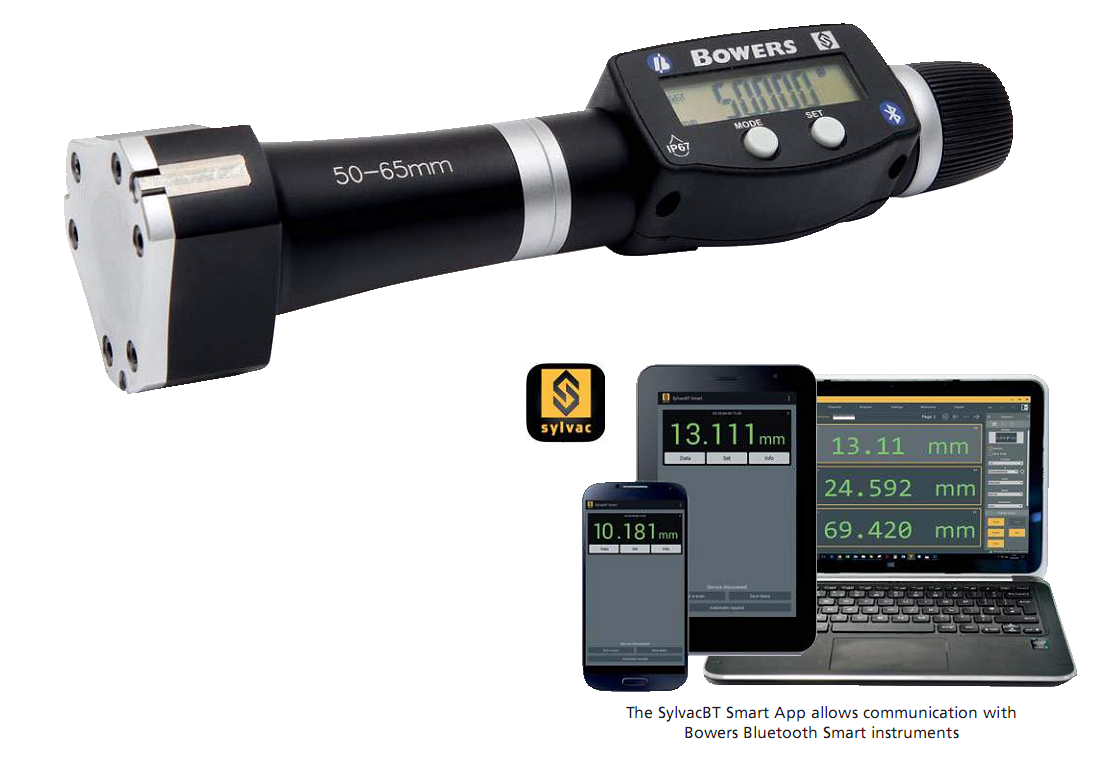

Proximity output with built-in Bluetooth
Bi-directional communication
Range 2-300mm (0.080” – 12”)
2-6mm 2 point/ 6-300mm 3 point measurement
Resolution 0.001mm/0.00005”
Tungsten carbide measuring faces on all 3-point heads from 12.5mm
Blind bore measurement from 2mm – 6mm and above 12.5mm (0.500”)
Extensions available above 6mm for deep hole measurement
Ratchet stop to ensure consistent measurement
Setting rings included with individual instruments and sets
UKAS certificates supplied as standard with all setting rings and gauges
Serial number on all digital readouts and measuring heads
Heads with special anvils available to suit specific customer requirements (e.g. Threads, grooves, 2-point, spherical, splines etc)
Bore gauges manufactured according to DIN 863, part 4

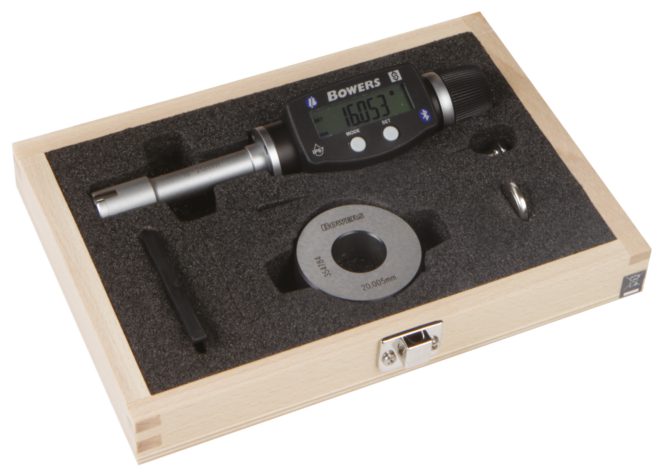

Supplied in fitted wooden case

Product Code	Range (mm)	Accuracy (mm)	Depth (mm)	Setting Ring (mm)
XTD1M-BT	2-2.5	0.004	9	2.5
XTD2M-BT	2.5-3	0.004	9	2.5
XTD3M-BT	3-4	0.004	12	4

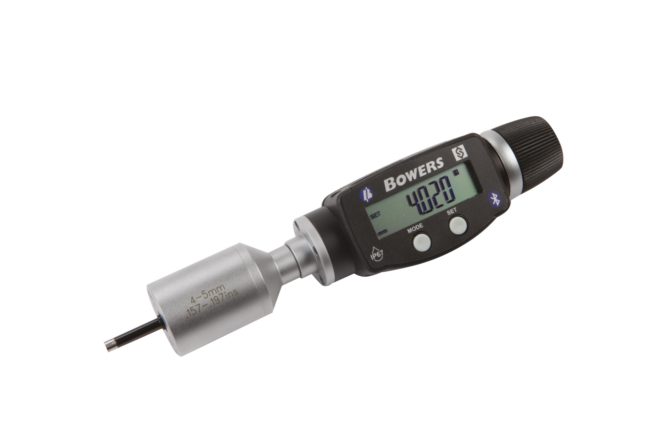

XTD4M-BT	4-5	0.004	18	4
XTD5M-BT	5-6	0.004	18	5

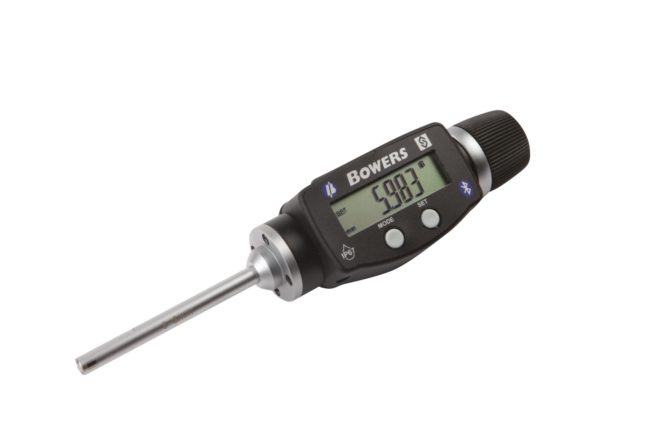

XTD6M-BT	6-8	0.004	58	8
XTD8M-BT	8-10	0.004	58	8
XTD10M-BT	10-12.5	0.004	58	12.5
XTD12M-BT	12.5-16	0.004	62	12.5

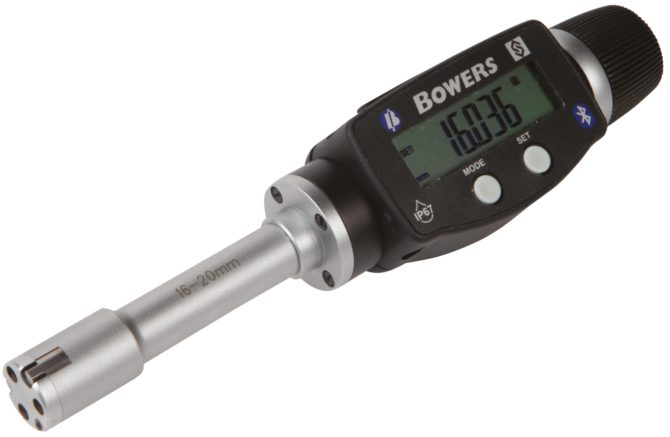

XTD16M-BT	16-20	0.004	62	20
XTD20M-BT	20-25	0.004	66	20
XTD25M-BT	25-35	0.004	66	35
XTD35M-BT	35-50	0.004	80	35
XTD50M-BT	50-65	0.005	80	65
XTD65M-BT	65-80	0.005	80	65

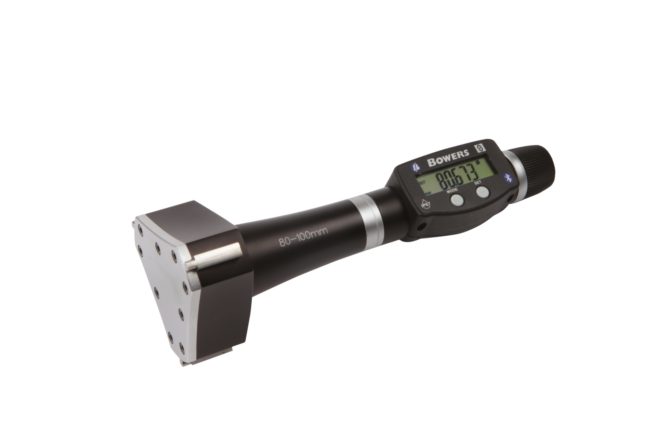

XTD80M-BT	80-100	0.005	100	80
XTD100M-BT	100-125	0.006	115	125
XTD125M-BT	125-150	0.006	115	125
XTD150M-BT	150-175	0.007	115	175
XTD175M-BT	175-200	0.007	115	175
XTD200M-BT	200-225	0.008	118	225
XTD225M-BT	225-250	0.008	118	225
XTD250M-BT	250-275	0.009	118	275
XTD275M-BT	275-300	0.009	118	275

Product Code	Range (mm)	Measuring Heads	Setting Ring (mm)
SXTD1M-BT	2-6	5	3
SXTD3M-BT	6-10	2
SXTD4M-BT	10-20	3	2

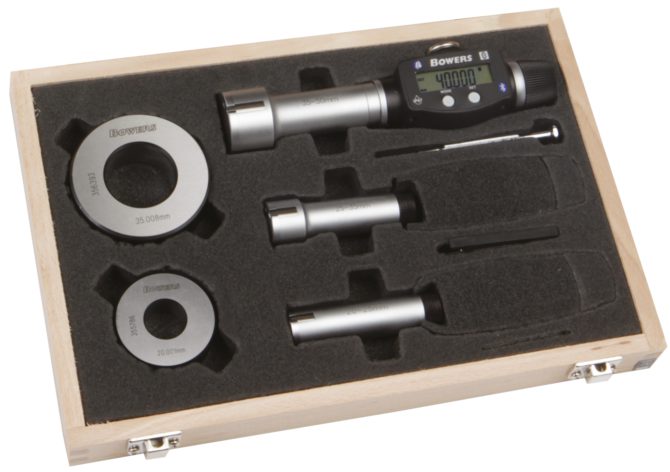

SXTD5M-BT	20-50	3	2
SXTD6M-BT	50-100	3	2
SXTD7M-BT	100-150	2	1
SXTD8M-BT	150-200	2	1
SXTD9M-BT	100-200	4	2

Product Code	Range (mm)	Note
SXTD3U-BT	6-10	with 2 display units
SXTD4U-BT	10-20	with 3 display units

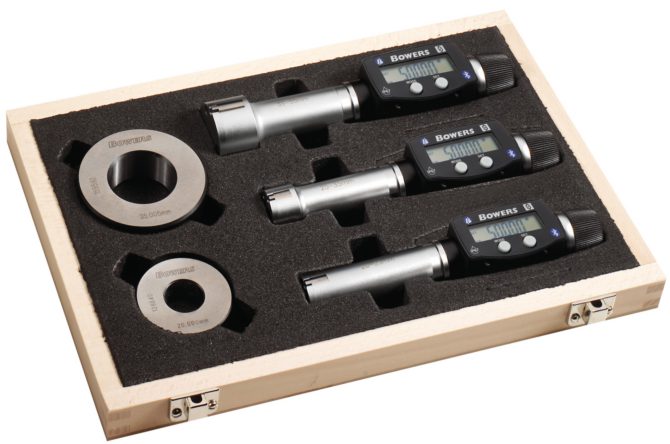

SXTD5U-BT	20-50	with 3 display units
SXTD6U-BT	50-100	with 3 display units
