XT Threads – The Best Way to Measure Internal Thread Diameters

As the world’s leading bore gauge manufacturer, we offer a range of both standard and bespoke solutions for precision thread diameter measurement.

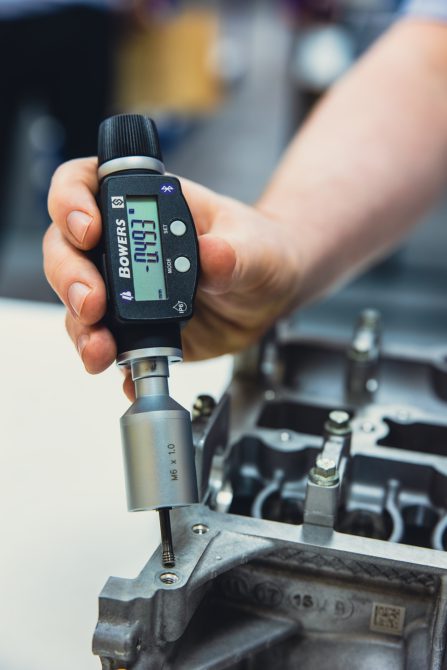

Each of these application heads can be fitted directly to our Bluetooth XT range of internal micrometers in seconds for fast, efficient use with incredibly accurate results that can be digitally recorded.

M4 – M300 (metric)
No8 – 12” (imperial)
Metric, UN, Buttress, Acme, Trapezoidal, Ball screw and non-standard forms available
Left and right handed available
2 Point or 3 Point available

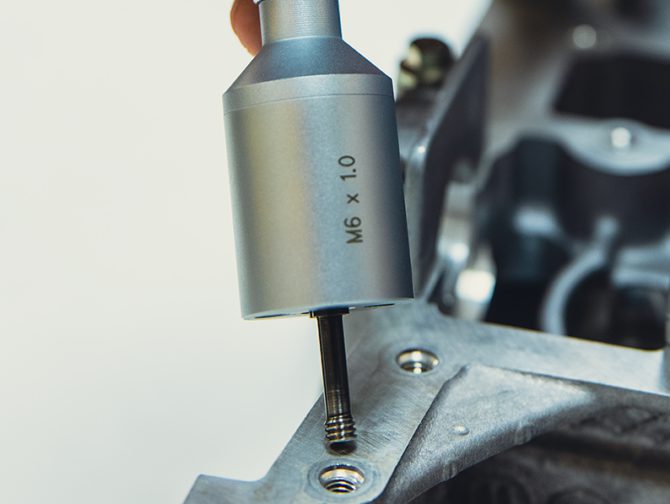

Very rapid measurement of threads
Reduce machining time by giving the operator an actual measurement when forming the thread
Negates the need for many different hard gauges, incl. pre/post plate, pre/post H/T, different classes, etc. Therefore annual re-calibration costs reduced massively

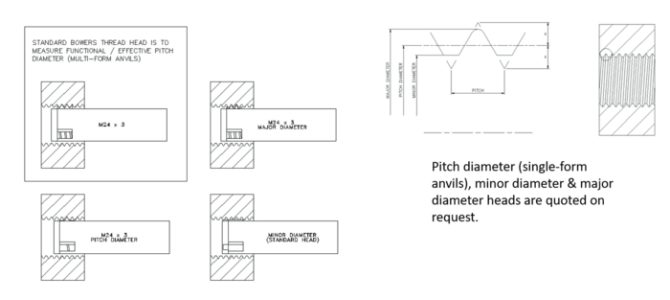

Effective (Functional), Pitch & Major measurement

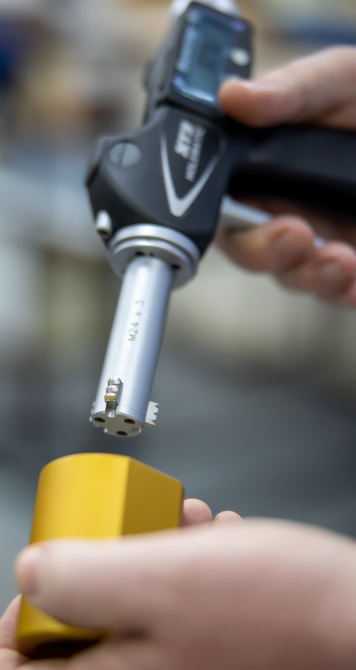

Calibrate from thread rings (Plain ring for Major Diameter)
Rings marked with actual PD
Each of these application heads can be fitted directly to our Bluetooth XT range of internal micrometers in seconds for fast, efficient use with incredibly accurate results that can be digitally recorded.

Why Choose Thread Heads over Hard Gauging?

Our thread heads offer a number of benefits over and above traditional hard gauging:
Unrivalled speed and ease of use by reducing the time wasted screwing hard gauges in or out.
Provides the machinist with an actual size when forming a thread, avoiding multiple cuts and saving
machining time.
No need for multiple hard gauges, therefore reducing annual calibration costs.

Modular & Adaptable

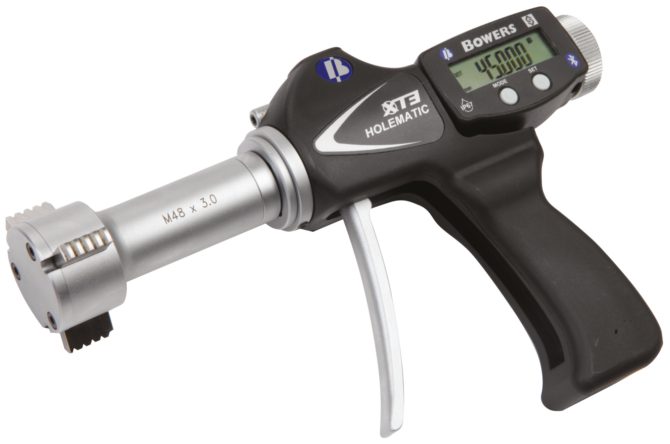

The Bowers XT range is highly adaptable. Once you have our Digital Pistol Grip Bore Gauge, you can use multiple heads with ease. Fit them
interchangeably to our Bluetooth XT range of internal micrometers in seconds for fast, efficient use with incredibly accurate results!

Product Code	Description
THRH-M10X1.0	M10 X 1.0 Thread Measuring Head
THRH-M10X1.25	M10 X 1.25 Thread Measuring Head
THRH-M10X1.5	M10 X 1.5 Thread Measuring Head
THRH-M12X1.0	M12 X 1.0 Thread Measuring Head
THRH-M12X1.25	M12 X 1.25 Thread Measuring Head
THRH-M12X1.5	M12 X 1.5 Thread Measuring Head
THRH-M12X1.75	M12 X 1.75 Thread Measuring Head
THRH-M14X1.5	M14 X 1.5 Thread Measuring Head
THRH-M16X1.0	M16 X 1.0 Thread Measuring Head
THRH-M16X1.5	M16 X 1.5 Thread Measuring Head
THRH-M16X2.0	M16 X 2.0 Thread Measuring Head
THRH-M18X1.25	M18 X 1.25 Thread Measuring Head
THRH-M18X1.5	M18 X 1.5 Thread Measuring Head
THRH-M20X1.0	M20 X 1.0 Thread Measuring Head
THRH-M20X1.5	M20 X 1.5 Thread Measuring Head
THRH-M20X2.5	M20 X 2.5 Thread Measuring Head
THRH-M4X0.7	M4 X 0.7 Thread Measuring Head
THRH-M5X0.8	M5 X 0.8 Thread Measuring Head
THRH-M6X1.0	M6 X 1.0 Thread Measuring Head
THRH-M8X1.25	M8 X 1.25 Thread Measuring Head
THRH-1-12	1″ – 12 UN Thread Measuring Head
THRH-1/4-20	1/4″ – 20 UN Thread Measuring Head
THRH-3/4-16	3/4″ – 16 UN Thread Measuring Head
THRH-5/16-24	5/16″ – 24 UN Thread Measuring Head
THRH-5/8-11	5/8″ – 11 UN Thread Measuring Head
THRH-5/8-18	5/8″ – 18 UN Thread Measuring Head
THRH-7/16-20	7/16″ – 20 UN Thread Measuring Head
THRH-9/16-18	9/16″ – 18 UN Thread Measuring Head

Custom Thread Gauging

If our generic thread anvil profile is not suitable for your application, please contact us with your requirements and our team will design a bespoke head, perfectly tailored to fit your specific application. Our custom application heads can be fitted directly onto our XT range of internal micrometers to create a flexible, modular measuring system.
