Bowers Universal Gauge Sets

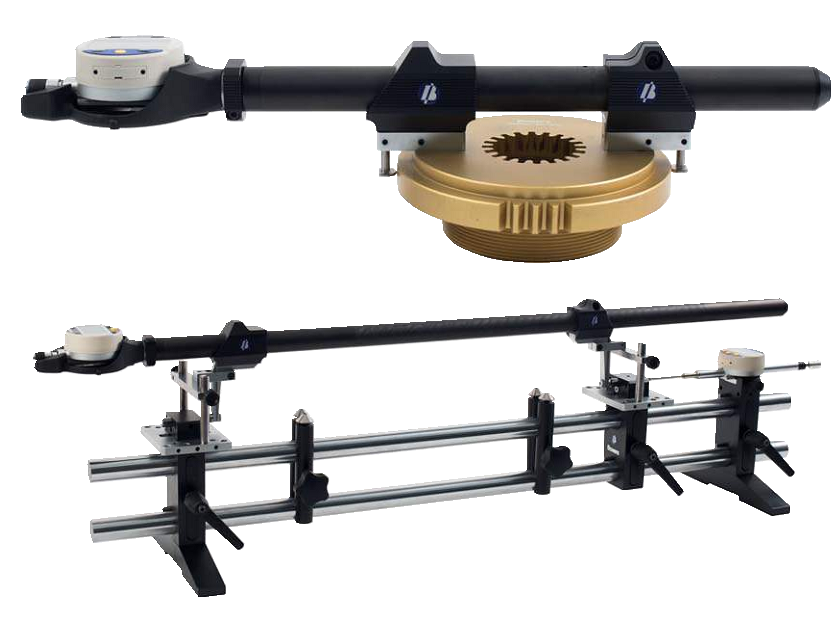

The Bowers universal gauges are perfect for measuring internal and external dimensions such as grooves, shoulders, recesses, threads, tapers, gears, splines, hole centres.

Available with a wide range of measuring contacts to enable measurement of a variety of features, Bowers universal gauges are perfect for measuring internal and external dimensions such as grooves, shoulders, recesses, threads, tapers, gears, splines, hole centres.

Internal and external measurement
Large measuring range possible 0-3000mm (0-118″)
Constant measuring force
Supplied with digital readout
Large range of accessories for standard measurement of threads, grooves, splines, diameters, lengths, shallow spigots and recess diameters etc
Special anvil designs available P.O.A

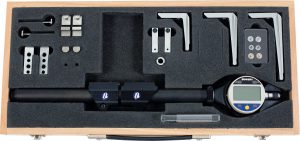

TGUSET1 Contents

TGU1000-XT Universal with Box but without Indicator or Accessories
TGUA001-AN Digital / Analogue Indicator 25mm / 0.001mm c/w COWL
TGUA006 Measuring arms 50mm (Pair)
TGUA007 Measuring Arms 75mm (Pair)
TGUA008 Measuring Arms 100mm (Pair)
TGUA013 20mm Disc Anvils for measuring grooves (Pair)
TGUA014 12mm Disc Anvils Int/Ext for measuring grooves (Pair)
TGUA011 Shoulder anvils flat outside spigot diameter (Pair)
TGUA012 Semi-cylindrical anvils for inside register diameters (Pair)
TGUA010 Depth-stops (Pair)
TGUA003 Clamping inserts (Pair)
TGUA004 Flat Measuring Anvil (Pair)
TGUA005 Spherical contacts (Pair)
TGUA009 Mounting Attachment (Pair)

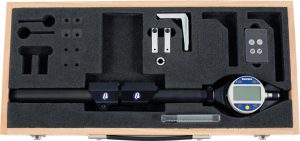

TGUSET2 Contents

TGU1000-XT Universal Gauge with box but without indicator or Accessories
TGUA001-AN Digital / Analogue Indicator 25mm/ 0.001mm c/w COWL
TGUA003 Clamping Insert (Pair)
TGUA005 Spherical contacts (Pair)
TGUA006 Measuring Arm 50mm (Pair)
TGUA010 Depth Stop (Pair)

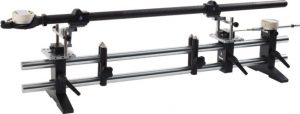

Bowers Universal Setting Gauge

To improve the quality of your large diameter machined parts, the portable Universal Setting Gauge from Bowers has been developed as an easy to use comparator tool which can be set up next to the gauge being utilised.

This Universal Setting Gauge has been designed to improve the ongoing accuracy levels; when setting the master, the spring loaded setting anvil ensures a constant force is maintained thereby giving repeatable setting readings.

Features

Available in 3 different lengths:
Up to 550mm Internal – 650mm External
Up to 1050mm Internal – 1150mm External
Up to 1550mm Internal – 1650mm External
Setting gauge has flat face contact anvils
Ideal for use in the workshop area
Easily adjustable gauge mounting supports
Requires Length Setting Rods for setting (Spherical ends advised)
Length adjustment can also be achieved by fitting an optional digital indicator
Can be orientated vertically up to 1050mm internal / 1150 external when a base and vertical guide, (USGS) are fitted

Model

Product Code	Description
USG550	Universal Setting Gauge, 550mm internal to 650mm external
USG1050	Universal Setting Gauge, 1050mm internal 1150mm external
USG1550	Universal Setting Gauge, 1550mm internal 1650mm external
USGS	Universal Setting Gauge Vertical Stand – Only suitable for USG550 and USG1050
