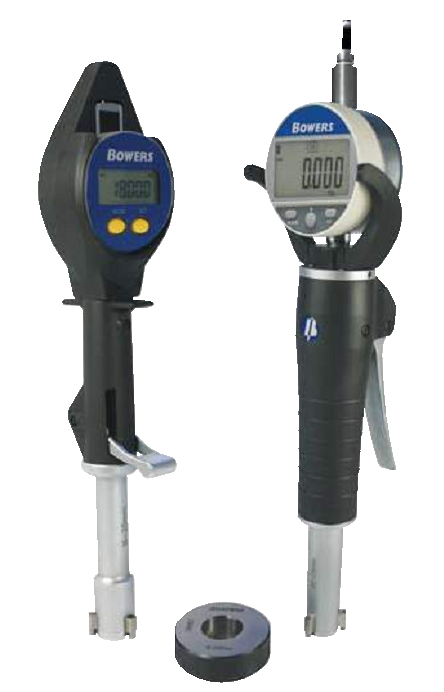

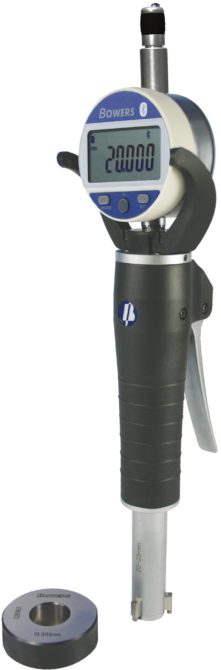

Bowers Digital Lever Bore Gauge
āļāļāļĢāđāđāļāļāļ§āļąāļāļĢāļđāđāļ
The XTL has a simple ergonomic action and can be fitted with a wide variety of analogue and digital indicators or even transducer probes. The range can be provided with IP65 rated digital indicators, rendering it resistant to coolant, water and airborne particles. A ‘wireless’ gauge module is also available, enabling cable free communication with remote data collectors, PCs etc.
The cost-effective new XTL boasts hardwearing extended travel carbide measuring anvils and is able to measure diameters up to 100mm.
- Measuring range 6-100mm
- Excellent for vertical bore measurement
- Large easy-to-read swivel display (20-100 sizes only)
- 2 preset memories
- RS-232C output
- Self-centering heads
- Constant measuring pressure
- Fast, accurate measurement
- Resolution 0.001mm (0.00005″)
- Tungsten carbide measuring faces on all 3-point heads from 12.5mm
- Blind bore measurement above 12.5mm (0.500″)
- Extensions available above 6mm for deep hole measurement
- Setting rings included with individual instruments and sets
- UKAS certificates supplied as standard with all setting rings
- UKAS certificates supplied with all gauges
- Serial number on all gauges and measuring heads
- Heads with special anvils available to suit specific customer requirements (e.g. Threads, grooves, 2-point, spherical, splines etc)
- Bore gauges manufactured according to DIN863, part4
- BluetoothÂŪ indicator option available
| Product Code | Range (mm) | Accuracy (mm) | Depth (mm) | Setting Ring (mm) |
| XTL6M-BT | 6-8 | 0.004 | 58 | 8 |
| XTL8M-BT | 8-10 | 8-āļ.āļ. | 58 | 8 |
| XTL10M-BT | 10-12.5 | 0.004 | 58 | 12.5 |
| XTL12M-BT | 12.5-16 | 0.004 | 62 | 12.5 |
| XTL16M-BT | 16-20 | 0.004 | 62 | 20 |
| XTL20M-BT | 20-25 | 0.004 | 66 | 20 |
| XTL25M-BT | 25-35 | 0.004 | 66 | 35 |
| XTL35M-BT | 35-50 | 0.004 | 80 | 35 |
| XTL50M-BT | 50-65 | 0.005 | 80 | 65 |
| XTL65M-BT | 65-80 | 0.005 | 80 | 65 |
| XTL80M-BT | 80-100 | 0.005 | 85 | 80 |
Bowers Digital Lever Bore Gauge – Sets
| Product Code | Description | Range (mm) |
| SXTL3M-BT | Mini Indicator | 6-10 |
| SXTL4M-BT | Mini Indicator | 10-20 |
| SXTL5M-BT | Standard Indicator | 20-50 |
| SXTL6M-BT | Standard Indicator | 50-100 |
