Hawkeye® Q2 Video Borescopes (3.9 and 6mm OD)

We are happy to introduce the Hawkeye® Q2 HD Video Borescopes. The Q2 HD Video Borescopes are a seamless transition from our V2 with 6x the resolution in a more compact and portable design. The Q2 is offered in both 3.9 and 6mm, with lengths up to 7.5 meters. The Q2 features 4-way joystick articulation, 4-hour integrated battery, interchangeable insertion tubes, and a dual camera option. The HD camera provides users with high-resolution images and videos which can be captured onto the micro-sd card.

Hawkeye® Q2 Video Borescope

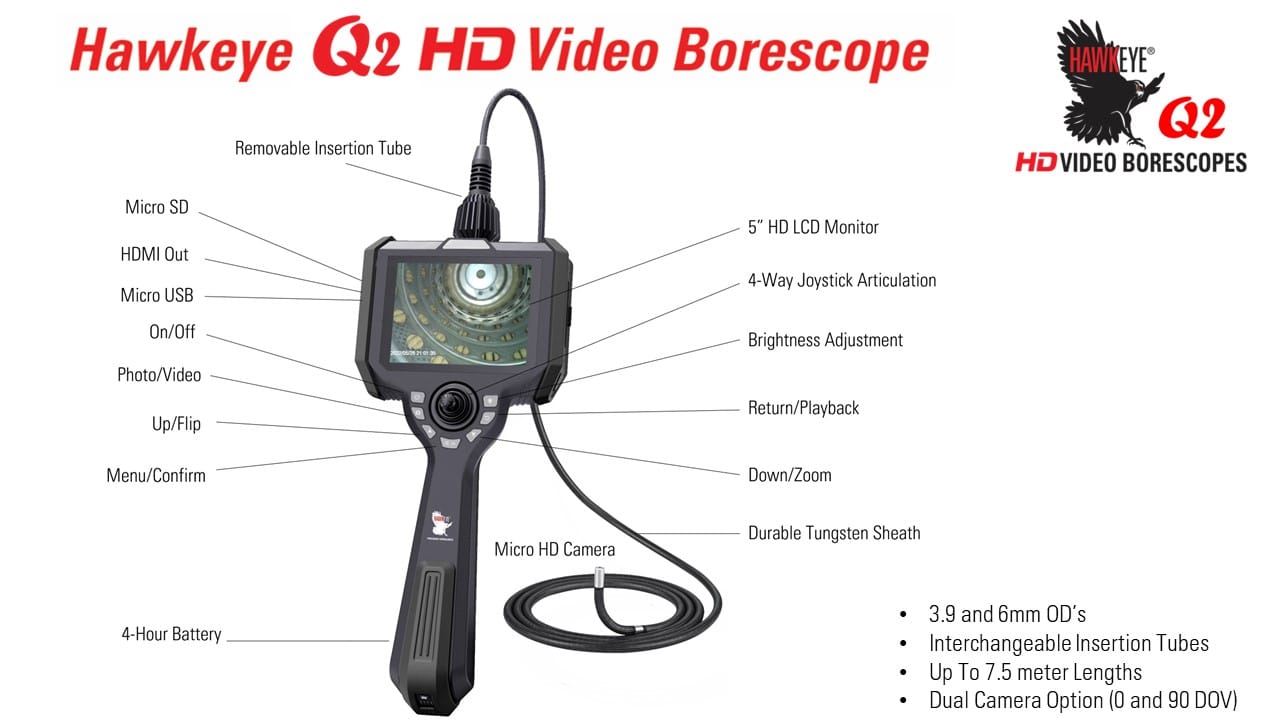

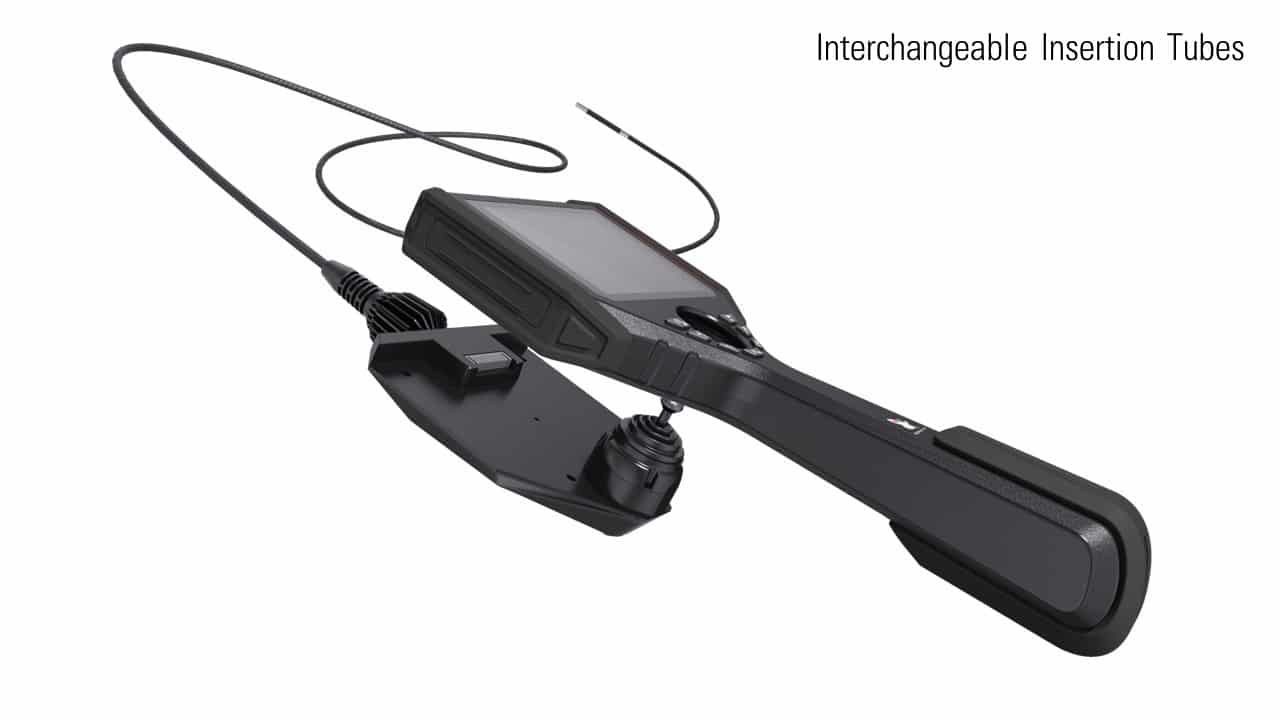

Gradient Lens Hawkeye® Q2 HD Video Borescope features diameters of 3.9 and 6mm. The Q2 features new technology that will allow our customers to change insertion tubes, and offer a dual 0 and 90 camera view. The Q2 Video Borescopes offer 4-way joystick articulation, image and video capture, and 4 hour battery life combined with a compact, portable and durable design.

Expanding on the popular Hawkeye V2 and V3, which were launched in 2012, the new Q2 incorporates technological advancements that expand the offering of video borescopes offered by Gradient Lens Corporation.

The Q2 easily displays and captures crystal clear video and still images, and does so using a lightweight, and user-friendly compact design. The Q2 is a valuable tool for our customers who have a variety of length and diameters needs but don’t have the budget to purchase multiple systems.

Hawkeye® Q2 Video Borescope Specifications

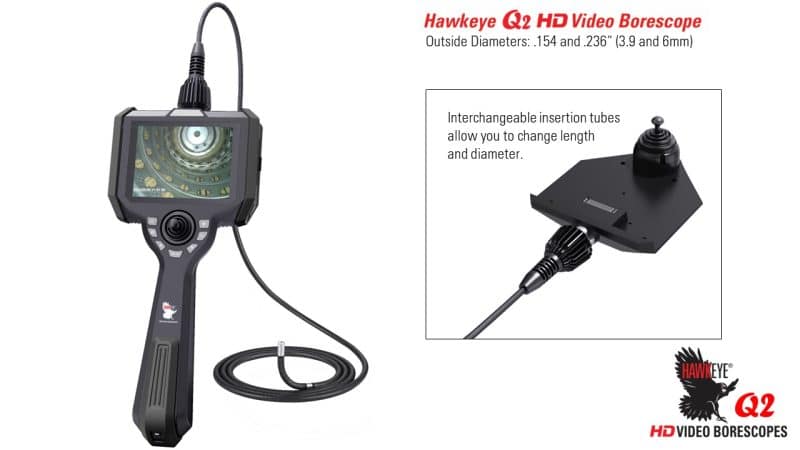

Diameter	3.9 and 6.0mm (.154 and .236″ )
Lengths	3.9mm: 1.5meter (3’3″), 3meter (9’10”) * 6mm: 1.5meter (3’3″), 3meter (9’10”), 7.5meter (24’6″)
Articulation	1.5 – 3.0m length: +/-140° min. (+/- 10°) 7.5m length: +/- 100° min. (+/- 10°)
Field-of-View	80° Diagonal +/- 10° **
Depth-of-Field	8mm – infinity***
Direction-of-View	0° 90° **** 0 & 90° (Dual View)
Sheath	Tungsten Braid
Illumination	Integrated White LED
Display	5″ HD Display
Camera	1MP Color CMOS
Interfaces	HDMI, USB, Micro-SD
Battery	4 hr. run time, Rechargeable Li-Ion
Recording Media	Micro-SD Card
Digital Photo Format	JPEG
Video Format	MPEG 4
Operating Temp. Range	Probe: – 20 to +60C (-4 to +140 F) : Display Unit: -10to +50C (14 to +122F)
Storage Temp. Range	– 20 to + 60 C (-4 to +140 F)
Weight	2.2LB
Environmental	Sheath: IP67 Host: IP54
Note	* Longer lengths available upon request. Custom FOV available upon request. * Custom Depth of Field available upon request **** Dedicated 90° are available upon request. Please contact our sales team at +6625659370-4 for more information.

Hawkeye® Q2 Video Borescopes (3.9 and 6mm OD)

Diameter	Length	Articulation	Sheath	DOV	Model#

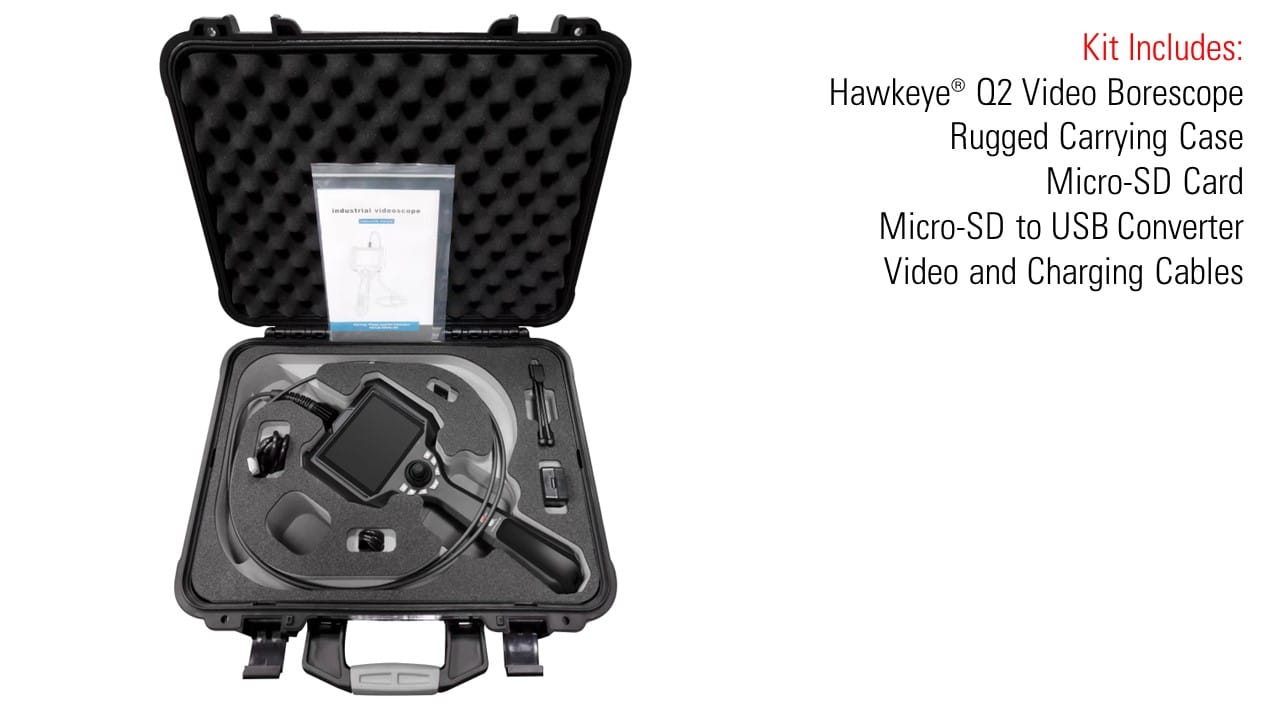

Q2 Kit Includes: Hawkeye Q2 Video Borescope, Micro-SD Card, Micro-SD/USB converter, cables, and rugged carrying case.
3.9mm	1.5m (4’11”)	4-Way	Tungsten	0°	VQ2 039 1500 4
3.9mm	3.0m (9’10”)	4-Way	Tungsten	0°	VQ2 039 3000 4
4.5mm	1.5m (4’11”)	4-Way	Tungsten	0° and 90° 9 (Dual Camera)	VQ2 045 1500 4D
4.5mm	3.0m (9’10”)	4-Way	Tungsten	0° and 90° 9 (Dual Camera)	VQ2 045 3000 4D
6.0mm	1.5m (4’11”)	4-Way	Tungsten	0°	VQ2 060 1500 4
6.0mm	3.0m (9’10”)	4-Way	Tungsten	0°	VQ2 060 3000 4
6.0mm	7.5m (24’6”)	4-Way	Tungsten	0°	VQ2 060 7500 4
6.0mm	1.5m (4’11”)	4-Way	Tungsten	0° and 90° (Dual Camera)	VQ2 060 1500 4D
6.0mm	3.0m (9’10”)	4-Way	Tungsten	0° and 90° 9 (Dual Camera)	VQ2 060 6000 4D
Q2 Insertion Tubes Only
3.9mm	1.5m (4’11”)	4-Way	Tungsten	0°	VQR 039 1500 4
3.9mm	3.0m (9’10”)	4-Way	Tungsten	0°	VQR 039 3000 4
4.5mm	1.5m (4’11”)	4-Way	Tungsten	0° and 90° (Dual Camera)	VQR 045 1500 4D
4.5mm	3.0m (9’10”)	4-Way	Tungsten	0° and 90° (Dual Camera)	VQR 045 3000 4D
6.0mm	1.5m (4’11”)	4-Way	Tungsten	0°	VQR 060 1500 4
6.0mm	3.0m (9’10”)	4-Way	Tungsten	0°	VQR 060 3000 4
6.0mm	7.5m (24’6”)	4-Way	Tungsten	0°	VQR 060 7500 4
6.0mm	1.5m (4’11”)	4-Way	Tungsten	0° and 90° (Dual Camera)	VQR 060 1500 4D
6.0mm	3.0m (9’10”)	4-Way	Tungsten	0° and 90° (Dual Camera)	VQR 060 6000 4D
