Flexible Borescope เฟล็กซิเบิ้ลบอร์สโคป กล้องบอร์สโคปแบบท่อโค้งงอ

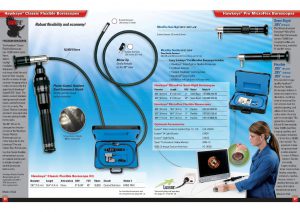

Classic Flexible Borescope
- HFB2-NVK: dia. 7.9mm L1,000mm Hawkeye Classic Flexible Borescope Kit
- HFB2: dia. 7.9mm L1,000mm Hawkeye Classic Flexible Borescope Only

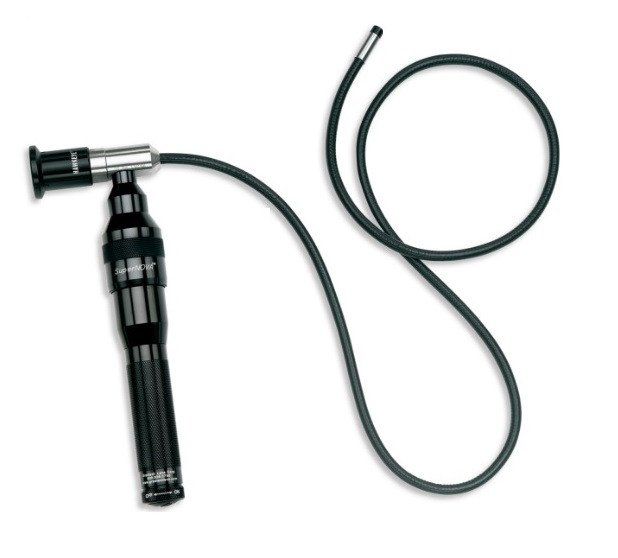

The Hawkeye® Classic Flexible Borescope
- 18,000 optical glass fibers, delivering high resolution, sharpness, and image detail.
- the super bright Hawkeye® SuperNOVA™ Light.
- The plastic-coated, stainless steel gooseneck sheath takes a set before insertion into a cavity.
- The 90° Mirror Tip changes the direction-of-view.
| Hawkeye® Classic Flexible Specifications | |
| Optics: | |
| Direction-of-View | 0 deg, or use optional 90 deg adapter |
| Field-of-View | 40 deg. FOV |
| Depth-of-Field | 15 – 75mm |
| Distal Focus | Fixed focus lens set. |
| Mechanical: | |
| Tube Diameter | 7.9 mm at 0º, 8.1 mm with 90º tip |
| Working Length | 1000 mm |
| Insertion Tube Bend Radius | 2.0” |
| Articulation | None, Shapeable Gooseneck |
| Tube Construction | Stainless Steel monocoil gooseneck inside, watertight PVC outside |
| Environmental: | |
| Operating Temperature | 0º to 170º F (-18º to 77º C). |
| Watertight Insertion Tube | Up to 1 atm/1 bar (14.7psig); approx. 30ft water depth. |
| Note 1 | The eyepiece is splash proof only. |

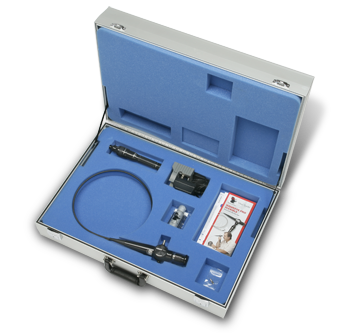

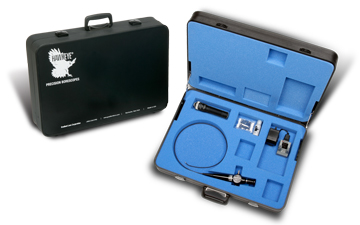

Each Hawkeye® Classic Flexible Borescope Kit contains:
• Hawkeye® Classic Flexible Borescope
• Hawkeye® 90° Mirror Tip
• Hawkeye® SuperNOVA™ Light and Charger
• Rugged Hawkeye® Carrying Case
• Hawkeye® Cleaning Kit

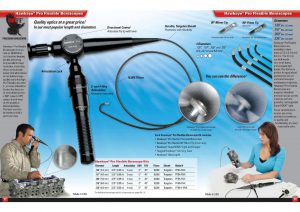

Pro Flexible Borescope (PFB)
- PFB3-NVK: dia.3mm L850mm 2-way articulation Pro Flexible 3mm Kit
- PFB4-NVK: dia.4mm L850mm 2-way articulation Pro Flexible 4mm Kit
- PFB5-NVK: dia.5mm L850mm 2-way articulation Pro Flexible 5mm Kit Includes 90° Mirror Tip
- PFB6-NVK: dia.6mm L850mm 2-way articulation Pro Flexible 6mm Kit
- PFB6-4-NVK: dia.6mm L850mm 4-way articulation Pro Flexible 6mm Kit

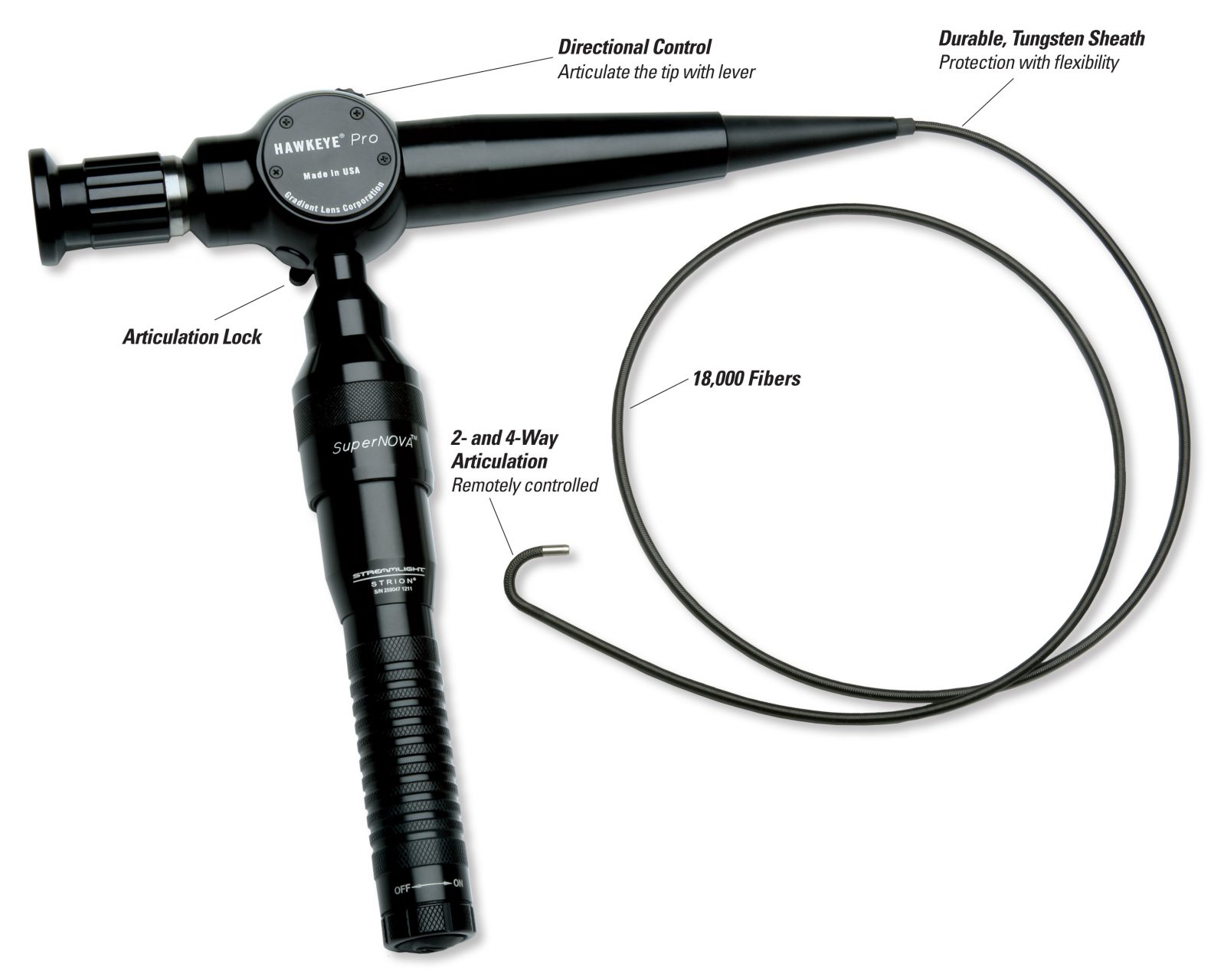

The Hawkeye® Classic Flexible Borescope
- 18,000 optical glass fibers,acid-leached imaging bundle.
- truly excellent image resolution, sharpness, detail, and contrast.
- Pro Flexible are offered in either 2-, or 4-way articulation
| Hawkeye® Pro Flexible Specifications | |
| Optics: | |
| Direction-of-View | 3.3 mm and 4 mm – 0 deg. only; 5 mm and 6 mm – 0 deg with optional 90 deg adapters |
| Field-of-View | All models – 70 deg. FOV |
| Depth-of-Field | 3.3mm scope – 10 – 50mm 4.0 mm scope – 10 – 50 mm 5.0 mm scope – 10 – 50 mm 6.0 mm scope – 10 – 50mm |
| Distal Focus | Fixed focus lens set. |
| Mechanical: | |
| Tube Diameter | PFB3 – 3.3 mm, PFB4 – 4.0 mm, PFB5 – 5.0 mm, PFB6 – 6.0 mm |
| Working Length | 850 mm |
| Insertion Tube Bend Radius | PFB3 – 1.25” PFB4 – 1.25” PFB5 – 1.5” PFB6 – 1.75” |
| Articulation | PFB3, 2 way, +/- 130 deg., PFB4, PFB5, PFB6 – 2 way, +/- 150 deg. PFB6-4 – 4 way +/- 150 deg |
| Tube Construction | Stainless Steel monocoil inside watertight PVC, covered with tungsten braid. |
| Environmental: | |
| Operating Temperature | 0º to 170º F (-18º to 77º C). |
| Watertight Insertion Tube | Up to 1 atm/1 bar (14.7psig); approx. 30ft water depth. |
| Note 1 | The handpiece is splash proof only. |

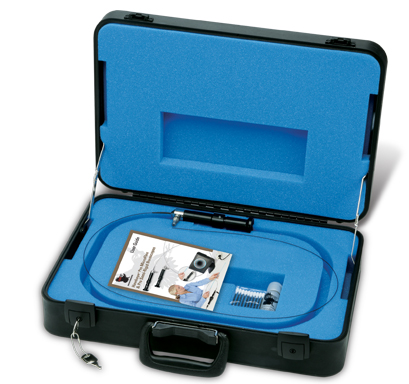

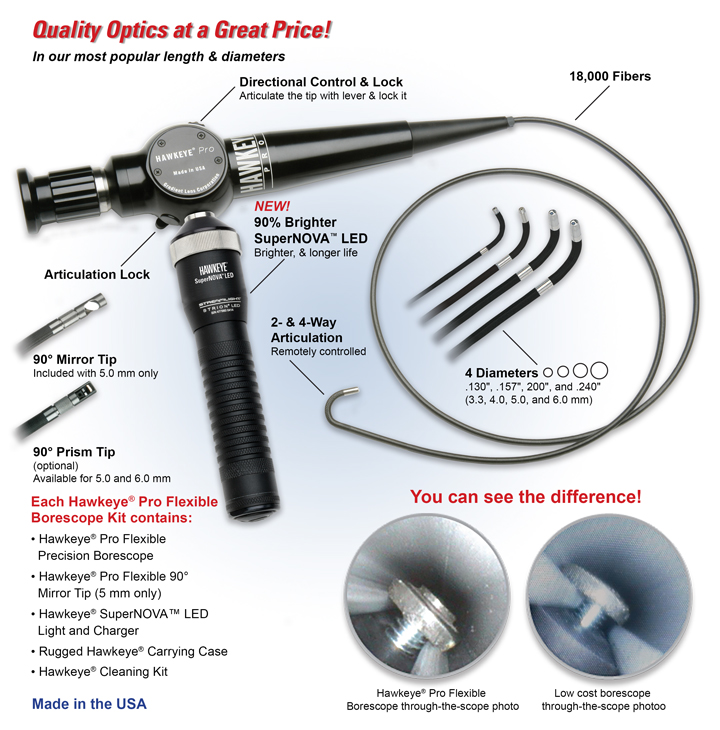

Each Hawkeye® Pro Flexible Borescope Kit contains:
• Hawkeye® Pro Flexible Precision Borescope
• Hawkeye® Pro Flexible 90° Mirror Tip (5 mm only)
• Hawkeye® SuperNOVA™ LED Light and Charger
• Rugged Hawkeye® Carrying Case
• Hawkeye® Cleaning Kit

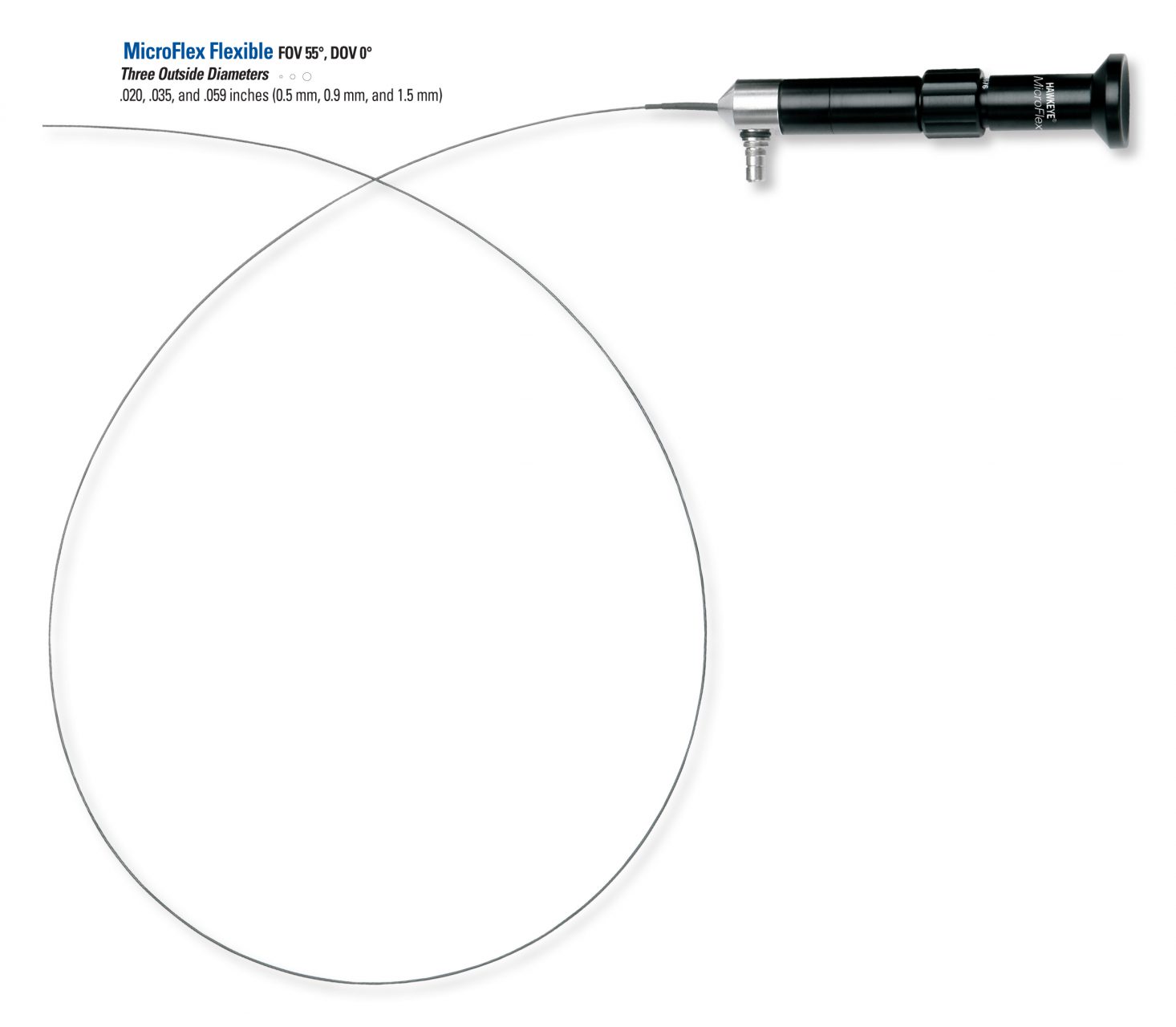

Pro MicroFlex Flexible Borescope (HSF)
- HSF 005 0600 55 dia 0.5mm L0.5m
- HSF 009 1000 55 dia 0.9mm L1m
- HSF 015 0800 70 dia 1.5mm L0.8m
- Diameter 0.5mm, 0.9mm, 1.5mm
- very small micro diameters
- The polyamide-sheathed 0.5 model has a 3500 pixel fiber imaging bundle
- The 0.9 mm model has a 10,000 pixel fiber imaging bundle.
- The plastic-sheathed 1.5 mm has a 30,000 fiber bundle.
- The eyepiece is easily replaced with a video adapter to use a C-Mount camera.
- Quickly and easily inspect cooling holes inside turbine blades, cannulas, catheters, needles, trocars, valves in medical devices, and many other micro manufactured parts.
| Hawkeye® Pro MicroFlex Specifications | |
| Optics: | |
| Direction-of-View | 0º for all models except HSR 009 159 55, which is 90º |
| Field-of-View | All models 60º FOV |
| Depth-of-Field | 0.5mm scope: 1-3 mm 0.9 mm scope: 2 –5 mm , 1mm for the 90 deg. scope 1.5 mm scope: 3 – 10 mm |
| Distal Focus | Fixed focus lens set |
| Mechanical: | |
| Tube Diameter | 0.5mm, 0.9mm, 1.5mm |
| Working Length | 0.5mm scope: 600 mm 0.9mm scope: 1000 mm 1.5mm scope: 800 mm |
| Insertion Tube Bend Radius | 0.5mm scope: 1.5” 0.9mm scope: 2.5” 1.5mm scope: 3.5” |
| Articulation | None |
| Tube Construction | Black Polymide |
| Environmental: | |
| Operating Temperature | 0º to 170º F (-18º to 77º C) |
| Watertight Insertion Tube | Up to 1 atm/1 bar (14.7psig); approx. 30ft water depth |
| Note 1 | The handpiece is splash proof only. |
Every Hawkeye® Pro MicroFlex Borescope Kit contains:
• Hawkeye® Pro MicroFlex Semi-Rigid or Flexible Borescope
• C-Mount Adapter
• Rugged Hawkeye® Carrying Case
• Hawkeye® Cleaning Kit

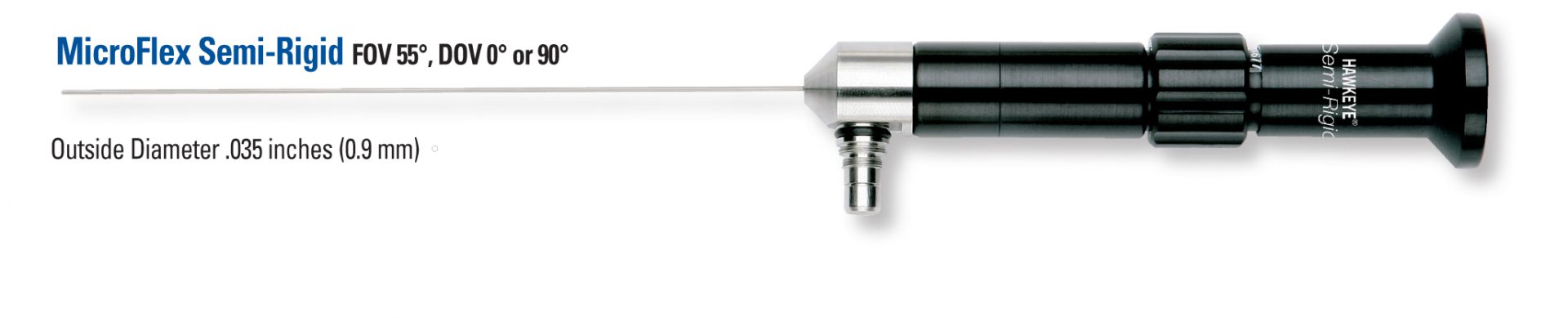

Pro MicroFlex Semi-Rigid Borescope (HSR)
- HSR 009 0150 55 dia 0.9mm L150mm DOV0
- HSR 009 0159 55 dia 0.9mm L150mm DOV90
- HSR 015 0159 55 dia 1.5mm L150mm DOV90
- Semi-Rigid
.035”(0.9 mm)
The Nitinol-sheathed Hawkeye® MicroFlex Semi-Rigid Borescopes contain 10,000 fiber imaging bundles, are 6 inches long, and offer 0º and 90º views.
| Hawkeye® Pro MicroFlex Specifications | |
| Optics: | |
| Direction-of-View | 0º for all models except HSR 009 159 55, which is 90º |
| Field-of-View | All models 60º FOV |
| Depth-of-Field | 0.5mm scope: 1-3 mm 0.9 mm scope: 2 –5 mm , 1mm for the 90 deg. scope 1.5 mm scope: 3 – 10 mm |
| Distal Focus | Fixed focus lens set |
| Mechanical: | |
| Tube Diameter | 0.5mm, 0.9mm, 1.5mm |
| Working Length | 0.5mm scope: 600 mm 0.9mm scope: 1000 mm 1.5mm scope: 800 mm |
| Insertion Tube Bend Radius | 0.5mm scope: 1.5” 0.9mm scope: 2.5” 1.5mm scope: 3.5” |
| Articulation | None |
| Tube Construction | Black Polymide |
| Environmental: | |
| Operating Temperature | 0º to 170º F (-18º to 77º C) |
| Watertight Insertion Tube | Up to 1 atm/1 bar (14.7psig); approx. 30ft water depth |
| Note 1 | The handpiece is splash proof only. |
Every Hawkeye® Pro MicroFlex Borescope Kit contains:
• Hawkeye® Pro MicroFlex Semi-Rigid or Flexible Borescope
• C-Mount Adapter
• Rugged Hawkeye® Carrying Case
• Hawkeye® Cleaning Kit

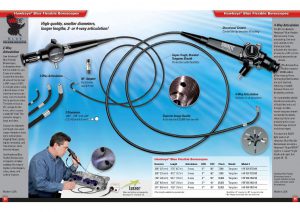

Blue Flexible Borescope (HBF)
- HBF 025 0700 60 Dia 2.5mm L700mm 2-way
- HBF 025 1200 60 Dia 2.5mm L1200mm 2-way
- HBF 040 1500 90 Dia 4.0mm L1500mm 2-way
- HBF 060 1800 45 Dia 6.0mm L1800mm 2-way
- HBF 080 1800 45 Dia 8.0mm L1800mm 4-way

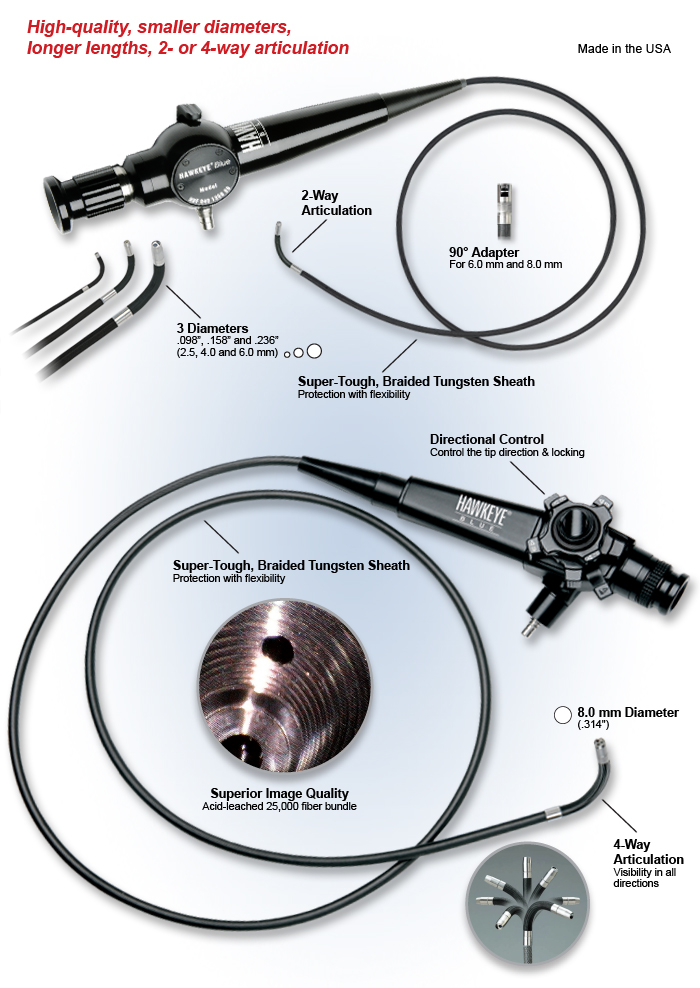

2-way Articulation
Four Hawkeye® Blue Flexible borescopes, in diameters from 2.5 mm to 6.0 mm, are 2-way articulating. Control the direction-of-view of the tip over a 300° range (±150°), in a single plane, using a thumb-lever on the aluminum borescope body. Lock the lever to hold a particular view. The field-of-view is 45°, except for the 4 mm, which covers a wide 90° field. The viewable image is large and clear.
Choose the diameter and length you need. Larger diameters have more optical glass imaging fibers, giving higher resolution, and thus sharper, more detailed images.
Use the Hawkeye Blue Flexible borescope to inspect complex castings like engine blocks, turbochargers, tubes, pipes, and turbine engines.
| Hawkeye® Blue Flexible Specifications | |
| Optical: | |
| Direction-of-View | Fixed Direct, Fixed Side, or Direct with Side View Tip Adapter. |
| Field-of-View | Fixed Direct View Models 45º, 60º or 90°, Fixed Side View Models 45º, Interchangeable Tip Models 45º. |
| Depth of Field | 2.5 mm diameter models 3 mm (.118) to infinity, 3.3/4 mm diameter models 5mm (.2in) to infinity, 5/6/8 mm diameter models 8 mm (.315) to infinity. |
| Distal Focus | Fixed focus lens set. |
| Mechanical: | |
| Tube Diameter | Refer to Model Number (2.5,3.3, 4.0, 5.0, 6.0, 8.0, or 8.4 mm) |
| Working Length | Refer to Model Number |
| Insertion Tube Bend Radius | 2.5-6 mm diameter models 1.25in, 8mm diameter models 1.5 in, 13.6 mm diameter models 2.0 in. |
| Articulation | 2.5 mm diameter models 150º Up/Down, 4.0 – 6.0 mm diameter models 150º Up/Down, 8.0 mm + diameter models 120º Up/Down; 120º Right/Left. |
| Tube Construction | Stainless Steel monocoil inside watertight PVC, covered with tungsten braid. |
| Environmental: | |
| Operating Temperature | 0º to 170º F (-18º to 77º C). |
| Watertight Insertion Tube | Up to 1 atm/1 bar (14.7psig); approx. 30ft water depth. |
| Note | The handpiece is splash proof only. Fluid resistance (insertion tube) Water, 5% salt water. Selected scopes are resistant to aviation fuel, gasoline, machine oil hydraulic fluids. Contact your Sales Representative for more information. |
Hawkeye® Blue Flexible Borescope Kits are available upon request.
