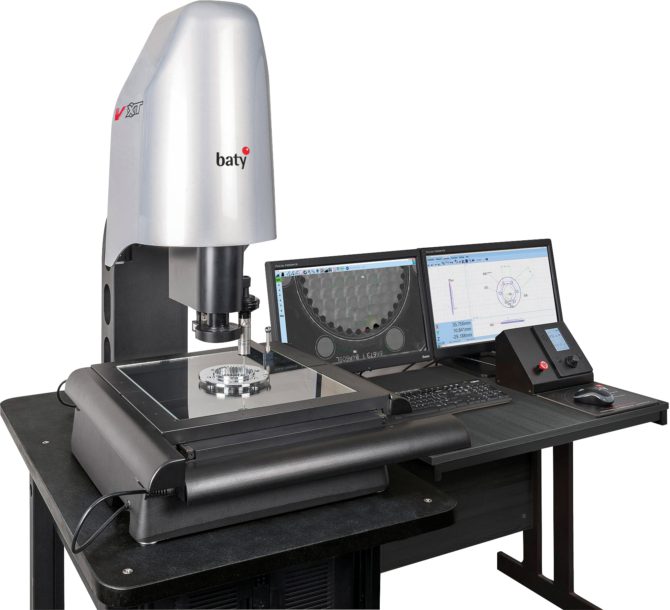

The Venture XT- CNC has Fusion 3D software, a 300mm x 300mm x 200mm XYZ stage and includes a controller and 2 x 22 inch monitors.

Venture CNC models take the power of fusion software one stage further by completely automating the inspection process. Now advanced features like scanning and best fitting can be done quickly without taking up the time of skilled operators.

CNC programming is a simple teach and repeat process. Just measure the part once and a full CNC program is created automatically. The zoom lens can also be controlled so that magnification and auto focus changes are all recorded into the program.

The use of a touch probe is optimised on a CNC system. Measurements from data points taken using the touch probe can be combined with those taken using video edge detection for optimum speed and reduced inspection times.

A probe changer rack can be installed so that probe modules fitted with a variety of pre-calibrated styli can also be used in the same inspection. When a change of stylus is required, the system automatically puts the current probe module back in the rack and picks up the next to continue the inspection process.

When programming using the touch probe, use only the minimum points required to define each element. Then simply edit in the optimum number of points for each element. The new probe path is then automatically created when the program is played, cutting down both programming and inspection time. Alternatively, features can be programmed directly from an imported 3D CAD model.

X – 250mm, Y – 125mm, Z – 150mm with 0.5 Micron resolution scales.
Manually operated 6.5:1 Micro Zoom Lens mounted on adjustable slide, with 80mm positional adjustment.
Windows based industrial PC controller with 3 axis Fusion (MK4) software.
Touch probe compatible.
System includes high Resolution USB2 Colour Camera, fully programmable 64 LED surface light, Co-axial (TTL) light and collimated under stage lighting, Wireless keyboard & mouse, glass pixel calibration slide

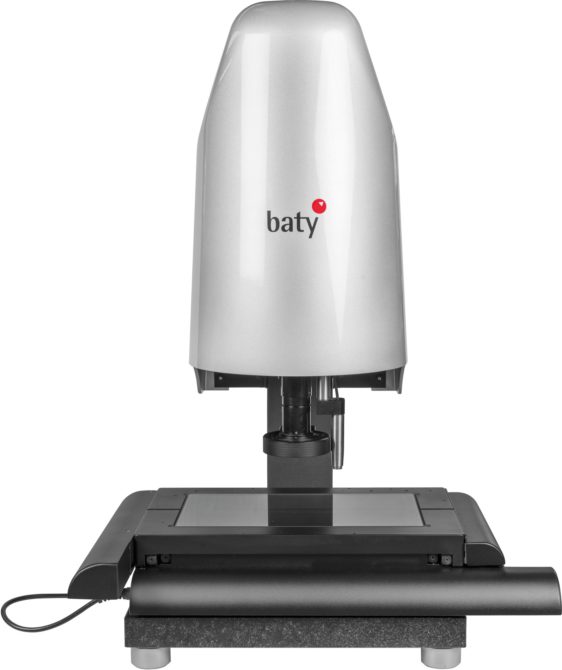

CNC – X – 250mm, Y – 112mm, Z – 150mm and Auto Focus with 0.5 Micron resolution scales.
Manually operated 6.5:1 Micro Zoom Lens mounted on adjustable slide with 80mm positional adjustment for extra Z axis capacity.
Windows based industrial PC controller with 3 axis Fusion (MK4) software.
TP20 touch probe compatibility.
3 Axis CNC and manual Precision Joystick with touch screen display.
System includes high Resolution USB2 Colour Camera, fully programmable 64 LED surface light, Co-axial (TTL) light and collimated under stage lighting.

CNC – X – 300mm, Y – 300mm, Z – 200mm and Auto Focus with 0.5 Micron resolution scales.
Manually operated 6.5:1 Micro Zoom Lens mounted on adjustable slide, with 130mm positional adjustment for extra Z axis capacity.
Windows based industrial PC controller with 3 axis Fusion (MK4) software.
TP20 & SP25 Touch probe compatibility. (Options)
3 Axis CNC and manual Precision Joystick with touch screen display.
System includes high Resolution USB2 Colour Camera, fully programmable 64 LED surface light, Co-axial (TTL) light and collimated under stage lighting.
