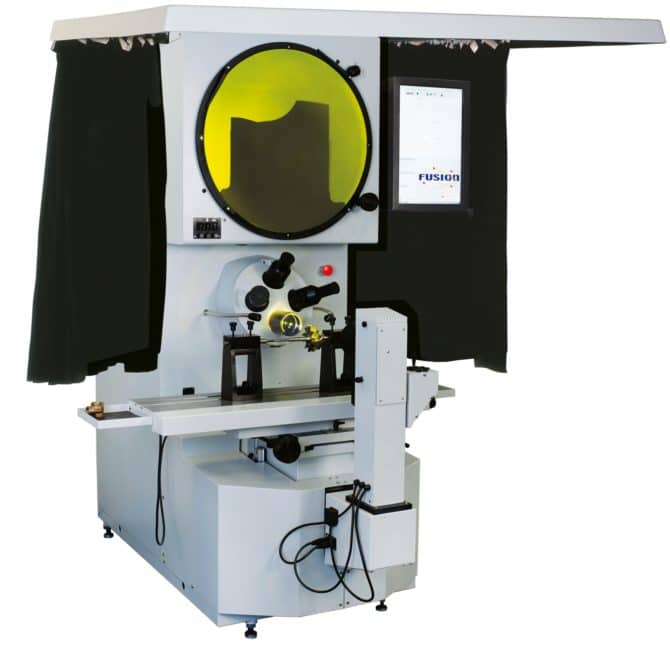

Baty R600 Profile Projector

The Baty R600 with its 600mm (24″) screen and high specification presents the capability to make simple comparative non-contact measurement through to complex programmed measuring sequences with SPC capability and automatic edge detection.

The horizontal light beam configuration is ideally suited to large machined or turned workpieces for mounting in V blocks and centres.

600mm (24″) screen with 90º cross lines and chart clips
Heavy duty workstage with 450mm x 200mm (18″ x 8″) measuring range and 2 machine slots for workpiece holders
Helix rotation of ± 15º on workstage for measuring threadforms or cutting tools
Vertical 200mm (8″) Y axis power driven with joystick control
Lens magnification choice – 10x, 20x, 50x, 100x
4 position rotating lens turret for ease of lens changing
Profile illumination with halogen lamp and green filter
Screen hood and curtains for use in bright ambient light conditions
Surface illumination (fibre optic)
Digital angle measurement
0.5 micron resolution

There are three main readout options from Baty.

The FT2-E is a Complete TOUCH SCREEN DRO with 2D Fusion touch sw for projectors with full geometric functionality and optical edge sensor. Graphical view of measured part can be printed as a fully dimensioned drawing with geometric tolerances. Other graphics include form error and SPC charts. Full reporting capability includes tabulated details with pass / fail analysis, auto link to Excel and auto sequence programming feature. SPC and best fitting to dxf (overlay). Supplied with screen mounted optical edge sensor. Integrated Mini PC running Windows 10 Pro O/S and built in 22″ touch screen monitor.

There are three main readout options from Baty.

The XLS is a simple two axis digital readout featuring a colour LCD display, Absolute / Incremental modes, Zero reset, MM/Inch & Radius / Diameter conversion.

Vertical Bench Profile Projector XY DRO with 350mm diameter screen. Complete with SA-2510-05, 250mm x 125mm work stage with ultra smooth plain rod drives & rapid traverse on BOTH axis, 0.5 micron resolution as standard. Digital Angle Protractor & 2 ‘XLS’ AXIS DIGITAL DISPLAY. Surface illumination included.

There are three main readout options from Baty.

Vertical Bench Profile Projector 2D DRO with 340mm diameter screen. Complete with SA-2510-05, 250mm x 125mm workstage with ultra smooth plain rod drives & rapid traverse on BOTH axis, 0.5 micron resolution as standard. Digital Angle Protractor & 2 axis ‘GXL’ digital display with GEOMETRIC FUNCTIONS. Surface illumination.

Baty Profile Projector

#baty #profileprojector #projector #inspection #โปรไฟล์โปรเจกเตอร์
