Baty R14 Profile Projector

The Baty R14 bench mount profile projector with its 340mm screen combines high accuracy non-contact measurement and inspection with a large 175mm x 100mm measuring range.

Choice of digital readouts and optional automatic profile edge detection ensures that you can have the projector that fits your requirements. The horizontal light path configuration is ideally suited to turned machined parts that can be secured to the workstage using a range of optional accessories from the Baty fixture family. The compact and robust lightweight chassis makes the R14 ideal for workshop environments.

340mm (14″) screen with 90º crosslines and chart clipsProfile illumination with halogen lamp and green filter
Lens magnification choice: 10x, 20x, 25x, 50x and 100x
Surface illumination (fibre optic)
Helix adjustment of light source ± 7º for accurate thread form projection
Workstage with machined slot for holding accessories
Workstage measuring range of 175mm (7″) x 100mm (4″)
Digital angle measurement to 1 minute
0.5 micron resolution

There are three main readout options from Baty.

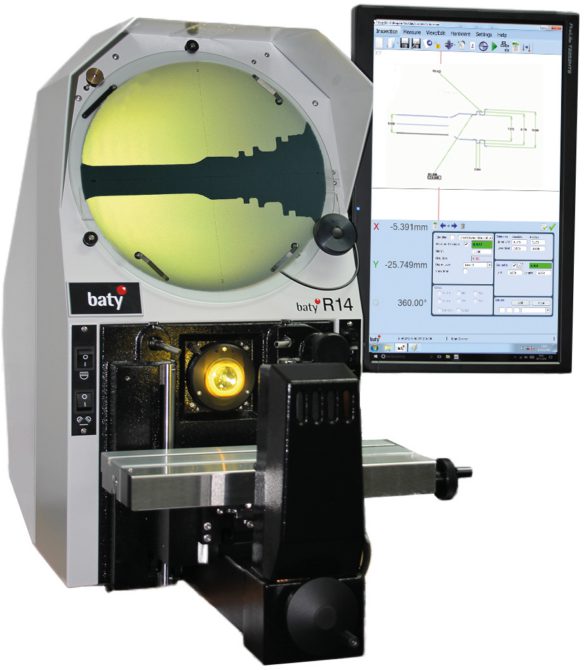

The FT2-E is a Complete TOUCH SCREEN DRO with 2D Fusion touch sw for projectors with full geometric functionality and optical edge sensor. Graphical view of measured part can be printed as a fully dimensioned drawing with geometric tolerances. Other graphics include form error and SPC charts. Full reporting capability includes tabulated details with pass / fail analysis, auto link to Excel and auto sequence programming feature. SPC and best fitting to dxf (overlay). Supplied with screen mounted optical edge sensor. Integrated Mini PC running Windows 10 Pro O/S and built in 22″ touch screen monitor.

There are three main readout options from Baty.

The XLS is a simple two axis digital readout featuring a colour LCD display, Absolute / Incremental modes, Zero reset, MM/Inch & Radius / Diameter conversion.

Vertical Bench Profile Projector XY DRO with 350mm diameter screen. Complete with SA-2510-05, 250mm x 125mm work stage with ultra smooth plain rod drives & rapid traverse on BOTH axis, 0.5 micron resolution as standard. Digital Angle Protractor & 2 ‘XLS’ AXIS DIGITAL DISPLAY. Surface illumination included.

There are three main readout options from Baty.

Vertical Bench Profile Projector 2D DRO with 340mm diameter screen. Complete with SA-2510-05, 250mm x 125mm workstage with ultra smooth plain rod drives & rapid traverse on BOTH axis, 0.5 micron resolution as standard. Digital Angle Protractor & 2 axis ‘GXL’ digital display with GEOMETRIC FUNCTIONS. Surface illumination.
