Microscope & Inspection
Portable Microscope | กล้องจุลทรรศน์แบบพกพา (USB, Wifi types)
USB Microscopes
The Q-scope microscopes get connected through USB to your tablet or computer to observe and analyse your captured or live images. The series consists out of models with numerous magnification ranges and a variety of illumination methods such as white LED, fluorescence and ultraviolet
Wi-Fi Microscopes
The Q-scope microscopes get connected through Wi-Fi or USB to your tablet or computer to observe and analyse your captured or live images.

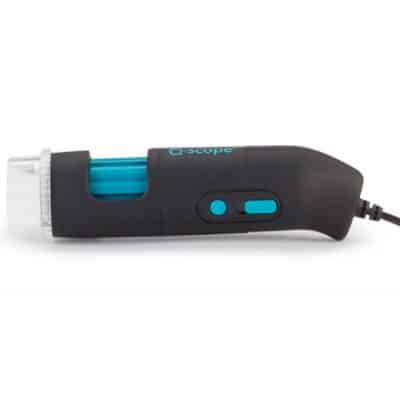

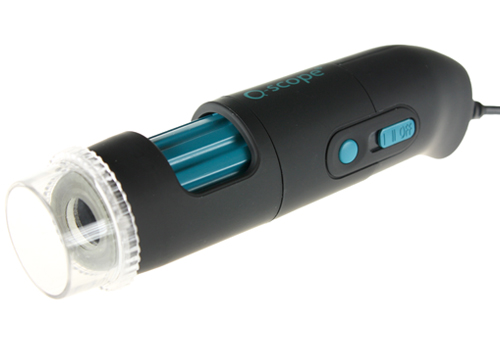

QS.13200-P USB Microscope 200x 1.3MP
Model
QS.13200-P USB Microscope
Features
- Magnification 200x
- Sensor size 1.3MP
- Distance controlled zoom and polarizer
- For industry, education and advanced amateurs
Specification
Get connected through USB to your Windows or Mac computer to observe and analyse your captured or live images with our powerful user-friendly (free of charge) software for advanced image processing. The Wi-Fi Q-scope models can easily be connected to tablet computers and mobile phones
| MODEL | Product number | QS.13200-P |
| Connection | USB 2.0 | |
| OPTICS | Magnification | 10-50x and 200x |
| Zoom | Yes, distance controlled | |
| Working distance | Standard | |
| Lens type | High grade optical glass with multi-layer anti-reflection coating | |
| Focus range | Manual focus from 10 to 500 mm | |
| Polarizer | Yes | |
| SENSOR | Sensor type | CMOS |
| Size | 1.3 megapixel | |
| Resolution | 1280×1024, 1280×960, 640×480 | |
| Max. frame rate | 30 fps | |
| FEATURES | Illumination | 8 white power LEDs |
| Software | Q-focus analysis software with measurement and annotation functions | |
| BODY | Dimensions | (d) 34 x (l) 140 mm |
| Weight | 115 grams |
Download Specification
QS.20200-P USB Microscope 200x 2.0MP
Model
QS.20200-P USB Microscope
Features
- Magnification 200x
- Sensor size 2.0MP
- Distance controlled zoom and polarizer
- For industry, science, education and medical
Specification
Get connected through USB to your Windows or Mac computer to observe and analyse your captured or live images with our powerful user-friendly (free of charge) software for advanced image processing. The Wi-Fi models can easily be connected to tablet computers
| MODEL | Product number | QS.20200-P |
| Connection | USB 2.0 | |
| OPTICS | Magnification | 10-50x and 200x |
| Zoom | Yes, distance controlled | |
| Working distance | Standard | |
| Lens type | High grade optical glass with multi-layer anti-reflection coating | |
| Focus range | Manual focus from 10 to 500 mm | |
| Polarizer | Yes | |
| SENSOR | Sensor type | CMOS |
| Size | 2.0 megapixel | |
| Resolution | 1600×1200, 1280×960, 800×600, 640×480 | |
| Max. frame rate | 30 fps | |
| FEATURES | Illumination | 8 white power LEDs |
| Software | Q-focus analysis software with measurement and annotation functions | |
| BODY | Dimensions | (d) 34 x (l) 140 mm |
| Weight | 115 grams |
Download Specification
QS.90200-P USB Microscope 200x 9.0MP
Model
QS.90200-P USB Microscope
Features
- Magnification 200x
- Sensor size 9.0MP
- Distance controlled zoom and polarizer
- For industry, medical, scientific and research
Specification
Get connected through USB to your Windows or Mac computer to observe and analyse your captured or live images with our powerful user-friendly (free of charge) software for advanced image processing. The Wi-Fi Q-scope models can easily be connected to tablet computers and mobile phones
| MODEL | Product number | QS.90200-P |
| Connection | USB 2.0 | |
| OPTICS | Magnification | 10-40x and 200x |
| Zoom | Yes, distance controlled | |
| Working distance | Standard | |
| Lens type | High grade optical glass with multi-layer anti-reflection coating | |
| Focus range | Manual focus from 10 to 200 mm | |
| Polarizer | Yes | |
| SENSOR | Sensor type | CMOS |
| Size | 9.0 megapixel | |
| Resolution | 3488×2616, 2560×1920, 2048×1536, 800×600 | |
| Max. frame rate | 15 fps | |
| FEATURES | Illumination | 8 white power LEDs |
| Software | Q-focus analysis software with measurement and annotation functions | |
| BODY | Dimensions | (d) 34 x (l) 140 mm |
| Weight | 115 grams |
Download Specification

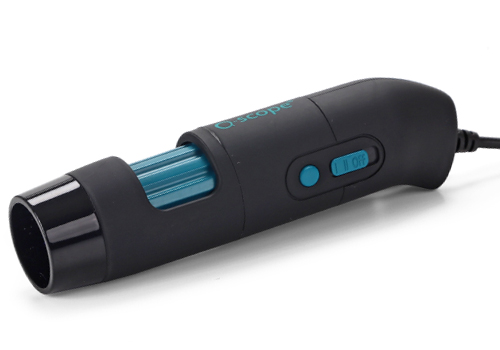

QS.UV-370 USB Microscope 10-50x and 200x
Model
QS.UV-370 USB Microscope
Features
- Magnification 10-50x and 200x
- Sensor size 2.0MP
- UV Illuminated
Specification
The Q-scope product range of UV illuminated digital microscopes brings a new solution for a broad range of applications like counterfeit detection, medical & life sciences, industrial quality control, forensics and many other fields.
Using 370 nm illumination to visualize details which cannot be seen with regular illumination.
Get connected through USB to your Windows or Mac computer to observe and analyse your captured or live images with our powerful user-friendly (free of charge) software for advanced image processing.
| MODEL | Product number | QS.UV-370 |
| Connection | USB 2.0 | |
| OPTICS | Magnification | 10-50x and 200x |
| Zoom | Yes, distance controlled | |
| Working distance | Standard | |
| Lens type | High grade optical glass with multi-layer anti-reflection coating | |
| Focus range | Manual focus from 10 to 500 mm | |
| Polarizer | No | |
| SENSOR | Sensor type | CMOS |
| Size | 2.0 megapixel | |
| Resolution |
1600×1200, 1280×960, 800×600, 640×480 |
|
| Max. frame rate | 30 fps | |
| FEATURES | Illumination | 8 UV power LEDs, 370 nm |
| Software | Q-focus analysis software with measurement and annotation functions | |
| BODY | Dimensions | (d) 34 x (l) 140 mm |
| Weight | 115 grams |
QS.UV-400 USB Microscope 10-50x and 200x
Model
QS.UV-400 USB Microscope
Features
- Magnification 10-50x and 200x
- Sensor size 2.0MP
- UV Illuminated 8 UV power LEDs, 400 nm
Specification
The Q-scope product range of UV illuminated digital microscopes brings a new solution for a broad range of applications like counterfeit detection, medical & life sciences, industrial quality control, forensics and many other fields.
Using 400 nm illumination to visualize details which cannot be seen with regular illumination.
Get connected through USB to your Windows or Mac computer to observe and analyse your captured or live images with our powerful user-friendly (free of charge) software for advanced image processing.
| MODEL | Product number | QS.UV-400 |
| Connection | USB 2.0 | |
| OPTICS | Magnification | 10-50x and 200x |
| Zoom | Yes, distance controlled | |
| Working distance | Standard | |
| Lens type | High grade optical glass with multi-layer anti-reflection coating | |
| Focus range | Manual focus from 10 to 500 mm | |
| Polarizer | No | |
| SENSOR | Sensor type | CMOS |
| Size | 2.0 megapixel | |
| Resolution |
1600×1200, 1280×960, 800×600, 640×480 |
|
| Max. frame rate | 30 fps | |
| FEATURES | Illumination | 8 UV power LEDs, 400 nm |
| Software | Q-focus analysis software with measurement and annotation functions | |
| BODY | Dimensions | (d) 34 x (l) 140 mm |
| Weight | 115 grams |

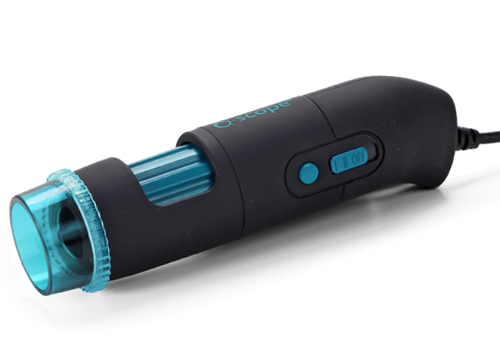

QS.DERMO USB Microscope 10-50x and 200x
Model
QS.DERMO USB Microscope
Features
- Magnification 10-50x and 200x
- Sensor size 2.0MP
- Distance controlled zoom and polarizer
- For dermatologist and other specialists
Specification
The Q-scope Dermo digital microscope offer the best solution for the modern dermatologist and other specialists
Experience digital dermoscopy and increase the efficiency of diagnosing and documenting morphological dimensions of pigmented skin lesions, differentiating melanoma from other pigmented skin lesions. Use polarized light to easily cancel out skin surface reflections. Show and educate patients by letting them watch on screen by using Q-focus analysis software
Get connected through USB to your Windows or Mac computer to observe and analyse your captured or live images with our powerful user-friendly (free of charge) software for advanced image processing
| MODEL | Product number | QS.DERMO |
| Connection | USB 2.0 | |
| OPTICS | Magnification | 10-50x and 200x |
| Zoom | Yes, distance controlled | |
| Working distance | Standard | |
| Lens type | High grade optical glass with multi-layer anti-reflection coating | |
| Focus range | Manual focus from 5 to 520 mm | |
| Polarizer | Yes | |
| SENSOR | Sensor type | CMOS |
| Size | 2.0 megapixel | |
| Resolution |
1600×1200, 1280×960, 800×600, 640×480 |
|
| Max. frame rate | 32 fps | |
| FEATURES | Illumination | 8 white power CR++ LEDs |
| Software | Q-focus analysis software with measurement and annotation functions | |
| BODY | Dimensions | (d) 34 x (l) 140 mm |
| Weight | 115 grams |
QS.IR-940 USB Microscope Infrared Illuminated
Model
QS.IR-940 USB Microscope Infrared Illumination
Features
- Magnification 200x
- Sensor size 2.0MP
- Infrared Illuminated
- For Industry, medical, scientific, research
Specification
The Q-scope product range of Infrared (IR) illuminated digital microscopes brings a new solution for a broad range of applications like counterfeit detection, medical & life sciences, industrial quality control, forensics and many other fields.
Switch between white light and infrared illumination to visualize and compare details which that become visible or invisible depending on the selected light source.
Get connected through USB to your Windows or Mac computer to observe and analyse your captured or live images with our powerful user-friendly (free of charge) software for advanced image processing.
| MODEL | Product number |
QS.IR-940 |
| Connection | USB 2.0 | |
| OPTICS | Magnification | 10-50x and 200x |
| Zoom | Yes, distance controlled | |
| Working distance | Standard | |
| Lens type | High grade optical glass with multi-layer anti-reflection coating | |
| Focus range | Manual focus from 10 to 500 mm | |
| Polarizer | Yes | |
| SENSOR | Sensor type | CMOS |
| Size | 2.0 megapixel | |
| Resolution |
1600×1200, 1280×960, 800×600, 640×480 |
|
| Max. frame rate | 30 fps | |
| FEATURES | Illumination |
4 white power LED and 4 Infrared (IR) power LEDs, 940nm (switchable) |
| Software | Q-focus analysis software with measurement and annotation functions | |
| BODY | Dimensions | (d) 34 x (l) 140 mm |
| Weight | 115 grams |

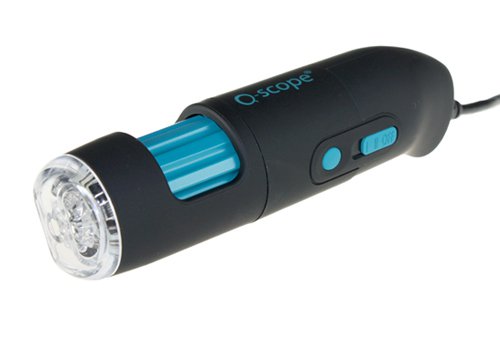

QS.20500 USB Microscope 500x
Model
QS.20500 USB Microscope 500x
Features
- Magnification 500x
- Sensor size 2.0MP
- For Industry, scientific and research
Specification
The Q-scope product range of digital microscopes offer the best solution for a broad range of applications like industrial quality control, medical & life sciences, forensics, science & education, art restoration and many other fields
Get connected through USB to your Windows or Mac computer to observe and analyse your captured or live images with our powerful user-friendly (free of charge) software for advanced image processing. The Q-scope Wi-Fi models can easily be connected to tablet computers and mobile phones
| MODEL | Product number | QS.20500 |
| Connection | USB 2.0 | |
| OPTICS | Magnification | 500x |
| Zoom | No | |
| Working distance | Standard | |
| Lens type | High grade optical glass with multi-layer anti-reflection coating | |
| Focus range | 4 mm | |
| Polarizer | No | |
| SENSOR | Sensor type | CMOS |
| Size | 2.0 megapixel | |
| Resolution | 1600×1200, 1280×960, 800×600, 640×480 | |
| Max. frame rate | 30 fps | |
| FEATURES | Illumination | 8 white power LEDs |
| Software | Q-focus analysis software with measurement and annotation functions | |
| BODY | Dimensions | (d) 34 x (l) 140 mm |
| Weight | 115 grams |

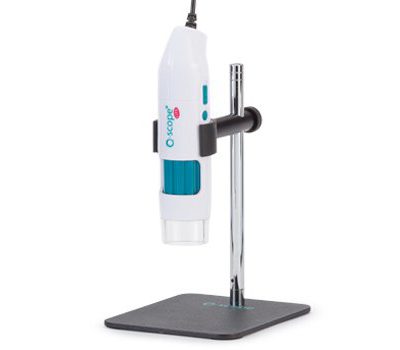

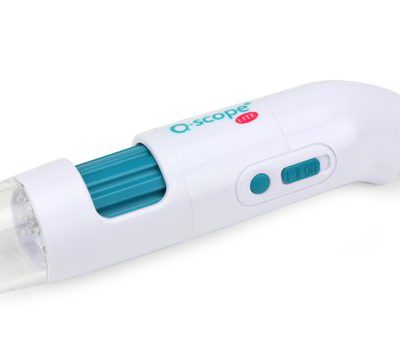

QS.LITE USB Microscope 180x
Model
QS.LITE USB Microscope 180x
Features
- Magnification 180x
- Sensor size 1.2MP
- For home and hobby users
Specification
Wired USB handheld digital microscope for Home and Hobby
The Q-scope LITE is the digital starter microscope. A special version for home and hobby use is created so anyone can enjoy the advantages of Q-scope digital microscopes. At an extra attractive value for money ratio the Q-scope LITE is a great tool. Investigate or educate about coins, stamps, ants etc or use it to inspect kids for lice, share pictures with your doctor of suspicious skin defects, the possibilities are endless. Q-scope LITE comes as a complete, ready to go set including a full version of Q-focus software, calibration target, cable, all packed in a robust storage box.
Intuitive controls of both software and microscope make sure the microscope can be used straight out to the box. Detailed function descriptions are found in the manual
Get ready to discover the world of digital microscopy!
| MODEL | Product number | QS.LITE |
| DETAILS | Q-scope range |
Wired USB Q-scope LITE (1.2MP – 180x) no polarizer |
| OPTICS | Magnification | 10-40x and 180x |
| Zoom |
Yes, distance controlled |
|
| Working distance | Standard | |
| Lens type |
High grade optical glass with multi-layer anti-reflection coating |
|
| Focus range |
Manual focus from 10 to 500 mm |
|
| Polarizer |
No |
|
| LIGHTNING | Light/LED type | 8 White high power LEDs |
| SENSOR | Sensor type | CMOS |
| Resolution | 1280×960, 640×480 | |
| Max. frame rate | 25 fps | |
| SOFTWARE | Interface | USB 2.0 |
| Operation system | Windows XP, Vista 7, 8 & 10, MacOS 10.6 and up | |
| Included software |
Q-focus analysis software with measurement and annotation functions |
|
| Supported | JPG, BMP, AVI | |
| INFORMATION | Content | Microscope, Software CD, User Manual, Calibration Target |

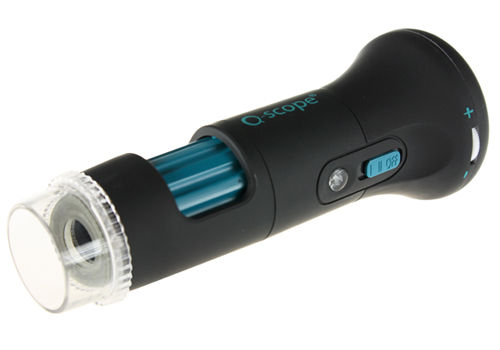

QS.13100-W Wifi Microscope
Features
- Wifi model
- Sensor size 1.3MP
Specification
The Q-scope product range of digital microscopes offer the best solution for a broad range of applications like industrial quality control, medical & life sciences, forensics, science & education, art restoration and many other fields
Use our Android and IOS apps to connect the Wi-Fi Q-scope to tablet computers and mobile phones. Get connected through USB to your Windows or Mac computer. Observe and analyse your captured or live images with our powerful user-friendly (free of charge) software and share them instantly
| MODEL | Product number | QS.13100-W |
| Connection | Wi-Fi / USB 2.0 | |
| Apps | Android and IOS | |
| OPTICS | Magnification Wi-Fi | 10-25x and 100x |
| Magnification USB | 10-25x and 200x | |
| Zoom | Yes, distance controlled | |
| Working distance | Standard | |
| Lens type | High grade optical glass with multi-layer anti-reflection coating | |
| Focus range | Manual focus from 10 to 500 mm | |
| Polarizer | Yes | |
| SENSOR | Sensor type | CMOS |
| Size | 1.3 megapixel | |
| Resolution | 1280×960, 1024×768, 640×480 | |
| Max. frame rate | 25 fps | |
| FEATURES | Illumination | 8 white power LEDs |
| Software | Q-focus analysis software with measurement and annotation functions | |
| BODY | Dimensions | (d) 38/53 x (l) 140 mm |
| Weight | 135 grams |
Download Specification

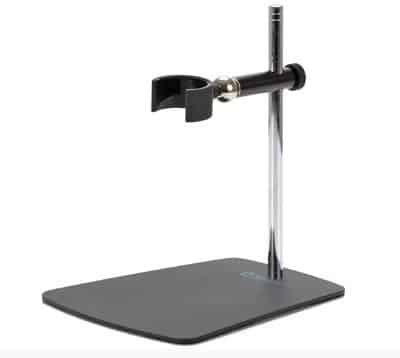

QS.MS10 Metal Positioning Stand
Features
- Metal Positioning Stand
- Easy 3D Positioner
- Working Distance Max.105mm
Specification
| MODEL | Product number | QS.MS10 |
| DETAILS | Q-scope stand | Q-scope Metal Positioning Stand with easy 3D positioner |
| Stable height adjustable stand with 3D positioner for accurate microscope control, ergonomic stable design | ||
| Applications | All | |
| STAND | Features | Height adjustable, portable, easy 3D positioner, ergonomic design |
| Dimensions | (w) 146 x (l) 176 x (h) 160 mm | |
| Working distance | 0 – 105 mm | |
| Weight | 620 grams | |
| Compatible with | All Q-scope models | |
| Package contents | Stand, 3D positioner holder, wrench, cable guiding clamp, user manual |
Download Specification

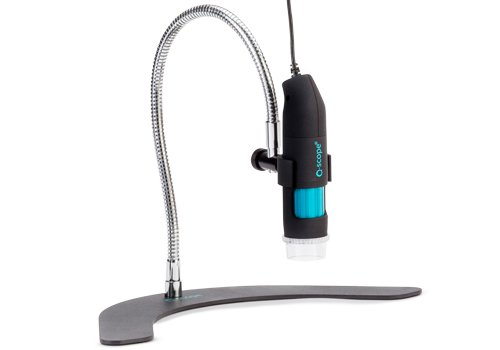

QS.MS20 Metal Gooseneck Stand
Features
- Metal Gooseneck Stand
- with Fixed Positioner
- Working Distance Max.120mm
Specification
| MODEL | Product number | QS.MS20 |
| DETAILS | Q-scope stand | Q-scope Metal Gooseneck stand with fixed positioner |
| Ergonomic hands-free operation. Large working distance and positioning options. Designed for maximum flexibility. ergonomic stable design | ||
| Applications | All | |
| STAND | Features | Extended reach, portable, fixed positioner, ergonomic design |
| Dimensions | (w) 329 x (l) 138 x (h) 265 mm | |
| Working distance | 0 – 120 mm | |
| Weight | 580 grams | |
| Compatible with | All Q-scope models | |
| Package contents | Stand, fixed positioner holder, wrench, cable guiding clamp, user manual |
Download Specification

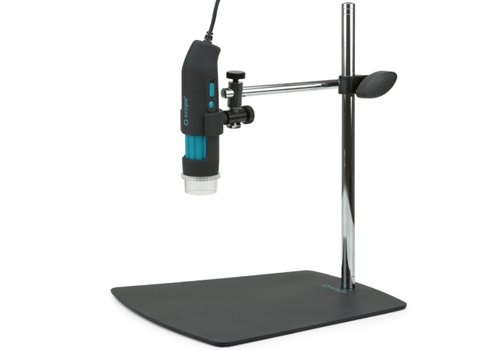

QS.MS40-A Metal Boom-Arm Stand
Features
- Metal Boom-Arm Stand
- with Fixed Positioner
- Working Distance Max.230mm
Specification
| MODEL | Product number | QS.MS40-A |
| DETAILS | Q-scope stand | Q-scope Metal Boom-arm Stand – fixed positioner |
| Extra stable height adjustable stand with fixed positioner for accurate microscope control, suitable for large objects, ergonomic design | ||
| Applications | All | |
| STAND | Features | Height adjustable, portable, fixed positioner, suitable for large objects, ergonomic design |
| Dimensions | (w) 220 x (l) 250 x (h) 287 mm | |
| Working distance | 0 – 230 mm | |
| Working range (X/Y) | 148/148 mm | |
| Weight | 1.6 kg | |
| Compatible with | All Q-scope models | |
| Package contents | Stand, fixed positioner holder, wrench, cable guiding clamp, user manual |
Download Specification

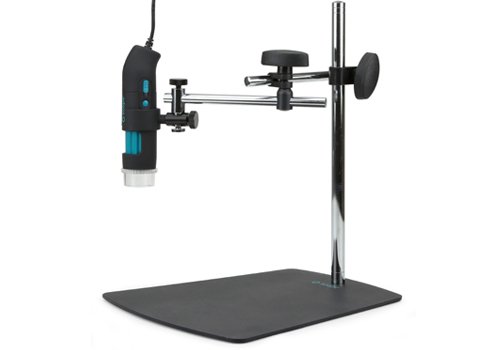

QS.MS45-A Metal Articulated-Arm Stand
Features
- Metal Articulated-Arm Stand
- with Fixed Positioner
- Working Distance Max.230mm
Specification
| MODEL | Product number | QS.MS45-A |
| DETAILS | Q-scope stand | Q-scope Articulated-arm stand – fixed positioner |
| Extra stable and height adjustable articulated-arm stand with fixed positioner for accurate microscope control, suitable for large objects | ||
| Applications | All | |
| STAND | Features | Height adjustable, portable, fixed positioner, suitable for large objects, ergonomic design |
| Dimensions | (w) 220 x (l) 250 x (h) 287 mm | |
| Working distance | 0 – 230 mm | |
| Working range (X/Y) | 293/293 mm | |
| Weight | 1.8 kg | |
| Compatible with | All Q-scope models | |
| Package contents | Stand, fixed positioner holder, wrench, cable guiding clamp, user manual |
Download Specification

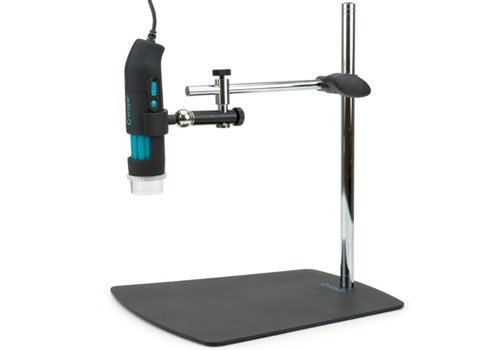

QS.MS40-B Metal Boom-Arm Stand
Features
- Metal Boom-Arm Stand
- with easy 3D positioner
- Working Distance Max.230mm
Specification
| MODEL | Product number | QS.MS40-B |
| DETAILS | Q-scope stand | Q-scope Boom-arm stand – 3D positioner |
| Extra stable height adjustable stand with 3D positioner for accurate microscope control, suitable for large objects, ergonomic design | ||
| Applications | All | |
| STAND | Features | Height adjustable, portable, easy 3D positioner, suitable for large objects, ergonomic design |
| Dimensions | (w) 220 x (l) 250 x (h) 287 mm | |
| Working distance | 0 – 230 mm | |
| Working range (X/Y) | 190/190 mm | |
| Weight | 1.6 kg | |
| Compatible with | All Q-scope models | |
| Package contents | Stand, 3D positioner holder, wrench, cable guiding clamp, user manual |
Download Specification

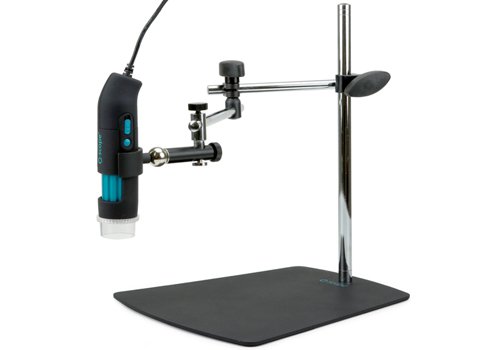

QS.MS45-B Metal Articulated-Arm Stand
Features
- Metal Articulated-Arm Stand
- with easy 3D positioner
- Working Distance Max.230mm
Specification
| MODEL | Product number | QS.MS45-B |
| DETAILS | Q-scope stand | Q-scope Articulated-arm stand – easy 3D positioner |
| Extra stable and height adjustable articulated stand with 3D positioner for accurate microscope control, suitable for large objects | ||
| Applications | All | |
| STAND | Features | Height adjustable, articulated, portable, easy 3D positioner, suitable for large objects, ergonomic design |
| Dimensions | (w) 220 x (l) 250 x (h) 287 mm | |
| Working distance | 0 – 230 mm | |
| Working range (X/Y) | 335/335 mm | |
| Weight | 1.8 kg | |
| Compatible with | All Q-scope models | |
| Package contents | Stand, fixed positioner holder, wrench, cable guiding clamp, user manual |
Download Specification

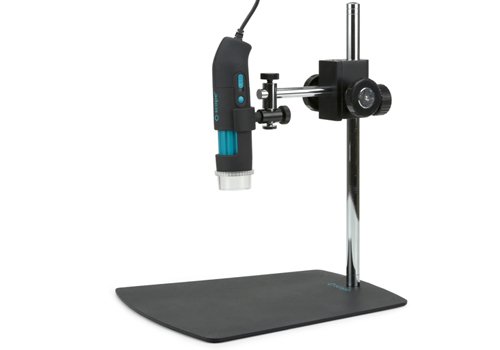

QS.MS40-C Metal Boom-Arm Stand
Features
- Metal Boom-Arm Stand
- with Fixed Positioner
- Working distance max.235mm
- with Fine adjustment
Specification
| MODEL | Product number | QS.MS40-C |
| DETAILS | Q-scope stand |
Q-scope Boom-arm stand with fine focus adjustment – fixed positioner |
| Extra stable and height adjustable stand with fine focus adjustment, and fixed positioner for precise microscope control in height, suitable for large objects, ergonomic design | ||
| Applications | All | |
| STAND | Features | Height adjustable, portable, fixed positioner, suitable for large objects, ergonomic design |
| Dimensions | (w) 220 x (l) 250 x (h) 287 mm | |
| Working distance | 0 – 235 mm | |
| Working range (X/Y) | 45/137 mm | |
| Focusing range | 44 mm | |
| Weight | 1.7 kg | |
| Compatible with | All Q-scope models | |
| Package contents | Stand, fine focus unit, fixed position holder, wrench, cable guiding clamp, user manual |
Download Specification

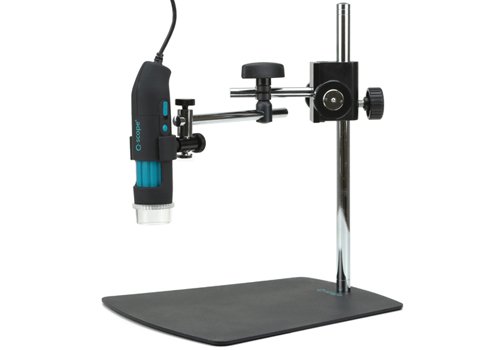

QS.MS45-C Metal Articulated-Arm Stand
Features
- Metal Articulated-Arm Stand
- with Fixed Positioner
- Working Distance Max.235mm
- with Fine adjustment
Specification
| MODEL | Product number | QS.MS45-C |
| DETAILS | Q-scope stand |
Q-scope Metal Articulated-arm stand with fine focus adjustment – fixed positioner |
| Extra stable height adjustable articulated stand with fine focus adjustment and fixed positioner for precise microscope control in height, suitable for large objects, ergonomic design | ||
| Applications | All | |
| STAND | Features | Height adjustable, portable, fixed positioner, suitable for large objects, ergonomic design |
| Dimensions | (w) 220 x (l) 250 x (h) 287 mm | |
| Working distance | 0 – 235 mm | |
| Working range (X/Y) | 190/282 mm | |
| Focusing range | 44 mm | |
| Weight | 1.9 kg | |
| Compatible with | All Q-scope models | |
| Package contents | Stand, fine focus unit, fixed positioner holder, wrench, cable guiding clamp, user manual |
Download Specification

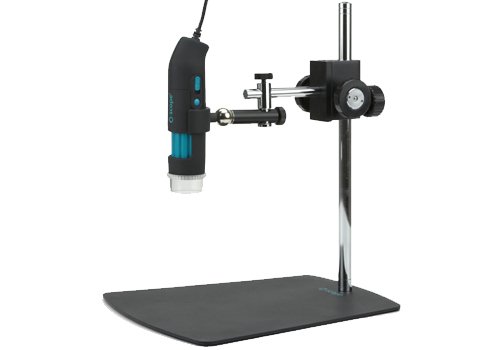

QS.MS40-D Metal Boom-Arm Stand
Features
- Metal Boom-Arm Stand
- with easy 3D positioner
- Working Distance Max.235mm
- with Fine adjustment
Specification
| MODEL | Product number | QS.MS40-D |
| DETAILS | Q-scope stand |
Q-scope Boom-arm stand with fine focus adjustment – easy 3D positioner |
| Extra stable and height adjustable stand with fine focus adjustment and 3D positioner for precise microscope control in height and all directions, suitable for large objects | ||
| Applications | All | |
| STAND | Features | Height adjustable, portable, 3D positioner, suitable for large objects, ergonomic design |
| Dimensions | (w) 220 x (l) 250 x (h) 287 mm | |
| Working distance | 0 – 235 mm | |
| Working range (X/Y) | 152/182 mm | |
| Focusing range | 44 mm | |
| Weight | 1.7 kg | |
| Compatible with | All Q-scope models | |
| Package contents | Stand, fine focus unit, 3D positioner holder, wrench, cable guiding clamp, user manual |

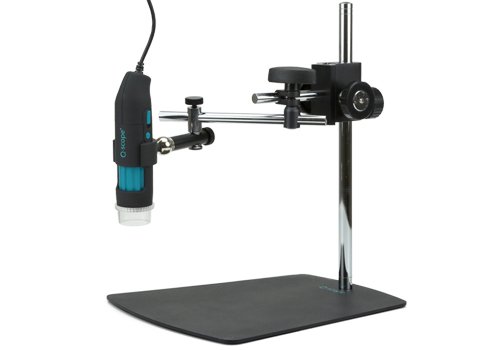

QS.MS45-D Metal Articulated-Arm Stand
Features
- Metal Articulated-Arm Stand
- with easy 3D Positioner
- Working distance max.235mm
- with Fine adjustment
Specification
| MODEL | Product number | QS.MS45-D |
| DETAILS | Q-scope stand |
Q-scope Metal Articulated-arm stand with fine focus adjustment – fixed positioner |
| Extra stable and height adjustable articulated-arm stand with fine focus adjustment and 3D positioner for precise microscope control in height and all directions, suitable for large objects | ||
| Applications | All | |
| STAND | Features | Height adjustable with precise fine focus, articulated, portable, 3D positioner, suitable for large objects |
| Dimensions | (w) 220 x (l) 250 x (h) 287 mm | |
| Working distance | 0 – 235 mm | |
| Working range (X/Y) | 297/327 mm | |
| Focusing range | 44 mm | |
| Weight | 1.9 kg | |
| Compatible with | All Q-scope models | |
| Package contents | Stand, fine focus unit, easy 3D positioner holder, wrench, cable guiding clamp, user manual |

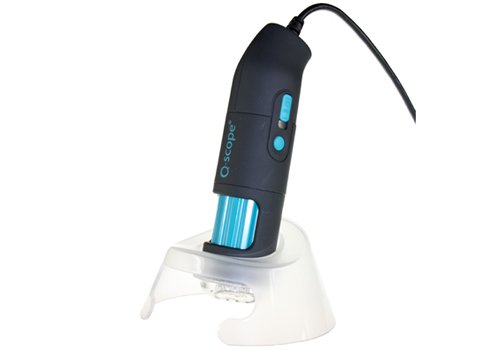

QS.CS10 Cradle Stand
Features
- Cradle Stand
- Surface inspection like printing
- Fixed Working Distance
Specification
| MODEL | Product number | QS.CS10 |
| DETAILS | Q-scope stand | Q-scope Cradle Stand |
| Transparant cradle for easy movement across flat surfaces and fast inspection at a fixed working distance | ||
| Applications | Surface inspection like printing and fabrics | |
| STAND | Features | Fixed distance, light weight, portable cradle stand |
| Dimensions | (d) 98 x (h) 50 mm | |
| Working distance | 15 mm | |
| Weight | 35 grams | |
| Compatible with | All Q-scope models | |
| Package contents | Stand, holder, user manual |

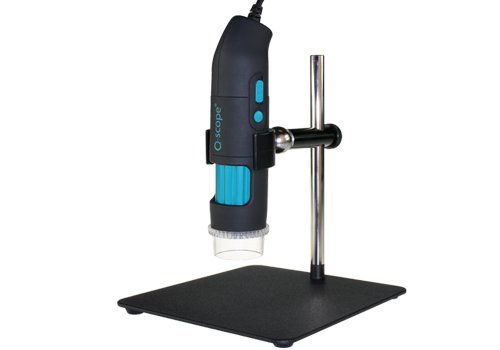

QS.MS01 Metal Basic Stand
Features
- Metal Basic Stand
- with easy 3D positioner
- Working Distance Max.100mm
Specification
| MODEL | Product number | QS.MS01 |
| DETAILS | Q-scope stand | Q-scope Metal Basic Stand |
| Stable height adjustable stand with 3D positioner for accurate microscope control | ||
| Applications | All | |
| STAND | Features | Height adjustable, portable, easy 3D positioner |
| Dimensions | (w) 140 x (l) 130 x (h) 160 mm | |
| Working distance | 0 – 100 mm | |
| Weight | 440 grams | |
| Compatible with | All Q-scope models | |
| Package contents | Stand, 3D positioner holder, user manual |

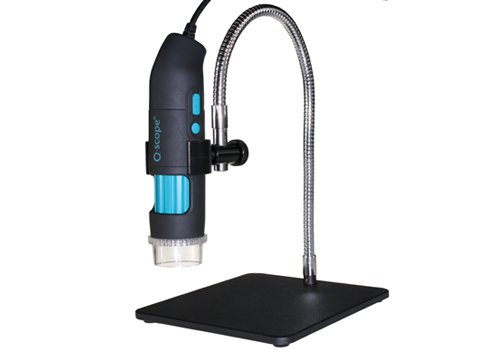

QS.MS02 Metal Basic Gooseneck Stand
Features
- Metal Basic Gooseneck Stand
- with Fixed Positioner
- Working distance max.190mm
Specification
| MODEL | Product number | QS.MS02 |
| DETAILS | Q-scope stand | Q-scope Metal Gooseneck Stand |
| Ergonomic hands-free operation. Large working distance and positioning options. Designed for maximum flexibility | ||
| Applications | All | |
| STAND | Features | Extended reach, portable |
| Dimensions | (w) 140 x (l) 130 x (h) 280 mm | |
| Working distance | 0 – 190 mm | |
| Weight | 860 grams | |
| Compatible with | All Q-scope models | |
| Package contents | Stand, holder, user manual |
QS.LITE-S Complete Starter Kit
Features
- Complete Starter Kit
- Q-Scope LITE including Metal Stand
- For Home and hobby users
Specification
| MODEL | Product number | QS.LITE |
| DETAILS | Q-scope range |
Wired USB Q-scope LITE (1.2MP – 180x) no polarizer + Metal Basic stand |
| OPTICS | Magnification | 10-40x and 180x |
| Zoom |
Yes, distance controlled |
|
| Working distance | Standard | |
| Lens type |
High grade optical glass with multi-layer anti-reflection coating |
|
| Focus range |
Manual focus from 10 to 500 mm |
|
| Polarizer |
No |
|
| LIGHTNING | Light/LED type | 8 White high power LEDs |
| SENSOR | Sensor type | CMOS |
| Resolution | 1280×960, 640×480 | |
| Max. frame rate | 25 fps | |
| SOFTWARE | Interface | USB 2.0 |
| Operation system | Window XP, Vista 7, 8 & 10, MacOS 10.6 and up | |
| Included software |
Q-focus analysis software with measurement and annotation functions |
|
| Supported | JPG, BMP, AVI | |
| INFORMATION | Content | Microscope, Metal Basic stand, Software CD, User Manual, Calibration Target |
Q-scope digital microscopes; high quality real time images
The Q-scope product range of handheld digital microscopes offer the best solution for a broad range of applications like industrial quality control, medical & life sciences, forensics, science & education, art restoration and many other fields
Connect to the world
Get connected through USB or Wi-Fi to your Windows or Mac computer to observe and analyse your captured or live images with our powerful user-friendly software for advanced image processing. The Q-scope Wi-Fi models can easily be connected to tablet computers
Key Word: qscope, q-scope, pocket microscope, portable microscope, กล้องไมโครสโคป, กล้องพกพา, กล้องขยายภาพ, กล้องจิ๋ว, กล้องเล็ก, กล้องจุลทรรศน์, กล้องดิจิตอล. digital microscope.
