Gauge Block

Measuring Instruments

Gauge Block เกจบล็อก

Steel Gauge Block MW700

Model
Code No. Description No. of Blocks
MW700-02 Grade 1 103
MW700-03 Grade 2 103
MW700-05 Grade 1 87
MW700-06 Grade 2 87
MW700-08 Grade 1 47
MW700-09 Grade 2 47
MW700-11 Grade 1 32
MW700-12 Grade 2 32
Features

• Made from high quality stress relieved alloy steel • Hardened to HV820 (HRC65) • Excellent rigidity • Size and serial number are engraved on each individual gauge block • Available in 3 grades • All sets have a MOORE & WRIGHT certificate • All sets can be issued with a UKAS certificate at extra cost

Download Specification

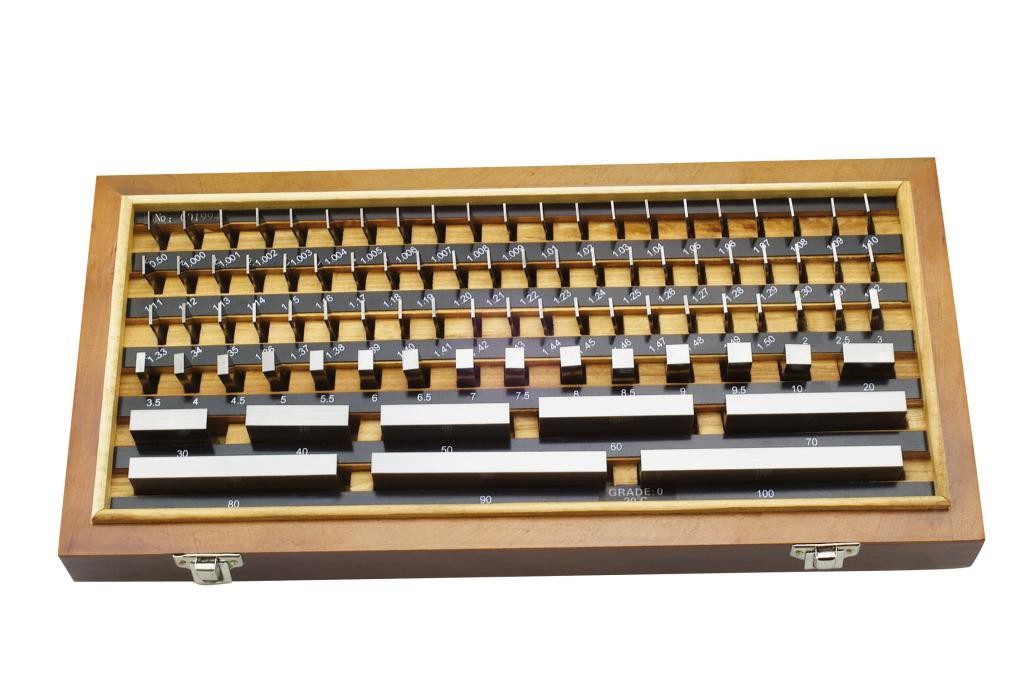

Carbide Gauge Blocks MW710

Model
Code No. Description No. of Blocks
MW710-01 Grade 0 103
MW710-02 Grade 1 103
MW710-03 Grade 2 103
MW710-04 Grade 0 87
MW710-05 Grade 1 87
MW710-06 Grade 2 87
MW710-07 Grade 0 47
MW710-08 Grade 1 47
MW710-09 Grade 2 47
MW710-10 Grade 0 32
MW710-11 Grade 1 32
MW710-12 Grade 2 32
Features

Standard: DIN 861 • Made from solid carbide with high precision • Service life is up to 6 times that of steel • Excellent wringability due to micro polished surfaces • Every gauge block has its own serial number • Available in 3 grades – Grade 0 for calibration – Grade 1 for inspection – Grade 2 for workshop • All sets have MOORE & WRIGHT certificate • All sets can be issued with UKAS certificate at extra cost

Download Specification

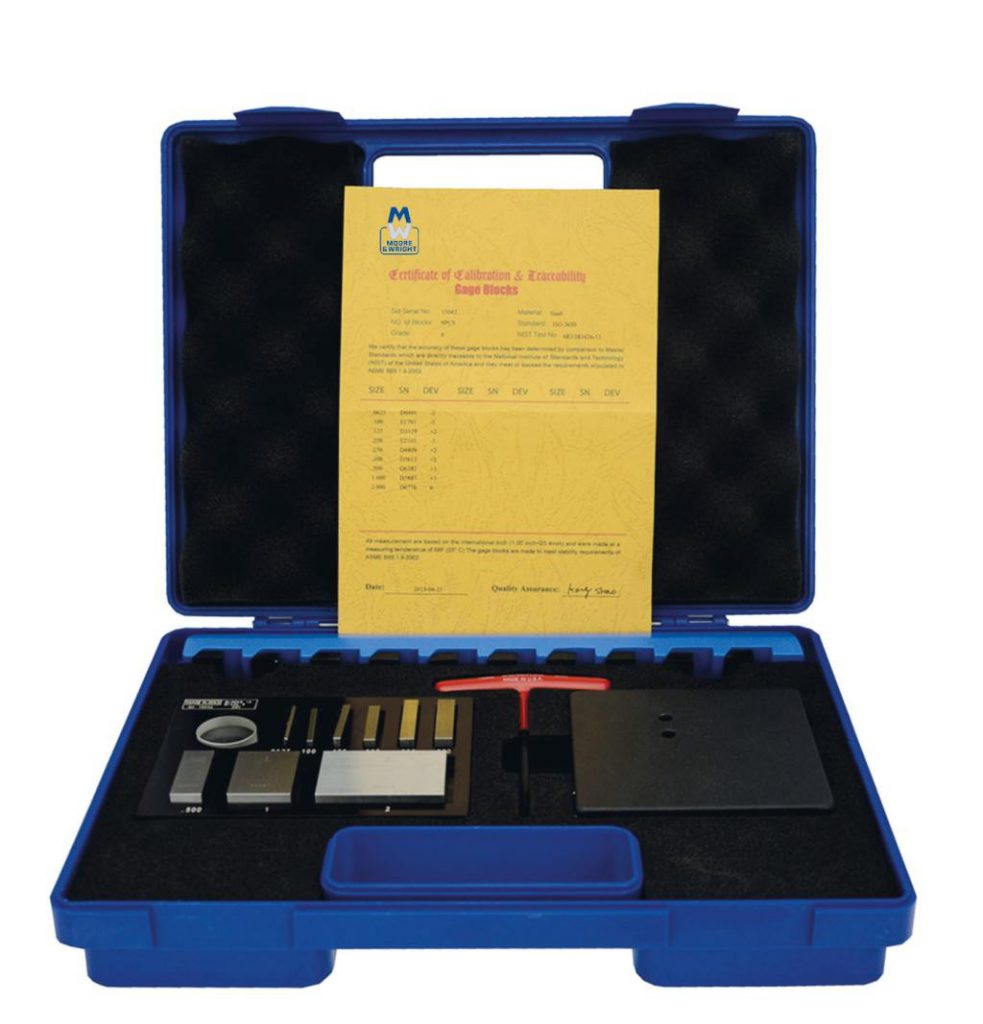

Mic-Check Gauge Block Set MW715-01

Model
Code No. Description
MW715-01 10 pieces Mic-Check  Gauge Block Set plus Optical Flat
Features

Standard: DIN 861

  • For the inspection of micrometers according to DIN 863
  • Grade 0 accuracy
  • Nominal sizes (mm): 2.5, 5.1,  7.7,  10.3,  12.9,  15.0,  17.6,  20.2,  22.8,  25.0 mm
  • Optical Flat: 30mm diameter, 12.0mm thick
  • Supplied with a stand to conveniently hold the slip gauges
  • Can be used horizontally or vertically
  • Supplied in a fitted case with a M&W Calibration certificate
Download Specification

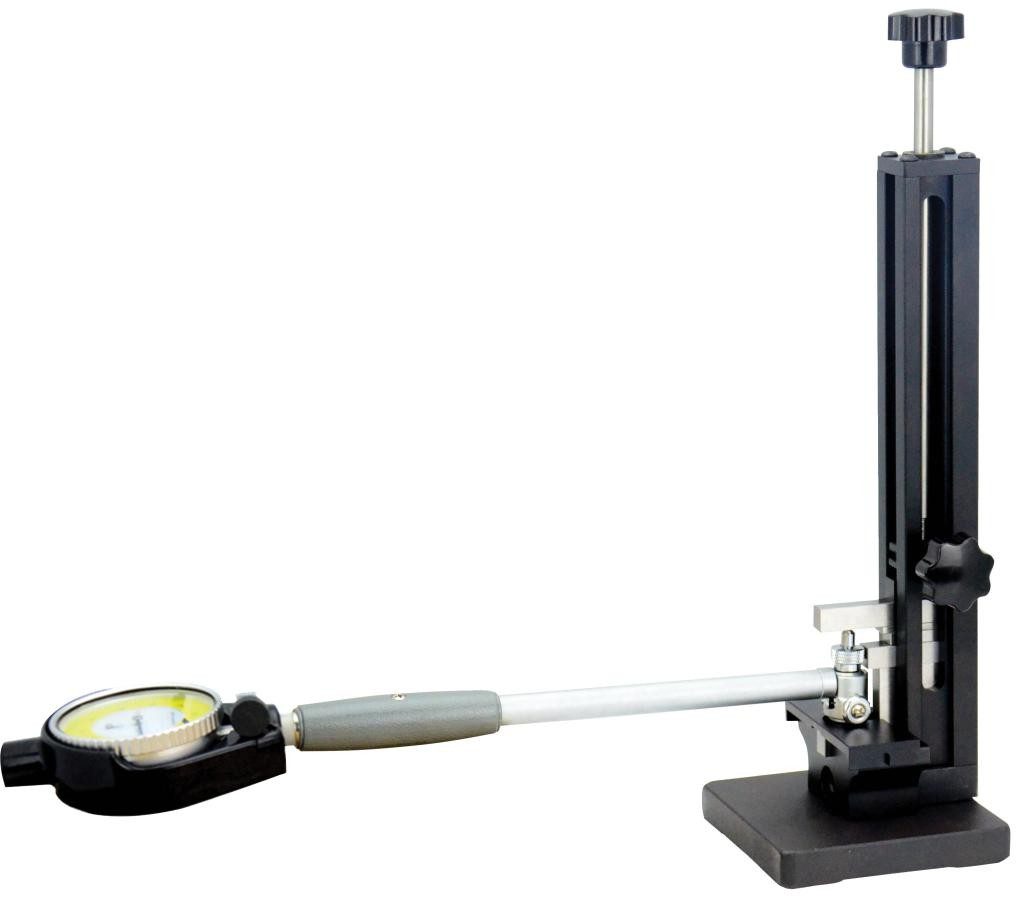

Cylinder Bore Gauging Setting Master Kit MW720-01
Model
Code No. Description
MW720-01 Bore Gauge Setting Master Kit
Features

Features • Bore Gauge Setting Master Kit for accurately setting any 2 point bore gauge up to 160mm in diameter to an accuracy of 0.01mm • Setting master and 33 piece metric gauge block set supplied in plastic case Setting Device • Internal range 160mm • Depth range 25mm • Centraliser width 70mm • Quick-release holder for fast adjustment Gauge Block Set • Accuracy to DIN 861, Grade2 • 33 piece metric steel set • Supplied in a fitted case with MOORE & WRIGHT certificate

Download Specification

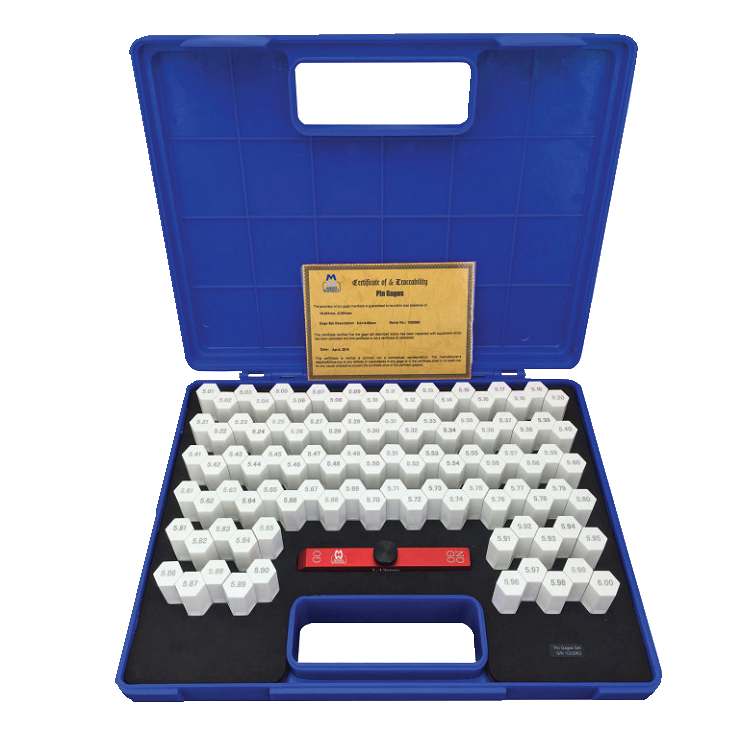

Steel Pin Gauge Set MW725

Model

Selectable from MW725-01 to MW725-10

Model
Code No Description
MW725-01 Steel Pin Gauge Set 51pcs
0.50-1.00×0.01mm
+/- 0.002mm C/W Handle
MW725-02 Steel Pin Gauge Set 51pcs
1.01-2.00×0.01mm
+/- 0.002mm C/W Handle
MW725-03 Steel Pin Gauge Set 51pcs
2.01-3.00×0.01mm
+/- 0.002mm C/W Handle
MW725-04 Steel Pin Gauge Set 51pcs
3.01-4.00×0.01mm
+/- 0.002mm C/W Handle
MW725-05 Steel Pin Gauge Set 51pcs
4.01-5.00×0.01mm
+/- 0.002mm C/W Handle
MW725-06 Steel Pin Gauge Set 51pcs
5.01-6.00×0.01mm
+/- 0.002mm C/W Handle
MW725-07 Steel Pin Gauge Set 51pcs
6.01-7.00×0.01mm
+/- 0.002mm C/W Handle
MW725-08 Steel Pin Gauge Set 51pcs
7.01-8.00×0.01mm
+/- 0.002mm C/W Handle
MW725-09 Steel Pin Gauge Set 51pcs
8.01-9.00×0.01mm
+/- 0.002mm C/W Handle
MW725-10 Steel Pin Gauge Set 51pcs
9.01-10.00×0.01mm
+/- 0.002mm C/W Handle
Features
  • Standard: Factory Standard
  • Boxed Sets complete with handle
  • Each pin is laser engraved with its size above 1.5mm
  • Each pin is stored in its own tube, marked with the pin size
  • Pin length 50mm
  • Supplied with a certificate of conformity
  • Fully hardened to 60/62 HRC
  • Manufacturing tolerance +/- 0.002mm
Download Specification


Steel Gauge Block

Model

Gauges can be supplied in sets or as individual sizes, special sizes up to 100mm (4 inches) in length can also be supplied upon request.

Model

Features
Steel is the traditional material for gauge blocks. Gauges made from steel can provide many years of useful life if used and looked after carefully. They must me cleaned carefully after use, stored in a dry environment and be protected against corrosion.
Opus steel gauge blocks are manufactured from special selected steels and carefully machined to provide gauges of the highest quality, all gauges have the following characteristics

  • Highly alloyed steel
  • Hardness to greater than 63 Rc
  • Aged and stress relieved to promote stability
  • Sets housed in a quality wooden case
Material Characteristics

Coefficient of Thermal Expansion: 11 ±1 x 10-6 per °C Hardness: > 63 Rc Youngs Modulus: 205 Gpa

Tungsten Carbide Gauge Block

Model

Gauges can be supplied in sets or as individual sizes, special sizes up to 100mm (4 inches) in length can also be supplied upon request.

Model

Features

Tungsten carbide is an excellent material to manufacture gauge blocks from. Opus tungsten carbide gauge blocks are extremely accurate, stable and have excellent wringing characteristics. Each gauge is manufactured from carefully selected materials having a hardness of approximately 1500 Hv, they set standards of surface finish that are beyond materials such as steel. Opus has developed production techniques to ensure a micro-fine surface on every tungsten carbide gauge block that it produces. The Opus finish guarantees excellent wringing characteristics and a high resistance to wear. Opus tungsten carbide gauge blocks are rigorously checked for flatness of their measuring surfaces using a laser flatness interferometer.

Material Characteristics

Coefficient of Thermal Expansion: 4.23 x 10-6 per °C Hardness: 1450 – 1500 Hv30 Youngs Modulus: 600 Gpa

Long Series Gauge Block

Model
Gauges can be supplied as individuals or in sets and are available in Grades 2 to K.  The standard ML8 set comprises of 125, 150 175, 200, 250, 300, 400 and 500 mm gauges.
Features
Opus long series steel gauge blocks are carefully manufactured to ISO:3650:1998 from specially selected steel. They have a standard gauge block cross-section of 35mm x 9mm and are available in sizes ranging from 125mm to 1000mm. Each gauge has clamping holes towards both ends for use with Opus toggle clamps so that combination lengths can be achieved both easily and safely.
Material Characteristics
Coefficient of Thermal Expansion: 11 ±1 x 10-6 per °C
Toggle Clamp
Opus toggle clamps are specially designed for ease of use with long series gauge blocks.  Two pins locate on the gauge block holes, a firm sideways pressure on the clamp will snap the clamp into the closed position bringing the gauging faces together and locking them into position. The clamp is released by sideways pressure in the opposite direction. The pin and hence the clamping pressure can be adjusted by means of an adjusting screw on the end of the clamp.
Ceramic Zirco-Blocks Gauge Blocks

Model

Gauges can be supplied in sets or as individual sizes, special sizes up to 100mm (4 inches) in length can also be supplied upon request.

Model

Features

Opus ceramic gauge blocks (Zirco-Blocks) are manufactured from an exceptionally pure grade of zirconia ceramic. The commonly held belief that all ceramic materials are brittle and prone to catastrophic failure can now be dispelled with the remarkable zirconia ceramic material which used to manufacture Opus Zirco-Blocks blocks. Opus Zirco-Blocks are an effective substitute for the traditional steel gauge blocks and out perform them in many applications.The exceptional material combined with Opus’s specially developed lapping techniques and strict quality control produces a gauge of exceptional quality and value Main features include:

  • Coefficient of thermal expansion close to steel
  • Good abrasion resistance – up to 10 times that of steel
  • Very high corrosion resistance
  • High thermal stability – does not react quickly to handling
  • Very good wringing properties
  • Highly resistant to knocks and drops
  • Does not burr easily
Material Characteristics

Coefficient of Thermal Expansion: 9.7 x 10-6 per °C Hardness: 1350 Hv Youngs Modulus: 205 Gpa

Ceramic Tipped Gauge Blocks

Model
  • Available in sets or as standard size individuals up to 500 mm.
  • Standard set composition ML8 comprises 125, 150, 175, 200, 250, 300, 400 & 500 mm
Features
Opus Ceramic Tipped Gauge Blocks are manufactured to the tolerances of  EN ISO:3650:1998. The body of the gauge block is made from high quality stabilised steel, the tips are made from an exceptionally pure grade of Zirconia ceramic material. Key Benefits of Opus Ceramic Tipped Gauge Blocks

  • Each gauge block has clamping holes towards both ends so that Opus toggle clamps can be used to achieve combined lengths safely
  • Ceramic tips and steel body combines the mechanical and thermal characteristics of steel with the longevity and wear characteristics of ceramic
  • All gauges certified in our own UKAS  Accredited Calibration Laboratory with a best uncertainty of measurement of ±0.2 +(1 x L) µm where L is the length of the gauge block  in metres.
  • Available in sets or as standard size individuals up to 500mm.
  • Manufactured to EN ISO:3650:1998 available in Grades 0,1 and 2
  • Standard set composition ML8 comprises 125, 150, 175, 200, 250, 300, 400 & 500 mm
  • Gauges are easily and securely combined using Opus Toggle Clamps
Material Characteristics
Steel Coefficient of Thermal Expansion: 11 ±1 x 10-6 per °C Zirconia Coefficient of Thermal Expansion: 9.7  x 10-6 per °C
OPUS Angle Gauges

Model
Opus Angle Gauges are available as thin series gauges 50mm x 9mm or to NPL Specification MOY/SCMI/18 combination angle gauges.
Features
Both styles are made from high quality steel and hardened to 800 Hv (64 Rc) Minimum.  Each gauge is lapped with a superior, highly reflective, wringable finish.  Flatness of each lapped face is 0.2 µm or less and the faces are square to the ground sides within 2 µm. Angle is controlled to ± 2 seconds of arc.
Precision Balls

Features
Calibrated precision balls are used in a wide range of applications including in the measurement of small internal tapers, internal annular grooves and throated worm wheels. Each standard set of balls contains a range of sizes, with three matched balls per size.  The main features of Opus precision balls are as follows:

  • Manufactured from High Carbon Chrome Steel (AISI 52100-EN31)
  • Available in metric and inch sizes
  • Metric range 1 to 25mm or 1.5 to 12.5mm each in 1mm steps
  • Inch range 1/16 to 1/2 inch in 1/32inch steps or 9/16 to 1inch in 1/16inch steps
  • Special combination sets available
  • Individual sizes available
  • Different materials available
Engineer’s Parallels

Features
Opus Engineer’s Parallels are manufactured to BS 906 Parts 1 & 2, Metric and Imperial Parallels are available as Grade A or Grade B. Grade A is intended for precision applications such as in an inspection department. Grade B is intended more general tool-room type applications. Both grades are made from high quality steel and hardened to 800 Hv (64 Rc), stress relieved and stabilised.
Precision Cubes

Features
Opus Precision Cubes can be used as a general purpose reflector and for providing a 90 degree angle standard in three planes for setting or checking perpendiculars.

  • Standard Sizes available 50 mm (2 inch) or 25 mm (1 inch)
  • Made from high quality Tungsten Carbide or special Tool Steel
  • Supplied complete with a high quality wooden case
  • Supplied complete with a UKAS Calibration Certificate Free of Charge

Other size and accuracy of cubes can be supplied upon request.  For example  to an accuracy of ±1 second instead of ± 2 seconds or with four faces lapped and polished

Material Characteristics
Tungsten Carbide: Coefficient of Thermal Expansion: 4.23 x 10-6 per °C Steel: Coefficient of Thermal Expansion: 11.7 x 10-6 per °C
