Hawkeye Rigid Borescope

Rigid Borescope กล้องบอร์สโคปแบบท่อตรง

กล้องบอร์สโคปใช้ส่องในรู หรือชิ้นงานที่แคบ กล้องชนิดนี้ให้ภาพที่คมชัดที่สุด

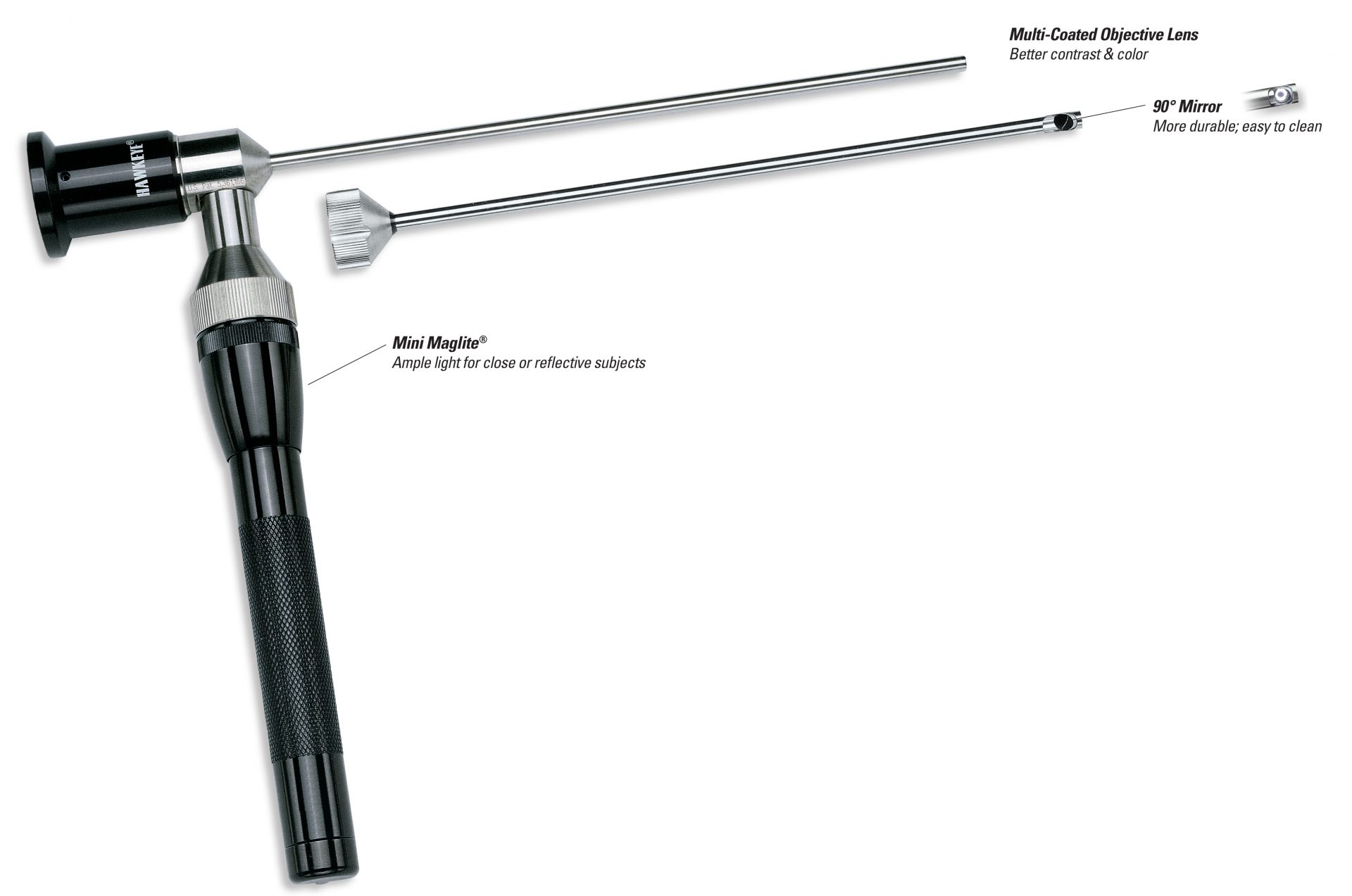

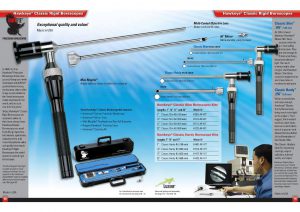

Classic Slim Rigid Borescope (HS)

Rigid Borescope

Classic Slim .165” (4.20 mm)

  • diameter 4.2mm
  • Length 180mm, 305mm, 435mm, 560mm
  • DOV 0, FOV42

Mini Maglite Light

  • HS07-AF-KIT dia 4.2mm L180mm
  • HS12-AF-KIT dia 4.2mm L305mm
  • HS17-AF-KIT dia 4.2mm L435mm
  • HS22-AF-KIT dia 4.2mm L560mm

SuperNOVA Light

  • HS07-AF-NVK dia 4.2mm L180mm
  • HS12-AF-NVK dia 4.2mm L305mm
  • HS17-AF-NVK dia 4.2mm L435mm
  • HS22-AF-NVK dia 4.2mm L560mm
Hawkeye® Classic Slim Specifications
Optics:
  Field-of-View 42º
  Direction-of-View
  Relay Optics endoGRINs® Glass Relay Lenses
  Magnification Borescopes are not fixed magnification like microscopes. See chart.
Mechanical / Construction:
  Length 7″, 12″, 17″, 22″
  Diameter Scope: .165″ (4.20 mm), w/ Mirror Tube: .188 (4.80 mm)
  Lightpost ACMI configuration, Diameter 0.300″
  Eyecup Standard DIN, 32 mm diameter, rotate to focus
Materials:
  Tube 304 Stainless Steel
  All Machined Stainless Steel 303 Stainless Steel
  Eyecup and Focusing Ring Aluminum, black anodized
  Front Window AR coated optical Glass
  Illumination Fiber Optical Glass
  Relay Optics endoGRINs® gradient index glass lenses
Environmental:
  Temperature Range Official – 20º to 120º C.
  Note 1 Hawkeye Rigid Borescopes can be made to operate up to 300 deg. C on a custom Basis. Contact your sales representative for details.
  Note 2 These scope were not designed to operate below 0º. However, several of our customers have successfully used the scopes in liquid Nitrogen at 77 deg. K.
  Pressure All Hawkeye borescopes we designed only for use at ambient pressure, however,  we have several customers who have successfully used Hawkeye Borescopes at pressures up to 500 PSI and down to 10-6 Torr.  As the scopes were not specifically designed for this, the operator does so at his own risk.
  Chemical Resistance All Hawkeye Rigid borescopes (tube only, not the eyepiece end) are water tight and are resistant to most hydrocarbons; oils, gasoline, hydraulic fluid, jet fuel, etc.  Exposure to Acids and strong Alkali should be avoided as it will attack the optical window.

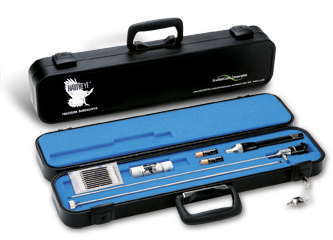

Each Hawkeye® Classic Slim Borescope Kit contains:

• Hawkeye® Classic Slim Precision Borescope • Hawkeye® Mirror Tube • Mini Maglite® Flashlight & 2 AA batteries • Rugged Hawkeye® Carrying Case • Hawkeye® Cleaning Kit

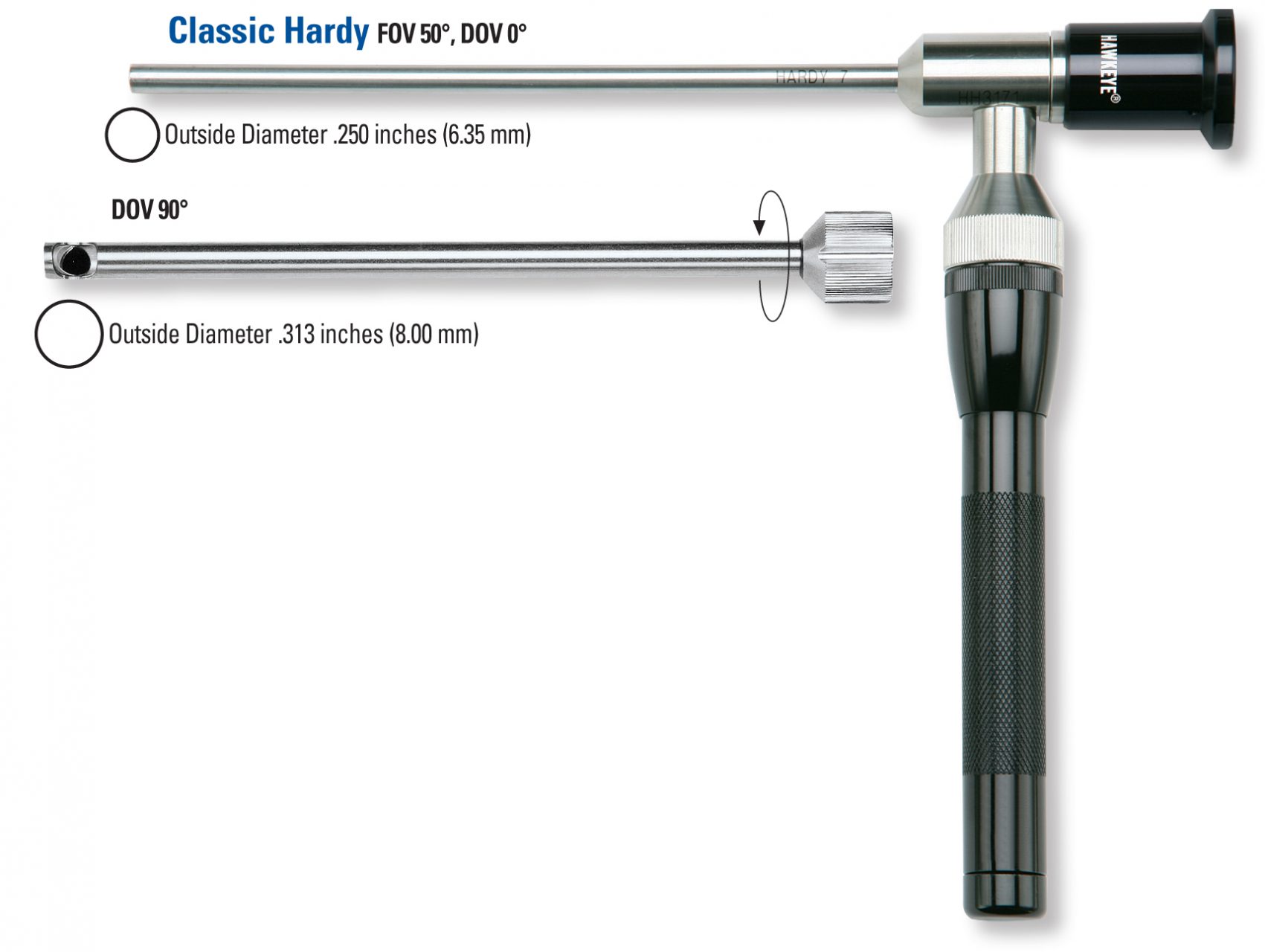

Classic Hardy Rigid Borescope (HH)

Rigid Borescope

Classic Hardy™

  • Diameter 6.35mm
  • Length 180mm, 305mm, 435mm, 560mm
  • DOV 0, FOV 50

Mini Maglite Light

  • HH07-AF-KIT dia 6.35mm L180mm
  • HH12-AF-KIT dia 6.35mm L305mm
  • HH17-AF-KIT dia 6.35mm L435mm
  • HH22-AF-KIT dia 6.35mm L560mm

SuperNOVA Light

  • HH07-AF-NVK dia 6.35mm L180mm
  • HH12-AF-NVK dia 6.35mm L305mm
  • HH17-AF-NVK dia 6.35mm L435mm
  • HH22-AF-NVK dia 6.35mm L560mm
Hawkeye® Classic Hardy Specifications
Optics:
  Field-of-View 50º
  Direction-of-View
  Relay Optics endoGRINs® Glass Relay Lenses
  Magnification Borescopes are not fixed magnification like microscopes. See chart.
Mechanical / Construction:
  Length 7″, 12″, 17″, 22″
  Diameter Scope: .250″ (6.35 mm), w/Mirror Tube: .313 (8.00 mm)
  Lightpost ACMI configuration, Diameter 0.300″
  Eyecup Standard DIN, 32 mm diameter, rotate to focus
Materials:
  Tube 304 Stainless Steel
  All Machined Stainless Steel 303 Stainless Steel
  Eyecup and Focusing Ring Aluminum, black anodized
  Front Window AR coated optical Glass
  Illumination Fiber Optical Glass
  Relay Optics endoGRINs® gradient index glass lenses
Environmental:
  Temperature Range Official – 20º to 120º C.
  Note 1 Hawkeye Rigid Borescopes can be made to operate up to 300 deg. C on a custom Basis. Contact your sales representative for details.
  Note 2 These scope were not designed to operate below 0º. However, several of our customers have successfully used the scopes in liquid Nitrogen at 77 deg. K.
  Pressure All Hawkeye borescopes we designed only for use at ambient pressure, however,  we have several customers who have successfully used Hawkeye Borescopes at pressures up to 500 PSI and down to 10-6 Torr.  As the scopes were not specifically designed for this, the operator does so at his own risk.
  Chemical Resistance All Hawkeye Rigid borescopes (tube only, not the eyepiece end) are water tight and are resistant to most hydrocarbons; oils, gasoline, hydraulic fluid, jet fuel, etc.  Exposure to Acids and strong Alkali should be avoided as it will attack the optical window.

Each Hawkeye® Classic Hardy Borescope Kit contains:

• Hawkeye® Classic Hardy Precision Borescope • Hawkeye® Mirror Tube • Mini Maglite® Flashlight & 2 AA batteries • Rugged Hawkeye® Carrying Case • Hawkeye® Cleaning Kit

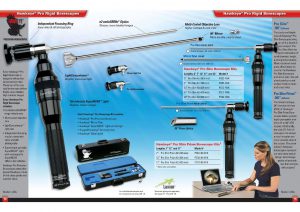

Pro Slim Rigid Borescope (PS)

Rigid Borescope

Pro Slim .165” (4.20 mm)

  • diameter 4.2mm
  • Length 50.8mm, 180mm, 305mm, 435mm, 560mm
  • DOV 0, FOV42

Pro Slim Prism .165” (4.20 mm)

  • diameter 4.2mm
  • Length 180mm, 305mm, 435mm
  • DOV 30, FOV 70

Pro Slim Borescope Kit

  • PS02-NVK dia 4.2mm L50.8mm
  • PS07-NVK dia 4.2mm L180mm
  • PS12-NVK dia 4.2mm L305mm
  • PS17-NVK dia 4.2mm L435mm
  • PS22-NVK dia 4.2mm L560mm

Pro Slim Prism Borescope Kit

  • PS07-30-NVK dia 4.2mm L180mm DOV 30
  • PS12-30-NVK dia 4.2mm L305mm DOV 30
  • PS17-30-NVK dia 4.2mm L435mm DOV 30
Hawkeye® Pro Slim Specifications
Optics:
  Field-of-View 42º
  Direction-of-View 0º, 30o Prism, 900 (with Mirror Tube adaptor)
  Relay Optics e2 endoGRINs® Glass Relay Lenses
  Magnification Borescopes are not fixed magnification like microscopes. See chart.
Mechanical / Construction:
  Length 7″, 12″, 17″, 22″
  Diameter Scope: .165″ (4.20 mm), w/ Mirror Tube: .188 (4.80 mm)
  Lightpost LightConcentrator™ ACMI configuration, Diameter 0.300″
  Eyecup Standard DIN, 32 mm diameter, with independent focusing ring
Materials:
  Tube 304 Stainless Steel
  All Machined Stainless Steel 303 Stainless Steel
  Eyecup and Focusing Ring Aluminum, black anodized
  Front Window AR coated optical Glass
  Illumination Fiber Optical Glass
  Relay Optics e2 endoGRINs® gradient index glass lenses
Environmental:
  Temperature Range Official – 20º to 120º C.
  Note 1 Hawkeye Pro Rigid Borescopes can be made to operate up to 300 deg. C on a custom Basis. Contact your sales representative for details.
  Note 2 These scope were not designed to operate below 0º. However, several of our customers have successfully used the scopes in liquid Nitrogen at 77 deg. K.
  Pressure All Hawkeye borescopes we designed only for use at ambient pressure, however,  we have several customers who have successfully used Hawkeye Borescopes at pressures up to 500 PSI and down to 10-6 Torr.  As the scopes were not specifically designed for this, the operator does so at his own risk.
  Chemical Resistance All Hawkeye Pro Rigid borescopes (tube only, not the eyepiece end) are water tight and are resistant to most hydrocarbons; oils, gasoline, hydraulic fluid, jet fuel, etc.  Exposure to Acids and strong Alkali should be avoided as it will attack the optical window.

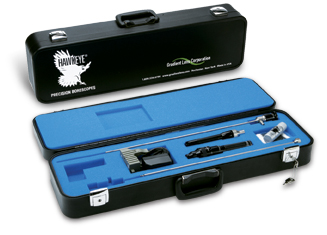

Each Hawkeye® Pro Slim Borescope Kit contains:

• Hawkeye® Pro Slim Precision Borescope • Hawkeye® Mirror Tube • Hawkeye® SuperNOVA™ Light and Charger • Rugged Hawkeye® Carrying Case • Hawkeye® Cleaning Kit

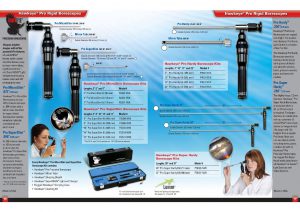

Pro MicroSlim Rigid Borescope (MS)

Rigid Borescope

Pro MicroSlim .073” (1.85 mm)

  • diameter 1.85mm
  • Length 80mm, 120mm, 178mm
  • DOV 0, FOV40

Pro MicroSlim Borescope Kit

  • MS03-NVK dia 1.85mm L80mm
  • MS05-NVK dia 1.85mm L120mm
  • MS07-NVK dia 1.85mm L178mm
Hawkeye® Pro MicroSlim Specifications
Optics:
  Field-of-View 42º
  Direction-of-View
  Relay Optics e2 endoGRINs® Glass Relay Lenses
  Magnification Borescopes are not fixed magnification like microscopes. See chart.
Mechanical / Construction:
  Length 3″, 5″, 7″
  Diameter Scope: .073″ (1.85 mm), w/ Mirror Tube: .084 (2.13 mm)
  Lightpost LightConcentrator™ ACMI configuration, Diameter 0.300″
  Eyecup Standard DIN, 32 mm diameter, with independent focusing ring
Materials:
  Tube 304 Stainless Steel
  All Machined Stainless Steel 303 Stainless Steel
  Eyecup and Focusing Ring Aluminum, black anodized
  Front Window AR coated optical Glass
  Illumination Fiber Optical Glass
  Relay Optics e2 endoGRINs® gradient index glass lenses
Environmental:
  Temperature Range Official – 20º to 120º C.
  Note 1 Hawkeye Pro Rigid Borescopes can be made to operate up to 300 deg. C on a custom Basis. Contact your sales representative for details.
  Note 2 These scope were not designed to operate below 0º. However, several of our customers have successfully used the scopes in liquid Nitrogen at 77 deg. K.
  Pressure All Hawkeye borescopes we designed only for use at ambient pressure, however,  we have several customers who have successfully used Hawkeye Borescopes at pressures up to 500 PSI and down to 10-6 Torr.  As the scopes were not specifically designed for this, the operator does so at his own risk.
  Chemical Resistance All Hawkeye Pro Rigid borescopes (tube only, not the eyepiece end) are water tight and are resistant to most hydrocarbons; oils, gasoline, hydraulic fluid, jet fuel, etc.  Exposure to Acids and strong Alkali should be avoided as it will attack the optical window.

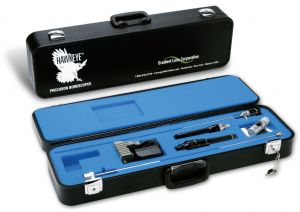

Each Hawkeye® Pro MicroSlim Borescope Kit contains:

• Hawkeye® Pro MicroSlim Borescope • Hawkeye® Mirror Tube • Hawkeye® Shipping Sheath • Hawkeye® SuperNOVA™ Light and Charger • Rugged Hawkeye® Carrying Case • Hawkeye® Cleaning Kit

Pro SuperSlim Rigid Borescope (PSS)

Rigid Borescope

Pro SuperSlim

  • diameter 2.49mm, 2.80mm
  • Length 102mm, 185mm, 265mm, 350mm, 435mm
  • DOV 0, FOV40

Pro SuperSlim Borescope Kit

  • PSS04-NVK dia 2.49mm L102mm
  • PSS08-NVK dia 2.49mm L185mm
  • PSS10-NVK dia 2.80mm L265mm
  • PSS14-NVK dia 2.80mm L350mm
  • PSS17-NVK dia 2.80mm L435mm
Hawkeye® Pro SuperSlim Specifications
Optics:
  Field-of-View 42º
  Direction-of-View
  Relay Optics e2 endoGRINs® Glass Relay Lenses
  Magnification Borescopes are not fixed magnification like microscopes. See chart.
Mechanical / Construction:
  Length 4″, 8″, 10″, 14″, 17″
  Diameter 4″ and 8 ” Scopes: .098″ (2.4 mm), 10″, 14″ and 17″ Scopes: .110″ (2.8 mm). 4″ and 8″ Scopes w/ Mirror Tube: .109 (2.8 mm), 10″, 14″ and 17″ Scopes w/ Mirror Tube: .130 (3.3 mm)
  Lightpost LightConcentrator™ ACMI configuration, Diameter 0.300″
  Eyecup Standard DIN, 32 mm diameter, with independent focusing ring
Materials:
  Tube 304 Stainless Steel
  All Machined Stainless Steel 303 Stainless Steel
  Eyecup and Focusing Ring Aluminum, black anodized
  Front Window AR coated optical Glass
  Illumination Fiber Optical Glass
  Relay Optics e2 endoGRINs® gradient index glass lenses
Environmental:
  Temperature Range Official – 20º to 120º C.
  Note 1 Hawkeye Pro Rigid Borescopes can be made to operate up to 300 deg. C on a custom Basis. Contact your sales representative for details.
  Note 2 These scope were not designed to operate below 0º. However, several of our customers have successfully used the scopes in liquid Nitrogen at 77 deg. K.
  Pressure All Hawkeye borescopes we designed only for use at ambient pressure, however,  we have several customers who have successfully used Hawkeye Borescopes at pressures up to 500 PSI and down to 10-6 Torr.  As the scopes were not specifically designed for this, the operator does so at his own risk.
  Chemical Resistance All Hawkeye Pro Rigid borescopes (tube only, not the eyepiece end) are water tight and are resistant to most hydrocarbons; oils, gasoline, hydraulic fluid, jet fuel, etc.  Exposure to Acids and strong Alkali should be avoided as it will attack the optical window.

Each Hawkeye® Pro SuperSlim Borescope Kit contains:

• Hawkeye® Pro SuperSlim Borescope • Hawkeye® Mirror Tube • Hawkeye® Shipping Sheath • Hawkeye® SuperNOVA™ Light and Charger • Rugged Hawkeye® Carrying Case • Hawkeye® Cleaning Kit

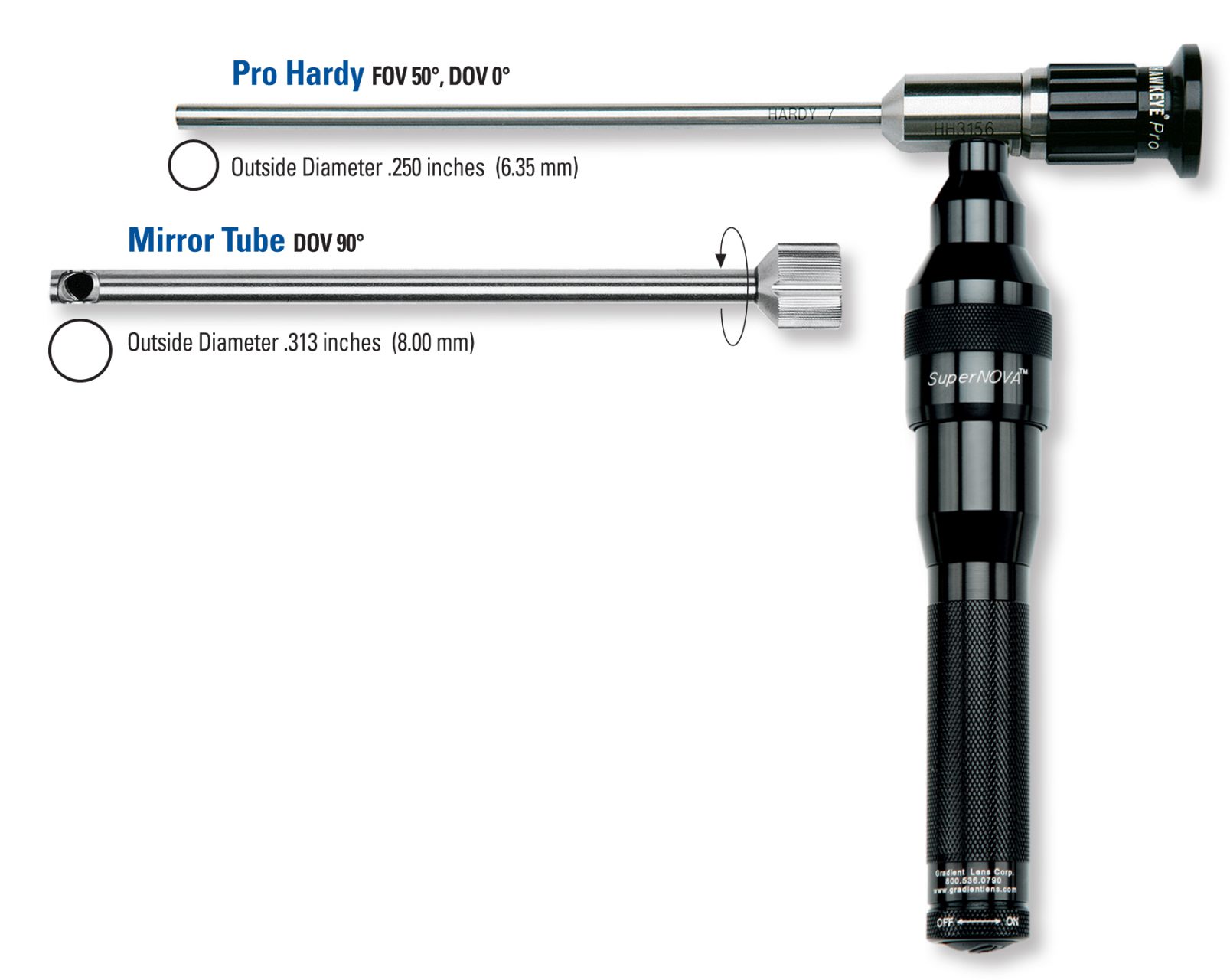

Pro Hardy Rigid Borescope (PH)

Rigid Borescope

Pro Hardy Borescope

  • diameter 6.35mm
  • Length 180mm, 305mm, 435mm, 559mm
  • DOV 0, FOV50

Hawkeye Pro Hardy Borescope Kit

  • PH07-NVK dia6.35mm L180mm
  • PH12-NVK dia6.35mm L305mm
  • PH17-NVK dia6.35mm L435mm
  • PH22-NVK dia6.35mm L559mm
Hawkeye® Pro Hardy Specifications
Optics:
  Field-of-View 50º
  Direction-of-View
  Relay Optics e2 endoGRINs® Glass Relay Lenses
  Magnification Borescopes are not fixed magnification like microscopes. See chart.
Mechanical / Construction:
  Length 7″, 12″, 17″, 22″
  Diameter Scope: .250″ (6.35 mm), w/ Mirror Tube: .313 (8.00 mm)
  Lightpost LightConcentrator™ ACMI configuration, Diameter 0.300″
  Eyecup Standard DIN, 32 mm diameter, with independent focusing ring
Materials:
  Tube 304 Stainless Steel
  All Machined Stainless Steel 303 Stainless Steel
  Eyecup and Focusing Ring Aluminum, black anodized
  Front Window AR coated optical Glass
  Illumination Fiber Optical Glass
  Relay Optics e2 endoGRINs® gradient index glass lenses
Environmental:
  Temperature Range Official – 20º to 120º C.
  Note 1 Hawkeye Pro Rigid Borescopes can be made to operate up to 300 deg. C on a custom Basis. Contact your sales representative for details.
  Note 2 These scope were not designed to operate below 0º. However, several of our customers have successfully used the scopes in liquid Nitrogen at 77 deg. K.
  Pressure All Hawkeye borescopes we designed only for use at ambient pressure, however,  we have several customers who have successfully used Hawkeye Borescopes at pressures up to 500 PSI and down to 10-6 Torr.  As the scopes were not specifically designed for this, the operator does so at his own risk.
  Chemical Resistance All Hawkeye Pro Rigid borescopes (tube only, not the eyepiece end) are water tight and are resistant to most hydrocarbons; oils, gasoline, hydraulic fluid, jet fuel, etc.  Exposure to Acids and strong Alkali should be avoided as it will attack the optical window.

Each Hawkeye® Pro Hardy Borescope Kit contains:

• Hawkeye® Pro Hardy Precision Borescope • Hawkeye® Mirror Tube • Hawkeye® SuperNOVA™ Light and Charger • Rugged Hawkeye® Carrying Case • Hawkeye® Cleaning Kit

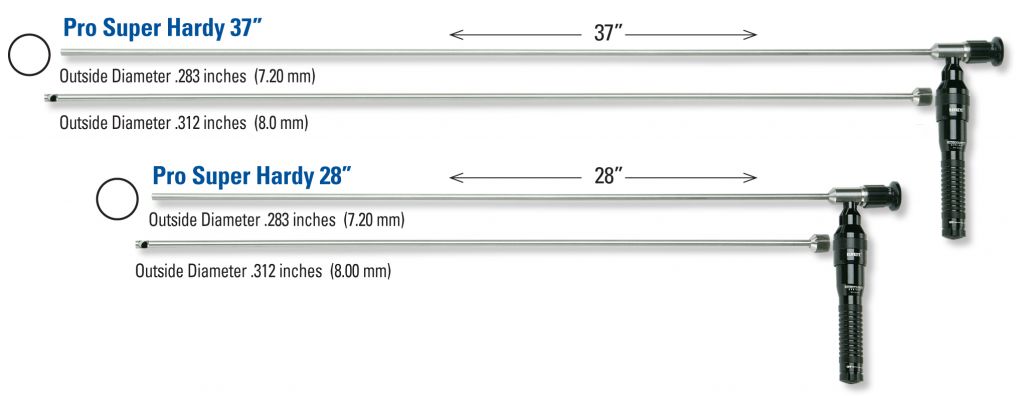

Pro Super Hardy Rigid Borescope (PSH)

Rigid Borescope

Pro Super Hardy Borescope

  • diameter 7.20mm
  • Length 711mm, 940mm

Hawkeye Pro Super Hardy Borescope Kit

  • PSH28-NVK dia7.20mm L711mm
  • PSH37-NVK dia7.20mm L940mm
Hawkeye® Pro Super Hardy Specifications
Optics:
  Field-of-View 50º
  Direction-of-View
  Relay Optics e2 endoGRINs® Glass Relay Lenses
  Magnification Borescopes are not fixed magnification like microscopes. See chart.
Mechanical / Construction:
  Length 28″, 37″
  Diameter Scope: .283″ (7.20 mm), w/ Mirror Tube: .312 (8.00 mm)
  Lightpost LightConcentrator™ ACMI configuration, Diameter 0.300″
  Eyecup Standard DIN, 32 mm diameter, with independent focusing ring
Materials:
  Tube 304 Stainless Steel
  All Machined Stainless Steel 303 Stainless Steel
  Eyecup and Focusing Ring Aluminum, black anodized
  Front Window AR coated optical Glass
  Illumination Fiber Optical Glass
  Relay Optics e2 endoGRINs® gradient index glass lenses
Environmental:
  Temperature Range Official – 20º to 120º C.
  Note 1 Hawkeye Pro Rigid Borescopes can be made to operate up to 300 deg. C on a custom Basis. Contact your sales representative for details.
  Note 2 These scope were not designed to operate below 0º. However, several of our customers have successfully used the scopes in liquid Nitrogen at 77 deg. K.
  Pressure All Hawkeye borescopes we designed only for use at ambient pressure, however,  we have several customers who have successfully used Hawkeye Borescopes at pressures up to 500 PSI and down to 10-6 Torr.  As the scopes were not specifically designed for this, the operator does so at his own risk.
  Chemical Resistance All Hawkeye Pro Rigid borescopes (tube only, not the eyepiece end) are water tight and are resistant to most hydrocarbons; oils, gasoline, hydraulic fluid, jet fuel, etc.  Exposure to Acids and strong Alkali should be avoided as it will attack the optical window.

Each Hawkeye® Pro Hardy Borescope Kit contains:

• Hawkeye® Pro Hardy Precision Borescope • Hawkeye® Mirror Tube • Hawkeye® SuperNOVA™ Light and Charger • Rugged Hawkeye® Carrying Case • Hawkeye® Cleaning Kit
